Lang Manufacturing (Middleby) 124TC LG Series Electric Griddles
Description

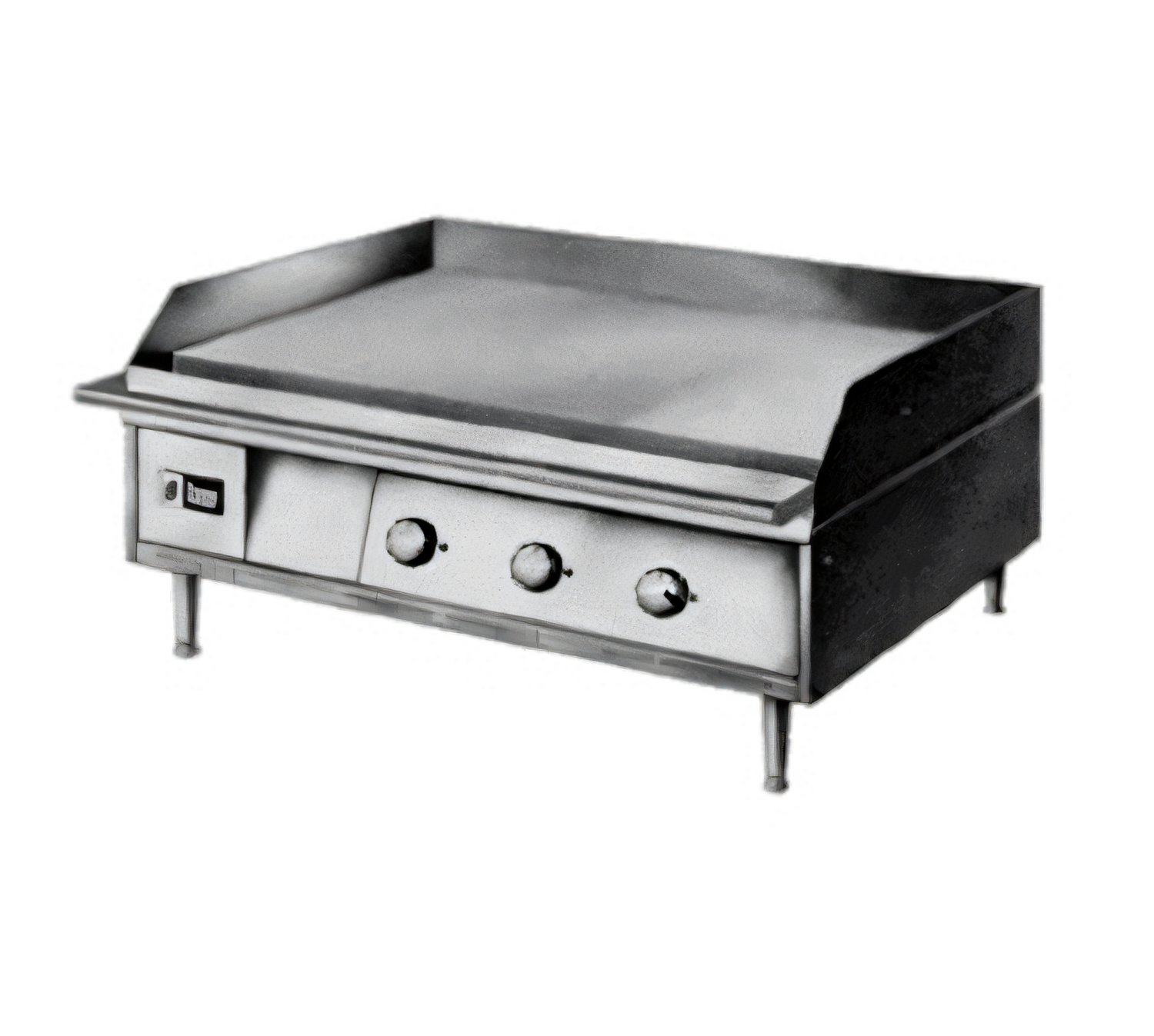

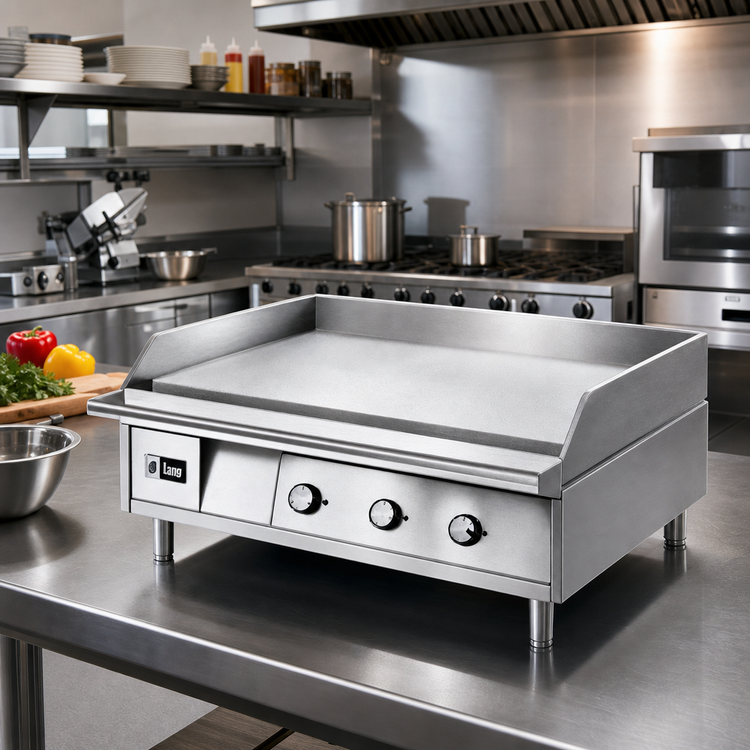

Lang LG Series 24" Electric Countertop Griddle – Polished Chrome Plate, 12 kW
Model 124TC | Part of the LG Heavy-Duty Griddle FamilyEngineered for busy diners, hotels, and corporate kitchens, the Lang LG Series pairs a full-inch chrome plate with quick-reacting Accu-Temp™ snap-action controls to deliver unwavering surface temperatures, rapid recovery, and a mirror-smooth finish that wipes clean in seconds.
Why You’ll Love It
- Compact 24" W × 23" D cooking zone handles breakfast to late-night menus without wasting space.

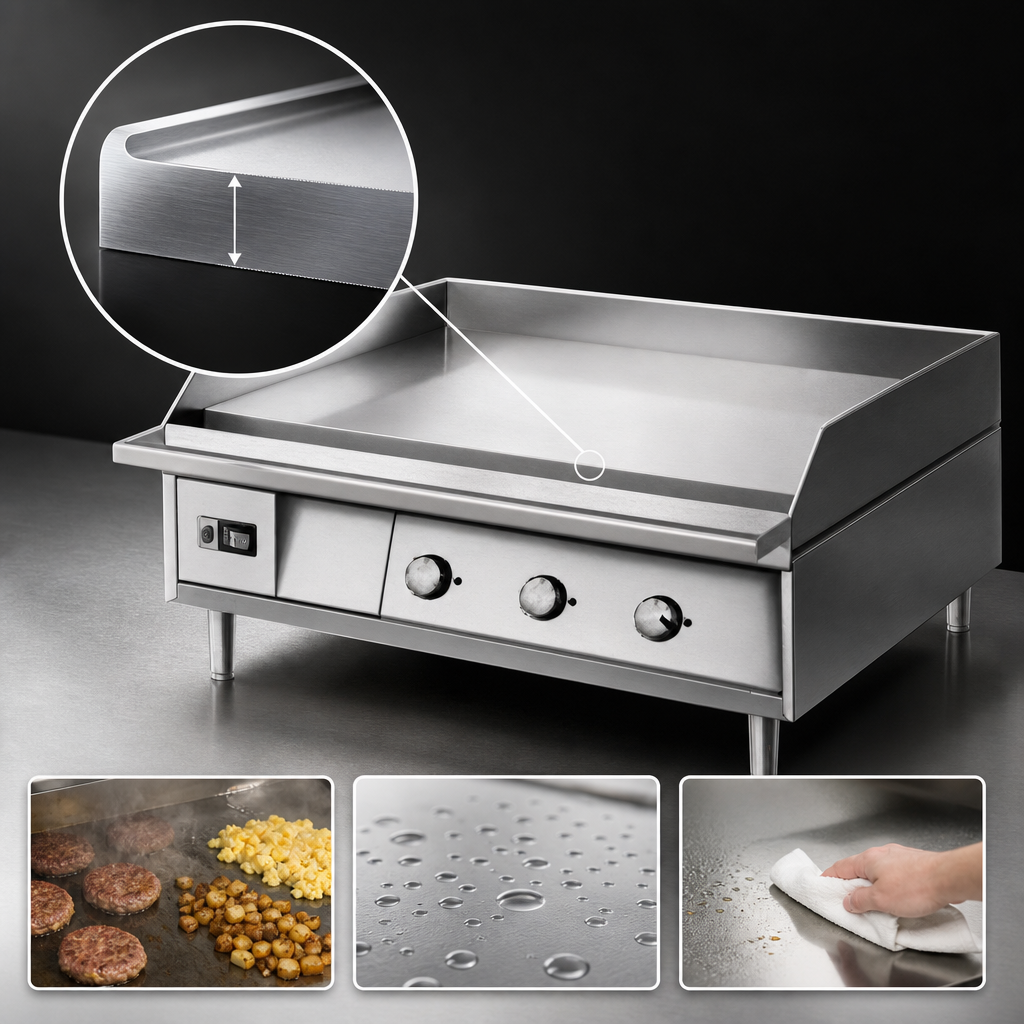

- 1" thick T1 armor-grade steel plate coated in polished chrome for:
- Superior heat retention &fast recovery
- Minimal flavor transfer
- Cooler kitchen environment & easier cleanup
- Two 6 kW incoloy-sheathed elements (12 kW total) embedded directly under the plate for even heating.

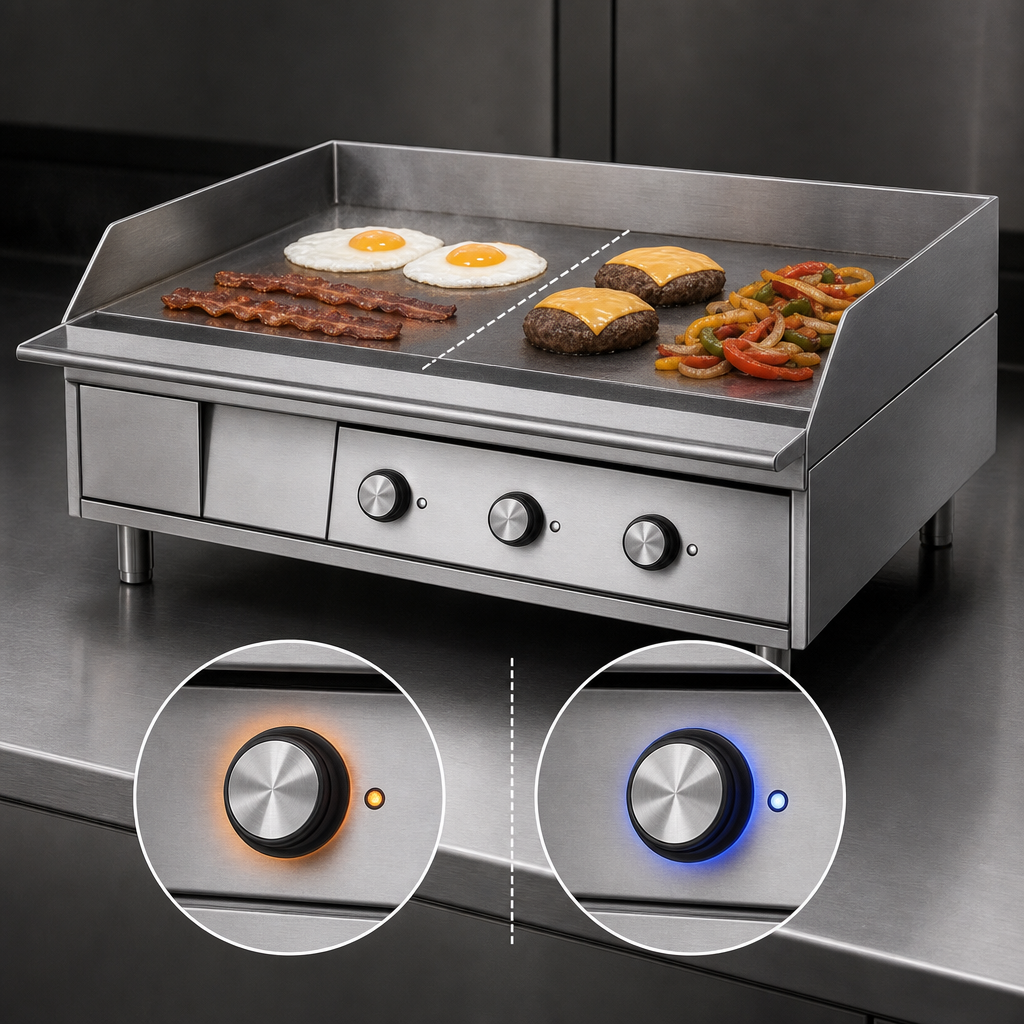

- Independent Accu-Temp™ snap-action thermostats—200 °F – 550 °F (93 °C – 288 °C)—one per 12" zone.

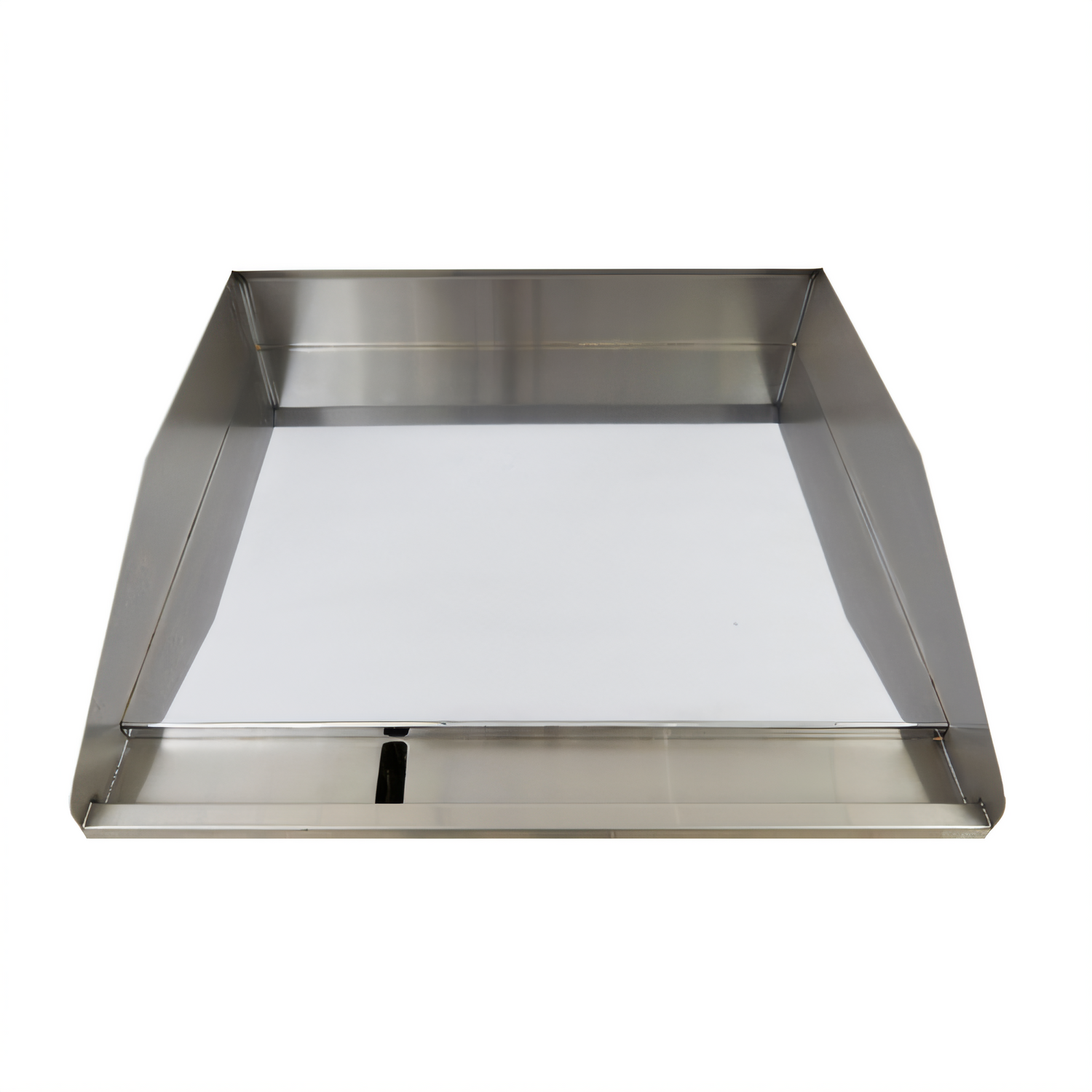

- 5" tapered, wrap-around splash guard plus 3.5" × 1" front grease trough feeding an 8 qt stainless drawer.
- Heavy welded steel chassis and all-stainless exterior built for years of round-the-clock service.
- (4) 4" stainless steel legs with 1-5⁄8" adjustment for easy leveling on any counter.
- Field-convertible 208 / 240 V, 1- or 3-phase (480 V 3-phase available) hard-wire connection.
- NSF & cETLus certified; proudly Made in the USA.
Performance Snapshot
With 6 kW of power allocated to every 12" of plate, the LG Series rebounds instantly when product is loaded, keeping tickets moving and portions consistent. The chrome surface releases delicate items like eggs or salmon fillets with virtually no oil, slashing cleanup time and food costs.
Specifications
| Cooking surface | 24" W × 23" D (610 mm × 584 mm) |
|---|---|
| Plate material | 1" thick polished chrome over T1 steel |
| Total power | 12 kW (2 × 6 kW zones) |
| Temperature range | 200 °F – 550 °F (93 °C – 288 °C) |
| Controls | (2) Accu-Temp™ snap-action thermostats, independent |
| Overall dimensions | 24.1" W × 28.5" D × 18.8" H (612 mm × 724 mm × 478 mm) |
| Electrical | 208 / 240 V 1ø or 3ø, field-convertible • 480 V 3ø option |
| Grease capacity | 8 qt (7.6 L) slide-out drawer |
| Shipping weight | ≈ 300 lb (136 kg) |
| Certifications | NSF, cETLus |
Included & Optional Items
- Included: 4" adjustable legs, wrap-around splash guard, 8 qt grease drawer, installation & operation manual.
- Factory options: Selectronic™ solid-state controls (±4 °F accuracy), grooved plate, clamshell hoods, equipment stand with legs or casters.
Warranty Coverage
• 2-year parts & labor on the complete unit
• 5-year warranty against chrome surface peeling
Need more capacity? The LG Series is available in widths up to 72". Search “Lang LG Griddles” for additional sizes and control options.
