Lang Manufacturing (Middleby)

Lang 24-Inch Electric Infrared Quartz Cheesemelter, Wall-Mounted/Countertop Convertible, 4-Position Rack

SKU: 124CMW
$4,577.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Broilers Charbroilers & Grills Cheese Melters Cheesemelters Lang Manufacturing (Middleby) New Arrivals Restaurant Equipment

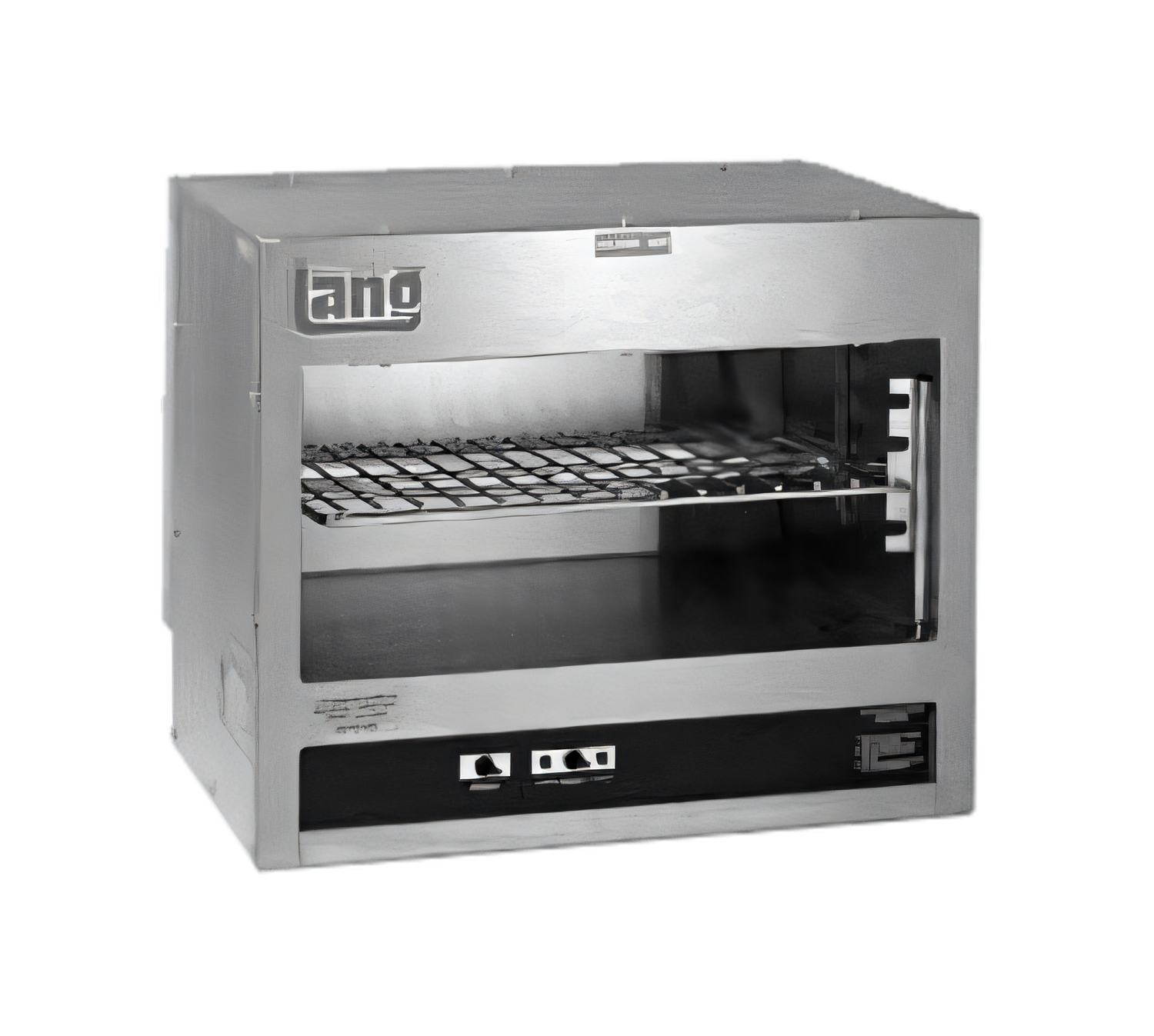

Lang 24-Inch Electric Infrared Quartz Cheesemelter, Wall-Mounted/Countertop Convertible, 4-Position Rack

Stainless steel construction, weight-sensing controls, 208/240V 1-phase

Fast-heating infrared quartz elements and weight-sensing controls make this compact cheesemelter a reliable finishing station with minimal preheat.

  • Infrared quartz heaters deliver intense finishing heat in seconds.
  • Weight-sensing instant on/off helps reduce idle energy use.
  • Four-position chrome-plated rack provides flexible browning control.
  • Ships as a wall-mount unit and can be adapted for countertop use with optional legs.
  • Removable back panel supports pass-through operation.
  • Stainless steel body and interior with aluminized steel rear cover for durability.

Overall Dimensions:

24.0"W x 16.8"D x 19.5"H

Product Weight:

115.0 lb

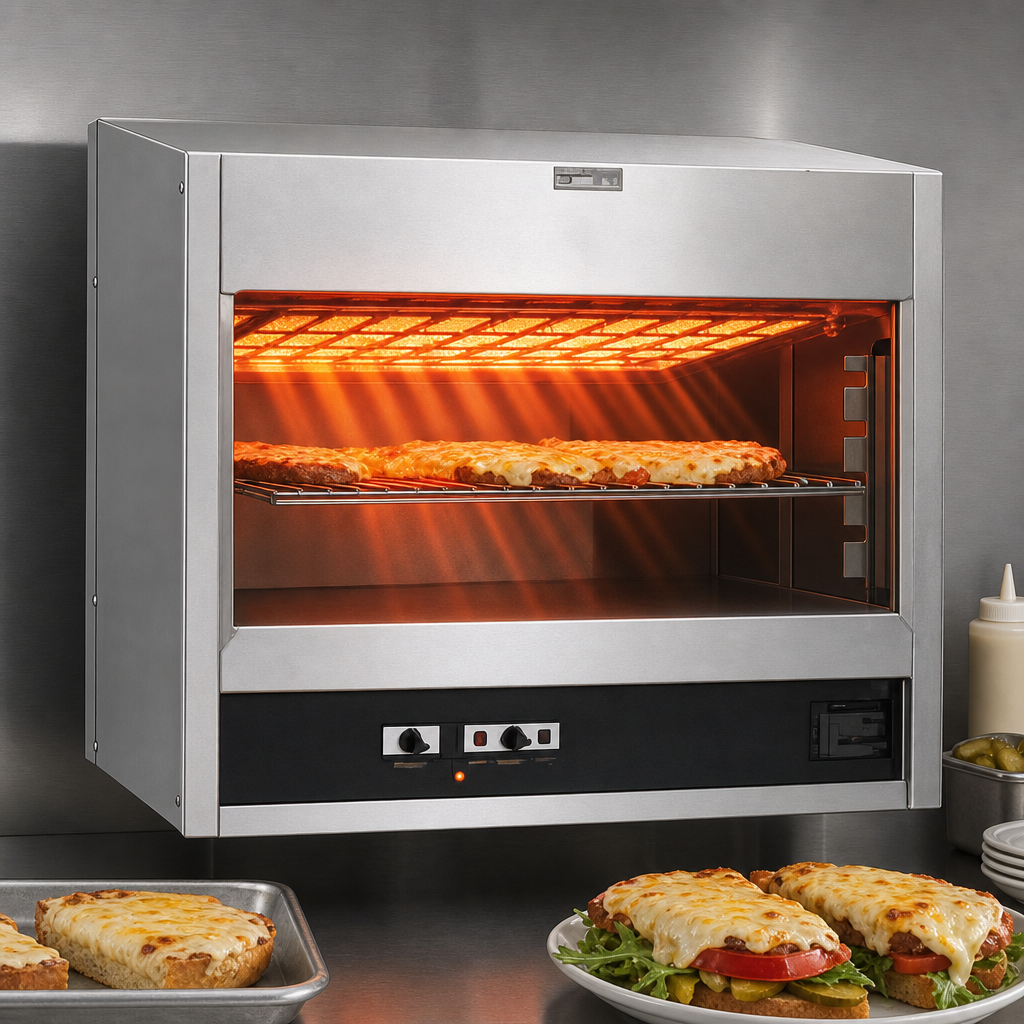

Infrared Quartz Heating

Infrared quartz heaters reach operating temperature in seconds for fast finishing and no preheating delay.

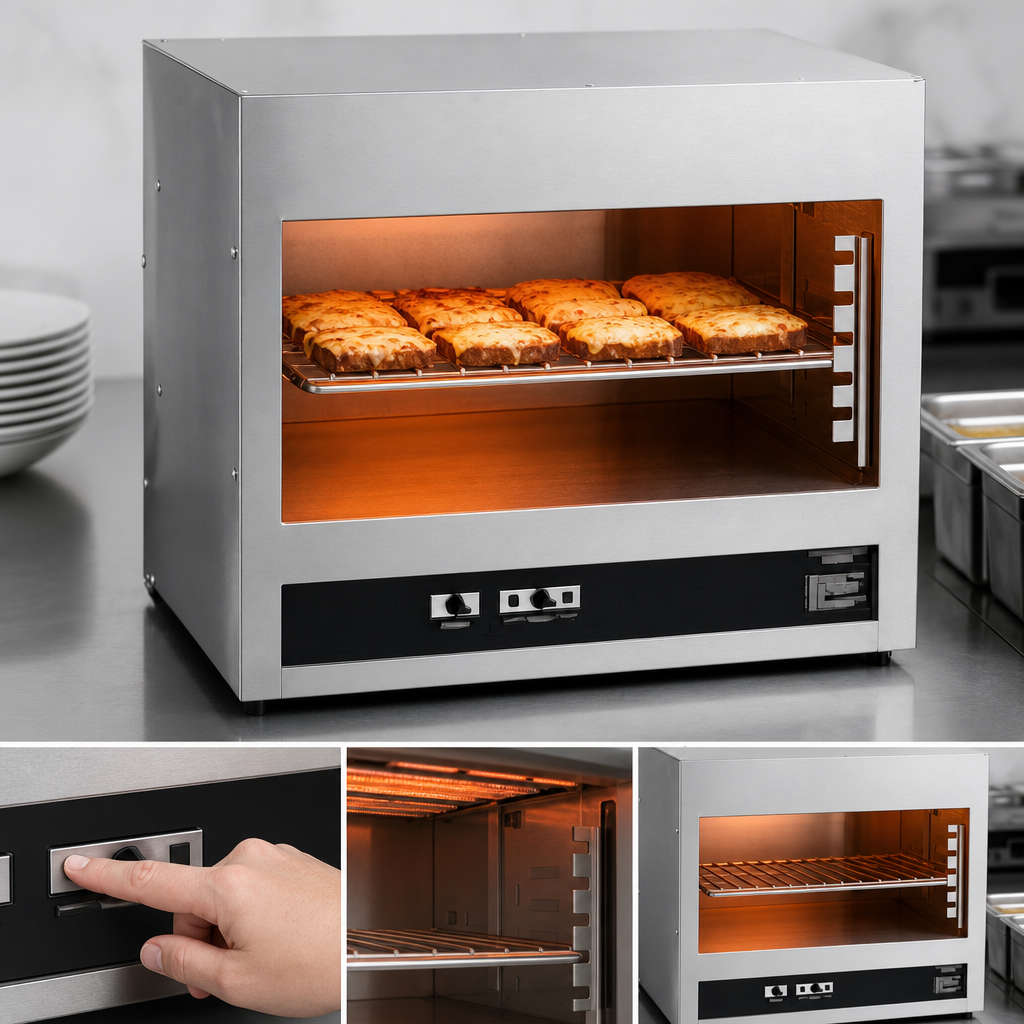

Weight-Sensing Controls

Plate-activated instant on/off operation with a constant heat setting helps save energy between uses.

Four-Position Chrome-Plated Rack

Adjustable rack positions give operators flexible control over finishing results.

Wall or Countertop Use

Universal wall and counter mounting is included, and optional legs allow countertop installation.

Pass-Through Capability

A removable back panel allows the unit to be used as a pass-through cheesemelter.

Stainless Steel Construction

Stainless steel exterior and interior with an aluminized steel rear cover for long-lasting commercial use.

High Heat Output

Uses 1200 watts per foot of unit length for strong finishing performance.

Type Cheesemelter
Style Infrared Quartz
Installation Type Wall Mounted
Controls Weight Sensing
Rack Positions 4
Voltage 208/240 Volts
Phase 1-Phase
Amps 11.5 Amps at 208 Volts / 10 Amps at 240 Volts
Watts 2.4 kW
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 17 Inches
Shipping Height 20 Inches
Shipping Weight 115 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It uses infrared quartz heaters that operate at 1650°F and heat in seconds.
It operates on 1-phase power at 208 or 240 volts and draws 11.5 amps at 208 volts or 10 amps at 240 volts.
Yes. It ships as a wall-mount unit, and optional four-inch legs are available for countertop use.
Yes. The removable back panel allows pass-through operation.
Allow 2 inches on each side and 15 inches in front; if used as a pass-through, keep 15 inches in back as well.
The unit includes a 1-year parts and labor warranty, and the quartz heaters carry a 90-day warranty.
