Lakeside Manufacturing 9600 Mobile Stainless Steel Hand Washing Station with Cold Water Faucet, 5-Gallon Fresh/7-Gallon Waste Water

SKU: 9600 GTIN: 747069032503
$6,344.50
/each
Free Shipping
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Plumbing Supplies Commercial Sinks Equipment Hand Sinks Hand Sinks & Handwashing Stations Hand Wash Sinks Lakeside Manufacturing New Arrivals Plumbing & Water Treatment Restaurant Equipment Sinks & Handwashing Stations

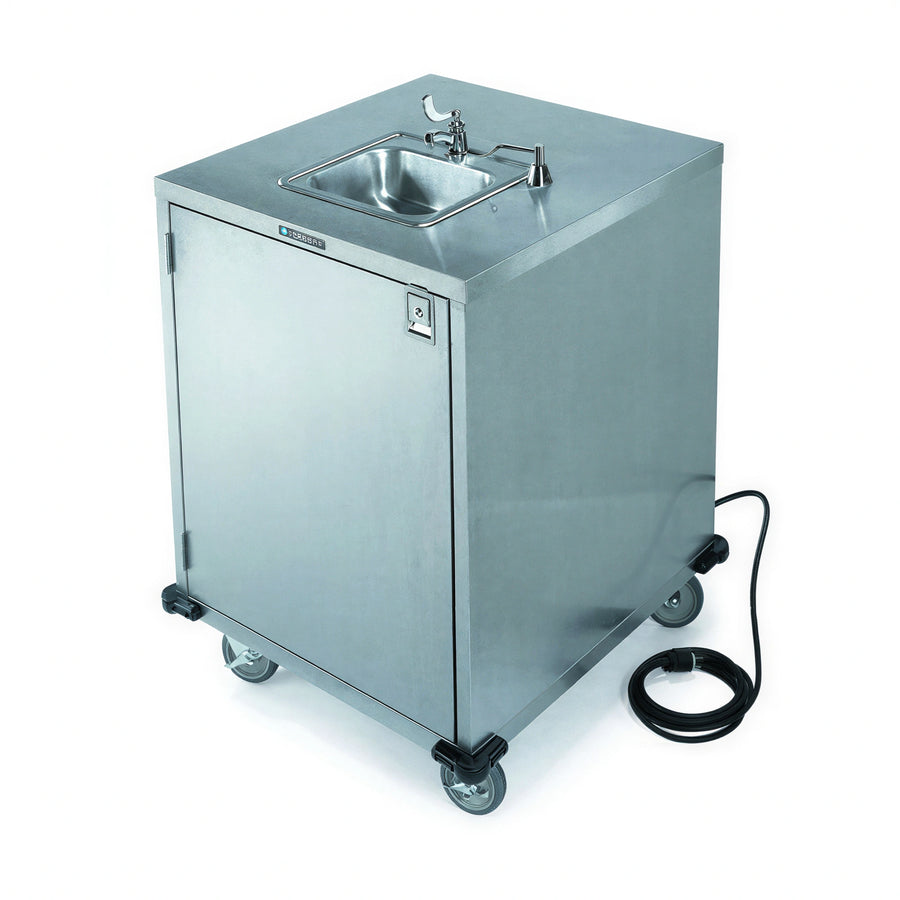

The Lakeside Manufacturing 9600 is a mobile, self-contained hand washing station for locations where hand sanitation is required. It includes built-in fresh and waste water storage, a cold water faucet, and a stainless steel sink and cabinet.

  • 10 in x 12 in x 5 in stainless steel sink bowl
  • Chrome-plated brass faucet with on/off wrist blade control
  • Chrome-plated soap dispenser mounted next to the sink
  • Locking door latch and corner bumpers
  • Four 5 in No-Mark® casters: two swivel casters with brakes and two fixed casters
  • Automatic-demand water pump with backflow protection
  • 10 ft power cord with NEMA L5-15P plug

Overall Dimensions:

35.0"W x 33.0"D x 45.0"H

Product Weight:

222.0 lb

Mobile design

Four 5 in No-Mark® casters include two swivel casters with brakes and two fixed casters.

Cold-water operation

Specified with a cold water faucet.

Fresh and waste water storage

Includes one 5-gallon fresh water tank and one 7-gallon waste water tank.

Stainless steel construction

The sink and cabinet are constructed of stainless steel.

Faucet and soap dispenser

Includes a chrome-plated brass faucet with on/off wrist blade control and a chrome-plated soap dispenser.

Locking cabinet access

The cabinet has a locking door latch.

Automatic-demand pump

The water pump provides automatic demand operation, requires no priming, and includes backflow protection.

Electrical connection

Includes a 10 ft cord with an NEMA L5-15P plug.

Type Mobile
Water supply Cold
Fresh water capacity 5 gal (1 tank)
Waste water capacity 7 gal (1 tank)
Sink bowl dimensions 10 in x 12 in x 5 in
Sink and cabinet construction Stainless steel
Faucet construction Chrome-plated brass
Faucet controls On/off wrist blade
Soap dispenser Chrome-plated
Caster configuration 2 swivel with brakes and 2 fixed
Caster diameter 5 in
Corner bumpers Included
Pump electrical specification 115 V, 60 Hz, single phase
Pump operating pressure 150 psi
Pump operation Automatic demand; no priming required
Backflow protection Included
Power cord 10 ft
Electrical plug NEMA L5-15P
Unit weight without water 189 lb
Weight 222 lb

Certifications & Compliance

Warranty & Protection

One-year warranty for the original purchaser against defects in workmanship and materials.

Documents

PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The 9600 has a 5-gallon fresh water capacity and a 7-gallon waste water capacity.
The 9600 is specified with a cold water faucet, and no water heater is listed for this model.
The station is 35 in wide, 33 in deep, and 45 in high.
It includes a 10 ft power cord with an NEMA L5-15P plug and uses a 115 V pump.
No. It does not contain a water filtration system for purifying water for drinking and is designed for hand washing only.
