Lainox

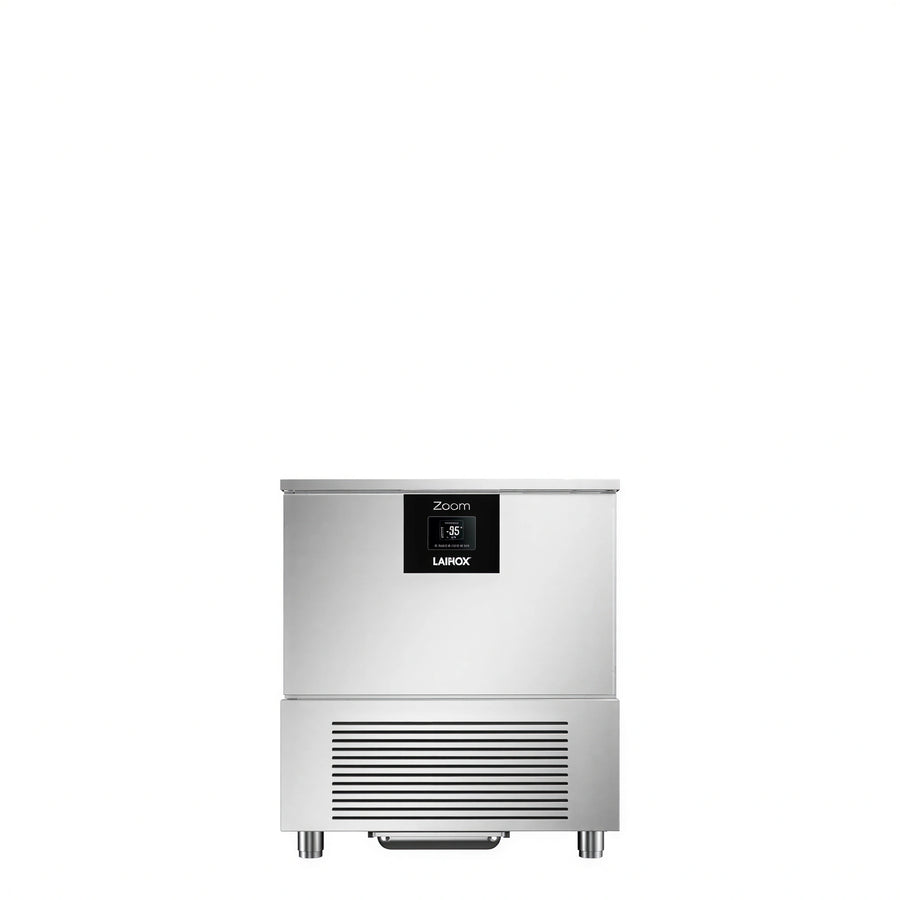

Lainox Zoom ZO054BA-R290 Blast Chiller, 5-Pan 18" x 26" Sheet Pan or GN 1/1, R290, Digital Controls

SKU: ZO054BA-R290
$10,202.35
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The Lainox Zoom ZO054BA-R290 blast chiller accommodates five 18-inch x 26-inch sheet pans or five GN 1/1 pans. It features digital controls with a 2.8-inch graphic color display, R290 hydrocarbon refrigerant, and a heated core probe with one measuring point.

  • Blast chilling from +90°C to +3°C with a listed capacity of 30 kg in 90 minutes.
  • Shock freezing from +90°C to -18°C with a listed capacity of 20 kg in 240 minutes.
  • Removable AISI 304 stainless steel guide supports and removable Z guides for GN 1/1 pans.
  • 208–230 V, single-phase, 60 Hz electrical supply with 8.68 A consumption.

Overall Dimensions:

25.62"W x 34.6"D x 38.2"H

Product Weight:

363.82 lb

Digital controls

Digital touch controls use a 2.8-inch graphic color display. The menu includes seven preset recipes and supports 20 personalized recipes.

Blast chilling

Blast chills from +90°C to +3°C, with a listed capacity of 30 kg in 90 minutes.

Shock freezing

Shock freezes from +90°C to -18°C, with a listed capacity of 20 kg in 240 minutes.

Pan compatibility

Accommodates five 18-inch x 26-inch sheet pans or five GN 1/1 pans.

Heated core probe

Includes a heated core probe with one measuring point.

Removable guides

Includes removable AISI 304 18/10 stainless steel guide supports and removable AISI 304 stainless steel Z guides for GN 1/1 pans.

Automatic cycles

The control system lists automatic fish sanitizing and ice cream hardening cycles.

R290 refrigeration

Uses R290 hydrocarbon refrigerant with an air-cooled condensing unit.

Stainless steel interior

The internal coating is stainless steel with fully rounded corners.

Related Searches

Best Sellers Blast Chiller Equipment Blast Chillers & Shock Freezers Blast Chilling & Medical Refrigeration Lainox New Arrivals Refrigeration & Ice
Capacity 5 x 18-inch x 26-inch sheet pans or 5 x GN 1/1 pans
Display 2.8-inch graphic color display
Blast chilling capacity 30 kg in 90 minutes, +90°C to +3°C
Freezing capacity 20 kg in 240 minutes, +90°C to -18°C
Refrigerant R290
Refrigerant quantity 150 g
Condensing unit Air-cooled
Power supply 208–230 V, 1 phase, 60 Hz
Consumption 8.68 A
Total electric power 1.45 kW
Cooling power 1.065 kW
Distance between layers 18 mm (0.7 inch)
Minimum distance between layers 17.5 mm (0.7 inch)
Water discharge 50 mm (2 inches)
Noise level Less than 70 dB
Insulation thickness 60 mm (2.4 inches)
Global warming potential 3

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

1-year parts and labor warranty, with 5-year compressor coverage for compressors manufactured after January 1, 2025.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It accommodates five 18-inch x 26-inch sheet pans or five GN 1/1 pans.
The listed blast chilling capacity is 30 kg in 90 minutes from +90°C to +3°C. The listed freezing capacity is 20 kg in 240 minutes from +90°C to -18°C.
Yes. It includes a heated core probe with one measuring point.
It requires 208–230 V, single-phase power at 60 Hz and draws 8.68 A.
It uses R290 hydrocarbon refrigerant.
Yes. The standard equipment includes removable Z guides made of AISI 304 stainless steel to accommodate GN 1/1 pans.
