Play manufacturer video for Lainox New Chill RDRC40T Blast Chiller Cell with Remote Air-Cooled Condensing Unit, 40 x 1/1 GN, 20 x 2/1 GN, 7.8 kWLainox New Chill RDRC40T Blast Chiller Cell with Remote Air-Cooled Condensing Unit, 40 x 1/1 GN, 20 x 2/1 GN, 7.8 kW

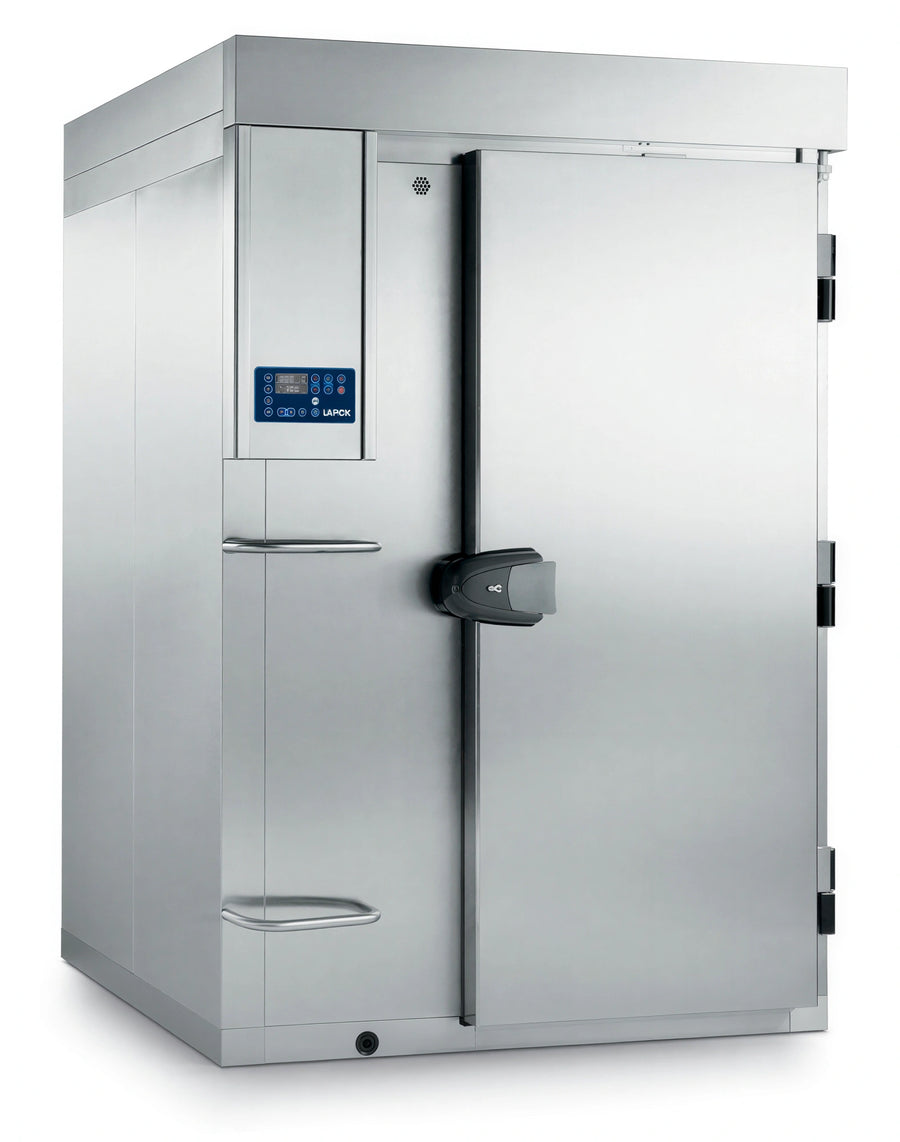

The Lainox New Chill RDRC40T is a catering blast chiller cell with a remote air-cooled condensing unit. It is specified for 40 x 1/1 GN or 20 x 2/1 GN capacity and listed with 7.8 kW.
- Blast chilling cycle from 194°F (90°C) to 37°F (3°C).
- T control with up to 99 stored programs and HACCP alarm memory.
- AISI 304 18/10 stainless-steel construction with a Scotch-Brite satin exterior finish.
- Modular cell supplied with an insulated floor and ramp.
Overall Dimensions:
162.45"W x 54.1"D x 87.8"HProduct Weight:
1058.4 lbRemote air-cooled condensing unit
The product specification and C40 documentation identify a remote condensing unit with air cooling.
GN capacity
The cell is specified for 40 x 1/1 GN or 20 x 2/1 GN.
Blast chilling cycle
The listed chilling cycle runs from 194°F (90°C) to 37°F (3°C).
T control
The T version can store up to 99 programs, retain HACCP alarms, and control up to four needle or four sensors when the optional sensors are used.
Stainless-steel construction
The exterior and interior are listed as AISI 304 18/10 stainless steel; the exterior has a Scotch-Brite satin finish and the interior has rounded corners.
Insulated cell floor and ramp
The cell is listed as standard with an insulated floor and ramp.
Core probe
A core probe is listed as standard equipment; probe heating is specified for models marked M.
Door and interior protection
The documentation lists a door lock, rubber sweeper gasket, internal stainless-steel bumpers, and external stainless-steel guards for the control panel.
