Lainox Neo24 hours NEO161TA-R290 Combifreeze, 16 GN 1/1 Capacity, 40°F to 185°F, Touchscreen Controls
- Capacity
- 16 x GN 1/1
- Temperature range
- -40°F to 185°F (-40°C to +85°C)
- Controls
- Touchscreen with 7-inch graphic color display
- Refrigerant
- R290 hydrocarbon
- Condensing unit
- Air-cooled
- Power supply
- 208-230 V, 3-phase
Specifications
Description

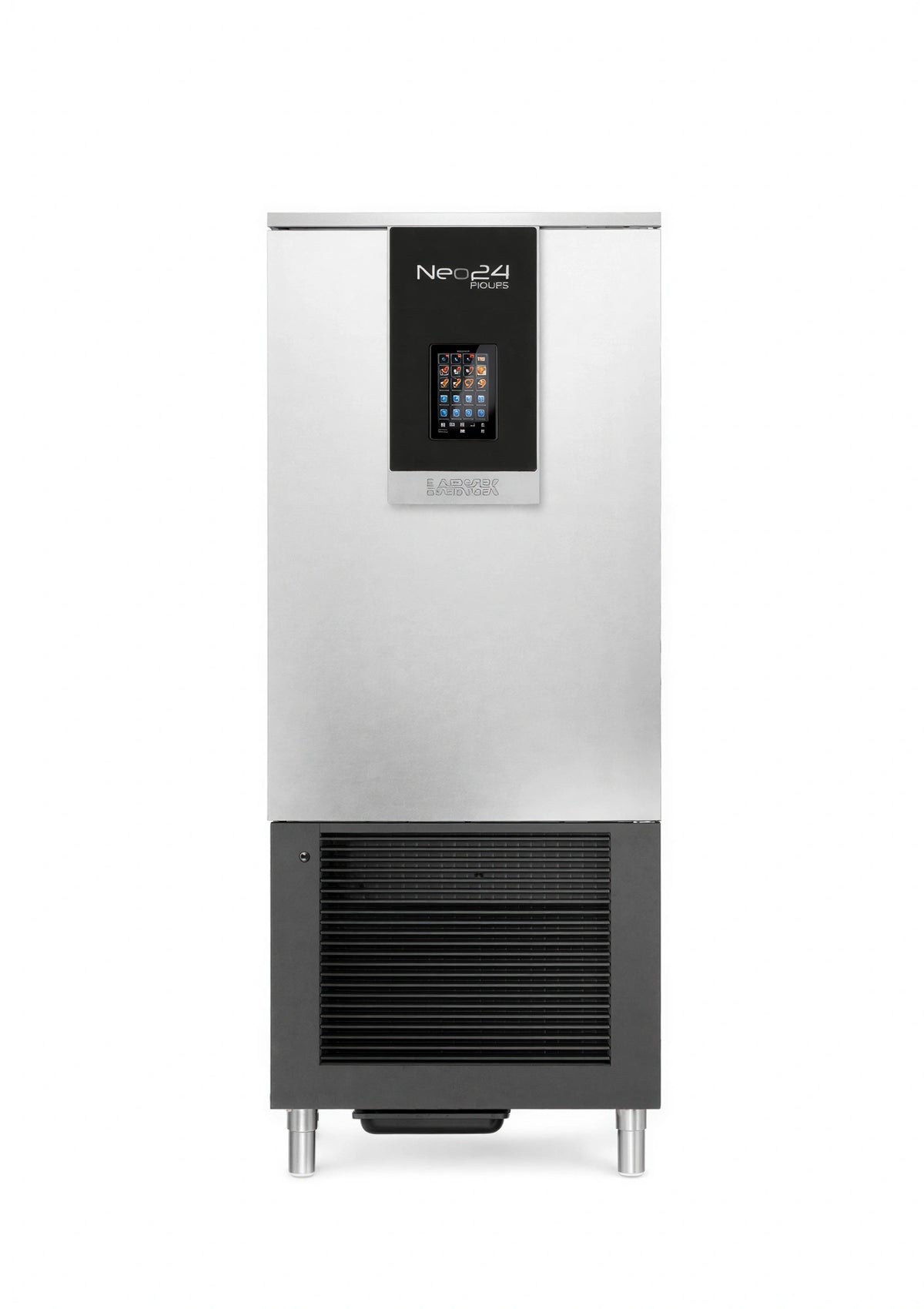

The Lainox Neo24 hours Combifreeze provides 16 x GN 1/1 capacity with a temperature range of -40°F to 185°F. It uses touchscreen controls with a 7-inch graphic color display, R290 refrigerant, and an air-cooled condensing unit.
- Supported processes include blast chilling, freezing, thawing, rising with humidity injection, refrigerated and temperature maintenance, and slow cooking up to 185°F.
- Standard equipment includes a four-point heated core probe, removable AISI 304 stainless steel guides and guide supports, USB, and Wi-Fi connections.
Overall Dimensions:
47.57"W x 34.3"D x 77.2"HProduct Weight:
551.25 lbCombifreeze processing
Supports blast chilling, freezing, thawing, rising with humidity injection, refrigerated and temperature maintenance, and slow cooking up to 185°F.
Touchscreen controls
7-inch graphic color display with touchscreen functions.
Multi-point heated core probe
Included probe has 4 measuring points.
Removable guides
Removable guide supports are made from AISI 304 18/10 stainless steel, and the Z guides are made from AISI 304 stainless steel.
USB connection
Supports recipe uploads and downloads, parameter management, HACCP downloads, and software updates.
Wi-Fi connection
Supports HACCP log downloads and remote service.
R290 refrigerant
Uses R290 hydrocarbon refrigerant.
Air-cooled condensing unit
The unit uses an air-cooled condensing system.
