Lainox

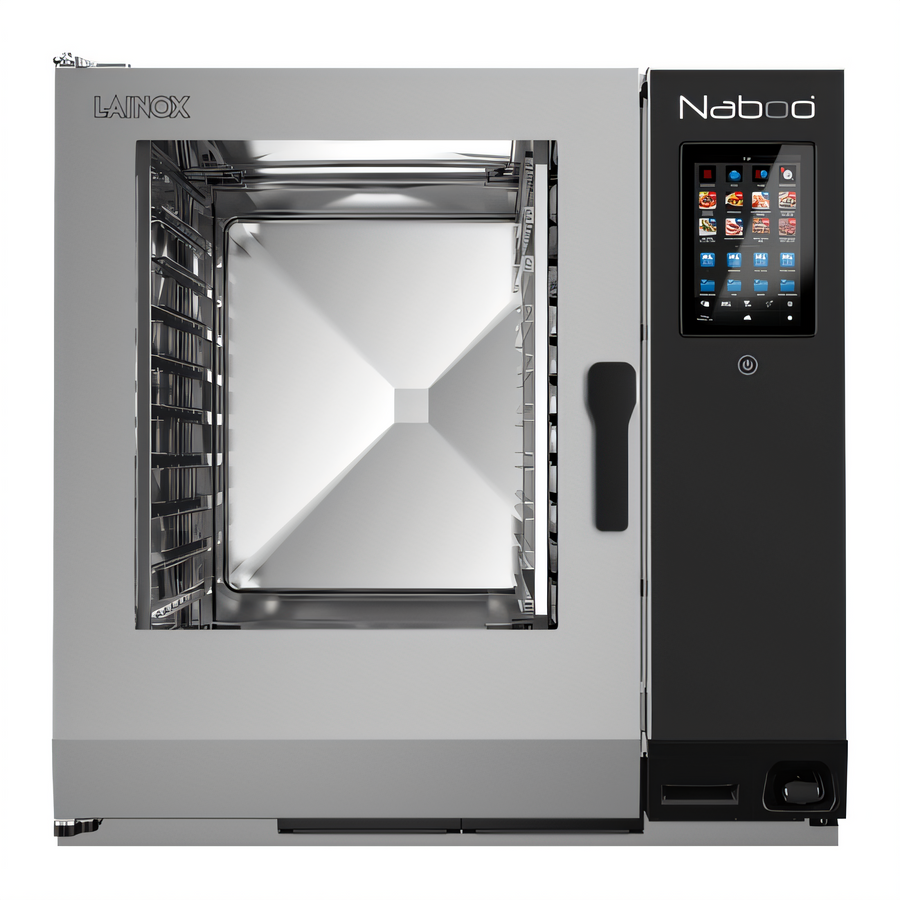

Lainox Naboo 5.0 NAG102B Large Model Gas Combi Oven with Direct Steam, 10 x 2/1 GN

SKU: NAG102B
$23,719.08
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Combi Ovens Combi Ovens Commercial Ovens New Arrivals Ovens Restaurant Equipment

Lainox Naboo 5.0 NAG102B Large Model Gas Combi Oven with Direct Steam, 10 x 2/1 GN

Touch Screen Controls, Optional Steam Generator

Built for high-volume kitchens, this gas combi oven combines direct steam, touchscreen automation, and cloud-connected controls to deliver consistent results with less labor.

  • Large-capacity combi oven for catering and other high-production operations.
  • Gas-fired design with direct steam and an optional steam generator configuration.
  • 10" capacitive touchscreen with automatic interactive cooking, recipe storage, and multi-language support.
  • Built-in Wi-Fi, optional Ethernet, and cloud tools for recipe sync, HACCP monitoring, and remote diagnostics.
  • Includes automatic cleaning, USB connectivity, a multipoint core probe, and retractable hand shower.
  • Full AISI 304 stainless steel construction with a smooth, easy-clean cooking chamber.

Overall Dimensions:

36.73"W x 35.7"D x 41.7"H

Product Weight:

438.8 lb

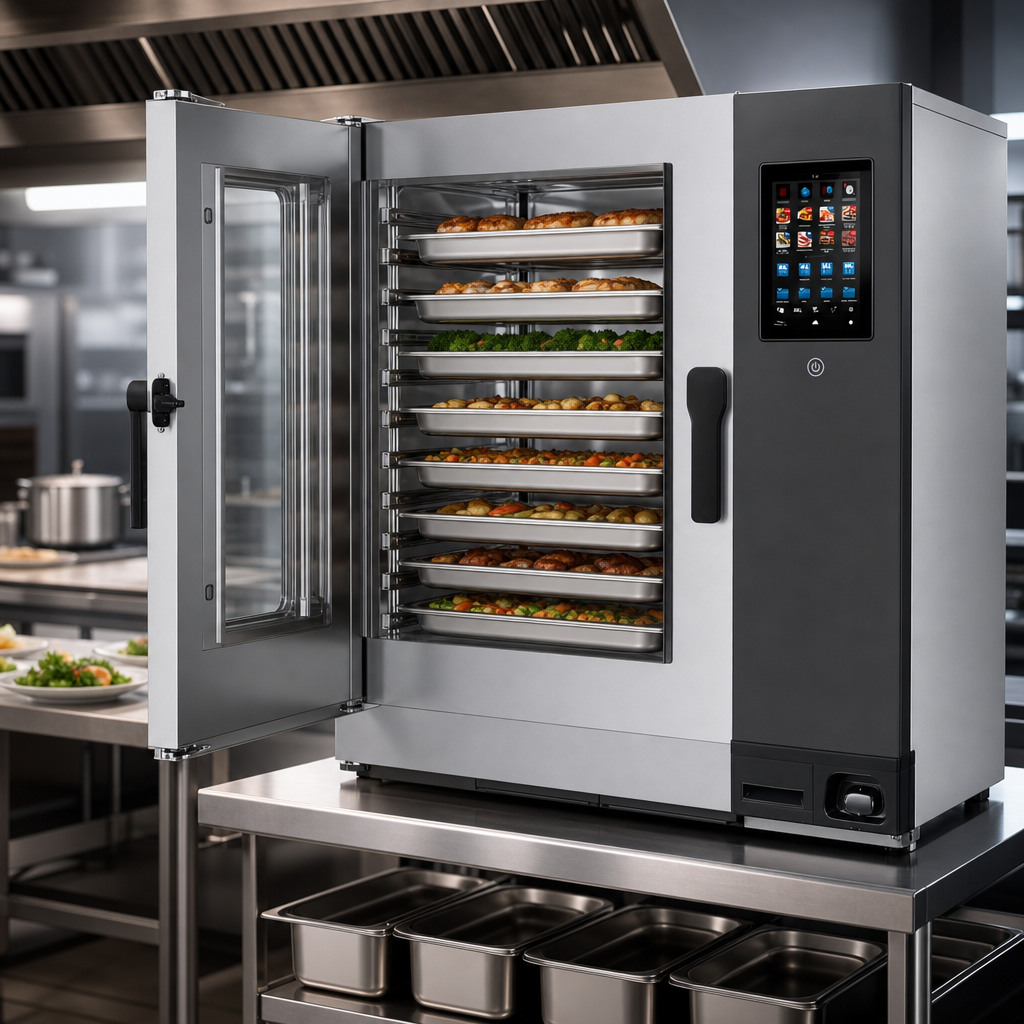

High-Capacity Combi Oven

Supports 10 x 2/1 GN pans or 20 x 1/1 GN pans for large-batch cooking and catering production.

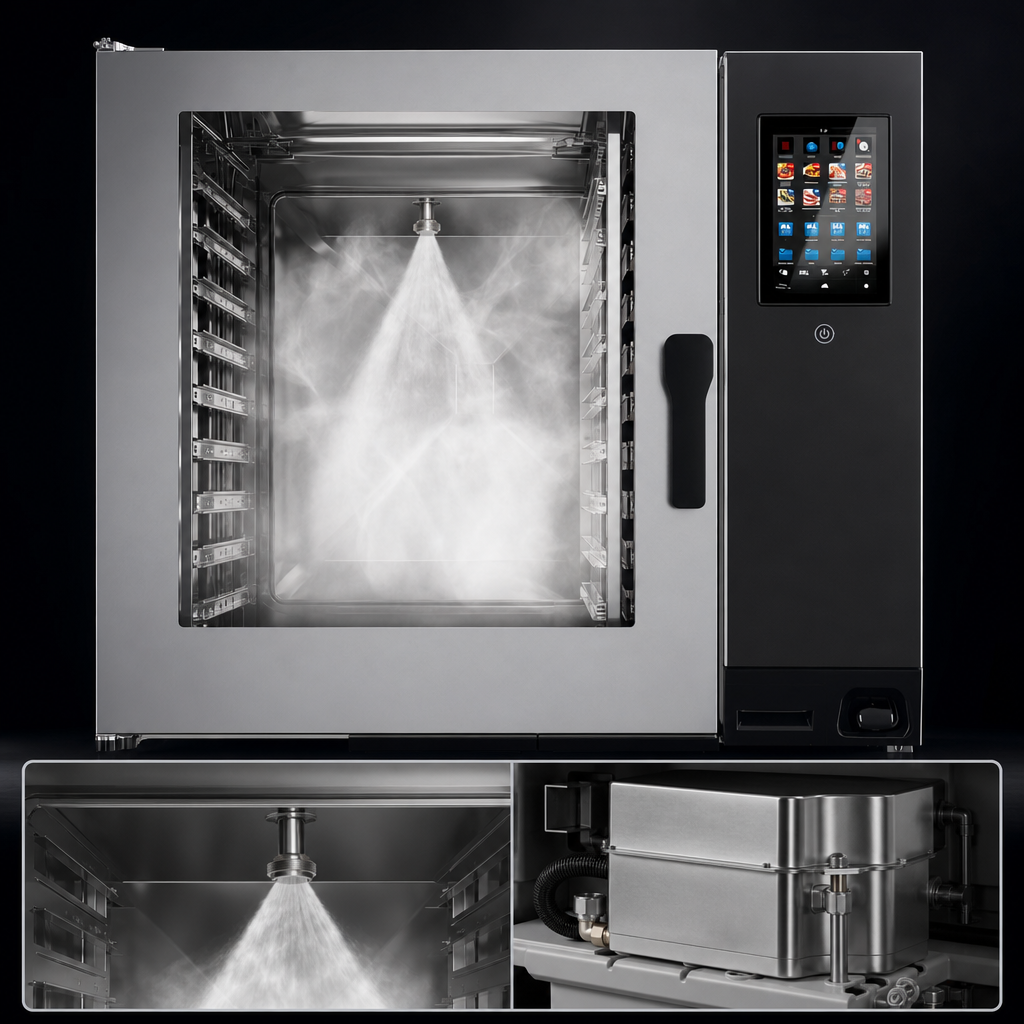

Direct Steam Cooking

Direct water injection provides immediate steam availability; a steam generator is available as an optional configuration.

10-Inch Touchscreen Interface

High-definition capacitive color screen with touch controls, configurable displays, and 29-language support.

Automatic Interactive Cooking

ICS one-touch cooking system includes built-in recipes, editable programs, folder organization, and up to 15 cooking cycles.

Cloud Connectivity

Built-in Wi-Fi supports Nabook/Lainox Cloud access, remote diagnostics, automatic software updates, recipe synchronization, and HACCP monitoring; Ethernet is optional.

Advanced Cleaning System

VCS Vapor Cleaning System, 7 automatic wash programs, fast 10-minute wash cycle, and automatic detergent dispensing help reduce cleaning time and chemical use.

Durable Stainless Steel Construction

Full AISI 304 build with a smooth, watertight chamber, double-tempered glass door, and easy-access maintenance features.

Standard Equipment Included

Supplied with side runners, USB connection, built-in/retractable hand shower, multipoint core probe, shelf racks, and automatic cleaning system.

Efficient Gas Heating

Premixed air-blown modulating burners, electronic flame control, and automatic ignition are designed for consistent gas cooking performance.

Type Combi Oven
Style Large Model
Installation Type Floor Model (With Stand)
Controls Touch Screen
Capacity 10 x 2/1 GN / 20 x 1/1 GN
Material AISI 304 Stainless Steel
Interior Finish AISI 304 Stainless Steel
Water Connection Required
Water Inlet Size 2 x 3/4 Inch
Drain Connection Required
Drain Connection Size 2 Inches
Gas Type Natural Gas
Gas Inlet Pressure 7.2 to 10 Inches W.C.
Voltage 120 Volts
Amps 7 Amps
Watts 800 Watts
Hertz 60 Hz
Phase 1-Phase
Shipping Width 37 Inches
Shipping Depth 36 Inches
Shipping Height 42 Inches
Shipping Weight 438.8 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

4-year warranty

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. This model uses direct steam, and a steam generator is available as an optional configuration.
The unit is listed at 120 Volts, 60 Hz, 1-phase, and 7 Amps with 800 Watts of electric power. A 208 Volt / 60 Hz version is available on request.
It accommodates 10 x 2/1 GN pans or 20 x 1/1 GN pans.
It includes the VCS Vapor Cleaning System, 7 automatic wash programs, a fast 10-minute wash cycle, and a built-in/retractable hand shower.
Yes. It has built-in Wi-Fi, optional Ethernet, USB connectivity, remote diagnostics, recipe synchronization, and HACCP monitoring through the Nabook/Lainox Cloud platform.
Standard equipment includes side runners, USB connection, Wi-Fi, a multipoint core probe, shelf racks, an automatic cleaning system, and a retractable hand shower.
