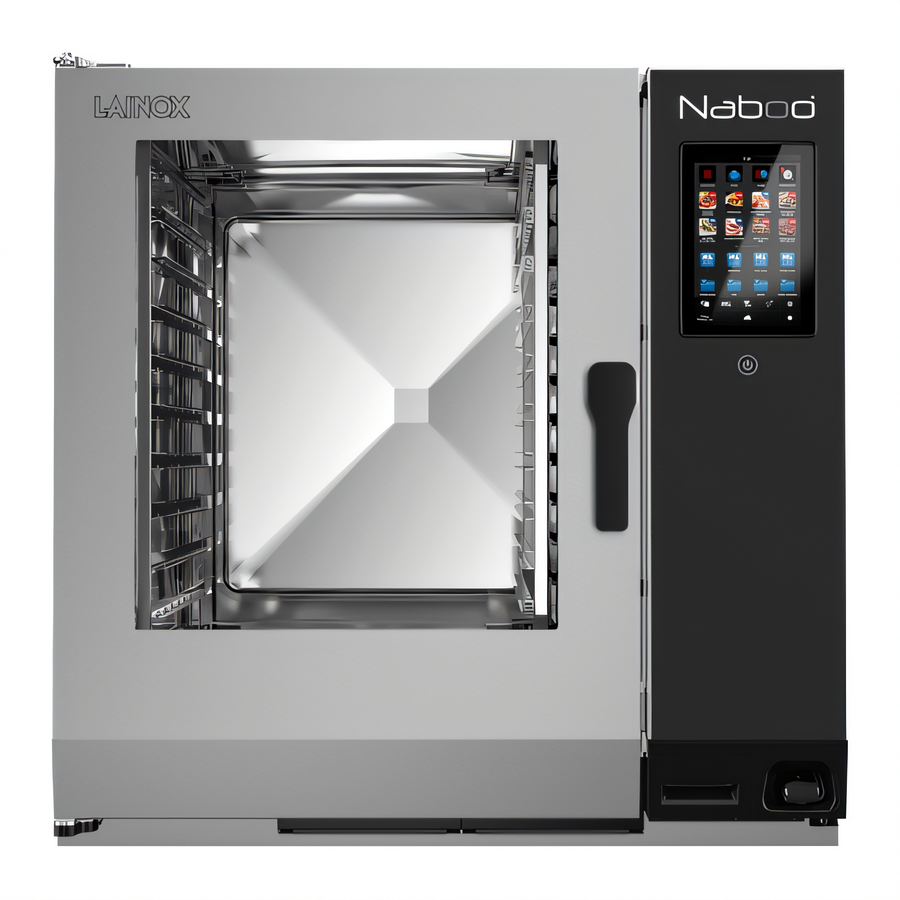

Lainox Naboo 5.0 NAE102B Electric Direct Steam Combi Oven with Touch Screen Controls, 10 x 2/1 GN / 20 x 1/1 GN, Floor Model

SKU: NAE102B
$18,455.47
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Lainox Naboo 5.0 NAE102B Electric Direct Steam Combi Oven with Touch Screen Controls, 10 x 2/1 GN / 20 x 1/1 GN, Floor Model

Large Capacity, Steam Generator Optional, ENERGY STAR Certified

A large-capacity electric combi oven that combines direct steam, touchscreen automation, and cloud-connected cooking tools to keep high-volume kitchens moving.

  • Handles 10 x 2/1 GN or 20 x 1/1 GN pans for catering and large-batch production.
  • Electric direct steam cooking delivers immediate steam; an optional steam generator expands versatility.
  • Touch screen controls, automatic interactive cooking, and a 29-language interface simplify daily operation.
  • Wi-Fi, USB, and cloud connectivity support recipe management, remote diagnostics, software updates, and HACCP data.
  • Automatic wash programs, vapor cleaning, and descaling help reduce labor, detergent use, and downtime.
  • Stainless steel construction and included probes, hand shower, and racks are built for heavy-duty service.

Overall Dimensions:

36.73"W x 35.7"D x 41.7"H

Product Weight:

429.98 lb

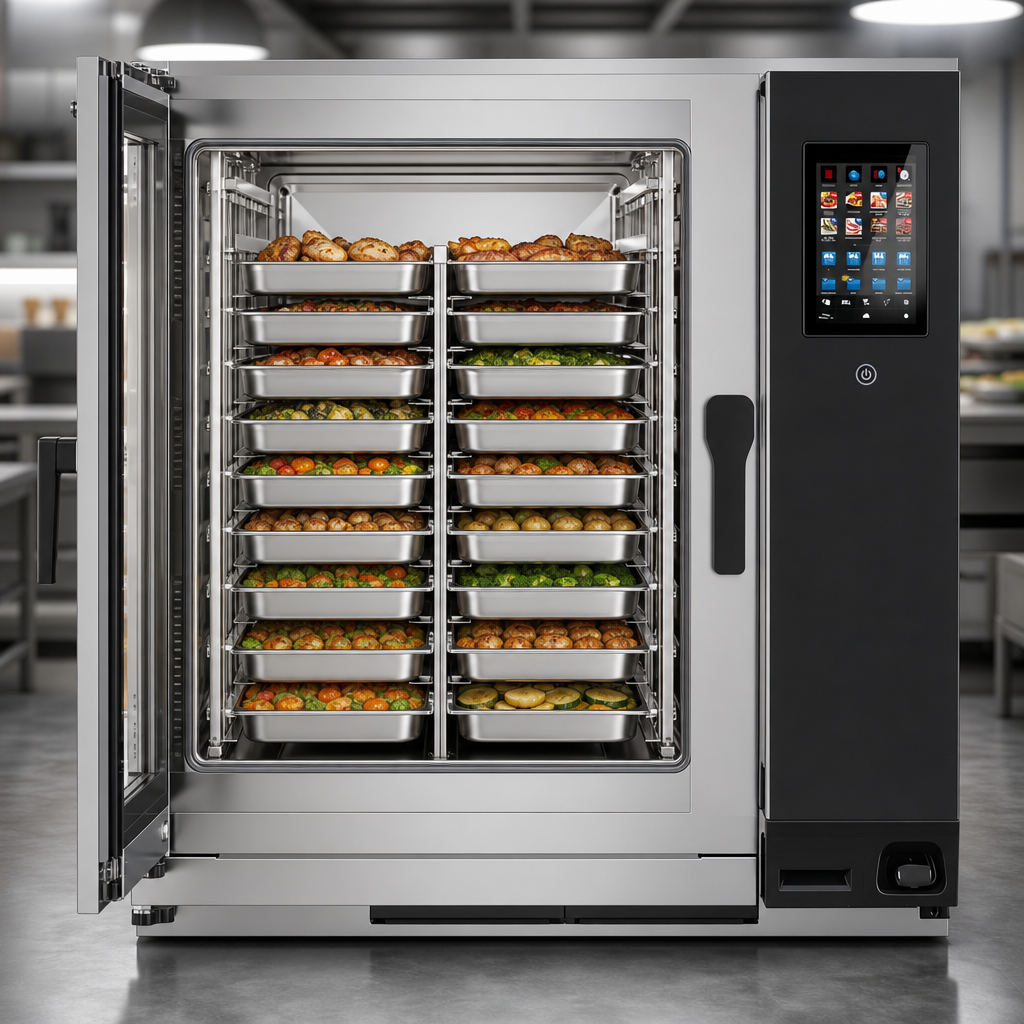

High-Capacity GN Layout

Accommodates 10 x 2/1 GN or 20 x 1/1 GN pans for high-volume catering and institutional cooking.

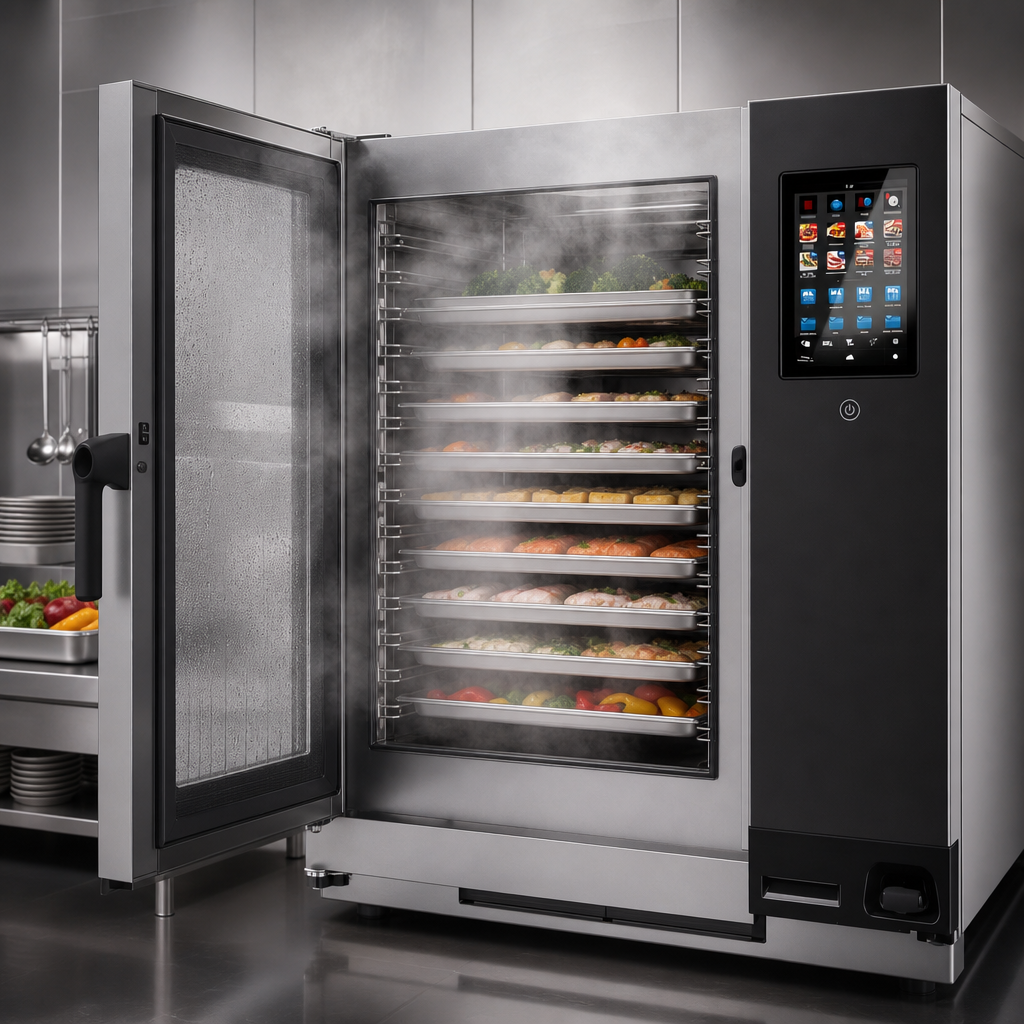

Direct Steam Cooking

Electric direct steam system provides immediate steam availability in the cooking chamber.

Touch Screen Interactive Controls

High-definition capacitive touch screen supports automatic interactive cooking, editable recipes, and a 29-language interface.

Connected Kitchen Tools

Built-in Wi-Fi, USB, and cloud access support recipe downloads, remote monitoring, software updates, and HACCP data handling.

Automatic Cleaning and Descaling

VCS Vapor Cleaning System, fast wash cycles, and descaling features help cut detergent use and simplify maintenance.

Durable Stainless Steel Build

AISI 304 stainless steel construction and a smooth, rounded cooking chamber are designed for durability and easier cleaning.

Intelligent Cooking Management

Multi-speed fans, auto reverse, Autoclima climate control, and boosted pre-heating up to 320°C improve consistency and throughput.

Standard Equipment Package

Ships with side runners, a built-in retractable hand shower, USB connection, Wi-Fi connection, a fixed multipoint core probe, pair of GN 2/1 shelf racks, and five stainless steel 2/1 GN grids.

Type Combi Oven
Style Direct Steam
Installation Type Floor Model (With Stand)
Controls Touch Screen
Capacity 10 x 2/1 GN or 20 x 1/1 GN
Temperature Range 30°C to 300°C
Voltage 208 Volts
Amps 104 Amps
Watts 36.7 kW
Hertz 60 Hz
Phase 3-Phase
Material Stainless Steel
Interior Finish 304 Stainless Steel
Water Inlet Size 2 x 3/4 Inch
Drain Connection Size 2 Inches
Water Connection Required
Drain Connection Required
Selling Unit Each
Units Per Case 1
Shipping Width 47.6 Inches
Shipping Depth 41.3 Inches
Shipping Height 49.6 Inches
Shipping Weight 430 lb.

Warranty & Protection

4-year warranty

Frequently Asked Questions

It holds 10 x 2/1 GN pans or 20 x 1/1 GN pans.
Yes. It is a direct steam electric combi oven, and a steam generator can be added as an option.
208 V, 3-phase, 60 Hz, 104 A, with 36.7 kW total electric power.
It uses VCS Vapor Cleaning, automatic wash programs, and descaling features to simplify maintenance.
Standard equipment includes side runners, USB connection, a built-in retractable hand shower, a fixed multipoint core probe, pair of GN 2/1 shelf racks, five stainless steel 2/1 GN grids, Wi-Fi connection, and an automatic cleaning system.
