Description

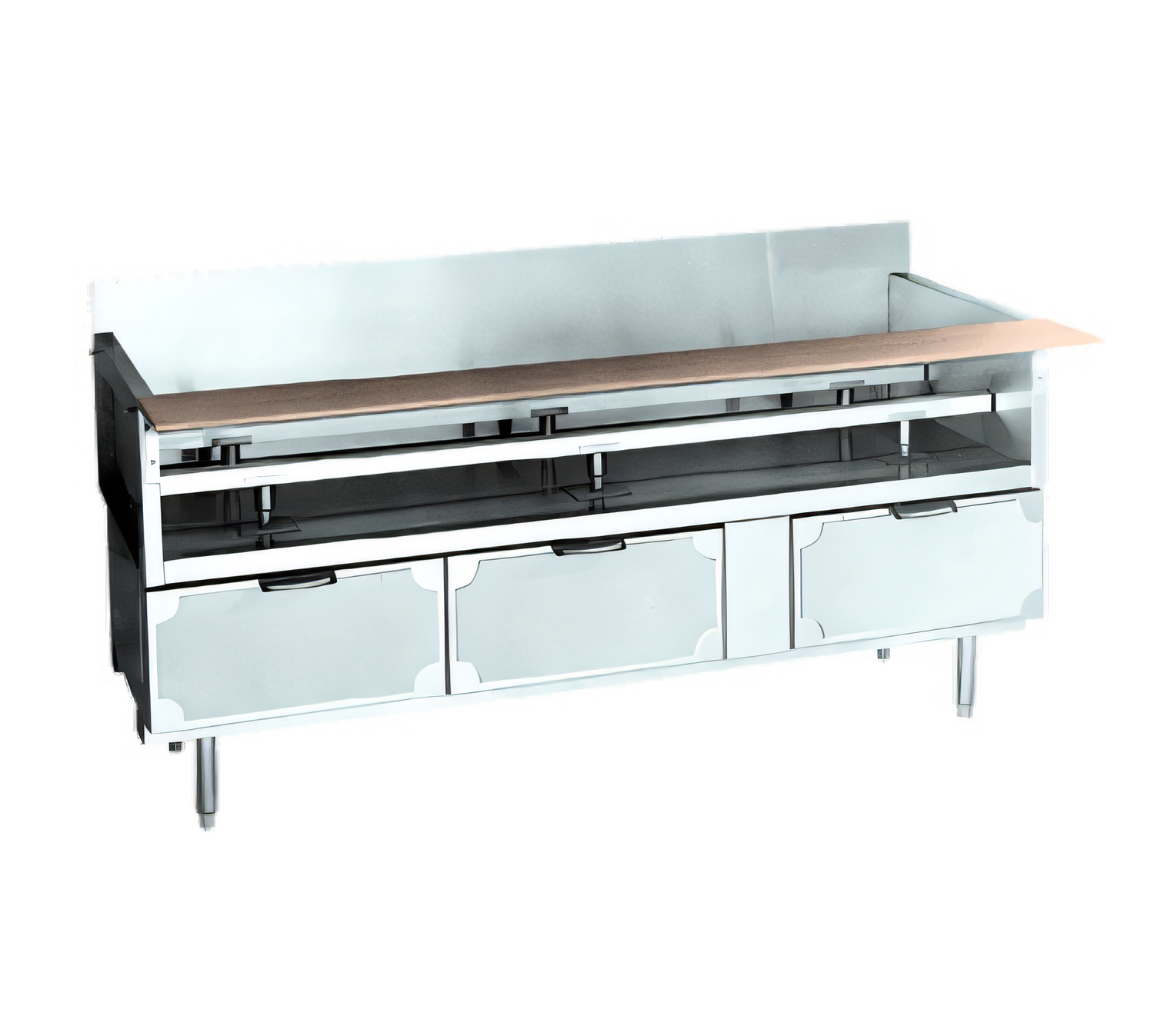

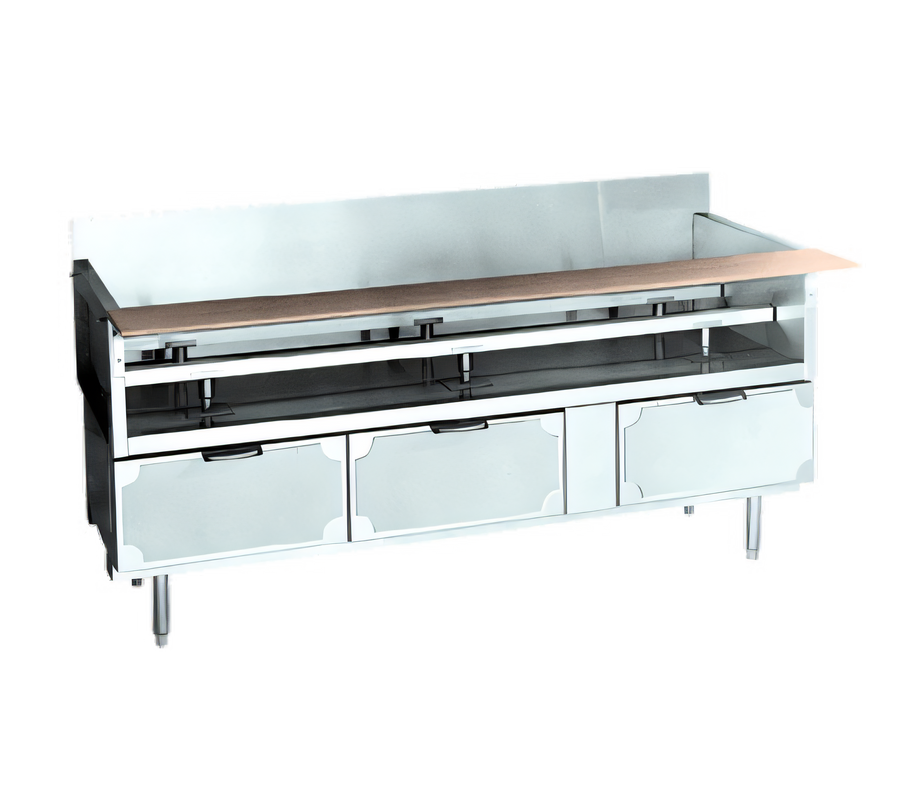

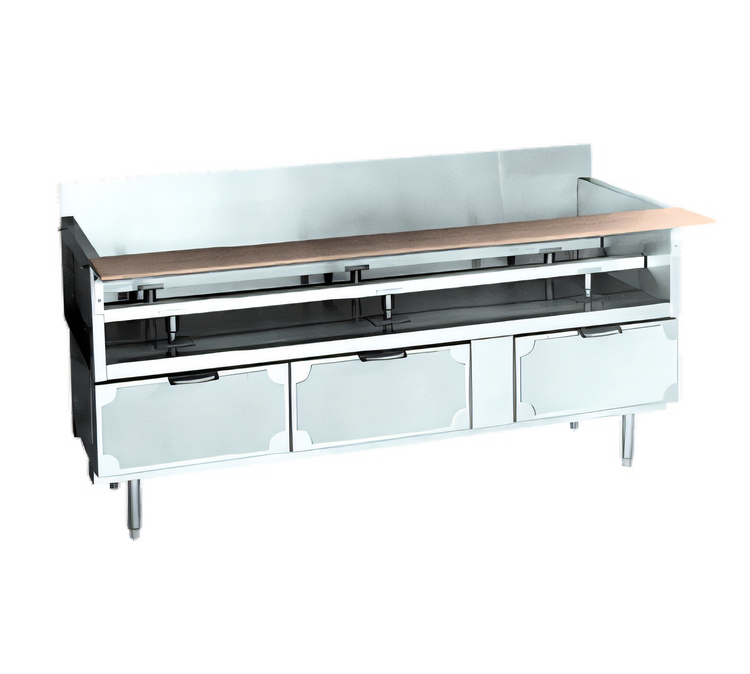

La Rosa L-75190 Refrigerated Equipment Stand – 90″, 4-Drawer, Remote
75000 Series • Made in Detroit, MI, USAGive your cookline maximum cold storage without sacrificing valuable prep space. The La Rosa L-75190 combines a heavy-duty refrigerated base, a marine-edged equipment shelf, and an NSF-approved Richlite® cutting board in one rock-solid unit that is built, welded, and finished in Detroit.
Key advantages
- Four deep refrigerated drawers keep proteins & mise en place between 36–40 °F for immediate service.
- 90 in. one-piece 304 SS equipment shelf with ¼″ marine edge & 2⅛″ backsplash resists spills and splashes.
- Removable equipment support rails let you position charbroilers, griddles or countertop ranges exactly where you need them.
- 9½″ × ½″ Richlite cutting board with stainless reinforcement channel — knife-friendly & NSF-listed.

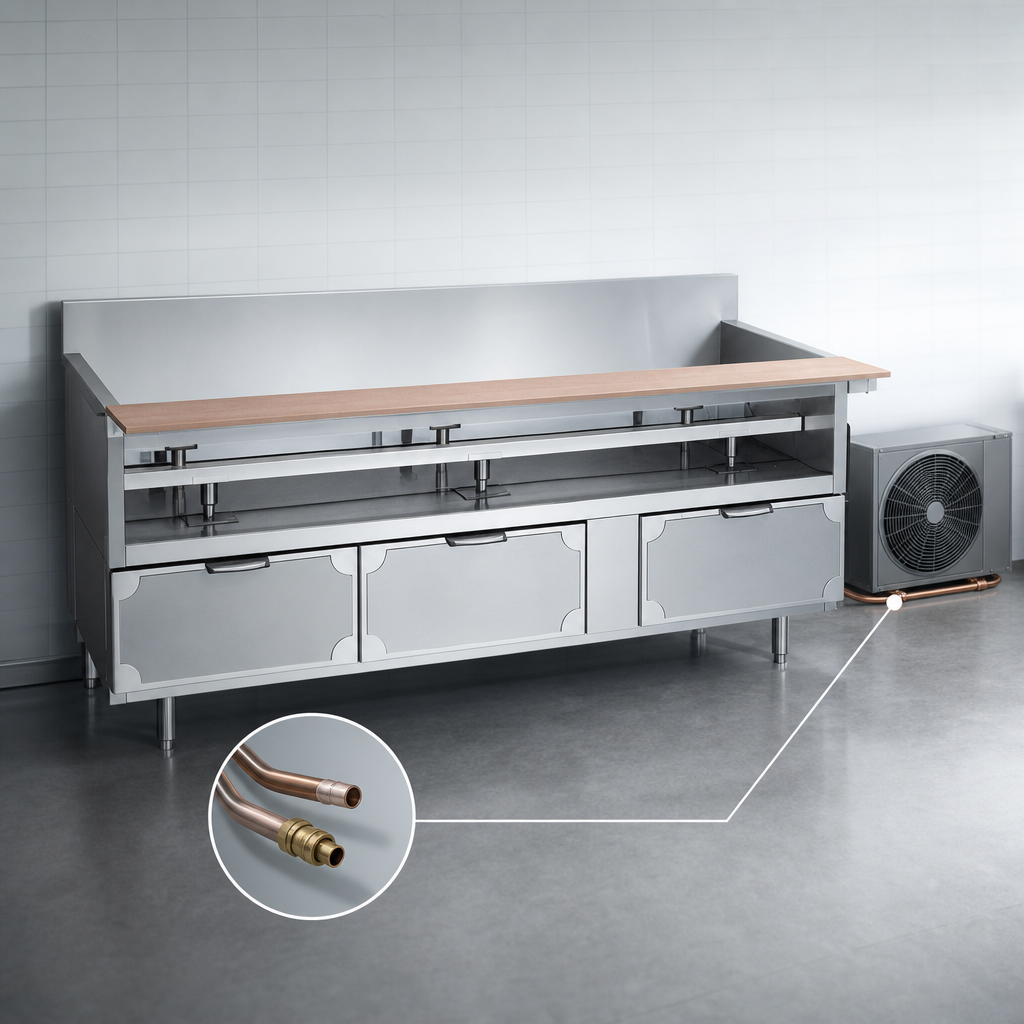

- Remote forced-air evaporator with factory-installed TXV (R-134a) delivers rapid recovery & easy hook-up to your condenser (not included).
- Full finished welds, rigid polyurethane insulation, and sound-deadening backing for decades of trouble-free service.
- 8″ adjustable stainless legs with bullet feet (1⅛″ adjustment) for quick leveling on uneven floors.
Technical specifications
| Model | L-75190 |
|---|---|
| Unit type | Refrigerated equipment stand – remote base |
| Overall width | 90 in. (2286 mm) |
| Overall depth | 26 in. (660 mm) |
| Overall height | 36 in. to 37⅛ in. (to top of shelf, depending on leg adjustment) |
| Refrigerated drawers | 4 drawers, each on 1 ⁵⁄₁₆″ ball-bearing rollers with removable high-impact liners |
| Total refrigerated capacity | 2.7 cu ft per drawer • 10.8 cu ft total |
| Design temperature | 36–40 °F (2–4 °C) |
| Refrigerant | R-134a |
| Evaporator electrical | 115 V / 60 Hz / 1-phase • 1.28 A |
| Recommended remote compressor | ¼ HP (BTU load 1,200 @ 10 °F TD) |
| Ship weight | ≈600 lb (272 kg) |
| Construction | 304 SS equipment shelf, interior ends, and drawer fronts; galvanized steel box channels; high-impact polymer drawer jams & liners |
Built to outperform
- Die-formed 20/22 GA 304 SS shelf with rear turn-up & utility cut-outs.
- 2″ thick rigid polyurethane insulation foamed-in-place for optimal energy retention.
- One-piece plastic drawer jams with perimeter magnets for a tight door seal.
- Factory-supplied junction box & refrigeration lines (¼″ liquid / ⅜″ suction) simplify field connection.
- Sound-dampening material beneath shelf eliminates vibration & rattles.
Warranty & support
• One-year parts & labor warranty on the complete unit.
• Four-year additional warranty on the original hermetically sealed compressor when purchased through La Rosa.
• All serviceable components are accessible from the front for faster maintenance.
Bring rock-solid refrigeration, prep and cooking support to the heart of your kitchen with the La Rosa L-75190 — the Detroit-built stand that keeps its cool when the rush is on.
