La Rosa Refrigeration L-75166-30 Undercounter & Worktop Refrigeration
La Rosa Refrigeration L-75166-30 Undercounter & Worktop Refrigeration is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
La Rosa Refrigeration L-75166-30 Undercounter & Worktop Refrige...
Description

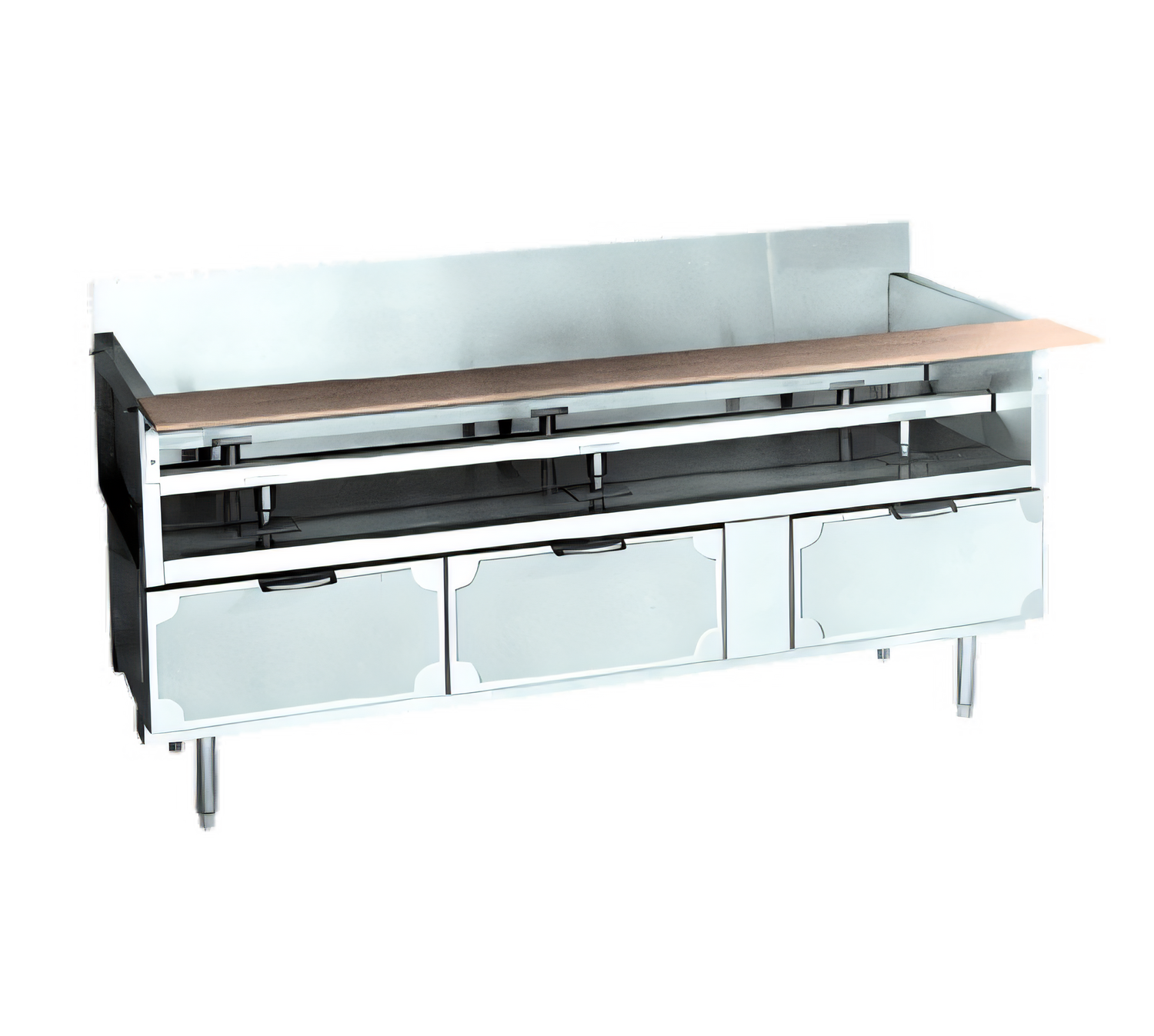

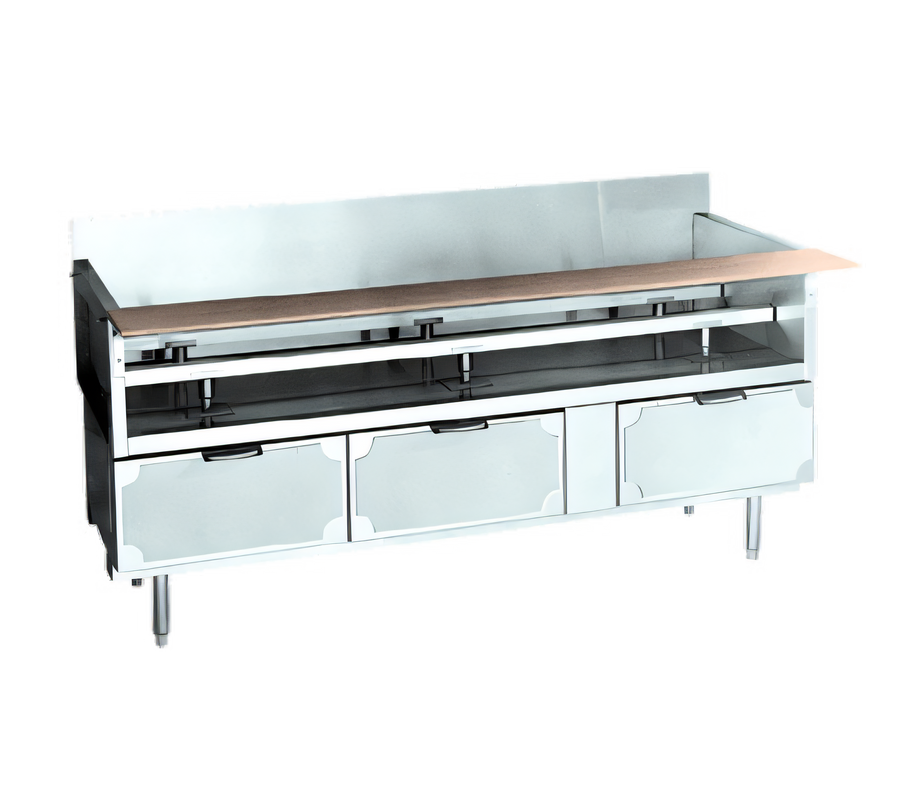

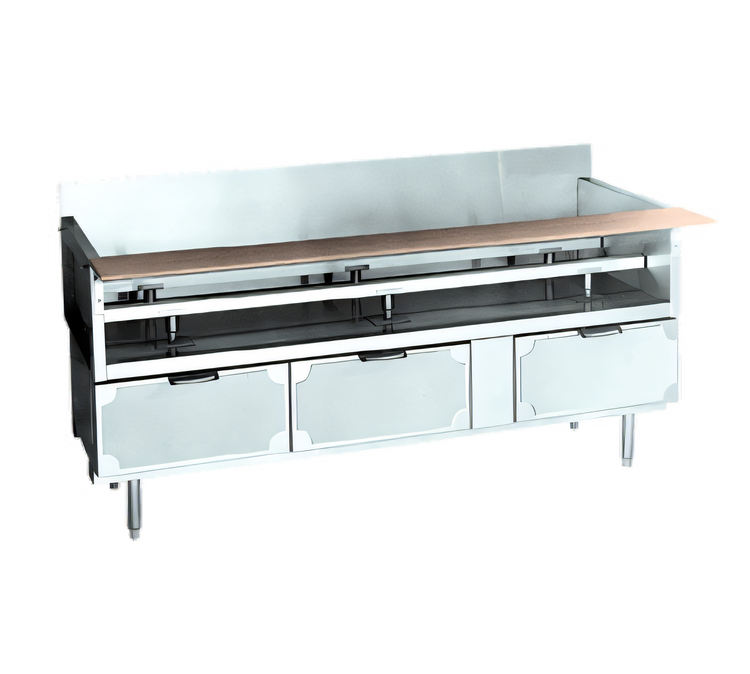

La Rosa 66" Refrigerated Equipment Stand – Remote Base
Model L-75166 | 3-Section • 4-Drawer • Made in Detroit, USAKeep mise-en-place ice-cold and right where the action is. La Rosa’s remote refrigerated equipment stand combines heavy-duty 304 stainless construction, a full-width Richlite® cutting board, and drawer-base refrigeration in one space-saving solution built for the toughest cooklines.
Key Features

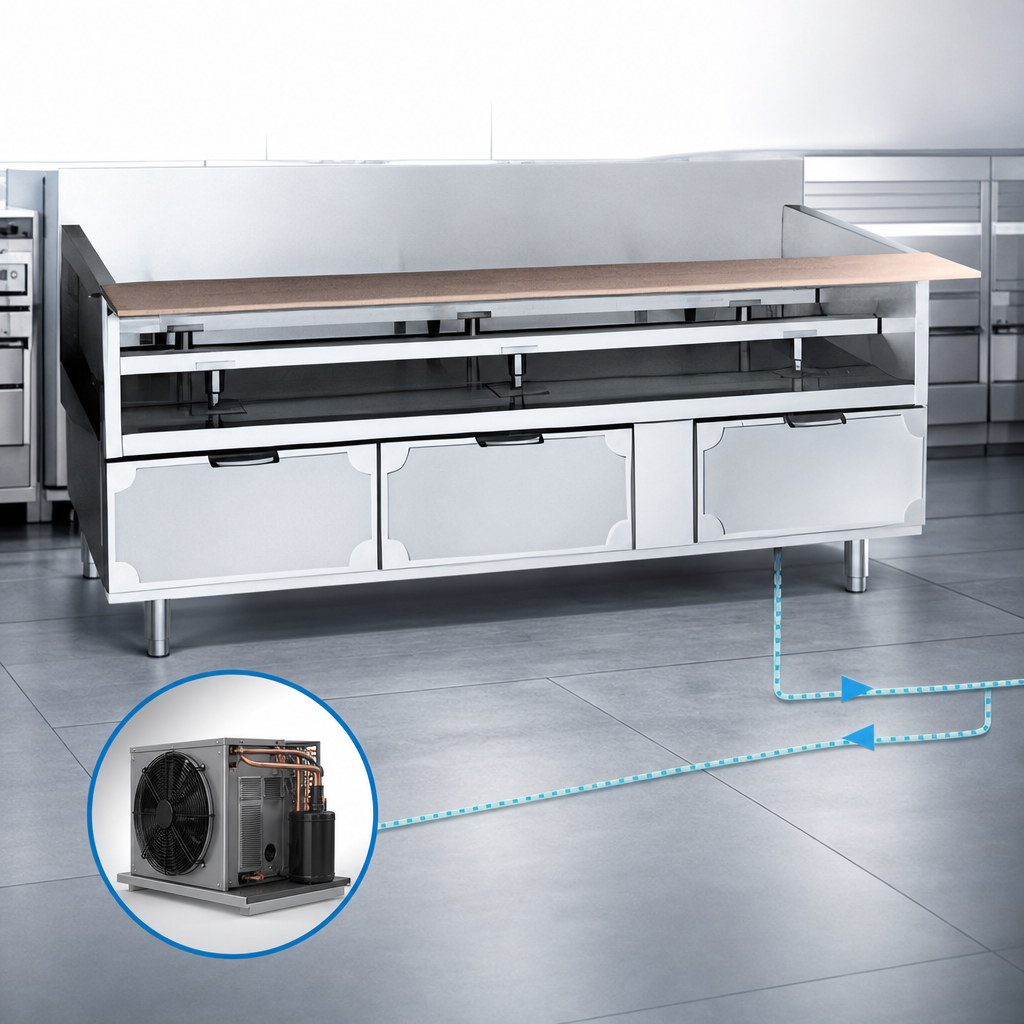

- Remote refrigeration base with factory-installed 1/4 HP R-134a evaporator & expansion valve
- Four self-closing refrigerated drawers (22 GA type 304 stainless exterior, high-impact polymer liners)
- Die-formed 20/22 GA type 304 #4 stainless equipment shelf with 1/4" marine front edge & 2 1/8" backsplash
- Removable equipment support rails for easy custom cook-top placement
- 9 1/2"-deep NSF Richlite® cutting board with stainless reinforcement channel
- Full finished welds for superior sanitation and structural integrity
- Foamed-in-place CFC-free polyurethane insulation
- 8" adjustable stainless steel legs (1 5/8" OD) with bullet feet – 1 1/8" height adjustment
- Proudly engineered, fabricated, and finished in Detroit, Michigan
At-a-Glance Specifications
| Overall Width | 66" (1676 mm) |
|---|---|
| Overall Depth | 30" (762 mm) |
| Sections / Drawers | 3 sections / 4 drawers |
| Interior Capacity | ≈ 1.9 cu. ft. per drawer |
| Refrigerant | R-134a |
| Evaporator HP | 1/4 HP (remote condenser required) |
| Temperature Range | 36 °F – 40 °F (2 °C – 4 °C) |
| Cutting Board | Richlite, 66" W × 9 1/2" D × 1/2" T |
| Construction | 304 stainless exterior, interior ends & shelving |
| Insulation | Foamed-in-place rigid polyurethane |
| Legs | 8" stainless tubular legs with adjustable bullet feet |
| Electrical | 115 V / 60 Hz / Single-phase (evaporator & controls) |
Ideal For

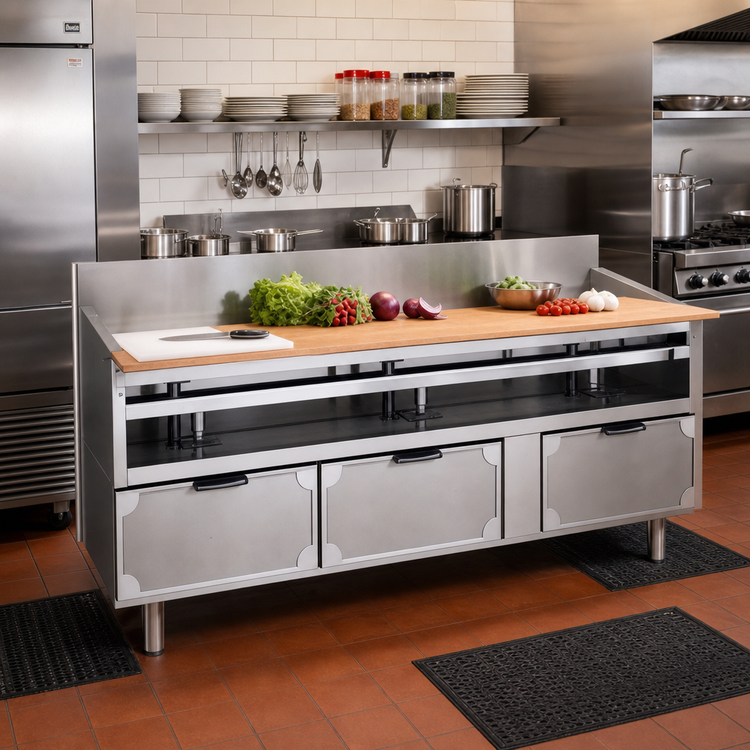

- Staging proteins, sauces, or garnishes directly beneath griddles, ranges, or charbroilers
- Streamlining cooklines in restaurants, hotels, and institutional kitchens
- Maximizing prep space in compact back-of-house footprints
Backed by a 1-year parts & labor warranty with optional extended compressor coverage. Consult the complete La Rosa Warranty Statement for details.
