La Rosa Refrigeration  |  SKU: L-75166-26

La Rosa Refrigeration L-75166-26 Undercounter & Worktop Refrigeration

$9,686.47
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

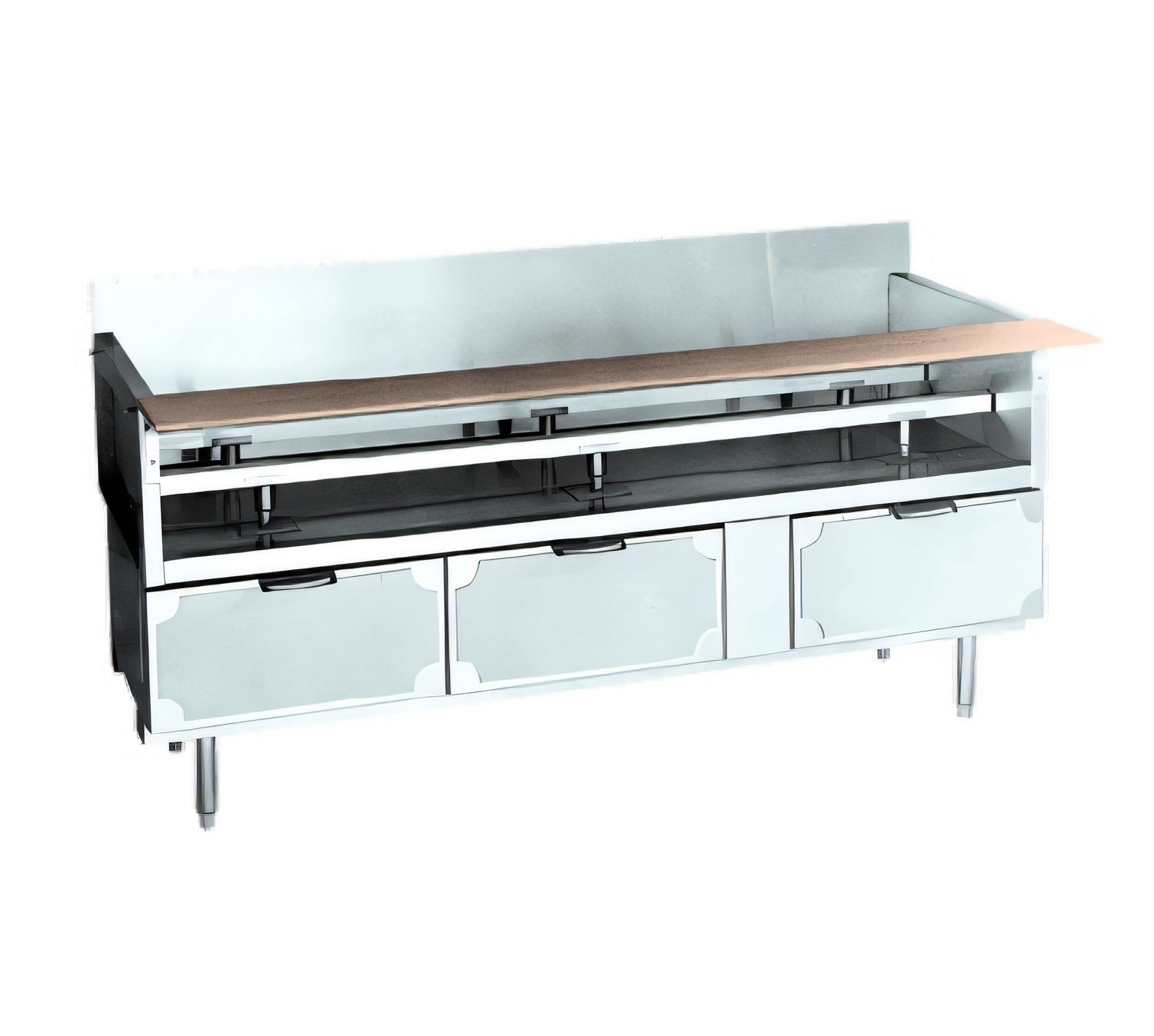

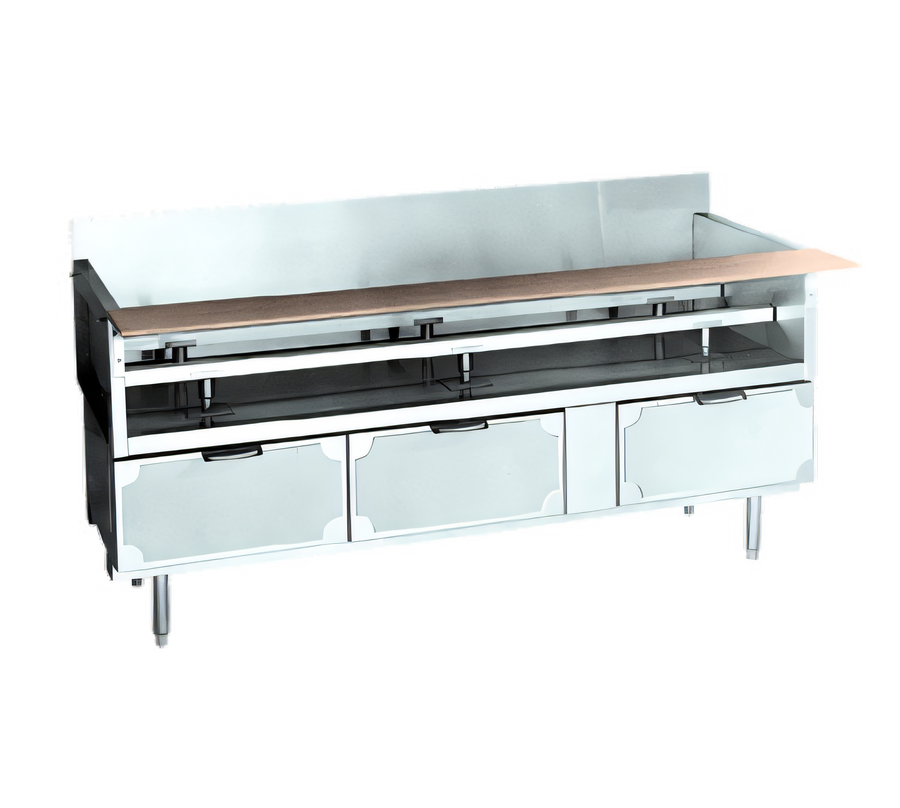

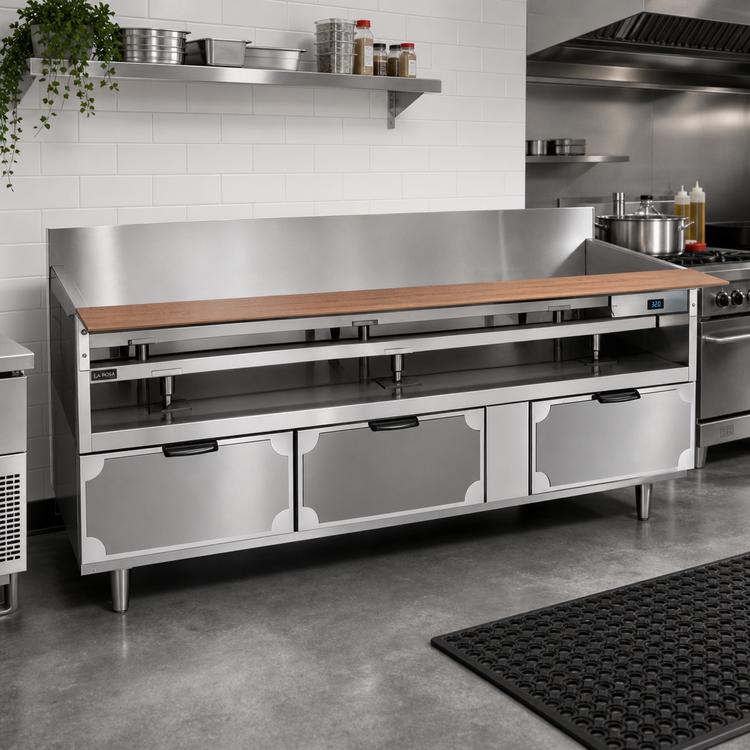

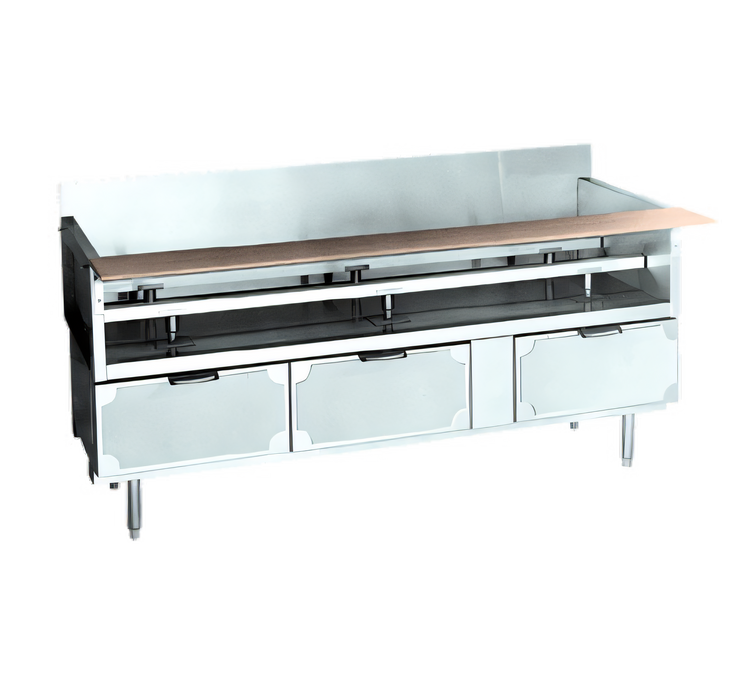

La Rosa L-75166 Refrigerated Equipment Stand – 66″, 4-Drawer

Modular Equipment 75000 Series | Made in Detroit, MI

Bring cold storage and a rock-solid equipment platform to the heart of your cook-line. The L-75166 couples a forced-air remote refrigeration base with a full-length Richlite cutting board and heavy-gauge stainless equipment shelf—giving chefs everything they need to prep, cook, and plate from one NSF-listed station.

Key Advantages

  • 66″ W x 26″ D footprint – fits under griddles, charbroilers, or small countertop ovens
  • Remote R-134a evaporator with factory-installed expansion valve for rapid recovery
  • Four self-sealing drawers on 5⁄16″ ball-bearing rollers; removable high-impact liners
  • One-piece 304 stainless equipment shelf with ¼″ marine front edge & 2 ⅛″ backsplash
  • 9½″ deep NSF Richlite cutting board with stainless reinforcement & drop-leaf brackets
  • Full finished welds, foamed-in-place polyurethane insulation, and sound-deadening channels
  • 8″ stainless legs with 1 ⅛″ bullet-foot adjustment for perfect leveling
  • Ships fully assembled from Detroit, Michigan

Built for Daily Line Abuse

  • Die-formed 20/22 GA 304 stainless drawer fronts resist dents and scratches.
  • Concealed perimeter magnets in the molded drawer jams lock in cold air.
  • Removable equipment support rails simplify cleaning and load adjustments.
  • Interior ends and shelving are all stainless—no painted surfaces inside the cold zone.

Technical Specifications

Model L-75166
Sections / Drawers 3 sections / 4 refrigerated drawers
Refrigerated Capacity 1.9 cu. ft.
BTU Load (10 °F TD) 800 BTU/hr
Refrigerant R-134a (evaporator factory charged)
Compressor (recommended) ¼ HP remote condensing unit
Electrical 115 V / 60 Hz / 1 Φ – 0.64 A (evaporator fan)
Work Surface Height 36″ (to cutting board)
Cutting Board 66″ L × 9½″ D × ½″ Richlite, NSF
Overall Dimensions 66″ W × 26″ D × 36″ H
Shipping Weight ≈ 430 lb
Origin Detroit, Michigan USA

Warranty

Includes a 1-year parts & labor warranty on the entire unit plus a 1-year warranty on the hermetically sealed compressor. Extended compressor coverage is available.

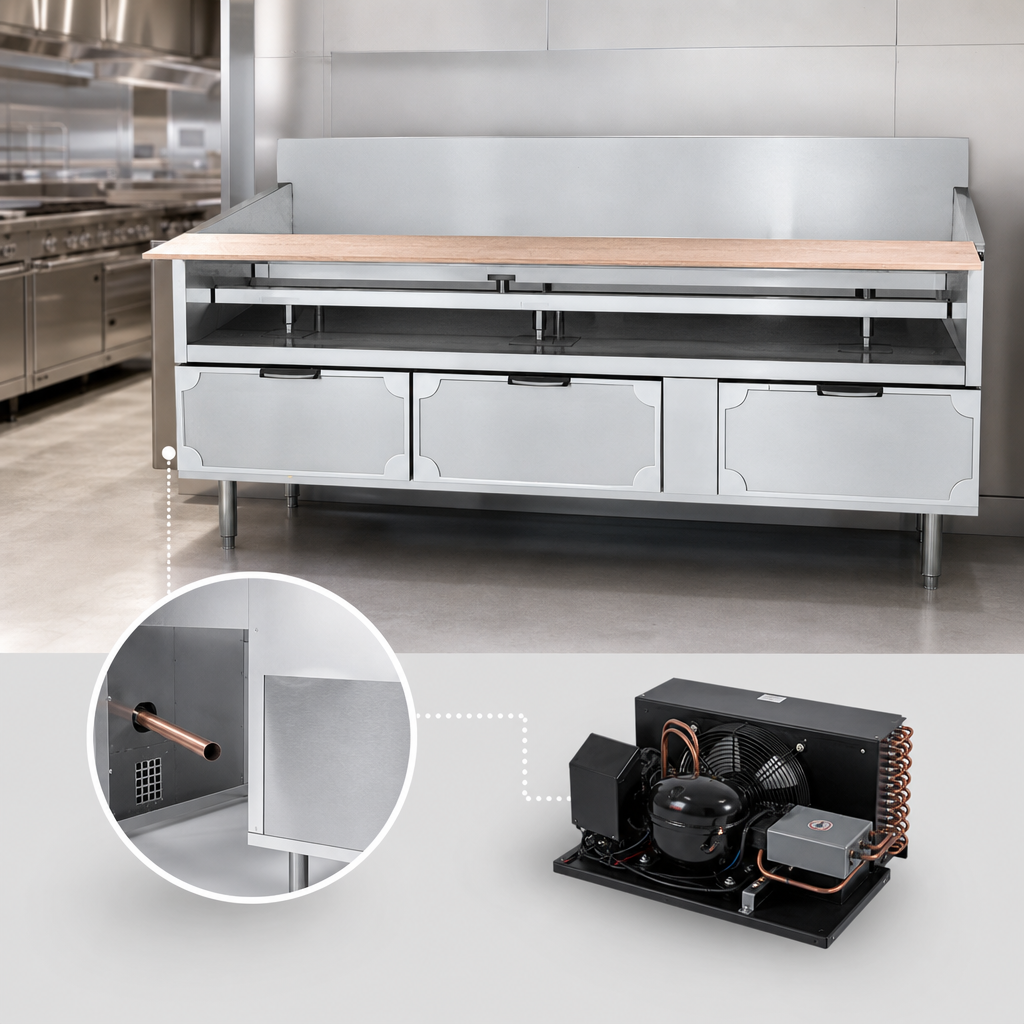

Remote Refrigeration Notice: A field-supplied condensing unit, controls, and final electrical connections are required for operation. Installation must be completed by a licensed refrigeration technician.

Features & Specs

Manufacturer

La Rosa Refrigeration

Height

36.0in

Width

66.0in

Depth

26.5in

Shipping Weight

445.0lbs

Top Finish

stainless steel top

Exterior Finish

all stainless steel exterior

Width

61" - 72" wide

Compressor HP

1/4 HP

Drawer Qty

4 drawers

Refrigeration

remote (refrigeration not included)

Specifications

Equipment Stand, Refrigerated Base, three-section with drawers, designed for remote refrigeration, 66"W x 26" D, (4) drawers, stainless steel equipment shelf with marine front edge, removable equipment support rails, 9-1/2" Richlite cutting board, expansion valve system, full finished welds, 8" stainless steel legs, adjustable feet, R134a, 1/4 HP, MADE IN DETROIT
