Description

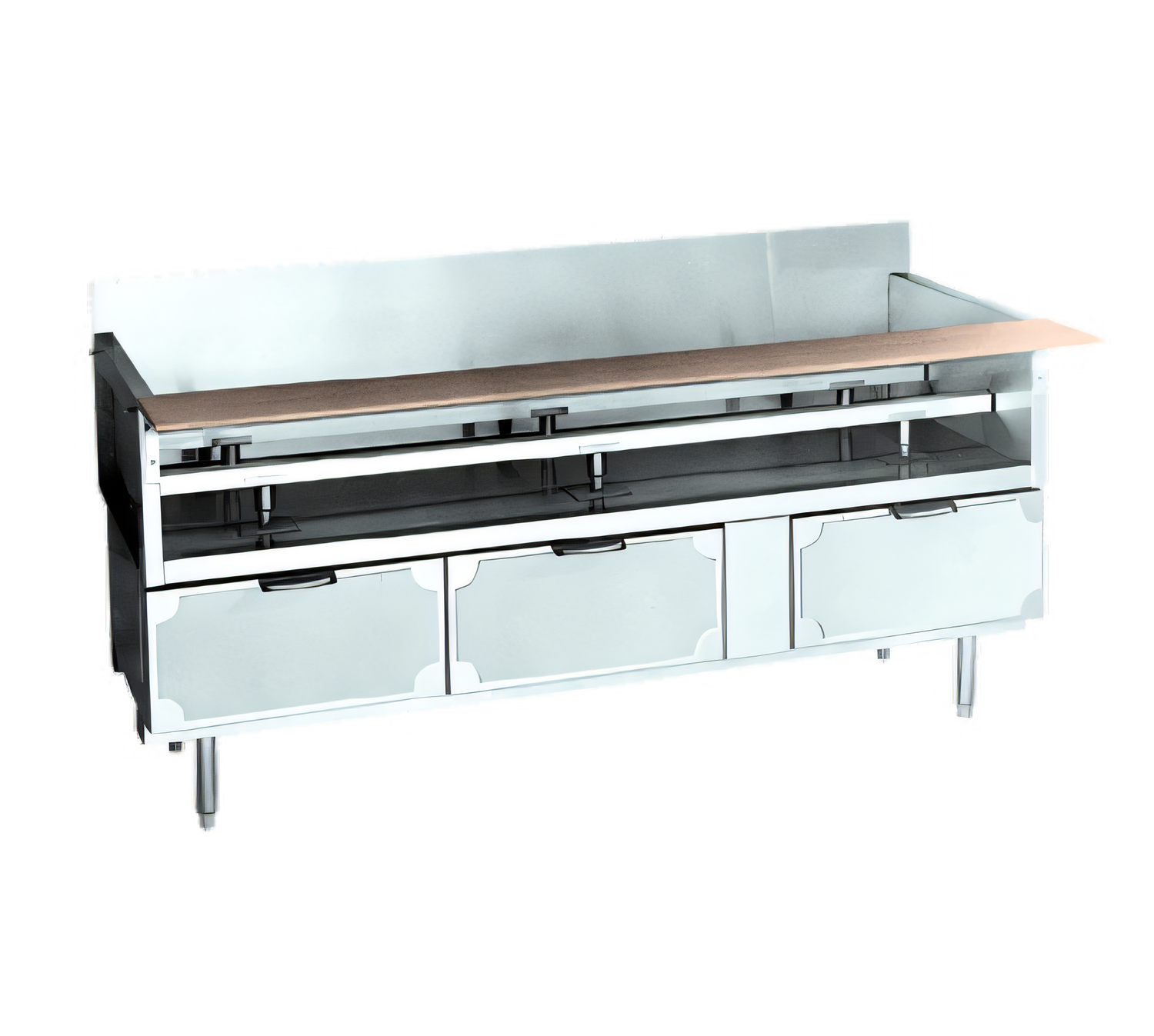

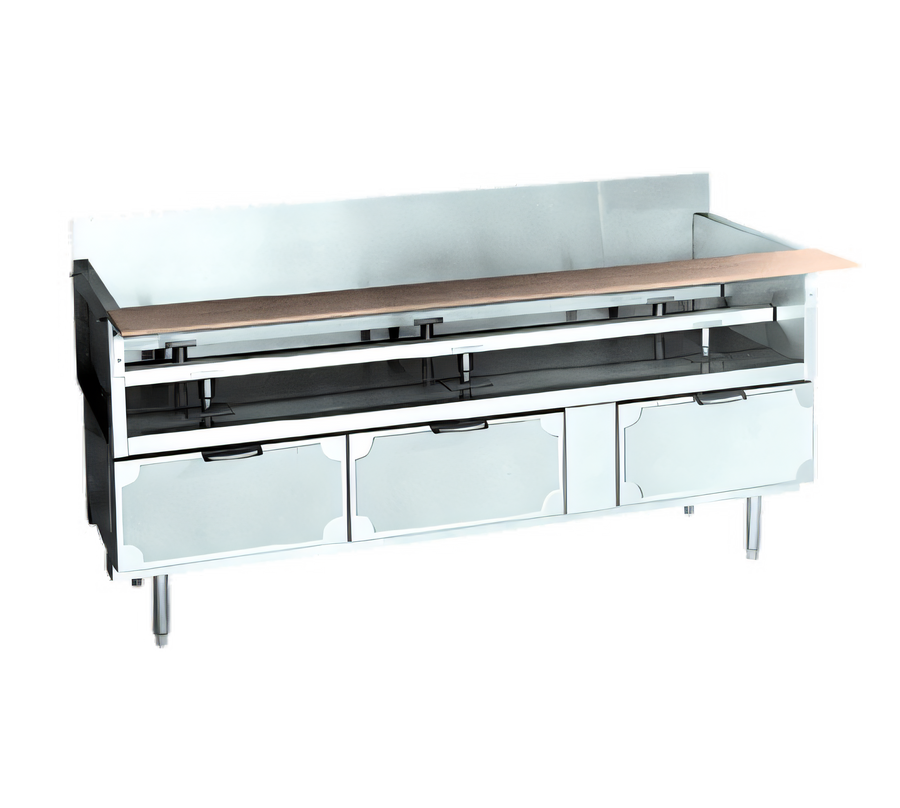

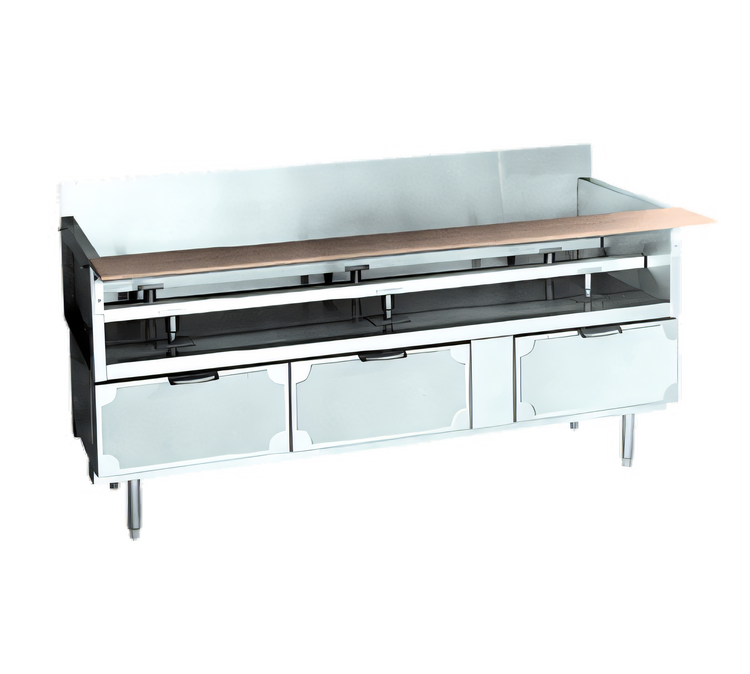

La Rosa 42" Remote Refrigerated Equipment Stand – 4 Drawer

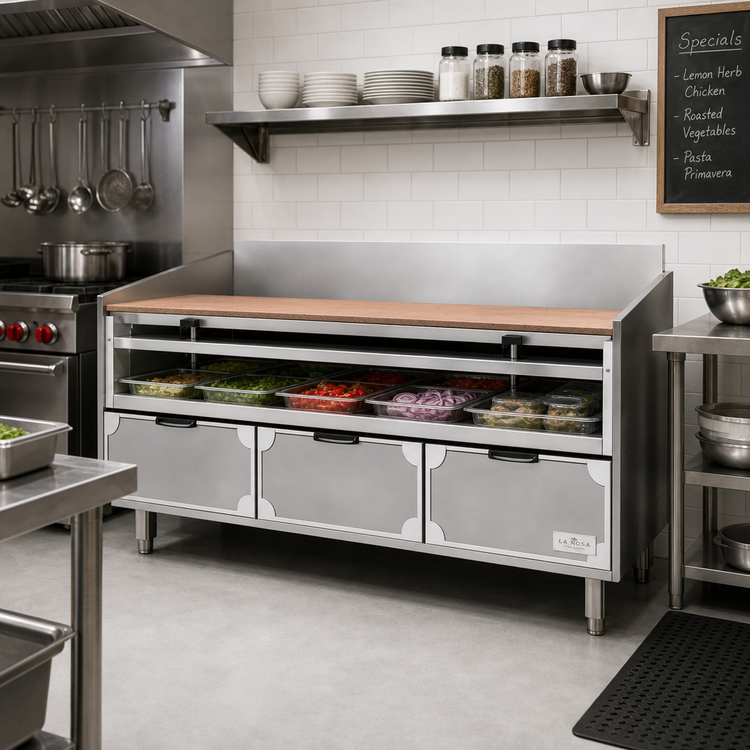

Model L-75142 | Modular Equipment 75000 Series | Made in Detroit, USAPurpose-built for the busiest cooklines, the La Rosa L-75142 pairs a rock-solid equipment stand with a high-performance remote refrigerated base. Set your griddle, charbroiler, or induction range on top, keep chilled ingredients right below, and shave steps off every ticket.
Key Features
- Two refrigerated sections with 4 full-extension drawers – each accepts 6" deep pans (pans not included).
- One-piece 304 stainless steel equipment shelf (20/22 GA) with #4 satin finish.
- ¼" marine front edge & 2-⅛" backsplash contain spills and drips.
- Removable equipment support rails for flexible countertop appliance placement.
- NSF-approved 9-½" Richlite® cutting board reinforced with stainless channel.
- Rugged, fully welded construction with 8" stainless steel legs and 1-⅛" adjustable bullet feet.
- Molded high-impact plastic drawer liners & magnetic gaskets for quick, tool-free cleaning.
- Foamed-in-place rigid polyurethane insulation throughout cabinet.
- Forced-air evaporator with expansion valve for rapid temperature recovery.
- Factory charged with R-134a; junction box provided for hook-up to your remote ¼ HP condensing unit (not included).
- Backed by a 1-year limited parts & labor warranty.
Performance You Can Count On

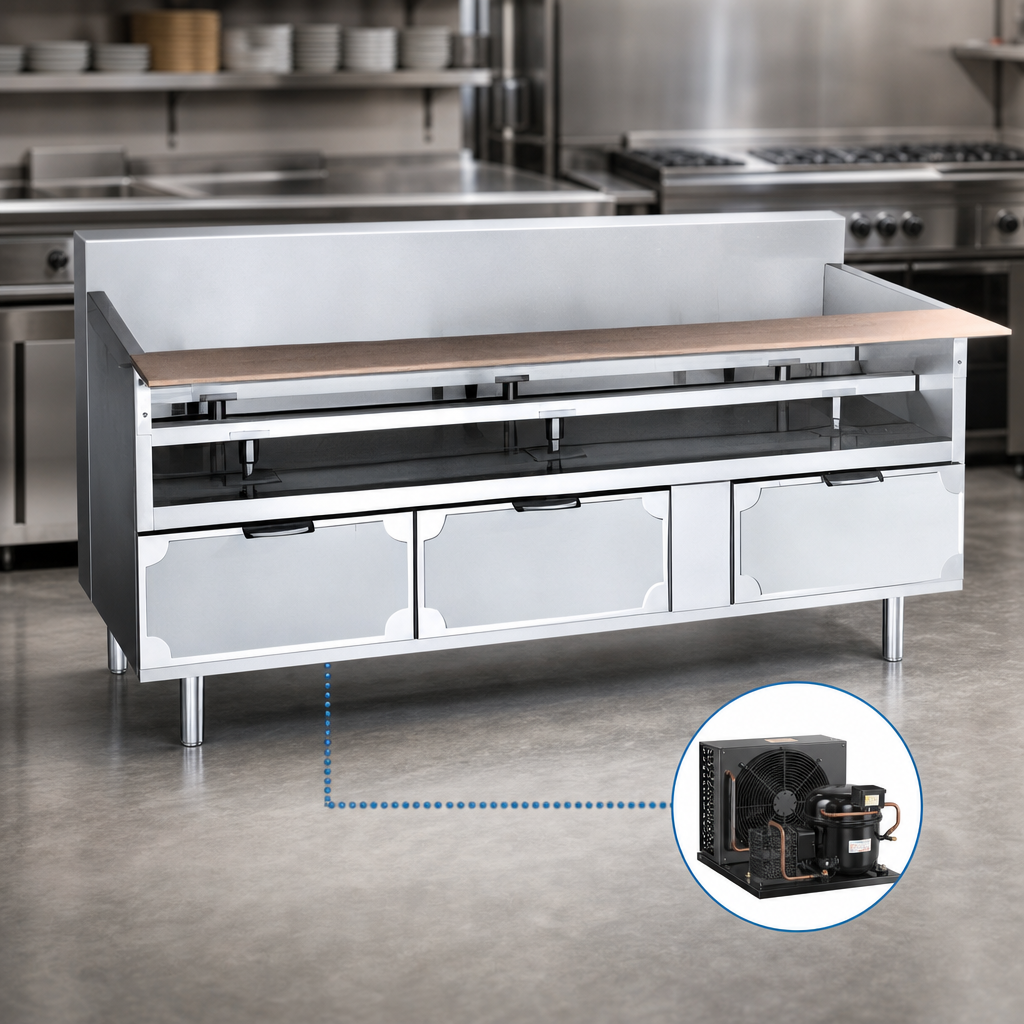

The remote refrigeration design keeps heat and noise away from the cookline, while the corrosion-resistant coated coil maintains a steady 36–40 °F (2–4 °C) even in punishing kitchen environments.
Specifications
Model | L-75142 |
---|---|
Exterior dimensions (W × D × H) | 42" × 30" × 36" (with 8" legs) |
Drawers | 4 (two sections) |
Refrigerated capacity | 1.1 cu. ft. |
BTU/h @ 10 °F TD | 800 |
Refrigerant | R-134a |
Electrical (evaporator) | 115 V / 60 Hz / 1-phase, 0.64 A |
Recommended remote condensing unit | ¼ HP (not included) |
Construction | 20/22 GA 304 stainless steel top, 22 GA 304 stainless interior, high-impact plastic drawer liners |
Insulation | Foamed-in-place rigid polyurethane |
Shipping weight | ≈ 340 lb |
Remote installation required: Unit ships without a condensing unit. A qualified technician must connect the pre-charged evaporator to a compatible ¼ HP R-134a remote system.
Specifications subject to change without notice. Countertop equipment and pans shown in photos are sold separately.
