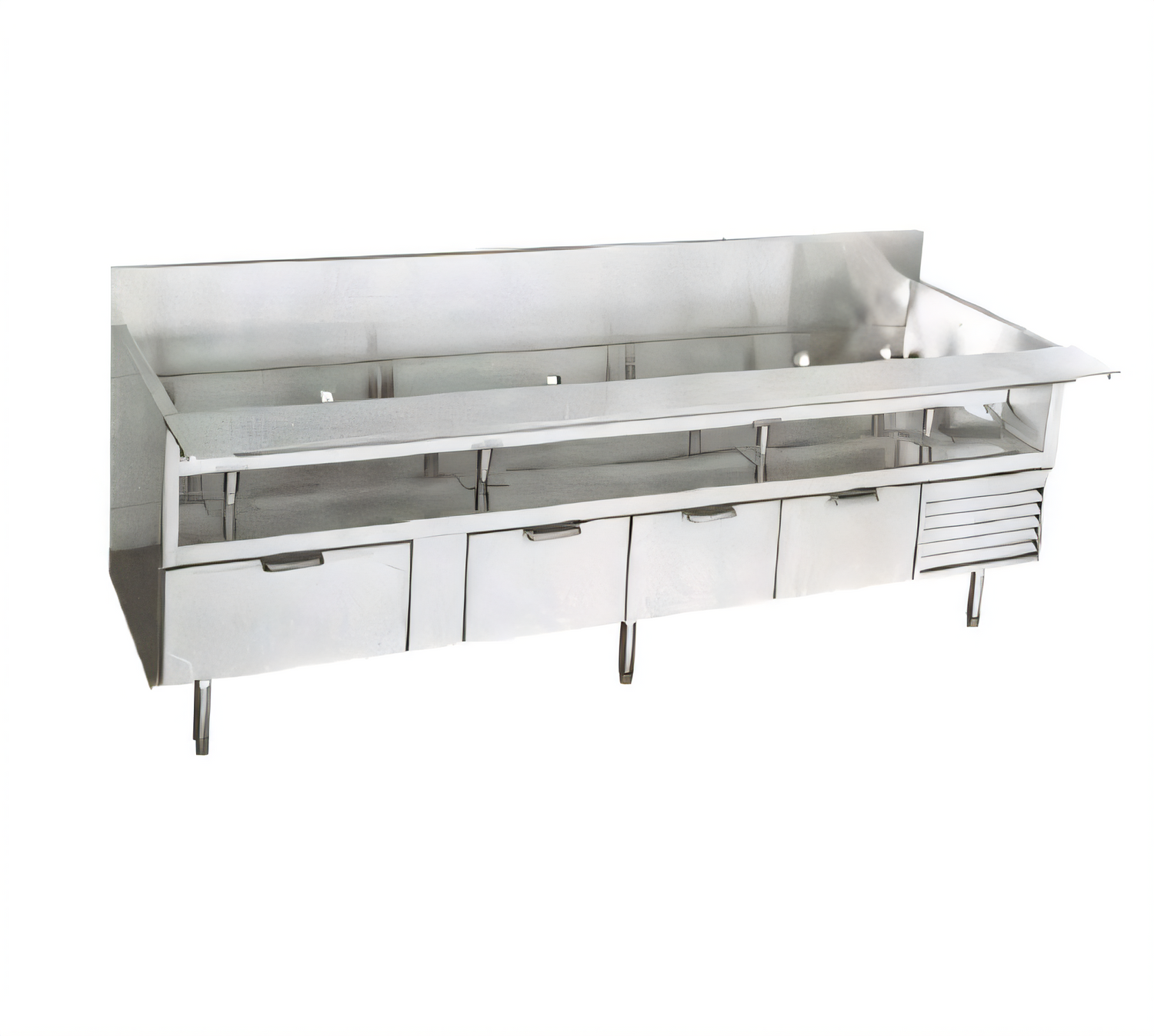

La Rosa 90" Refrigerated Equipment Stand — 3 Drawer
Model L-74190 | Self-Contained 1/4 HP | Made in DetroitKeep ingredients ice-cold and within arm’s reach while adding a rock-solid cooking platform to your line. La Rosa’s 90-inch refrigerated equipment stand combines a high-performance drawer base with a die-formed 304 stainless shelf and NSF Richlite® cutting board—all built and welded in Detroit for kitchens that don’t compromise.
Chef-Focused Advantages
- Three full-extension refrigerated drawers hold up to 2.5 cu. ft. of product in 1/1 pans.
- Die-formed 304 stainless equipment shelf with ¼" marine edge and 2 ¹⁄₈" backsplash contains spills and routes utilities.
- 9½"-wide NSF Richlite cutting board is knife-friendly, removable and reinforced with stainless channel.

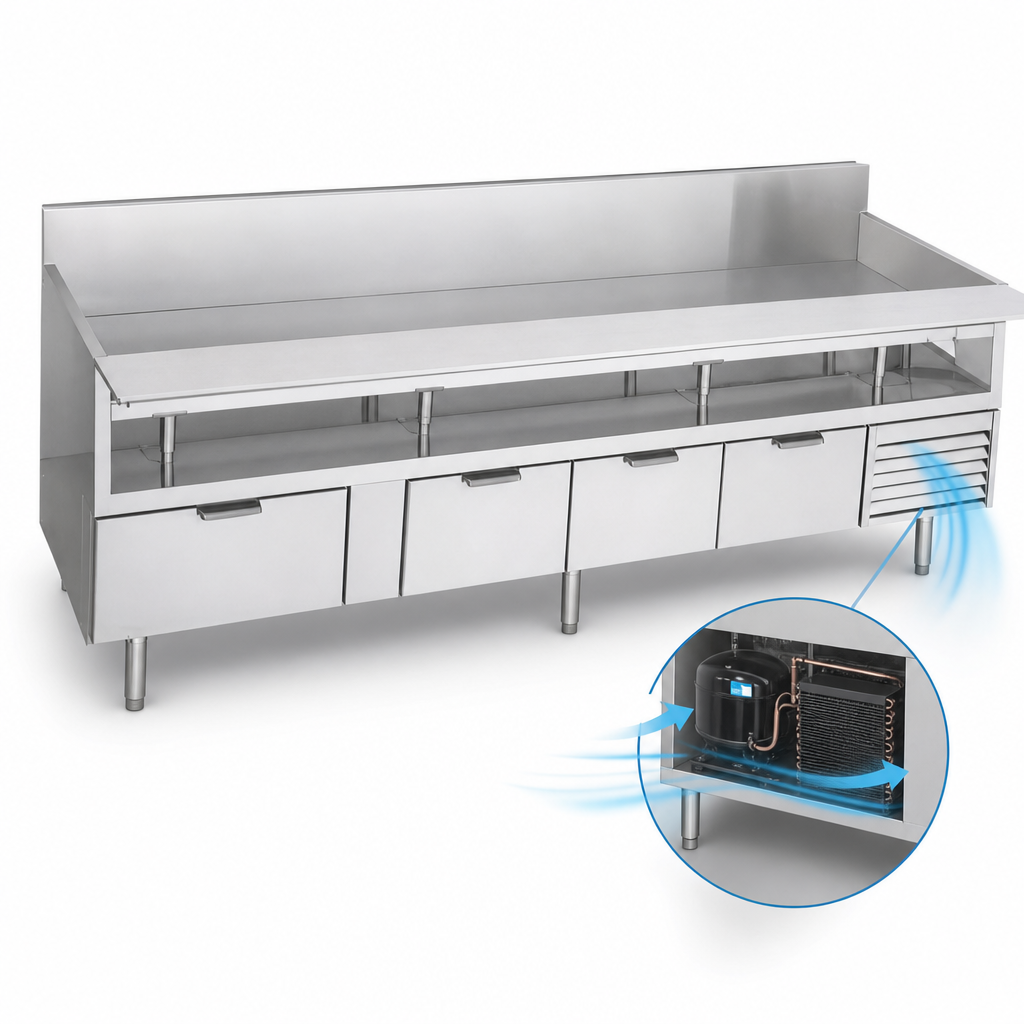

- Side-mounted, self-contained R-134a system with expansion valve recovers temperature fast (36-40 °F).
- Full finished welds, rigid polyurethane insulation and high-impact drawer liners for decades of service.
- 8" stainless legs with bullet feet give 1 ¹⁄₈" adjustment for perfect leveling.
- Ships 115 V with 5-15P plug—no remote compressors or field wiring required.
Technical Specifications
| Model | L-74190 |
|---|---|
| Overall width | 90" (2286 mm) |
| Overall depth | 30 ½" (775 mm) |
| Base height | 26 ½" (body) + 8" legs |
| Refrigerated drawers | 3 |
| Internal capacity | ≈ 2.5 cu. ft. |
| Temperature range | 36 – 40 °F (2 – 4 °C) |
| Compressor | 1/4 HP, hermetically sealed |
| Refrigerant | R-134a |
| Voltage / phase | 115 V / 60 Hz / 1 ph |
| Total amps | 9.3 A |
| Plug type | NEMA 5-15P |
| Construction | 304 stainless exterior & interior, rigid polyurethane foam insulation |
| Legs | (4) 8" stainless, bullet feet (1 ¹⁄₈" adjustment) |
| Country of origin | Detroit, Michigan USA |
Included With Your Stand
- Stainless equipment shelf with rear utility cut-outs
- Removable equipment support rails
- 9½" Richlite cutting board
- Drawer liners & magnetic gaskets (field-removable)
- Factory-charged refrigeration pack, 5 ft cord & plug
- 1-Year parts & labor warranty (optional extended compressor coverage available)
Specifications are subject to change without notice. Contact us for custom lengths, left-hand compressor, or CAD drawings.
