La Rosa Refrigeration L-74166-26 Undercounter & Worktop Refrige...
Description

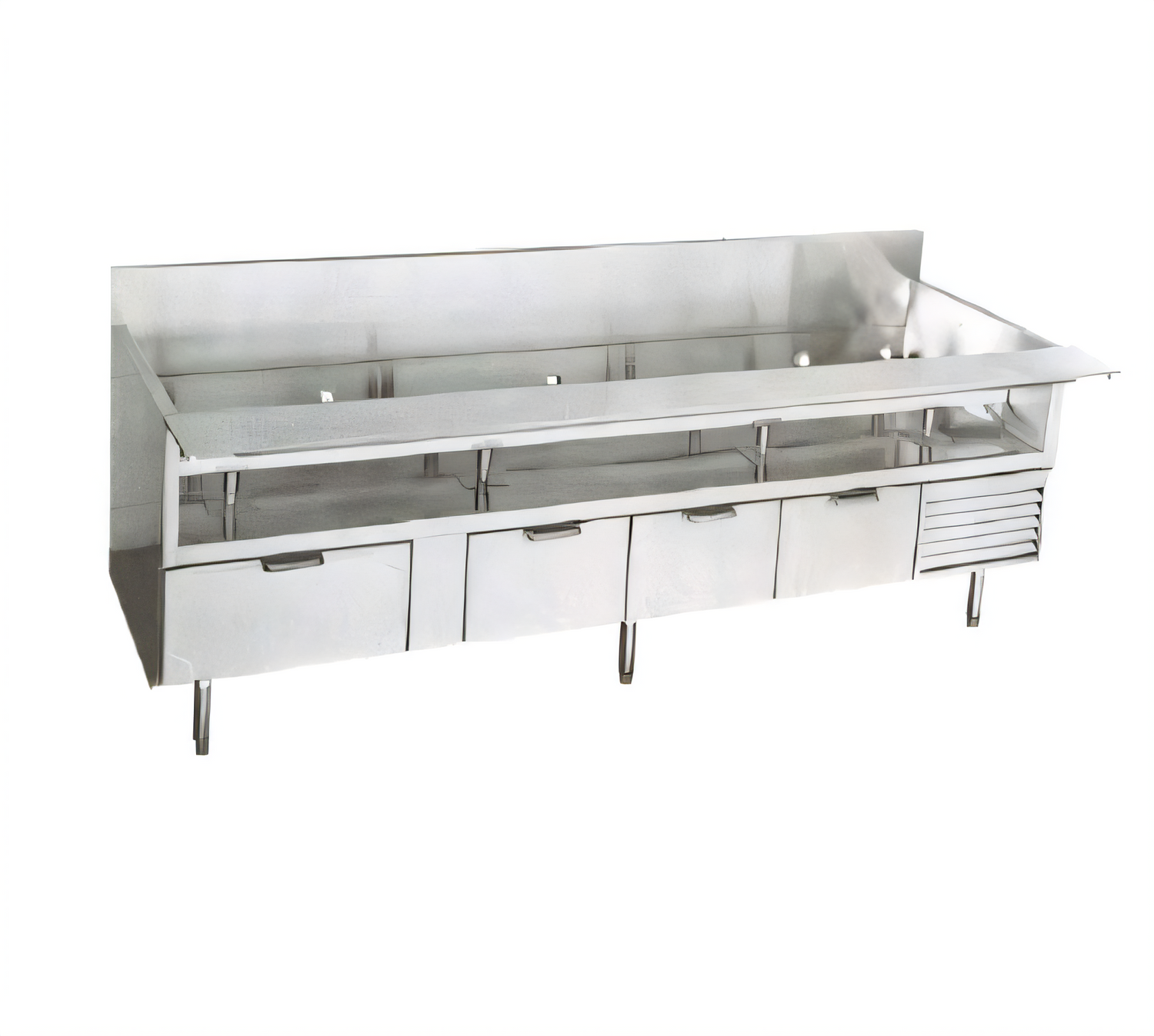

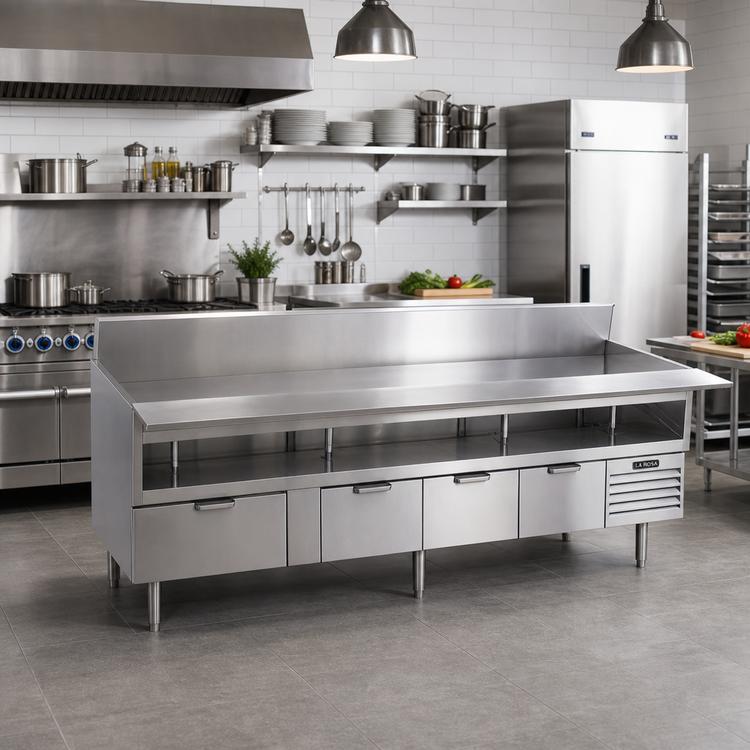

La Rosa 66" Refrigerated Equipment Stand – Model L-74166
Two-Section • 2 Drawers • Self-Contained 1/4 HP Side-Mounted RefrigerationBuilt in Detroit for the demands of a high-volume cookline, the La Rosa L-74166 combines a heavy-duty equipment shelf, refrigerated base and NSF-approved Richlite cutting board in one space-saving footprint. Keep proteins and mise en place at 36–40 °F directly under your charbroiler, griddle or plancha while adding 66 inches of rugged stainless-steel work surface to your line.
Highlights
- Die-formed 20/22 GA 304 stainless steel equipment shelf with ¼" marine edge and 2 ⅛" rear backsplash.
- Removable equipment support rails—re-configure quickly for changing menu or equipment needs.
- 9 ½" W × ½" T Richlite composite cutting board, NSF listed and knife-friendly.
- (2) full-extension refrigerated drawers glide on 1 5⁄16" corrosion-resistant roller bearings and accept standard hotel pans (not included).
- Rigid polyurethane foam insulation maximizes cold retention and energy efficiency.

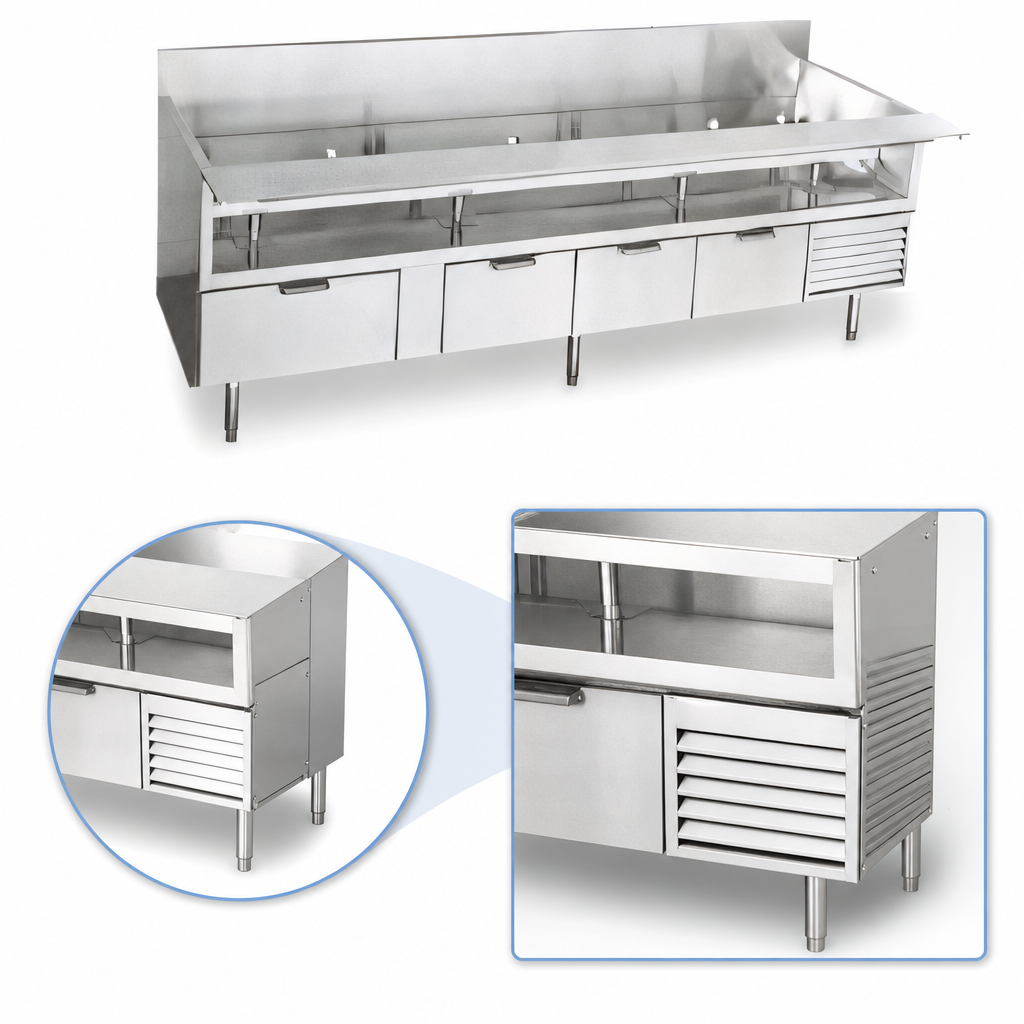

- Side-mounted 1/4 HP forced-air refrigeration system with expansion valve for fast temperature recovery.
- All-304 stainless steel interior & exterior with fully finished welds for a sanitary, easy-clean surface.
- 8" stainless steel legs with 1 ⅛" bullet-foot adjustment for perfect leveling.
- Ships self-contained, pre-charged with eco-friendly R-134a and an 8' cord with NEMA 5-15P plug.
- Proudly made in Detroit, Michigan, USA.
Cold Storage Right Where You Need It
- Hermetically sealed 1/4 HP condensing unit (R-134a) balances high-temperature evaporator for reliable 36–40 °F holding.
- Expansion-valve system maintains set temperature even during frequent drawer openings.
- Protective-coated evaporator coil resists corrosion for longer service life.
- Factory-wired on/off rocker switch for quick start-up and cleaning shutdowns.
Specifications
| Model | L-74166 |
|---|---|
| Overall Dimensions (W × D × H) | 66" × 26 ½" × 36" |
| Refrigerated Sections | 2 |
| Drawers | 2 full-extension drawers |
| Interior Capacity | 1.6 cu ft per drawer (3.2 cu ft total) |
| Temperature Range | 36 – 40 °F |
| Refrigerant | R-134a |
| Compressor HP | 1/4 HP |
| Voltage / Phase | 115 V / 60 Hz / 1 Ph |
| Total Amps | 8.7 A |
| Plug Type | NEMA 5-15P (8' cord) |
| Cutting Board | Richlite, 9 ½" W × ½" T, NSF listed |
| Legs | 8" 304 stainless tube with 1 ⅛" adjustable bullet feet |
| Construction | All 304 stainless steel, fully welded |
| Shipping Weight | ≈ 475 lb |
| Origin | Detroit, Michigan, USA |
Warranty
Includes La Rosa’s 1-year parts & labor warranty and 1-year compressor warranty. Extended compressor coverage available—see full warranty for details.
