Description

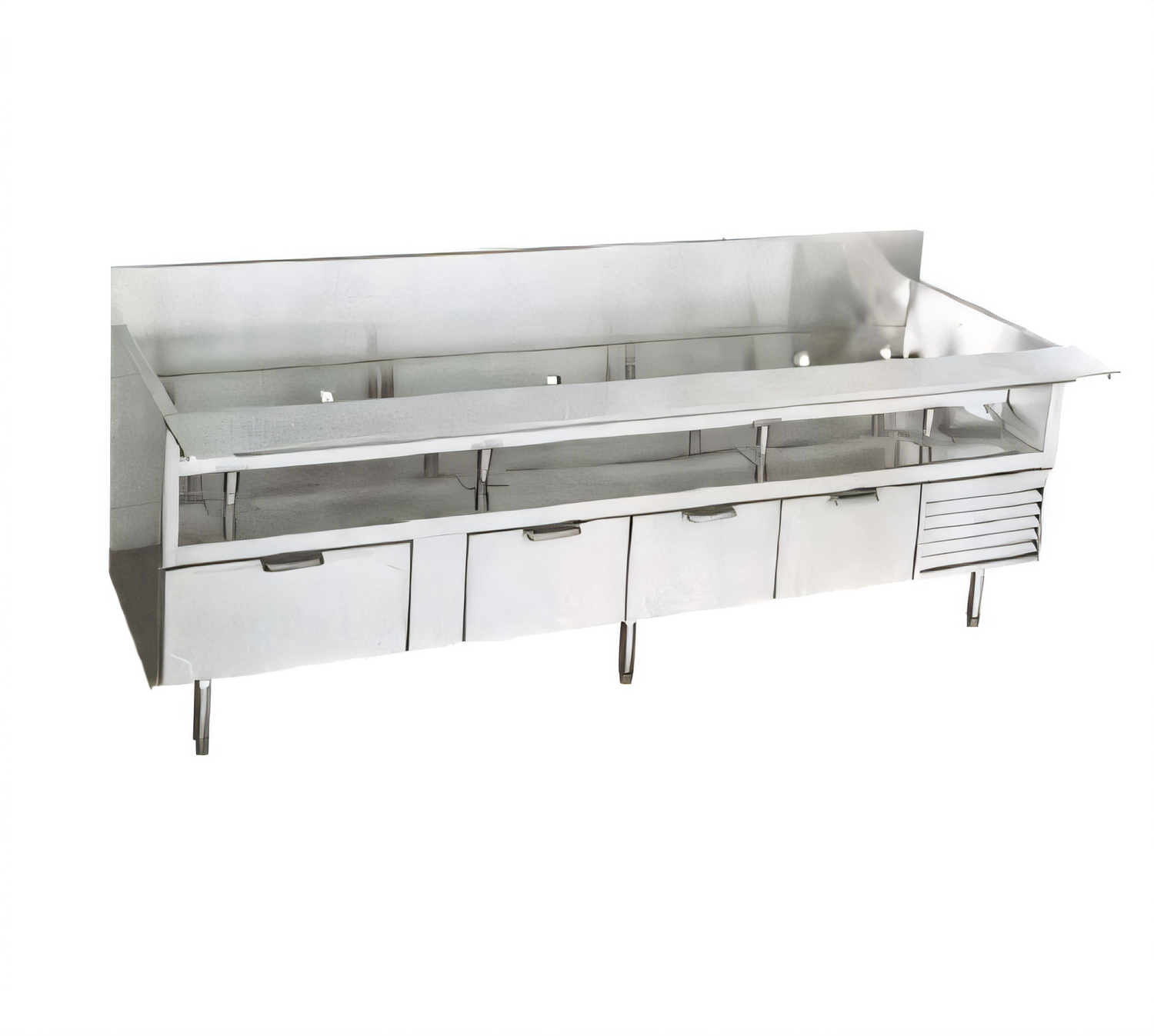

L-74114 Refrigerated Equipment Stand – 114" Wide

Modular 74000 Series | Made in Detroit, USA

From prep to plating, the La Rosa L-74114 keeps cold ingredients, hot equipment and a rugged Richlite cutting board within arm’s reach. This four-drawer, self-contained powerhouse is purpose-built for the high-volume cook line that refuses to compromise on speed, sanitation or build quality.

Key Features
  • Self-contained 1/4 HP side-mounted refrigeration, factory charged with environmentally-friendly R-134a.

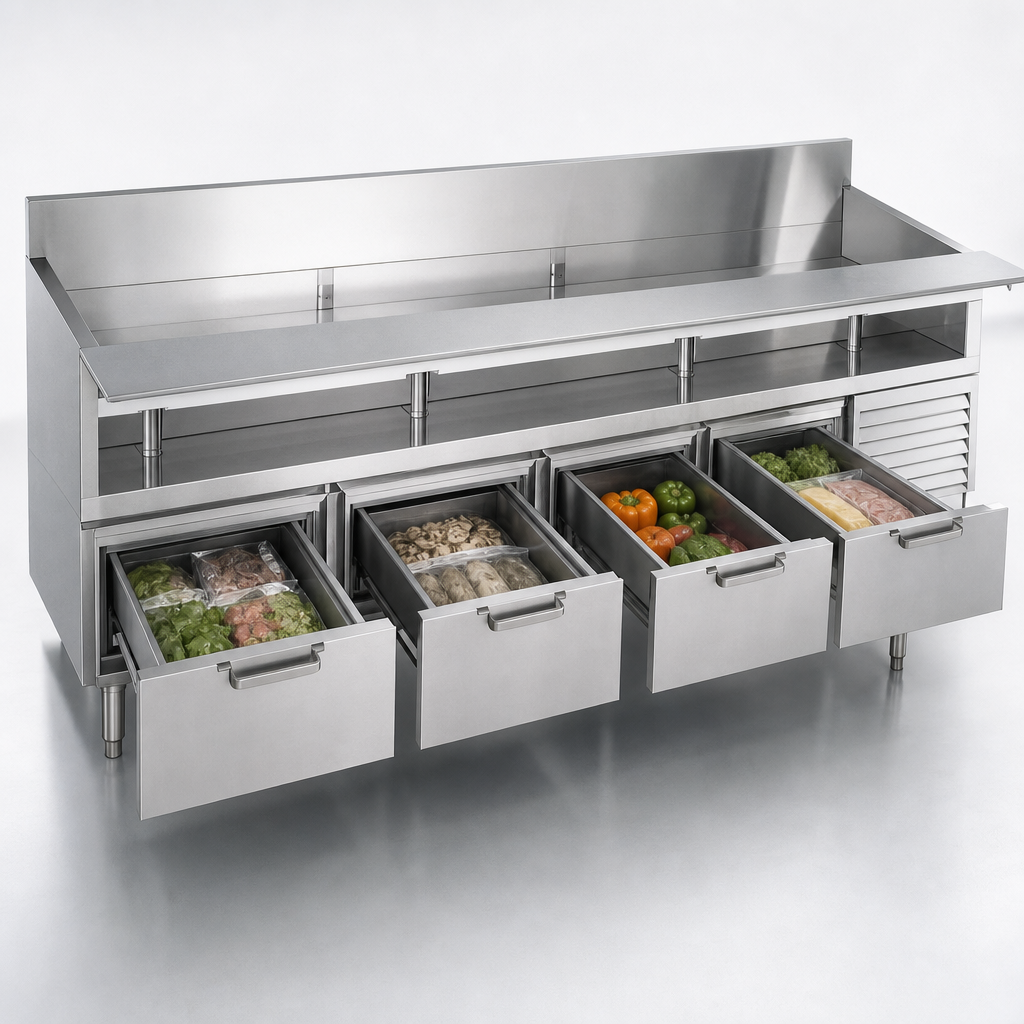

  • Four spacious refrigerated drawers on heavy-duty telescoping slides; removable high-impact liners for quick clean-up.
  • One-piece 20/22 ga 304 stainless equipment shelf with ¼" marine edge, rear backsplash & removable support rails.
  • Full-length 9 ½" W × ½" T NSF-approved Richlite cutting board, drop-front supported for easy removal.
  • Rigid 2" polyurethane foam insulation maintains 36 – 40 °F cabinet temperature, even on the rush.
  • 8" adjustable stainless steel bullet-foot legs (1 ⅛" height range) for perfect leveling on uneven floors.
  • TIG-welded, polished seams and magnetic drawer jams for a sanitary, debris-free food zone.
  • Forced-air evaporator with epoxy-coated coil & expansion-valve system for rapid temperature recovery.
Built for Your Line
  • Prep, cook & store in one 114" footprint—save valuable steps and seconds every shift.
  • Richlite board resists knife scars, heat & moisture better than traditional hardwood.
  • Removable rail system lets you position charbroilers, griddles or induction tops exactly where you need them.
  • Proudly fabricated, welded and finished in Detroit for rock-solid reliability shift after shift.
Specifications
Model L-74114
Series Modular Equipment 74000
Overall Dimensions 114" W × 30 ½" D × 36" H (including 8" legs)
Refrigerated Capacity 3.3 cu ft
Drawers 4 refrigerated, removable ABS liners
Cutting Board Richlite, 9 ½" wide × full length, ½" thick
Shelf Material 304 stainless, ¼" marine edge, rear backsplash
Insulation Rigid polyurethane foam
Refrigerant / HP R-134a / ¼ HP
Compressor Location Left-side mount
Electrical 115 V / 60 Hz / 1-ph, 9.3 A, NEMA 5-15P
Construction Fully welded stainless top & shelf, coated steel exterior panels
Ship Weight ≈ 750 lb
Important: Provide at least 4" clearance on the compressor side for proper airflow and service access.

La Rosa Refrigeration & Equipment Co. backs this unit with a 1-year parts & labor warranty and an additional 4-year compressor parts warranty.

Features & Specs

Manufacturer

La Rosa Refrigeration

Height

36.0in

Width

114.0in

Depth

30.5in

Shipping Weight

735.0lbs

Top Finish

stainless steel top

Exterior Finish

all stainless steel exterior

Drawer Qty

4 drawers

Refrigeration

self-contained, side mounted

Width

109" - 120" wide

Compressor HP

1/4 HP

Specifications

Equipment Stand, Refrigerated Base, four-section with drawers, self-contained, 114"W x 30" D, (4) drawers, stainless steel equipment shelf with marine front edge, removable equipment support rails, 9-1/2" Richlite cutting board, expansion valve system, full finished welds, 8" stainless steel legs, adjustable feet, side-mounted refrigeration, R134a, 1/4 HP, MADE IN DETROIT
