Description

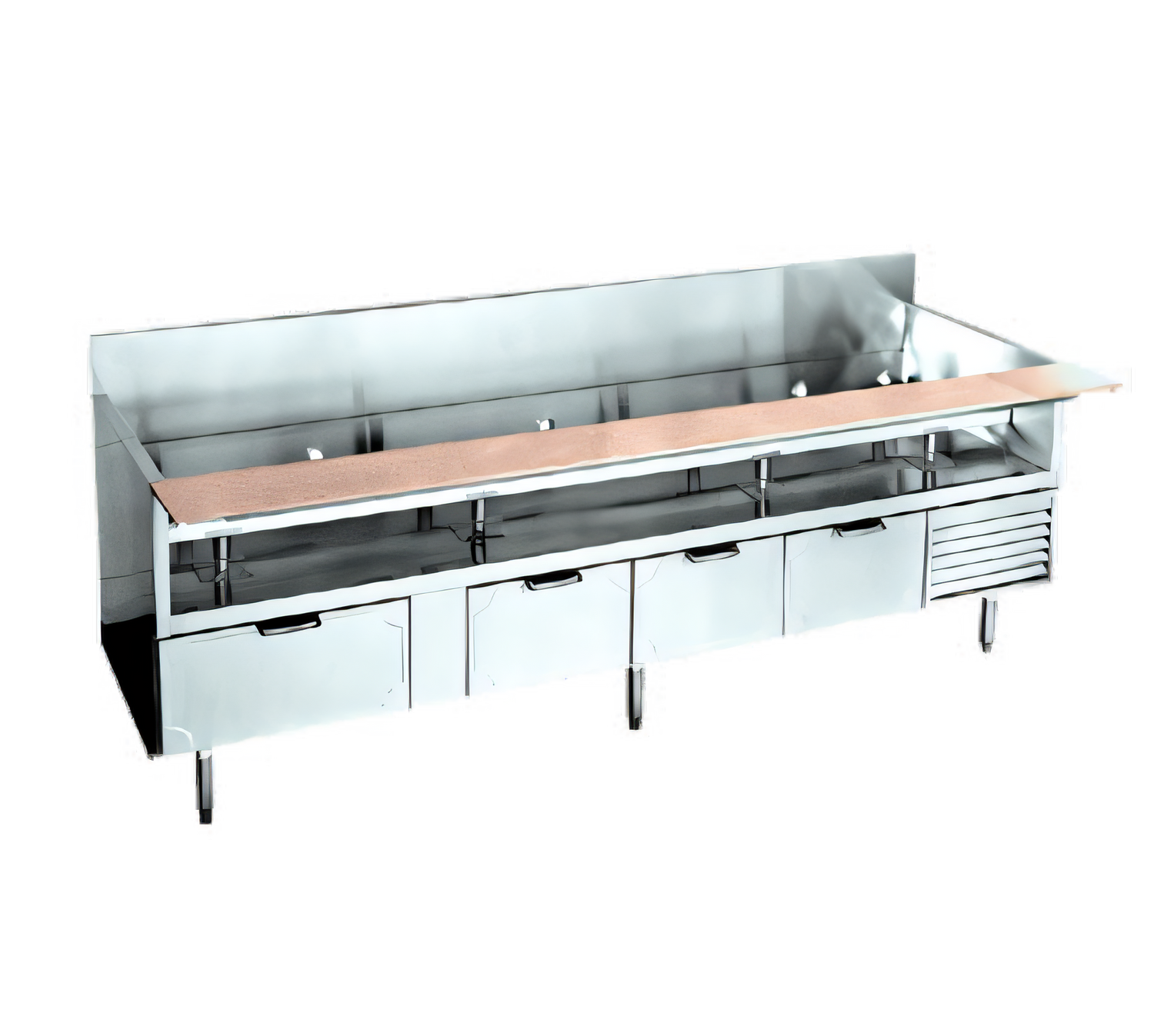

La Rosa L-74102 Refrigerated Equipment Stand – 102″, 4-Drawer
74000 Series • Self-Contained • Made in DetroitStreamline your cookline with a single piece of equipment that works as hard as you do. The La Rosa L-74102 delivers a heavy-duty equipment shelf, full-length Richlite® cutting board, and a high-performance refrigerated base that keeps ingredients at safe temperatures right where you need them.
Key Features
- 102″ W x 30″ D four-section base with (4) refrigerated drawers

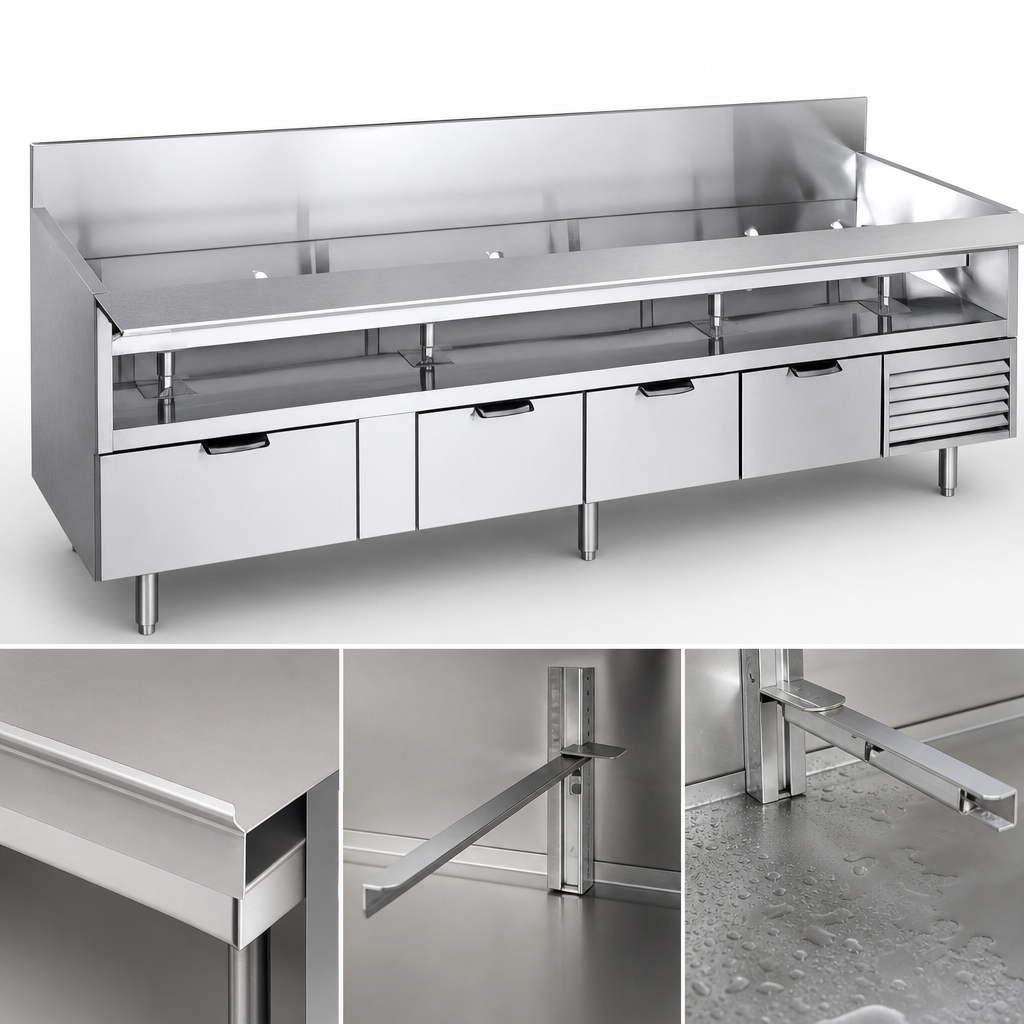

- One-piece 304 stainless equipment shelf with ¼″ high marine front edge
- Removable stainless equipment support rails for flexible cookline layouts
- 9-½″ wide NSF-approved Richlite cutting board—full unit length
- Side-mounted, self-contained refrigeration system with expansion valve for rapid recovery
- Hermetically-sealed ¼ HP compressor, R-134a refrigerant
- Forced-air evaporator with protective-coated coil maintains 36–40 °F in 95 °F ambient
- Rigid polyurethane foam insulation on all sides for maximum efficiency
- Drawers ride on 5⁄16″ corrosion-resistant ball-bearing rollers; removable high-impact liners & gaskets
- Full finished welds, coved interior corners & snap-on condenser housing for easy sanitation
- 8″ high all-stainless legs with 1-⅛″ adjustable bullet feet
- Proudly built, tested, and shipped from Detroit, Michigan, USA
Technical Specifications
Model | L-74102 |
---|---|
Series | 74000 Modular Refrigerated Equipment Stands |
Overall Dimensions (W × D × H) | 102″ × 30″ × 36″ (with 8″ legs) |
Refrigerated Capacity | Approx. 2.7 cu ft |
Number of Drawers | 4 |
Compressor | ¼ HP, hermetically sealed |
Refrigerant | R-134a |
Operating Temperature | 36 – 40 °F |
Voltage / Phase | 115 V / 60 Hz / 1-phase |
Total Amperage | 9.3 A |
Plug Type | NEMA 5-15P (8′ cord supplied) |
Legs | 8″ stainless steel, adjustable bullet feet |
Shipping Weight | Approx. 660 lb |
Backed by La Rosa Refrigeration & Equipment Co.’s comprehensive 1-year parts & labor warranty, plus an additional 4-year compressor warranty. Specifications subject to change without notice.
