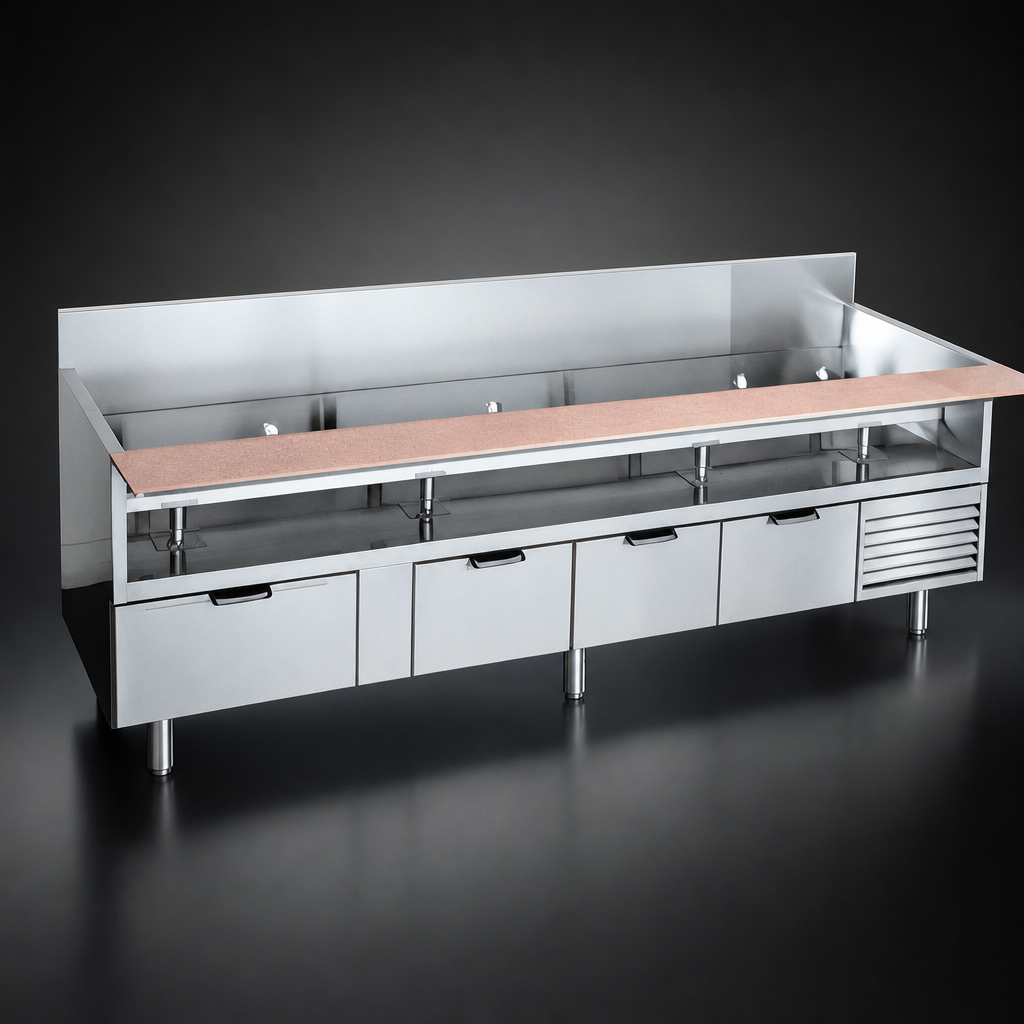

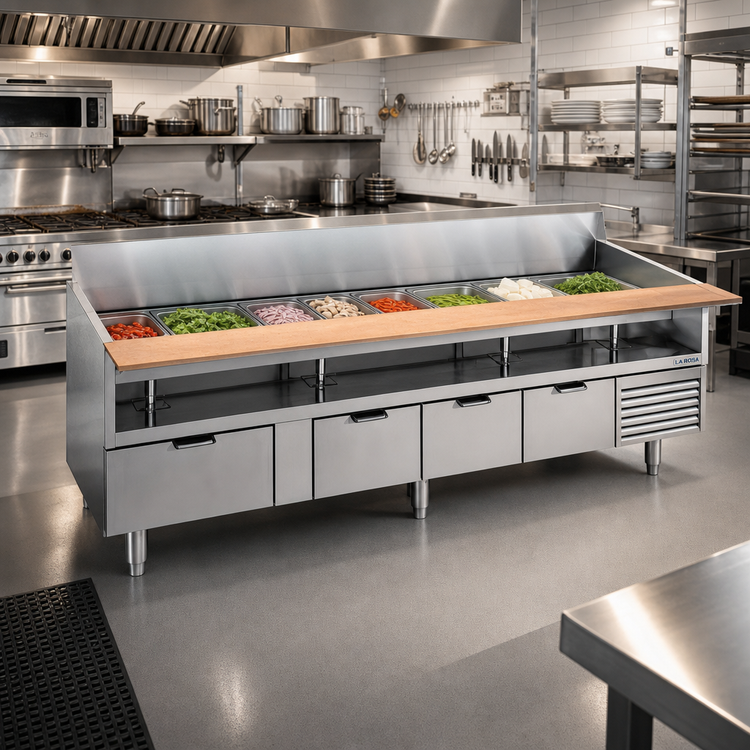

La Rosa L-74102 Refrigerated Equipment Stand — 102" W, 4-Drawer
74000 Series | Self-Contained Base with Cutting Board | Made in Detroit, MIConsolidate prep, cooking, and cold storage in one ultra-durable footprint. The La Rosa L-74102 pairs a heavy-gauge stainless equipment shelf and full-length Richlite cutting board with a balanced ¼ HP refrigeration system to hold ingredients at 36–40 °F right beneath your cookline.
Key Features
- 102" one-piece 304 stainless equipment shelf with ¼" high marine edge to contain spills.
- Four refrigerated drawers (22 ga fronts, removable high-impact liners) glide on ball-bearing slides and accept full-size pans.
- Removable equipment support rails for fast, flexible placement of griddles, charbroilers, or ranges.
- 9-½" × ½" NSF-listed Richlite cutting board spans the full length for high-volume prep.
- Side-mounted, self-contained ¼ HP R-134a system with expansion valve & forced-air evaporator for rapid temperature recovery.
- Rigid polyurethane insulation and magnetic drawer gaskets lock in cold air.
- 8" stainless legs with 1-1/8" bullet-foot adjustment simplify leveling on uneven floors.
- Factory wired with 5-15P plug—runs on a standard 115 V outlet.
- Completely welded & finished construction for long-term durability.
Technical Specifications
| Model | L-74102 |
|---|---|
| Series | Modular Equipment 74000 – Refrigerated Bases |
| Overall Dimensions (W × D × H) | 102" × 26-½" × 36" |
| Refrigerated Drawers | 4 total | 2.7 cu ft capacity |
| Cutting Board | Richlite composite, 9-½" wide, ½" thick |
| Compressor | ¼ HP hermetically sealed, side-mounted |
| Refrigerant | R-134a |
| Operating Temperature | 36 °F – 40 °F |
| Electrical | 115 V / 60 Hz / 1-phase, 9.3 A, NEMA 5-15P |
| Construction | 20 & 22 ga 304 stainless steel exterior / interior |
| Insulation | High-density rigid polyurethane foam |
| Legs | 8" stainless tubing with adjustable bullet feet |
| Shipping Weight | ≈ 660 lb |
Included & Optional
- Included: equipment support rails, utility cut-outs, stainless pan rails, 5-15P cord & plug.
- Optional (factory order): left-hand compressor, custom lengths/depths, blank drawer fronts for utility outlets, and more.
Warranty
La Rosa backs the L-74102 with a 1-year parts & labor warranty. An optional extended 4-year compressor warranty is also available—ask your sales representative for details.
Need a different size or configuration? Custom solutions are available—contact us for a quote.
