La Rosa Refrigeration L-64160-32 Bar Equipment
Description

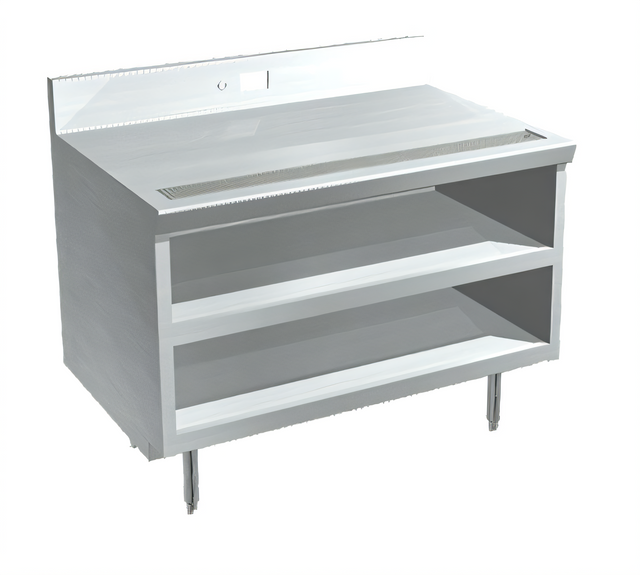

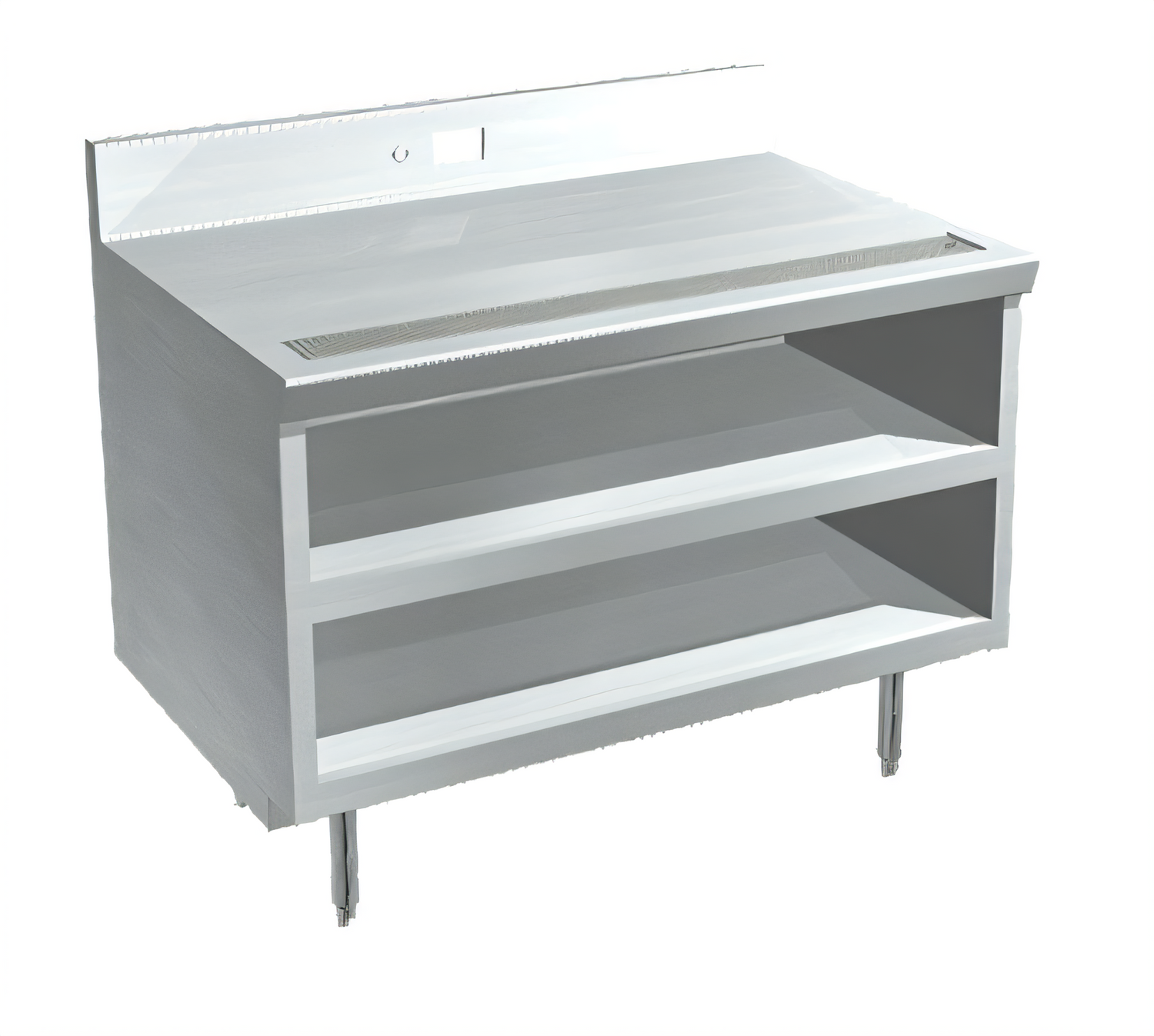

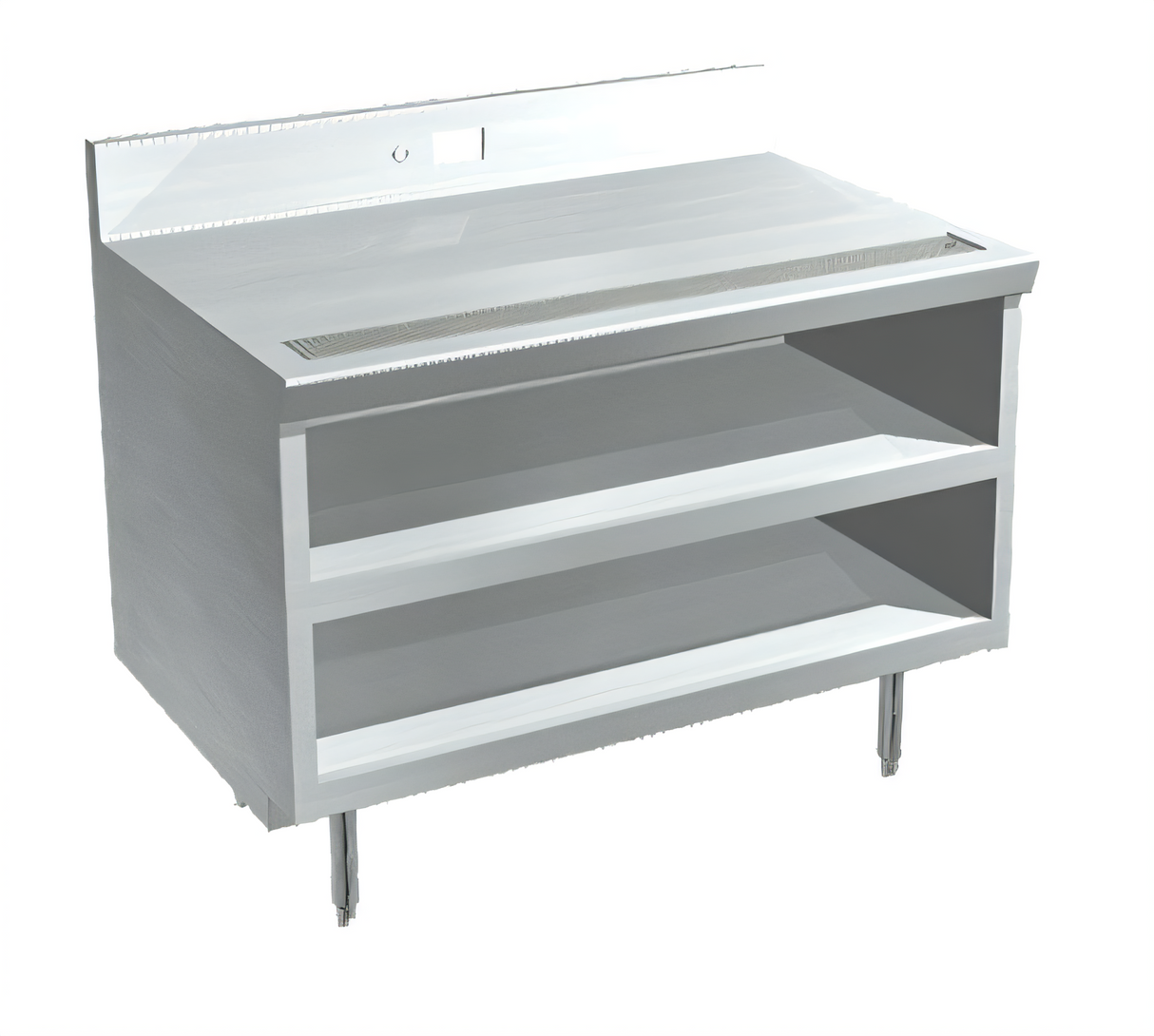

La Rosa 60" Coffee Urn Stand – Open Cabinet Base
Model L-64160 | 64000 Series Utility Stand | Made in Detroit, USAEngineered for demanding beverage service, the La Rosa L-64160 provides a rock-solid platform, built-in drainage, and generous storage—all in a sleek, NSF-compliant 304 stainless package that integrates perfectly with any 64000-series serving line.
Key Features
- One-piece 16 ga 304 stainless top with 6" integral rear splash.
- Full-length 4-1/4" drip trough with removable stainless plate & ½" NPT drain.
- Open cabinet base with die-formed stainless bottom & intermediate shelves.
- Stainless interior ends & cabinet face; painted exterior ends for a finished look.
- 8" stainless legs with bullet feet—1-1/8" adjustment for quick leveling.
- Sound-deadening channels under top and shelving reduce noise & vibration.
- Fully welded, ground, and polished seams for superior sanitation & strength.
- Part of La Rosa’s modular system—mates flush with other units up to 10 ft.
Construction Highlights
- Top: 16 ga 304-#4 stainless, 2-5/8" nosing, hairline seams at adjoining units.
- Shelves: 22 ga 304-#4 stainless, ¼" marine edge front, rear turn-up.
- Trough: 4-1/4" W × 1-1/8" D (4" shorter than unit length) with stainless drip plate.
- Support Channels: 14 ga galvanized under top & intermediate shelf; 20 ga under bottom shelf.
- Legs: 1-5/8" O.D. stainless tubing welded to 12 ga plates.
- Finish: Exterior ends powder-coated; all welds fully polished.
Specifications
| Overall Length | 60" (1524 mm) |
|---|---|
| Overall Depth | 32" (813 mm) |
| Work Surface Height | ≈ 36" A.F.F. (± 1-1/8" via feet) |
| Top Material | 16 ga 304 stainless steel, #4 finish |
| Shelving Area | 19.3 sq ft |
| Shipping Weight | ≈ 315 lb (143 kg) |
| Drain Connection | ½" NPT female (centered) |
| Legs / Feet | 4 × 8" stainless legs, adjustable bullet feet |
| Compliance | NSF, USDA, Made in USA |
| Warranty | 1-year parts & labor (La Rosa standard warranty) |
Need a different size, electrical cut-outs, or other add-ons? Every La Rosa 64000-series stand is built to order—ask about custom configurations to suit your exact workflow.
