La Rosa Refrigeration L-64142-32 Bar Equipment
Description

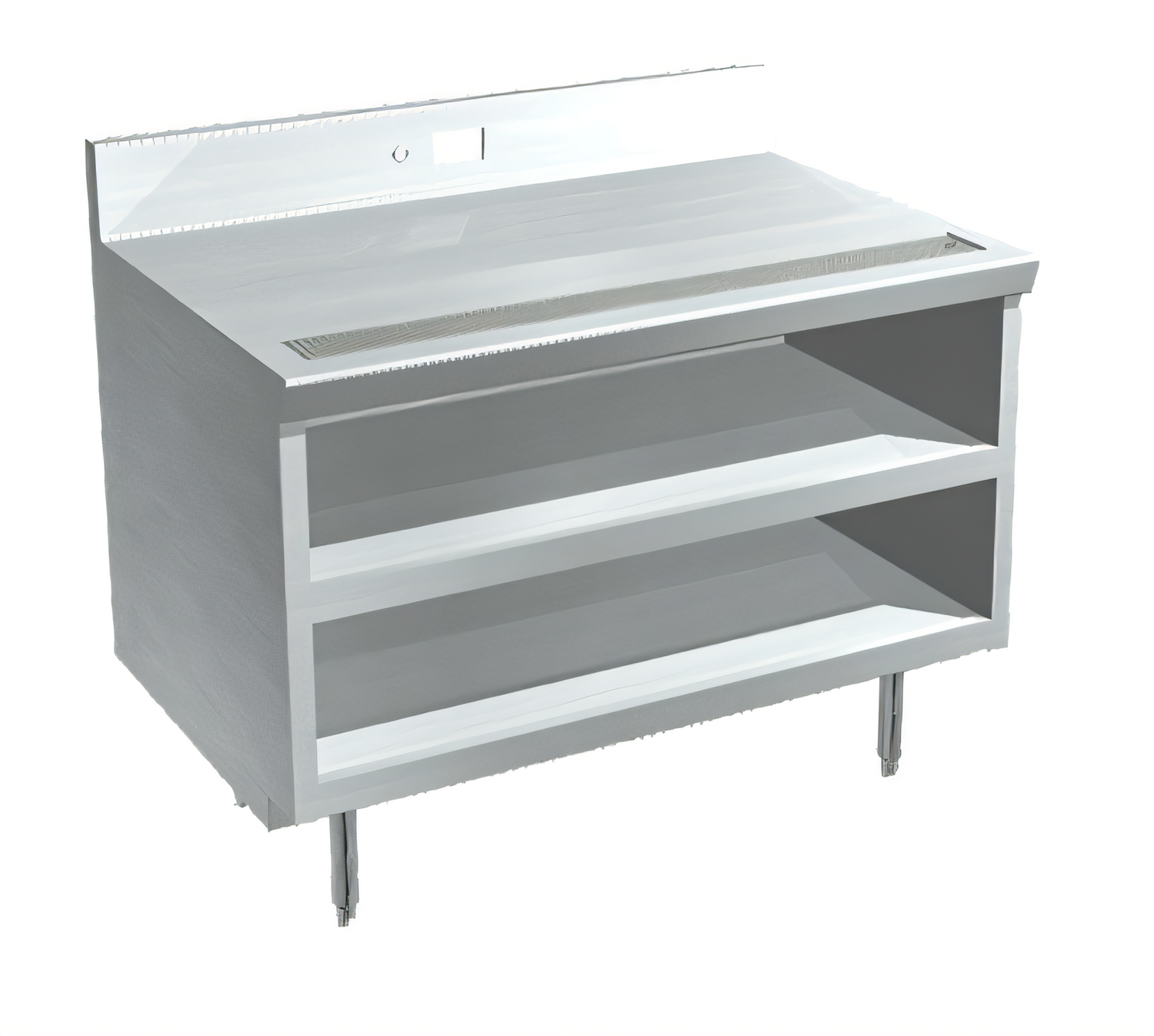

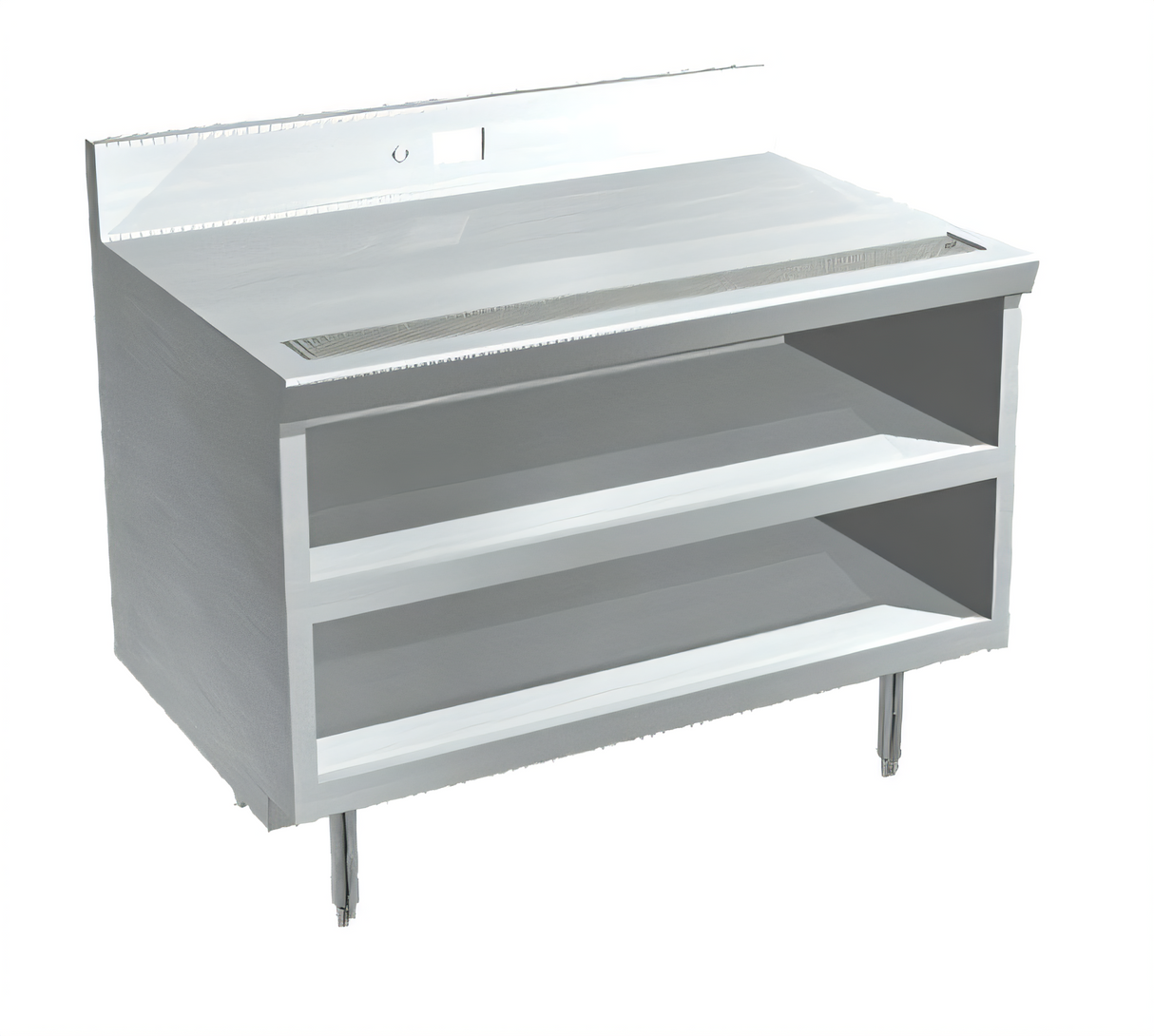

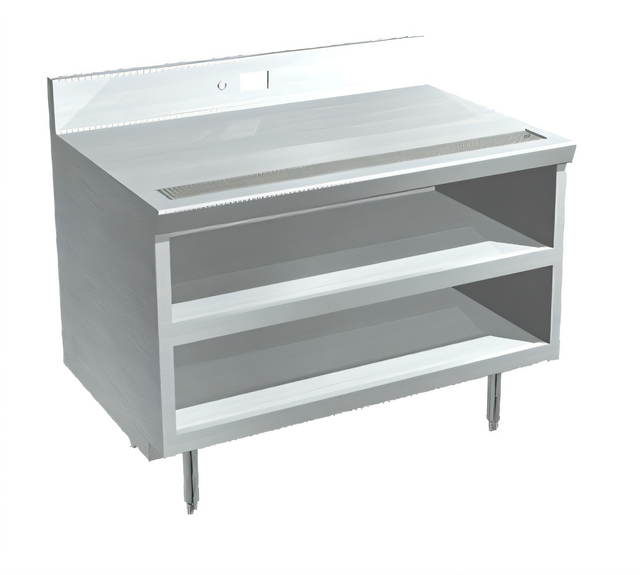

Coffee Urn Stand – 42" L x 32" D
La Rosa Modular Equipment 64000 Series · Model L-64142Purpose-built for high-volume coffee service, the La Rosa L-64142 Coffee Urn Stand delivers rugged, NSF-ready performance in a compact 42-inch footprint. A fully welded 16 GA 304 stainless top, full-length drip trough, and two levels of open shelving keep your brewing area clean, organized, and ready for the rush.
Key Features & Benefits
- One-piece 16 GA 304 stainless steel top with #4 satin finish and 6" rear backsplash for a sanitary, splash-free work zone.
- 4 ¼" full-length drip trough (1 ½" NPT drain) with removable stainless grate prevents messy counter runoff.
- Open base cabinet with intermediate & bottom shelves (22 GA 304 SS) for cups, filters, and supplies.
- Heavy 14 GA galvanized box-channel supports and sound-deadening material—built for commercial punishment.
- Eight-inch stainless legs with 1 ⅝" tubing and 1 ⅛" adjustment bullet feet level the stand on any surface.
- Sheared ends fitted with recessed 12 GA bars for seamless ganging to adjoining La Rosa modular units.
- Full, polished welds and NSF-compatible construction for easy cleaning & inspection.
- Made in Detroit, MI, and backed by La Rosa’s one-year parts & labor warranty.
Technical Specifications
| Model | L-64142 (Open Cabinet Base) |
|---|---|
| Overall Length | 42 in (1067 mm) |
| Overall Depth | 32 in (813 mm) |
| Work Surface Height | Approx. 34 ¾ in to 36 in (adjustable) |
| Top Material / Gauge | 16 GA Type 304 stainless, #4 finish |
| Beverage Trough | 4 ¼" W × 1 ⅛" D (4" less unit length) w/ removable grate & ½" NPT drain |
| Rear Backsplash | 6" H × 2 ⅛" D with ⅜" coved radius |
| Shelves | Intermediate & bottom; 22 GA 304 SS, rear turn-up & ¼" marine edge front |
| Legs / Feet | 8" stainless, 1 ⅝" OD tubing, 1 ⅛" adjustable bullet-feet |
| Shipping Weight | Approx. 240 lb (109 kg) |
| Warranty | 1-year parts & labor (see warranty sheet) |
| Origin | Detroit, Michigan USA |
Seamless Modular Integration
The 64000 Series is engineered to marry with other La Rosa modular bases under a single continuous top—up to 10 ft long—creating a unified beverage or service line without unsightly gaps.
Popular Factory Options
- Custom lengths, depths, or enclosed door sets
- Electrical outlet cut-outs or knockouts
- Casters in lieu of legs
- Left- or right-hand drain placement
