La Rosa Refrigeration L-40146-32 Modular Ice Cream Cabinet, 46"W x 32"D, 8-Can 3-Gallon Capacity, Stainless Steel Top & Front

SKU: L-40146-32
$9,123.48
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Freezers Commercial Refrigeration Dipping Cabinets & Gelato Cases Frozen Dessert Display & Hardening Equipment Frozen Dessert Equipment Ice Cream Freezers La Rosa Refrigeration New Arrivals Refrigeration & Ice Restaurant Equipment

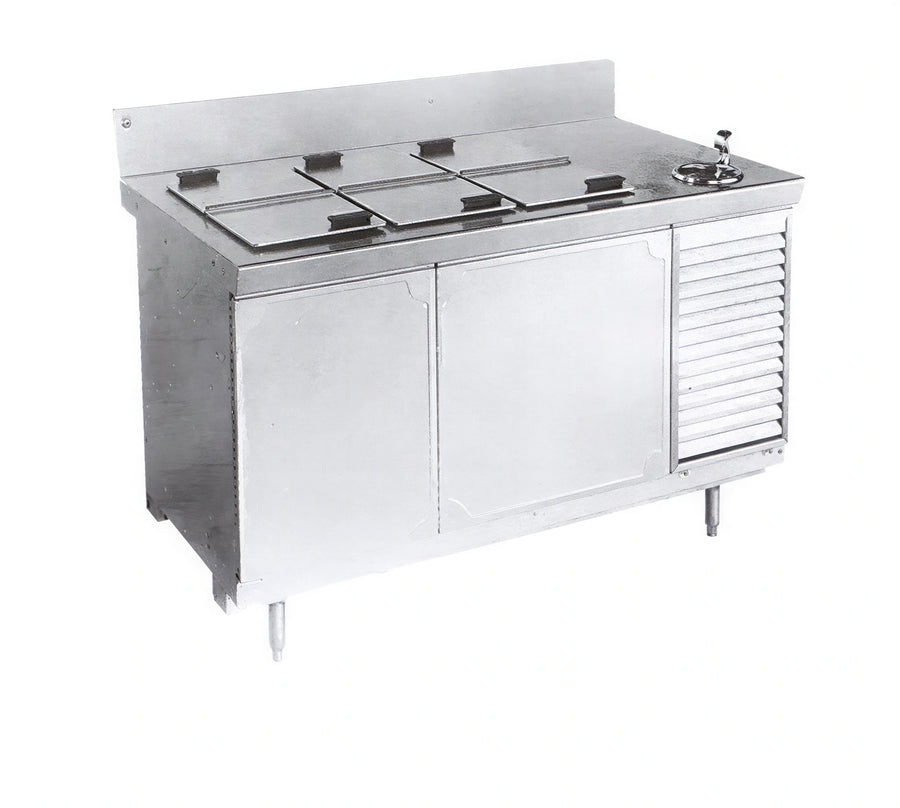

The La Rosa Refrigeration L-40146-32 is a modular ice cream cabinet with capacity for eight 3-gallon cans. It features two large hinged lids, a stainless steel top and front, painted ends, and a stainless steel interior.

Side-mounted, self-contained refrigeration uses an expansion valve system. The cabinet includes 8-inch stainless steel legs with adjustable feet and operates on 115 V/60/1 power.

  • 46 in W x 32 in D x 36 in H
  • Eight 3-gallon can capacity
  • Two large hinged lids
  • 1/3 hp refrigeration system with 6.0 amp draw
  • NEMA 5-15P plug

Overall Dimensions:

46.0"W x 32.0"D x 36.0"H

Product Weight:

425.0 lb

Eight-can capacity

Accommodates eight 3-gallon cans.

Large hinged lids

Includes two large hinged lids.

Stainless steel construction

Features a stainless steel top and front, stainless steel interior, painted ends, and full finished welds.

Self-contained refrigeration

Side-mounted refrigeration uses an expansion valve system.

Adjustable support

Includes 8-inch stainless steel legs with adjustable feet.

Modular configuration

The cabinet is identified as a modular unit.

Electrical connection

Operates at 115 V/60/1 with a 6.0 amp draw and NEMA 5-15P plug.

Made in Detroit

The product is identified as made in Detroit.

Product Type Ice cream cabinet
Configuration Modular
Can Capacity 8 cans
Can Size 3 gallons
Top Working Tub Capacity (4) 3 gal tubs
Tub Storage Capacity (4) 3 gal tubs
Storage Arrangement 4-hole, double row
Lid Count 2
Lid Type Large hinged lids
Top and Front Finish Stainless steel
End Finish Painted
Interior Finish Stainless steel
Refrigeration Type Self-contained refrigeration
Refrigeration Position Side-mounted
Refrigeration System Expansion valve system
Leg Height 8 in
Leg Material Stainless steel
Feet Adjustable
Welds Full finished welds
Voltage 115 V
Frequency 60 Hz
Phase 1 phase
Amperage 6.0 amps
Horsepower 1/3 hp
Plug NEMA 5-15P
Origin Made in Detroit

Warranty & Protection

1 year parts and labor included.

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It accommodates eight 3-gallon cans.
It uses side-mounted, self-contained refrigeration with an expansion valve system.
The cabinet is 46 inches wide, 32 inches deep, and 36 inches high.
The listed electrical specification is 115 V/60/1 at 6.0 amps with a NEMA 5-15P plug.
The top, front, and interior are stainless steel, while the ends have a painted finish.
One year of parts and labor is included.
