Description
La Rosa 72" Stainless Steel Work-Top Freezer Base – 3 Section, Remote

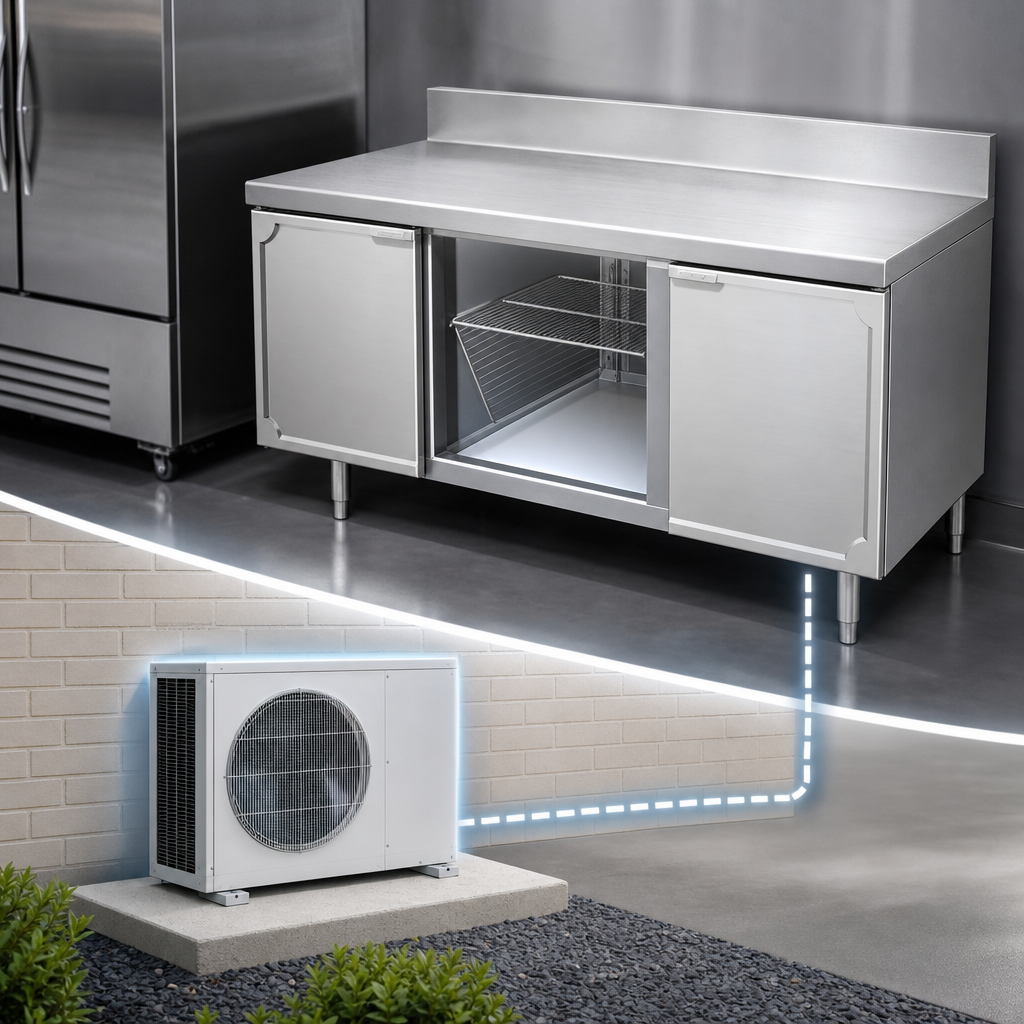

Model L-21172 • Modular Equipment 21000 Series • Made in Detroit, MIBuilt for demanding cooklines, the La Rosa L-21172 delivers −5 °F to 0 °F holding temperatures in a rugged, easy-clean cabinet while giving you a full 16-gauge stainless work surface with a 6" rear backsplash. Remote refrigeration keeps heat and noise out of the kitchen, allowing chefs to prep, plate and serve with confidence.
Product Highlights
- 72" L × 32" D × 36" H overall (including 8" legs)

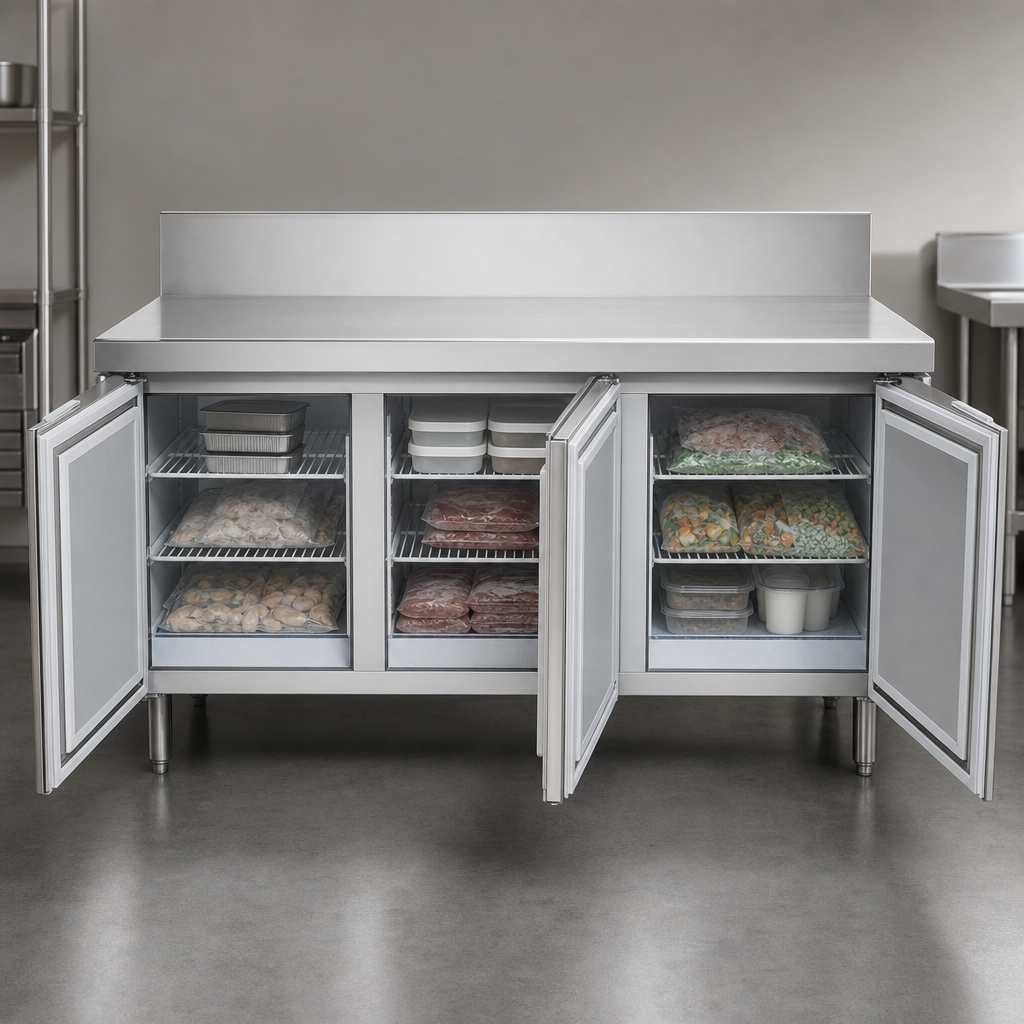

- Three self-closing, right-hinged doors — each with a removable, heavy-duty epoxy-coated wire shelf
- Die-formed 16 GA type 304 stainless steel top with 2 5/8" nosing & 6" rear backsplash
- Stainless steel front, sides, back and interior floor/back; high-impact plastic interior sides for durability & insulation
- Full finished welds throughout for long service life
- Remote forced-air evaporator with expansion valve, defrost heaters & timer (factory-wired junction box)
- Recommended operating range −5 °F to 0 °F
- 8" stainless steel legs with bullet feet – 1 ⅛" adjustment for easy leveling
- Magnetic gasket door jambs with perimeter heaters to prevent gasket freeze-up
- NSF-listed construction • Made in the USA
Technical Specifications
| Cabinet Type | Work-Top Reach-In Freezer Base |
|---|---|
| Sections / Doors | 3 sections / 3 doors (right-hand hinged) |
| Exterior Dimensions | 72" L × 32" D × 36" H (with legs & backsplash) |
| Interior Capacity (32" D) | 18.4 cu ft ‡ |
| Shelf Area | 21.8 sq ft ‡ – one shelf per door |
| BTU Load | 1,600 BTU/hr @ 10 °F TD (R-404A) |
| Electrical | 115 V / 60 Hz / 1 Ø, 8.74 amps (evaporator & heaters) |
| Recommended Condensing Unit | ½ HP (remote, field-supplied) |
| Shipping Weight | ≈ 546 lb |
| Refrigerant | R-404A (field-charged) |
‡ Capacities taken from La Rosa statistical data for 32"-deep models.
Warranty
- 1 year parts & labor on the entire cabinet
- Additional 4 years (total 5) on the original compressor when purchased through La Rosa
- Factory-based technical support out of Detroit, MI
Perfect For
- Line-side frozen entrée, fry-station or dessert storage
- High-volume kitchens looking to remove compressor heat from the cookline
- Facilities demanding seamless integration with other La Rosa modular bases under a continuous work-top
Upgrade your cookline with Detroit-built reliability and the prep space you’ve been missing — add the La Rosa L-21172 Work-Top Freezer Base to your cart today.
