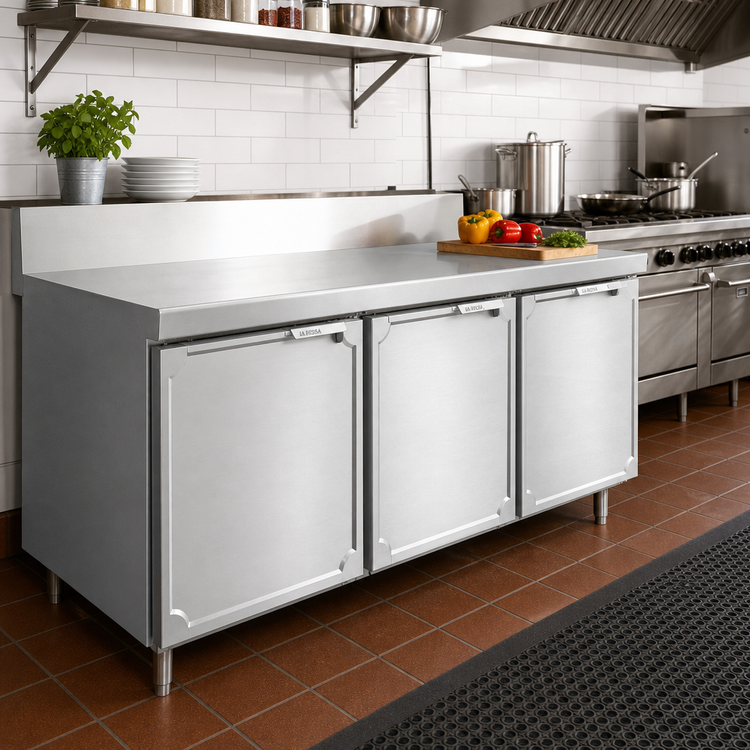

La Rosa 72" Work-Top Freezer Base — Three Section
Model L-21172 • Remote Refrigeration • Made in Detroit, USABuilt for high-output kitchens that demand rock-solid reliability, this modular work-top freezer base keeps product at -5 °F to 0 °F while providing a reinforced stainless surface for prep, plating or small equipment. Connect it to a remote condensing unit to remove heat and noise from the cook line and enjoy the unmatched durability that has made La Rosa equipment a Detroit legend since 1917.
Key Features

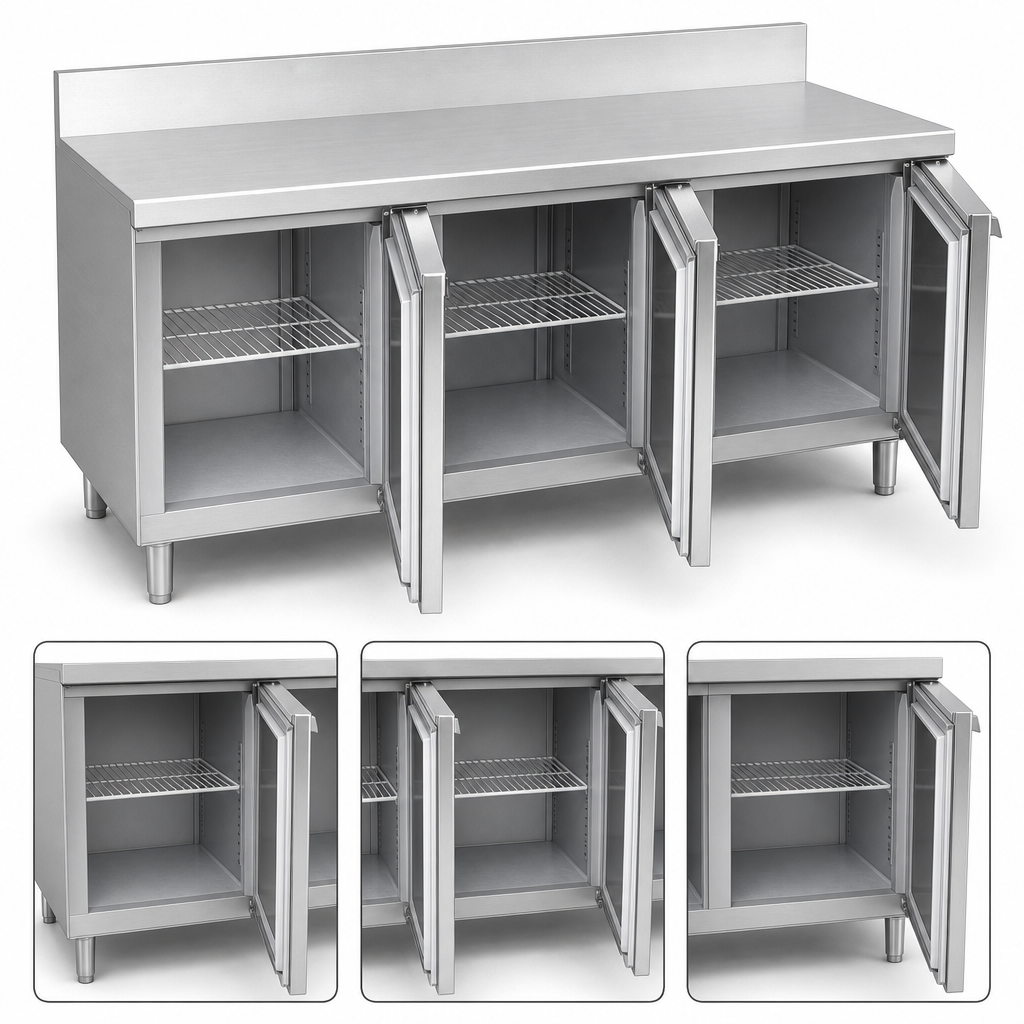

- Three reach-in sections with self-closing, die-stamped stainless doors
- One heavy-duty, epoxy-coated removable shelf per door (3 total)
- One-piece 16 ga type 304 stainless work top with 6" rear splash & 2 ⅝" nosing
- Full, finished welds for a seamless, sanitary cabinet
- Stainless front, sides, back & interior floor; high-impact ABS side liners for easy cleaning
- Forced-air evaporator with protective coating, expansion valve, defrost heater & timer
- 8" stainless legs with bullet feet — 1 ⅛" of adjustment for perfect leveling
- 115 V / 60 Hz / 1 Ø electrical connection for fans, heaters & controls
Built to Last
- Door jamb heaters prevent gasket freeze-up and extend gasket life
- 12 ga spring-loaded hinges for smooth, automatic door closure
- 14 ga galvanized steel channels reinforce the base frame
- End-bars allow hair-line seams when lining up with other La Rosa modular equipment — build a continuous lineup up to 10 ft.
Performance & Refrigeration
- Remote system keeps heat & compressor noise out of the kitchen
- Factory-installed junction box simplifies connection of liquid (⅝") & suction (⅜") lines
- Expansion-valve design speeds temperature recovery after door openings
- Recommended condensing unit capacity: 1 / 2 HP | 1,600 BTU/hr @ 10 °F-TD using R-404A
Dimensions & Utilities
| Cabinet length | 72" (1829 mm) |
|---|---|
| Available depths | 23" or 28" (584 mm / 711 mm) |
| Work-top height | 36" nominal (with 8" adjustable legs) |
| Backsplash | 6" H × 2 ⅛" W, 3 / 8" coved radius |
| Electrical | 115 V • 60 Hz • 1 Ø | 8.74 A max |
| Shipping weight | ≈ 546 lb (248 kg) |
What’s Included
- 3 epoxy-coated wire shelves (heavy steel frame)
- Defrost heater & timer pre-wired to junction box
- Factory-installed expansion valve matched to refrigerant
- 1-year parts & labor warranty + additional 4-year compressor warranty†
† See warranty certificate for complete terms.
Available Upgrades
- Left-hand control housing
- Stainless refrigerated drawers in place of doors (2- or 3-tier)
- Custom cabinet lengths, depths & top configurations
