Description
La Rosa 21000 Series 66" Work-Top Freezer Base – Remote
Model L-21166 | Three-Section | 23" or 28" DepthBuilt in Detroit for kitchens that demand rock-solid cold storage under a durable work surface, the La Rosa L-21166 Work-Top Freezer Base pairs heavy-gauge stainless steel construction with a high-performance remote refrigeration system. Slide it beneath prep equipment, gang it with other La Rosa modular bases, or let it stand alone—either way you get reliable temperatures down to -5 °F, a sanitary one-piece top that doubles as counter space, and the rugged craftsmanship that has defined La Rosa Refrigeration for decades.
Why You’ll Love It
- 16-gauge type 304 stainless steel top with 6" coved rear splash & 2⅝" nosing – a true prep-ready work surface.

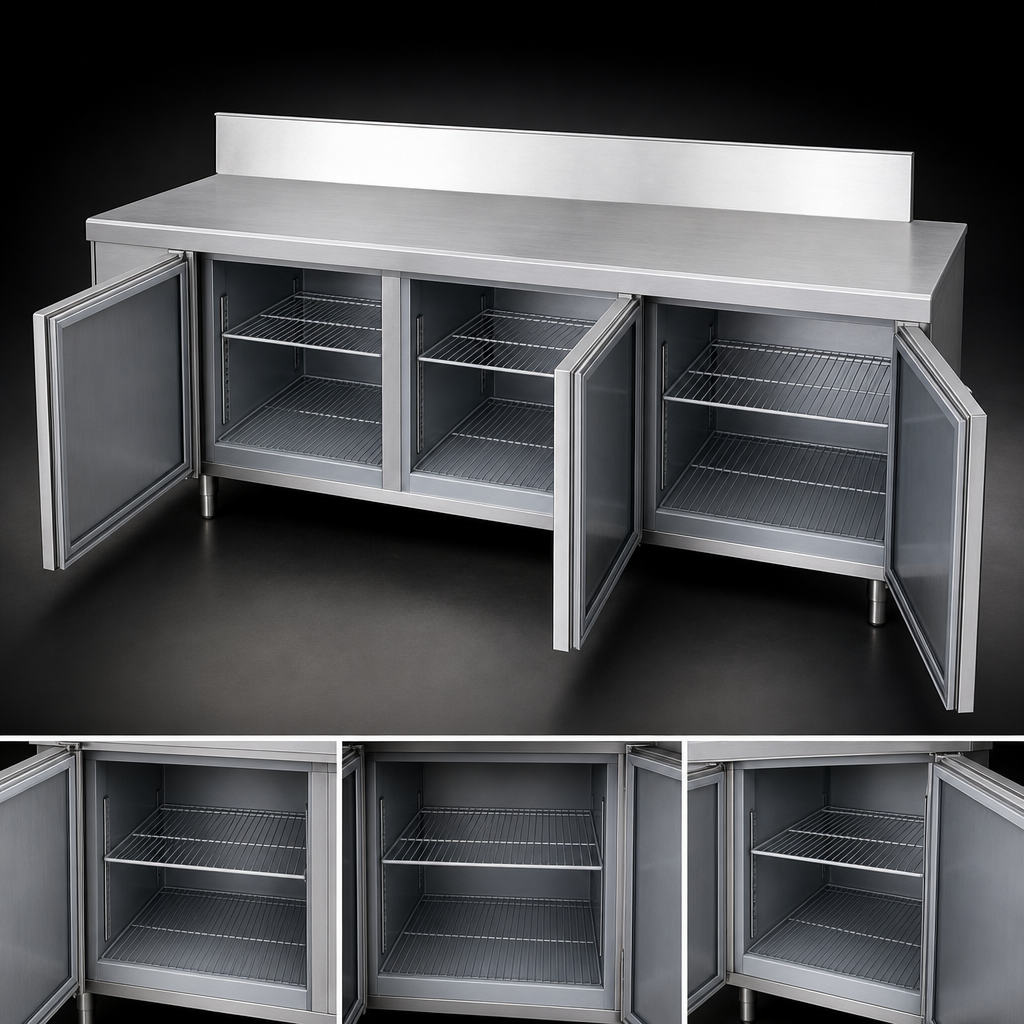

- Three reach-in sections, each with a self-closing stainless door and one heavy-duty epoxy-coated wire shelf.
- Remote forced-air evaporator with expansion valve for rapid temperature recovery and even cabinet cooling.
- Operating range -5 °F to 0 °F – ideal for ice-cold storage of meats, seafood, desserts & more.
- High-impact plastic interior sides with stainless steel floor & back for easy cleaning and corrosion resistance.
- Concealed magnetic door jams with perimeter heaters prevent frost build-up and keep gaskets pliable.
- Full finished welds and recessed end bars allow a seamless, sanitary line-up with other 21000-series modules up to 10 ft.
- 8" all-stainless bullet-feet legs provide 1⅛" of level adjustment.
- NSF-listed materials, UL-listed electrical components, and proudly Made in Detroit, USA.
Technical Specifications
| Model | L-21166 |
|---|---|
| Sections / Doors | 3 / 3 self-closing, field-reversible |
| Overall Length | 66" (1676 mm) |
| Overall Depth | 23" or 28" (584 mm or 711 mm) |
| Work-Top Height | 32" to work surface | 38" with 6" backsplash |
| Interior Capacity | 10.5 – 13.7 cu ft (depth dependent) |
| Shelves | 3 heavy-duty epoxy-coated wire (1 per door) |
| Top Construction | One-piece 16 GA type 304 stainless, 6" backsplash, 2⅝" nosing |
| Cabinet Interior | Stainless steel floor & back, high-impact plastic sides |
| Legs | 8" stainless, bullet-feet with 1⅛" adjustment |
| Refrigerant / BTU Load | R-404A | 1,600 BTU/h @ -10 °F SST |
| Temperature Range | -5 °F to 0 °F (-20 °C to -18 °C) |
| Electrical | 115 V / 60 Hz / 1-phase | 7.78 A (evaporator fans & defrost) |
| Shipping Weight | ≈ 545 lb (248 kg) |
| Origin | Fabricated & assembled in Detroit, Michigan USA |
| Warranty | 1-year parts & labor; optional extended compressor warranty available |
Specifications subject to change without notice. Always consult your refrigeration professional to verify line sizing, BTU load, and condensing unit compatibility for your installation.
