Description

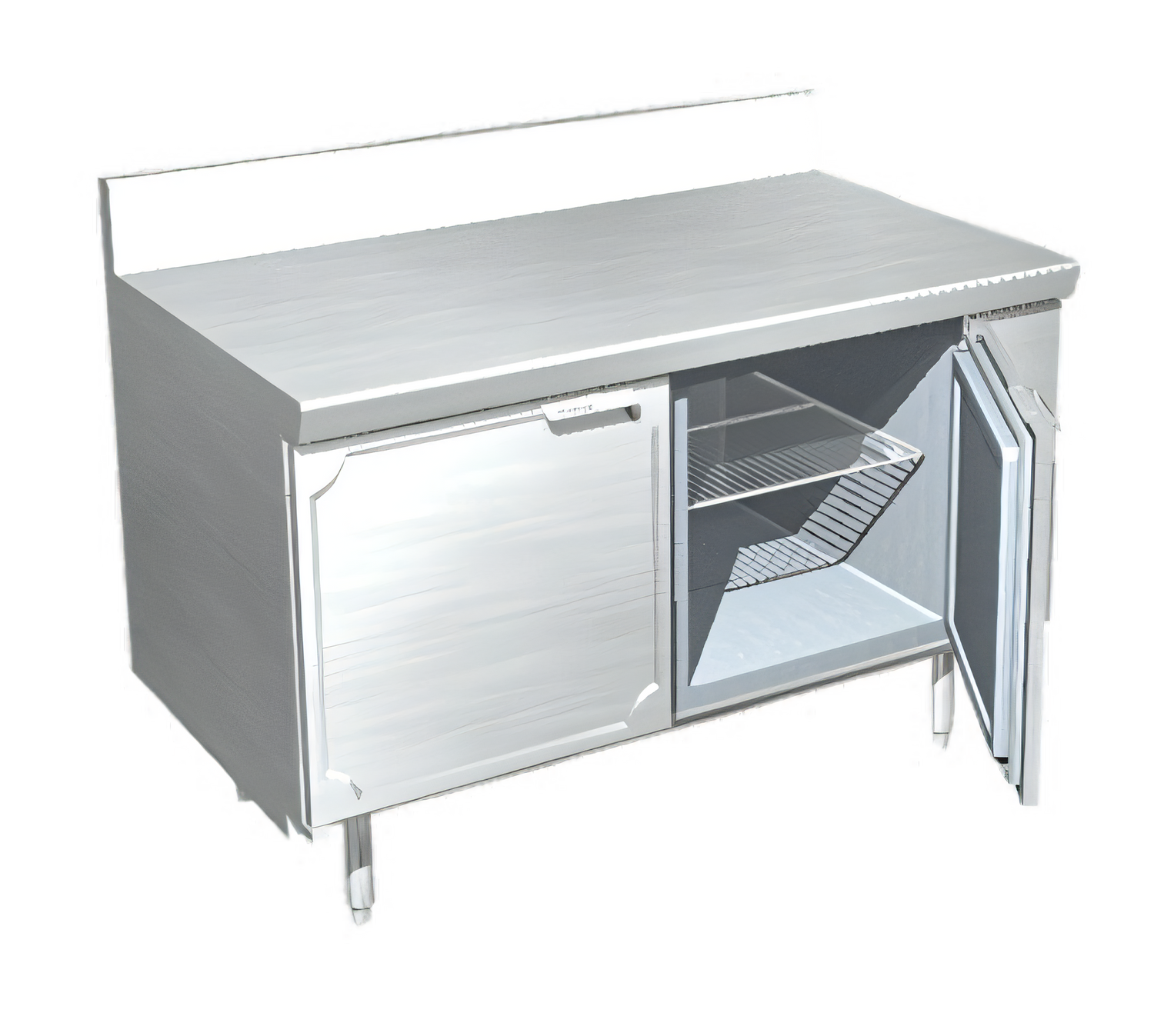

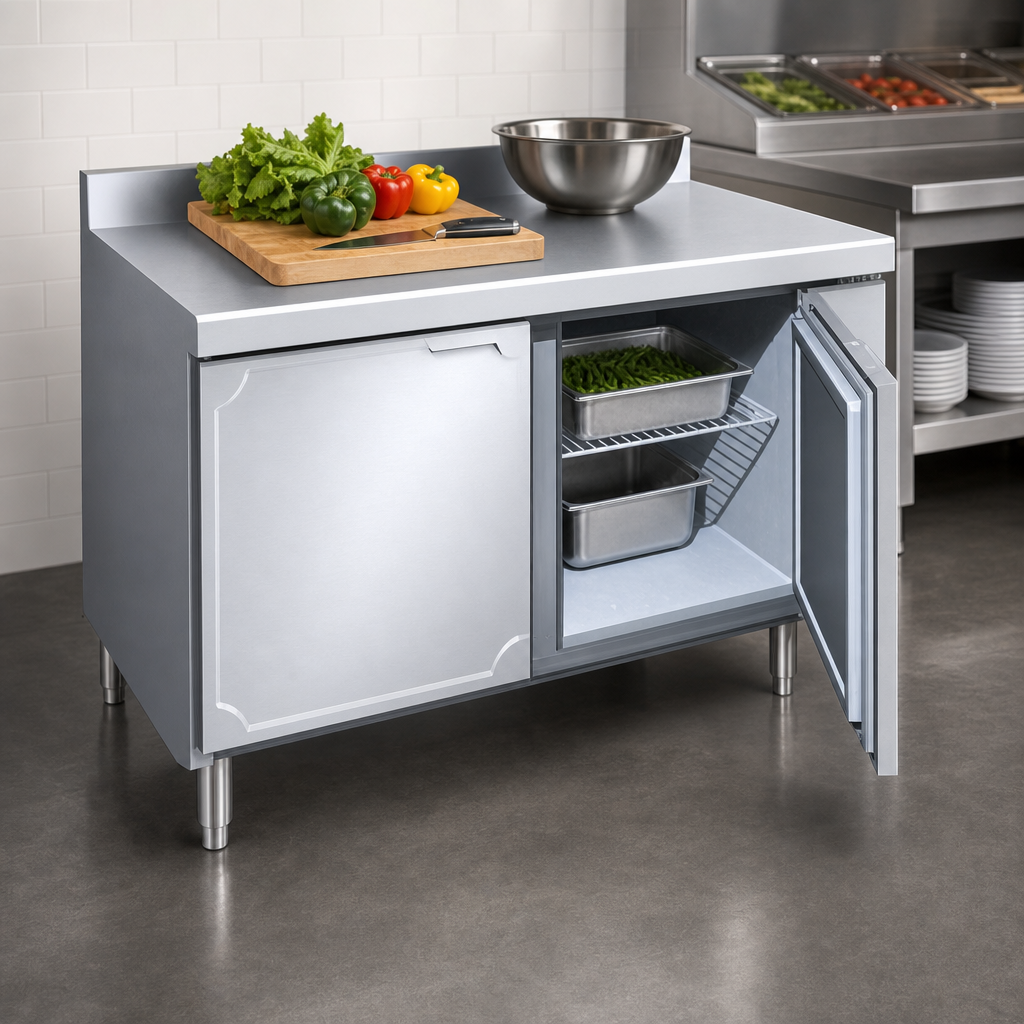

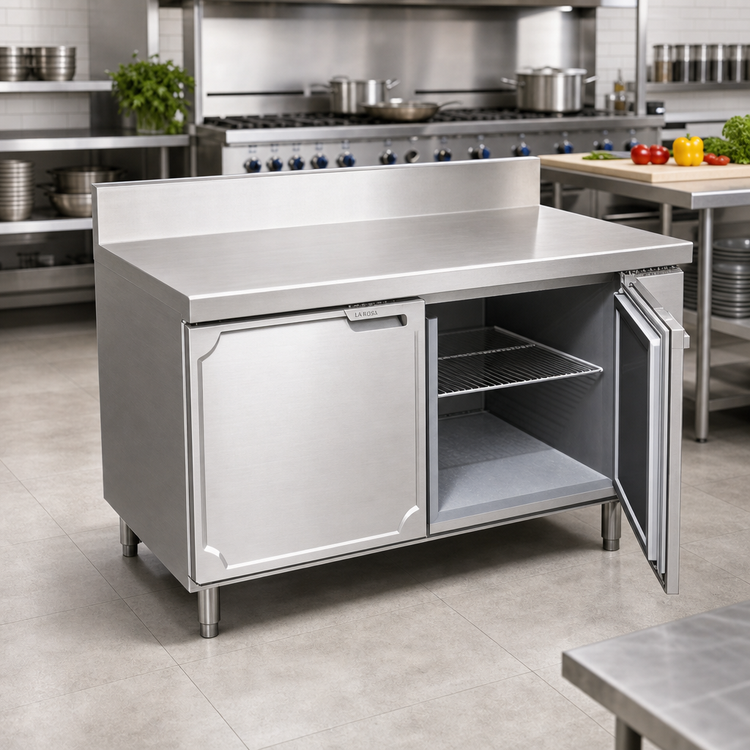

La Rosa 30" Remote Work-Top Freezer Base — Model L-21130
Stainless Steel | 1 Solid Door | Made in Detroit, USAThe La Rosa L-21130 transforms just 30 inches of line space into a high-performance, -5 °F freezer and heavy-duty prep surface. Engineered for remote refrigeration and built from 16 GA 304 stainless steel, this one-section unit delivers rock-solid temperature stability, effortless sanitation, and a seamless fit with other La Rosa modular equipment.
Key Advantages
- Space-saving 30" length in 23" or 28" depths.
- One-piece 16 GA stainless work top with 2 5/8" nosing & 6" rear splash.
- Remote forced-air evaporator with expansion valve for fast pull-down.
- Self-closing stainless door, spring-loaded hinges & removable magnetic gasket.
- Includes one heavy-duty epoxy-coated wire shelf.
- 8" stainless legs with bullet feet give 1 1/8" of height adjustment.
- Full finished welds, galvanized under-structure & NSF-listed design.
- Backed by La Rosa’s 1-year limited parts & labor warranty.
Built to Last
- Exterior: 20 GA stainless front, sides & back; painted steel base.
- Interior: 22 GA 304 stainless floor & back with seamless ABS sides.
- Door-jamb heaters prevent gasket freeze-up in sub-zero operation.
- Recessed 12 GA reinforcement bars allow hairline seams when adjoining units.

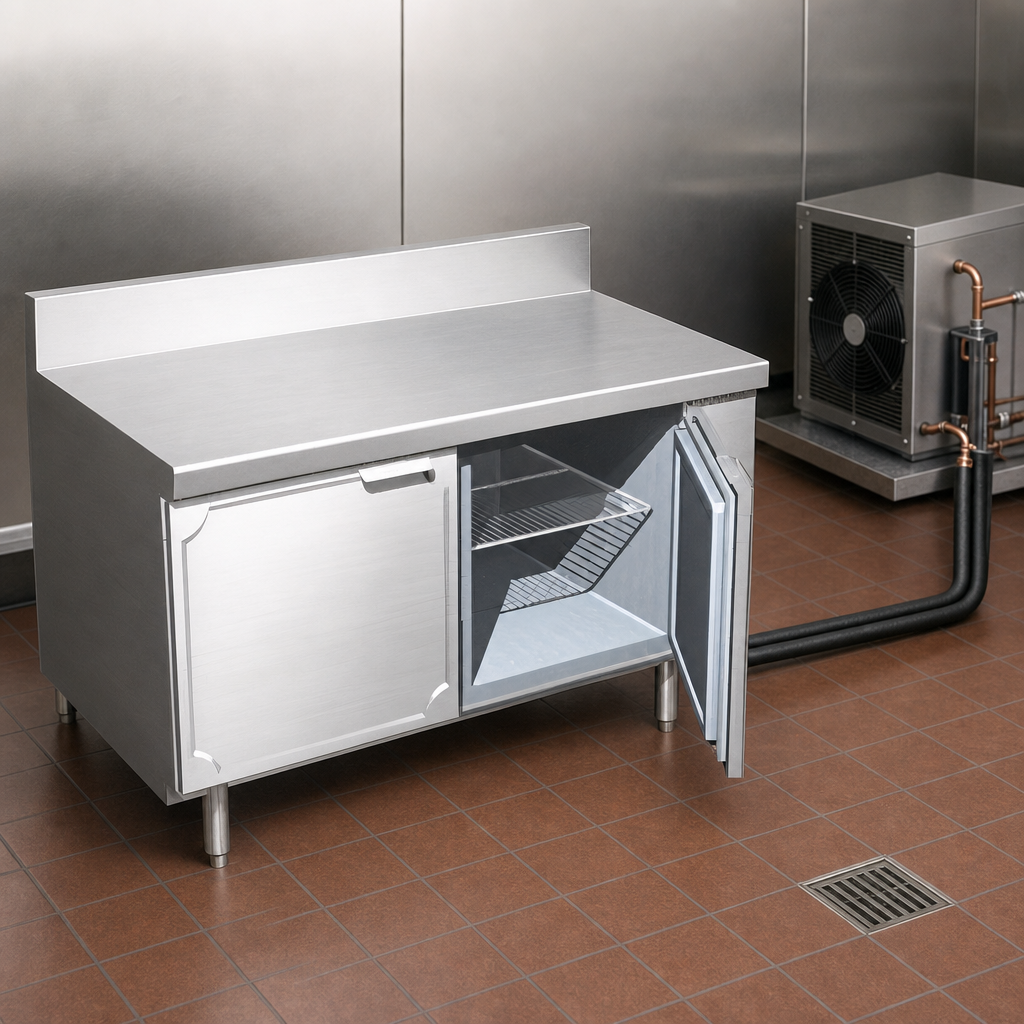

Refrigeration System
- Remote installation keeps heat & noise out of the kitchen (condensing unit by others).
- Factory-piped R-404A coil: 920 BTU/h load @ 10 °F TD.
- Pre-wired junction box & defrost timer for quick field hook-up.
- 115 V / 60 Hz / 1-phase, 5.28 A (evaporator fans & heaters).
Specifications
| Model | L-21130 |
|---|---|
| Configuration | Reach-in freezer base, 1 solid door |
| Overall Length | 30 in (762 mm) |
| Overall Depth | 23 in or 28 in (584 mm or 711 mm) |
| Overall Height | 36 in incl. 8" legs & 6" backsplash |
| Interior Capacity | 4.9 ft³ (23"D) / 4.6 ft³ (28"D) |
| Shelf Area | 4.5 – 5.9 sq ft |
| Temperature Range | –5 °F to 0 °F (-20 °C to -18 °C) |
| Refrigerant | R-404A (remote) |
| BTU Load | 920 BTU/h @ 10 °F TD |
| Electrical | 115 V / 60 Hz / 1-ph, 5.28 A |
| Legs | 8" stainless, bullet feet (1 1/8" adjustment) |
| Ship Weight | ≈ 375 lb (170 kg) |
| Origin | Detroit, Michigan, USA |
Specifications are subject to change without notice. Contact La Rosa for optional control-housing placement, drawer conversions or custom depths.
