Description
La Rosa 86" Work-Top Freezer Base – 3 Section
Model L-20186 | Self-contained, side-mounted ½ HP freezerBuilt in Detroit for the toughest commercial kitchens, the La Rosa Modular 20000 Series work-top freezer base gives you 7 ft of reinforced prep surface and rock-solid, low-temperature storage in one streamlined unit. Heavy-gauge stainless steel construction, rapid-recovery refrigeration and thoughtful service features keep your line moving shift after shift.
Highlights

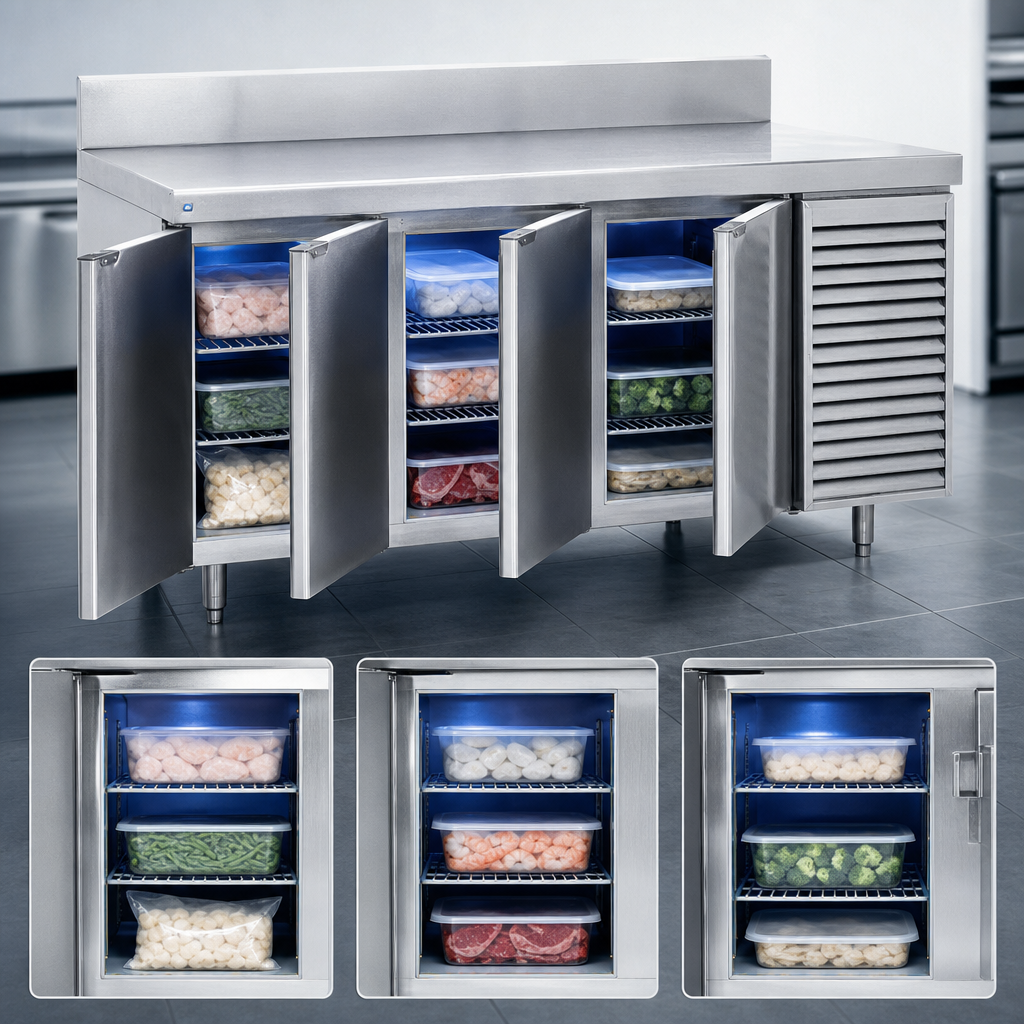

- Three self-closing, field-replaceable doors—each with a removable, epoxy-coated wire shelf.
- One-piece 16 ga 304 stainless steel top with 2 5⁄8" nosing and 6" coved backsplash.
- Stainless steel front, sides, back & interior floor; high-impact ABS interior sides for easy wipe-down.
- Side-mounted, balanced refrigeration system with expansion valve, forced-air evaporator & automatic defrost heater/timer.
- Factory set to maintain –5 °F – 0 °F for reliable frozen product integrity.
- Full finished welds and 8" stainless legs with bullet feet (1 1⁄8" adjustable).
- Arrives fully assembled with 9' cord and NEMA 5-15P plug—just roll in, level and power up.
- NSF-compliant, proudly MADE IN DETROIT.
Technical Specifications
| Exterior dimensions | 86" W × 23" or 28" D × 36" H (42" to top of backsplash) |
|---|---|
| Sections / doors | 3 sections / 3 right-hinged swing doors, self-closing |
| Shelving | 3 heavy-duty shelves (one per door), height adjustable & removable |
| Work surface | One-piece 16 ga 304 SS with 6" rear backsplash |
| Interior finish | 304 SS floor & back, high-impact ABS sides; aluminum top liner |
| Refrigeration | ½ HP hermetically-sealed compressor, R-404A, forced-air evaporator |
| Operating range | –5 °F to 0 °F (-20 °C to -18 °C) |
| Electrical | 115 V / 60 Hz / 1-phase, 13.35 A, NEMA 5-15P |
| Legs | 8" stainless tubular legs with bullet feet (height adjustable) |
| Shipping weight | Approx. 615 lb (crated) |
| Warranty | 1-year parts & labor (extended compressor coverage available) |
Perfect For
- High-volume restaurant cooklines needing prep space over frozen storage
- Hotels, resorts & banquet facilities
- Institutional kitchens—schools, hospitals & correctional facilities
- Catering operations and ghost kitchens needing modular expansion
All specifications and configurations subject to change without notice as part of La Rosa’s continuous improvement program.
