La Rosa Refrigeration 74-Inch Three-Section Worktop Freezer Base with Doors, Self-Contained Side-Mounted Refrigeration

SKU: L-20174-23-28
$12,336.12
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Freezers Commercial Refrigeration La Rosa Refrigeration New Arrivals Restaurant Equipment Undercounter & Worktop Refrigeration Worktop Freezers

La Rosa Refrigeration 74-Inch Three-Section Worktop Freezer Base with Doors, Self-Contained Side-Mounted Refrigeration

115V, 1/2 HP, Stainless Steel Top with 6-Inch Rear Splash

Built for demanding prep kitchens, this three-section worktop freezer base combines durable stainless steel construction with self-contained side-mounted refrigeration and a full 36-inch work surface.

  • Three-section door layout with one removable shelf per door for organized frozen storage.
  • 16-gauge stainless steel top with a 6-inch rear splash for a durable work surface.
  • Stainless steel front, sides, and back with a stainless steel interior and plastic side liners.
  • Self-contained, side-mounted refrigeration system with expansion valve design.
  • 115V, 60Hz, single-phase electrical with 13.35 amps and a NEMA 5-15P plug.
  • 8-inch stainless steel legs with adjustable feet for stable leveling.
  • Full finished welds for added strength and a cleaner commercial finish.

Overall Dimensions:

74.0"W x 28.0"D x 36.0"H

Product Weight:

545.0 lb

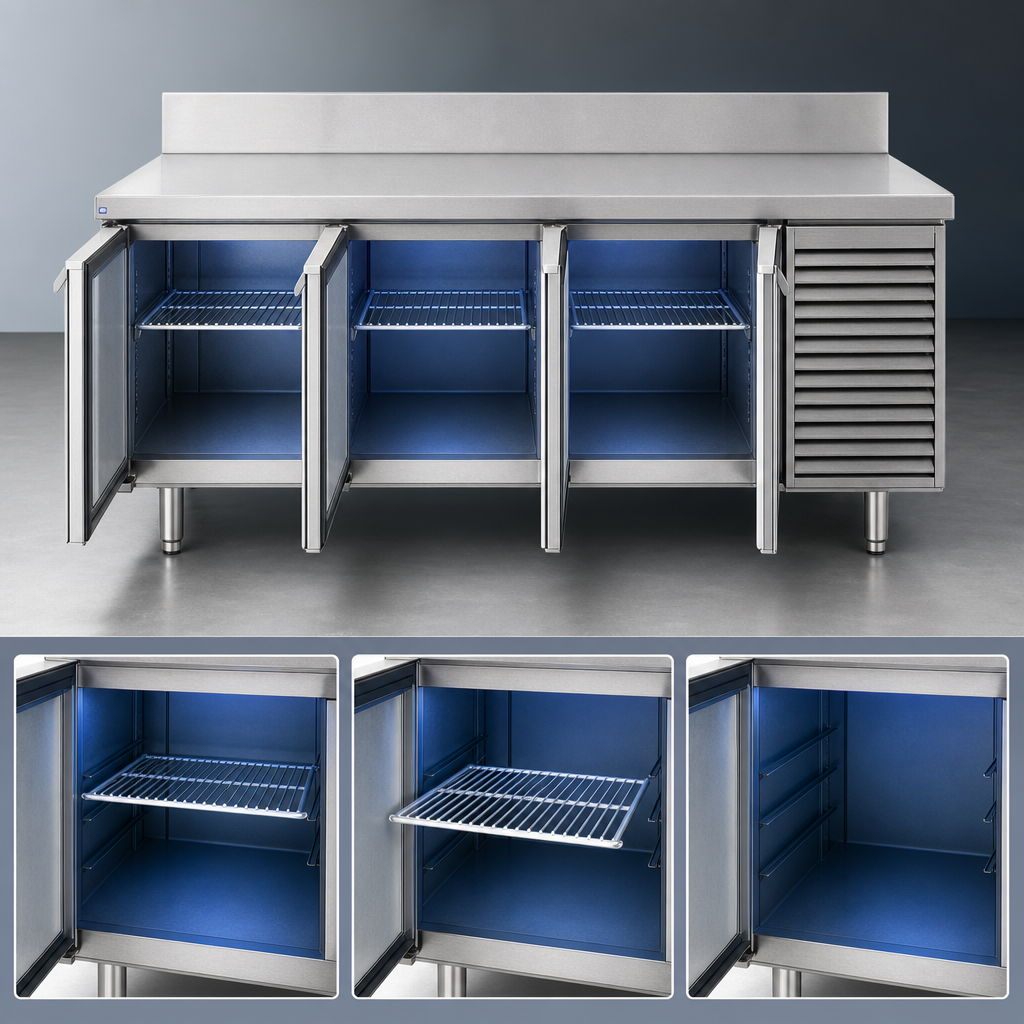

Three-Section Storage Layout

Three door sections provide organized freezer storage, and each door section includes one removable shelf.

Stainless Steel Worktop

The 16-gauge stainless steel top is built for heavy daily use and includes a 6-inch rear splash.

Durable Cabinet Construction

Stainless steel front, sides, and back are paired with a stainless steel interior and plastic sides.

Self-Contained Side-Mounted Refrigeration

The refrigeration system is built in and mounted on the side for easier service access and efficient use of space.

Expansion Valve System

Uses an expansion valve refrigeration design for dependable temperature control.

1/2 HP Compressor System

Configured for 115V, 60Hz, single-phase operation with 13.35 amps and a NEMA 5-15P plug.

Adjustable Stainless Steel Legs

8-inch stainless steel legs with adjustable feet help level the unit on uneven floors.

Finished Weld Construction

Full finished welds add strength and support a cleaner, more durable cabinet build.

Type Worktop Freezer Base
Style Doors
Compartments 3
Installation Type Floor Model
Refrigeration Type Self-Contained
Material Stainless Steel
Interior Finish Stainless Steel
Compressor Horsepower 1/2 HP
Voltage 115 Volts
Amps 13.35 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

1-year parts and workmanship warranty; extended compressor warranty available at additional charge.

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is a three-section unit, and each door section includes one removable shelf.
The unit operates on 115V, 60Hz, single-phase power and draws 13.35 amps. It comes with a NEMA 5-15P plug.
Yes. This model uses a self-contained, side-mounted refrigeration system with an expansion valve design.
It features a 16-gauge stainless steel top, stainless steel front, sides, and back, plus a stainless steel interior with plastic sides.
La Rosa provides a one-year warranty from the date of shipment against defects in material and workmanship. An extended four-year compressor warranty is available at additional charge.
