La Rosa Refrigeration  |  SKU: 5534

La Rosa Refrigeration 5534 Bar Equipment

$5,563.21
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

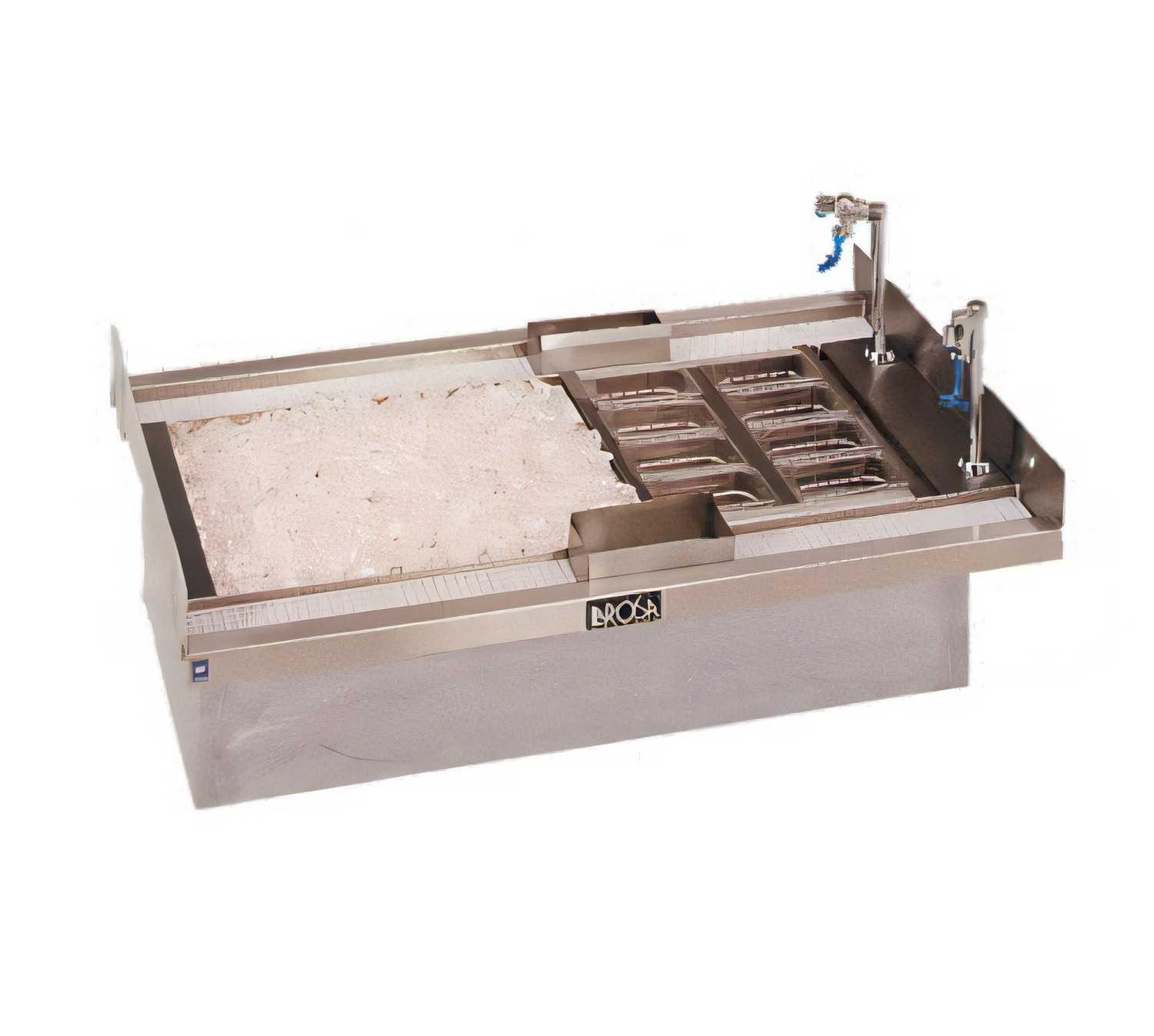

Model 5534 Drop-In Ice / Water / Cocktail Unit – 34" L

Double-Service · La Rosa Refrigeration & Equipment Co.

Purpose-built for busy bars, stadium suites and banquet beverage lines, the 5534 delivers everything you need for high-volume cocktail, ice-water and glass refill service from both sides of the counter. With heavy-duty 304 stainless construction, full-length waste troughs, dual T&S glass fillers and a fully insulated 9 inch ice chest, this Detroit-made workhorse keeps bartenders moving and guests happy.

Key Features

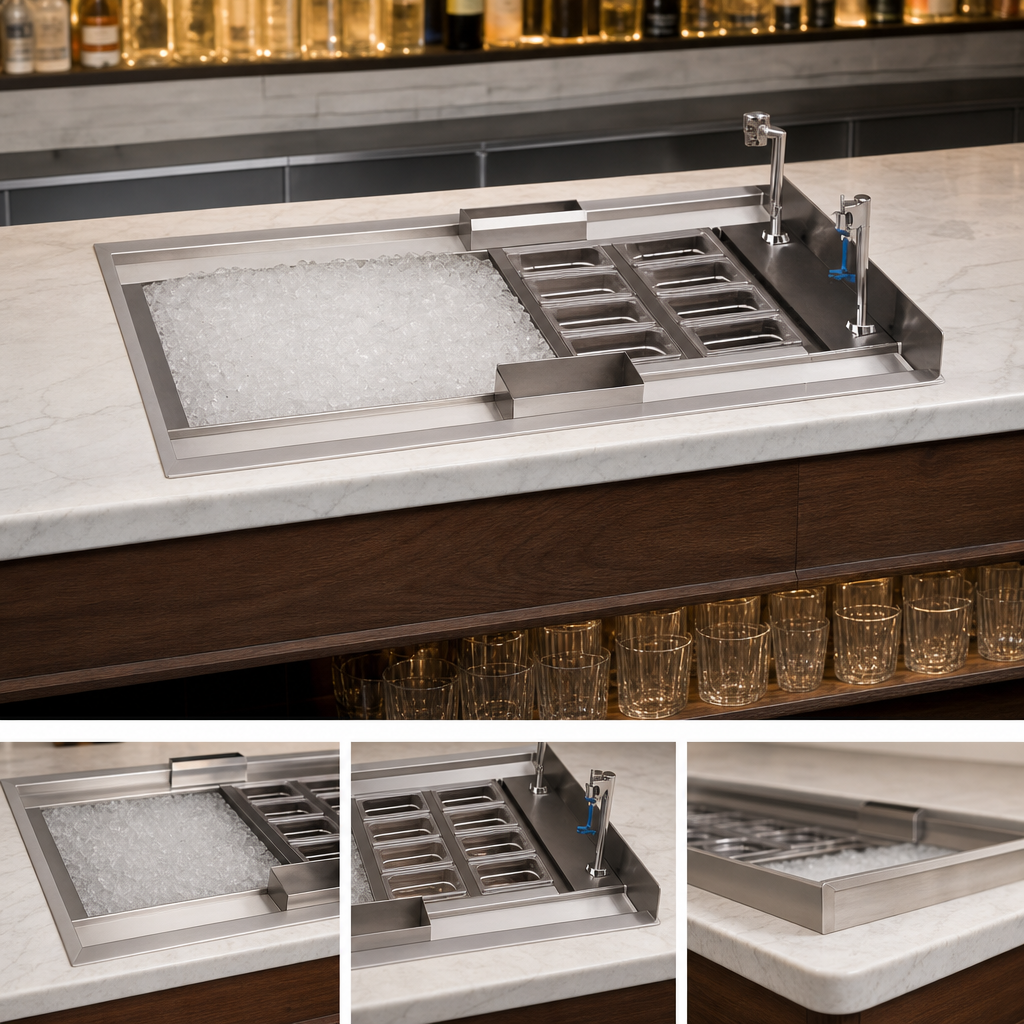

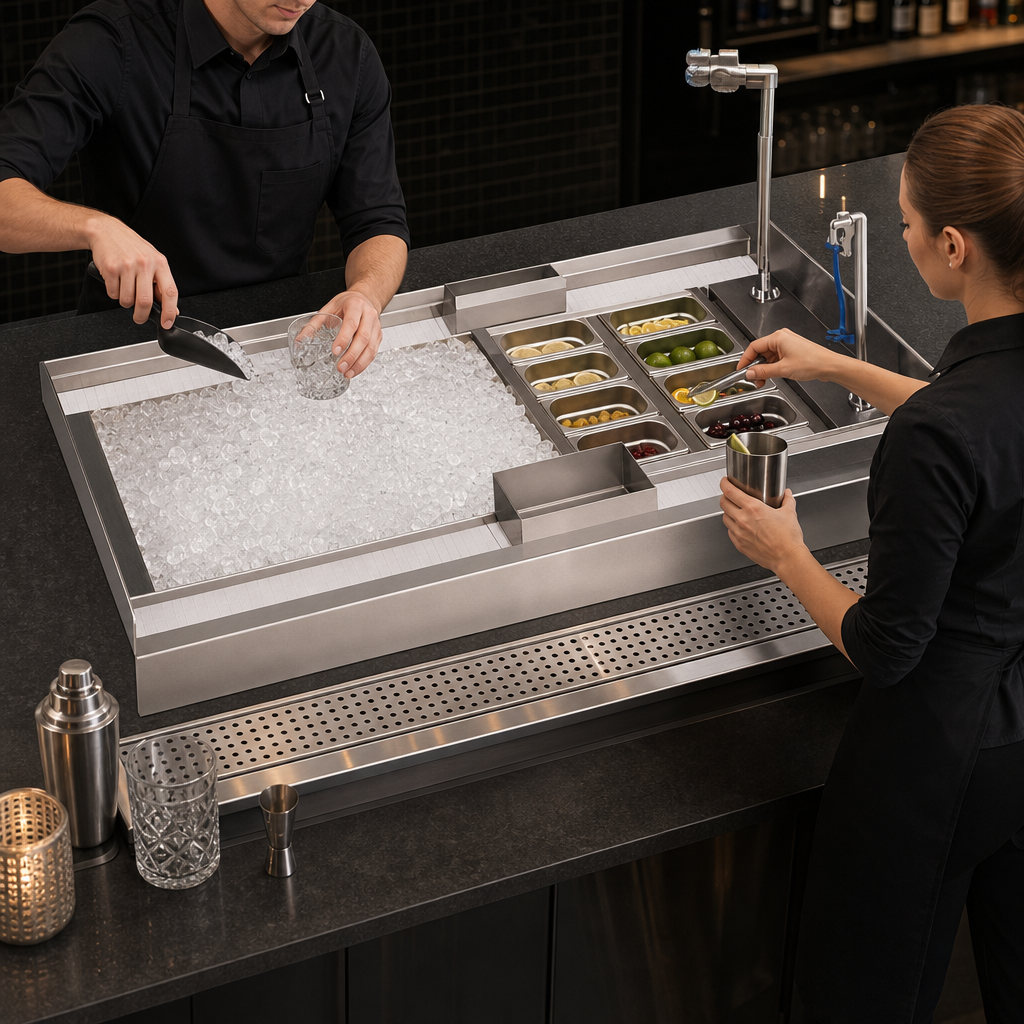

  • 34" long drop-in design serves bartender & wait staff simultaneously
  • 9" deep stainless-lined ice bin with foamed-in-place insulation and 1" drain
  • (2) T&S® push-back glass fillers factory-mounted—one for each service side
  • Movable ice partition lets you dedicate space for water, cocktail ice or beer buckets
  • Full-length troughs (both sides) with removable 18 GA grates & perforated waste containers
  • Exterior top formed from 18 GA, 304 type stainless steel with 3 ½" turn-ups—no sharp edges
  • Seams are fully welded & polished for a sanitary, easy-to-clean finish
  • NSF-compliant construction; proudly Made in Detroit, Michigan
  • 1-year parts & labor warranty included

Technical Specifications

Model 5534
Overall length 34" (863 mm)
Ice bin depth 9" (229 mm)
Ice bin construction 304 stainless liner, foamed-in-place insulation
Main drain 1" IPS
Trough drains ¾" each side
Faucets (2) T&S push-back glass fillers
Shipping weight 140 lb (64 kg)
Material 18 GA, 304 type stainless steel (top & body)
Warranty 1-year parts & labor
Origin Detroit, MI USA
Installation Note: This is a drop-in unit. Provide a counter cut-out per supplied template and connect the 1" main drain and ¾" trough drains to approved plumbing.

Popular Options & Accessories (sold separately)

  • Ice-cooled built-in cold plate (adds post-mix capacity)
  • (8) 1/9-size, 2 ½" deep condiment pans for garnish service
  • Speed rails, bottle racks and lid assemblies

Need a larger station? Models up to 71" long are available—contact us for details.

Features & Specs

Manufacturer

La Rosa Refrigeration

Height

13.5in

Width

34.0in

Depth

29.0in

Shipping Weight

140.0lbs

Depth (front - back) OA

28" - 29"

Width (side - side) OA

31" - 36"

Bin Depth

9" deep ice bin

Cold Plate

without

Construction

stainless steel top & interior

Specifications

Drop-In Ice/Water/Cocktail Unit, Double Service, 34" L, 9" deep stainless steel lined ice bin with 1" drain, (2) T&S push back glass fillers, movable ice partition, full length troughs with removable grates & perforated waste containers ea side, full finished welds, 304 type stainless steel, 1 year parts and labor included, MADE IN DETROIT
