La Rosa Refrigeration 4183-MCDB Steam Tables & Food Wells
Description

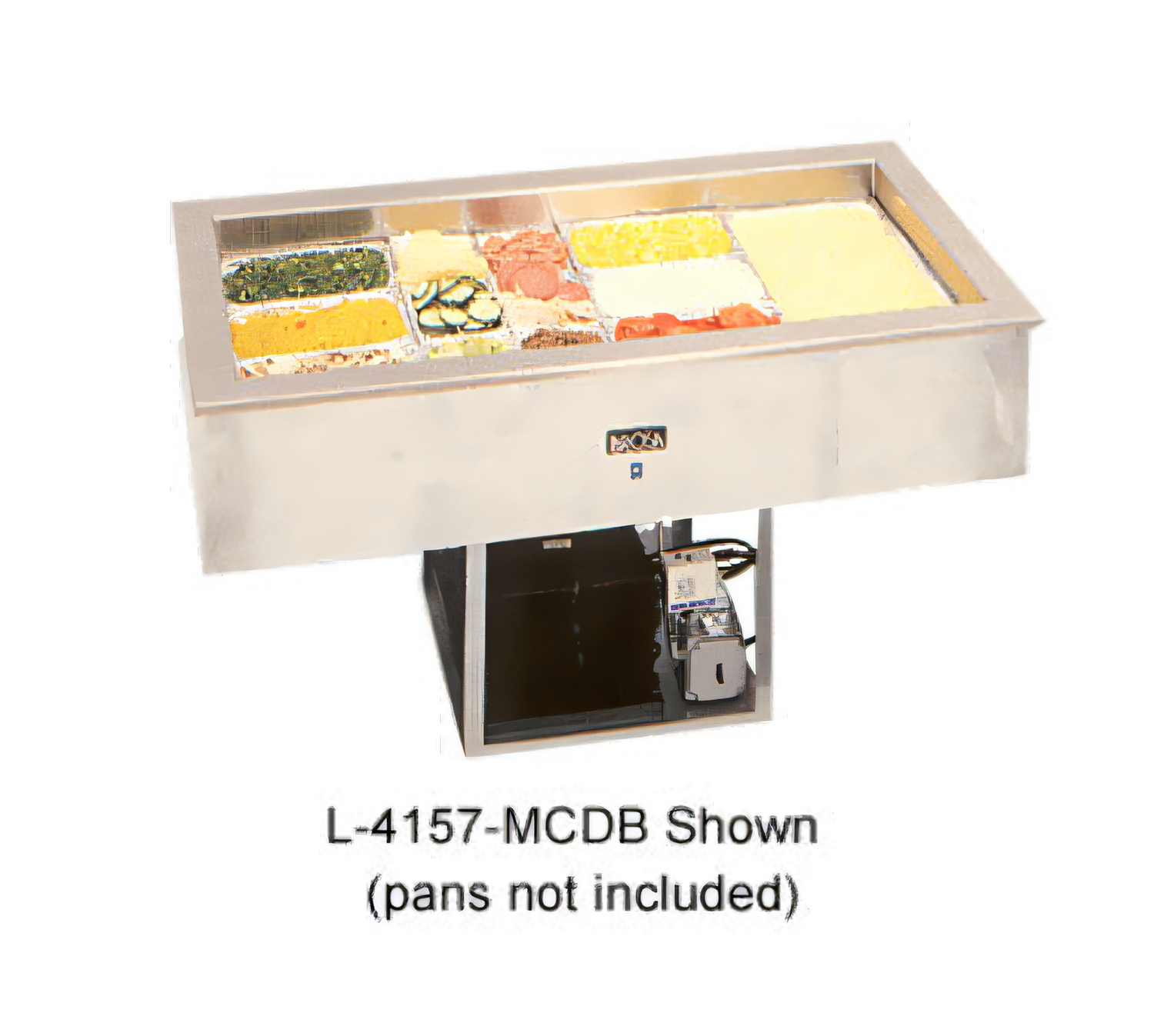

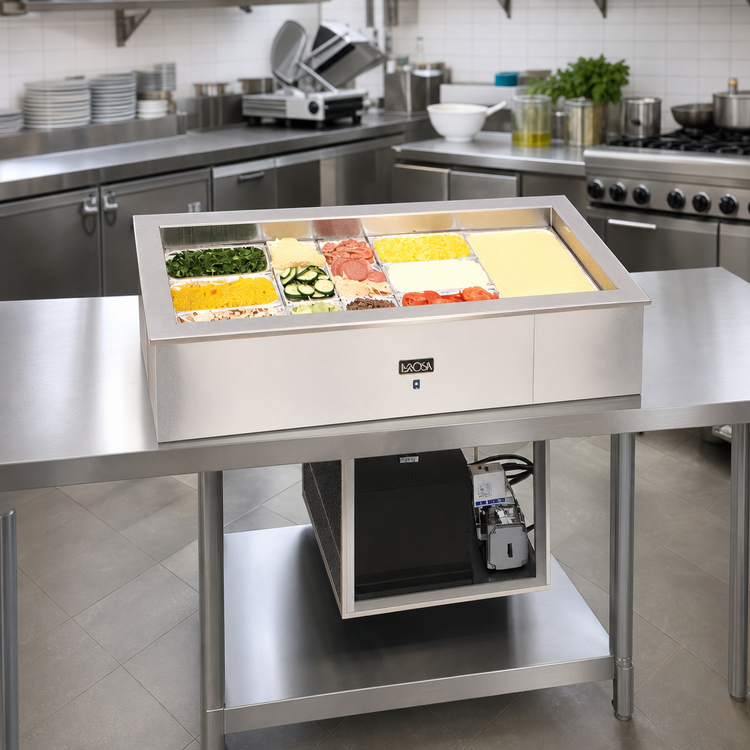

La Rosa 6-Pan Self-Contained Drop-In Refrigerated Cold Pan – 3" Recessed
Production Equipment 4100 Series • Model CUSTOM-4183Give your salad bar, deli, or make-line a professional, NSF-7 certified cold well that installs flush with your counter and keeps ingredients safely between 33 – 41 °F. Built in Detroit from 304 stainless steel and powered by a factory-balanced 1/3 HP refrigeration system, this La Rosa drop-in delivers rock-solid temperature holding for up to six full-size pans—no remote compressor or hardwiring required.
Key Features
- Capacity for (6) 12" × 20" full-size pans or fractional equivalents (pans sold separately)
- 3" recessed “Bloomington-style” opening keeps food below counter level for a cleaner look and better cold retention

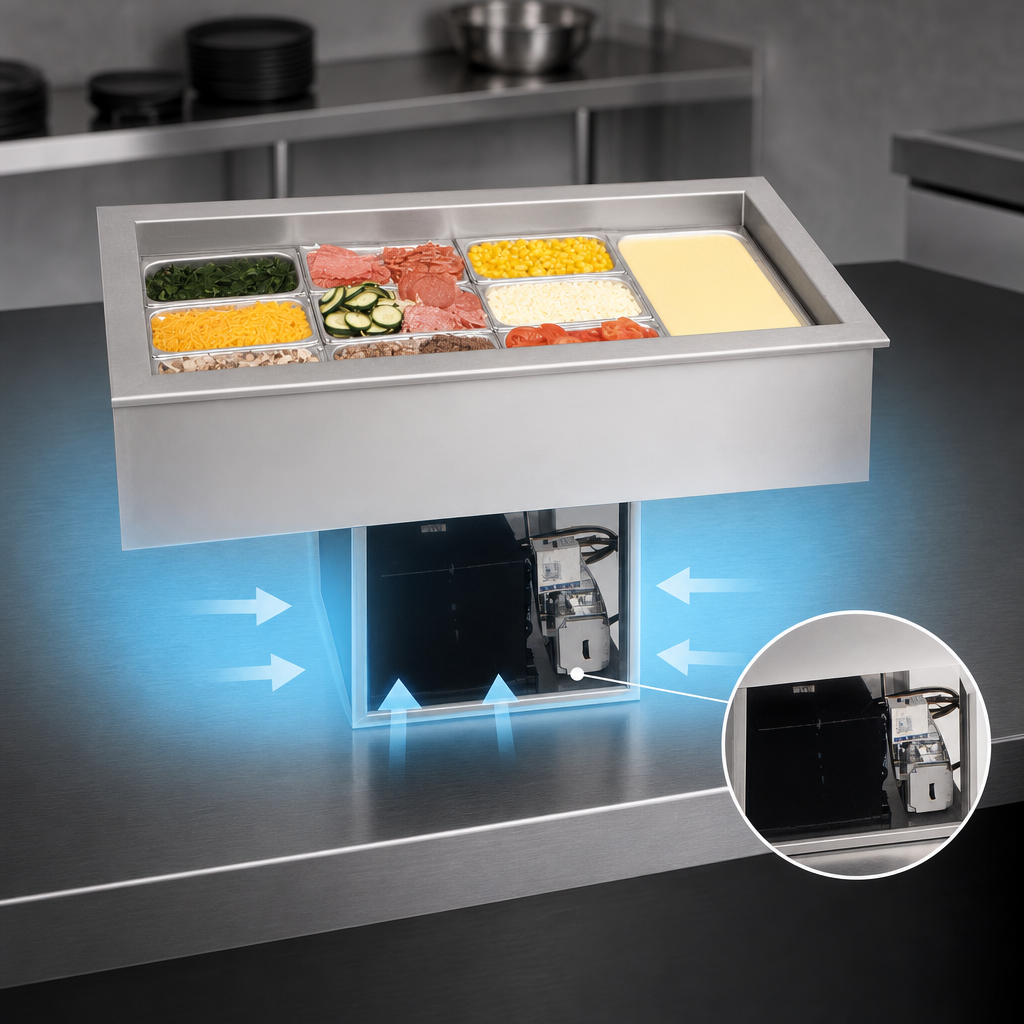

- Self-contained refrigeration with hermetically-sealed 1/3 HP compressor & expansion-valve for fast pull-down
- One-piece 18 GA 304 stainless steel top and interior liner with full finished welds, pitched to a 1" drain
- High-density CFC-free polyurethane insulation on sides & bottom
- Factory-installed on/off toggle switch and 8' cord with NEMA 5-15P plug
- NSF Standard 7 listed for open food storage
- Proudly engineered & built in Detroit, Michigan USA
Technical Specifications
| Pan Capacity | 6 full-size (12" × 20") pans, 6" deep max |
|---|---|
| Recessed Depth | 3" below counter surface |
| Overall Length (A) | 82 5/8" |
| Counter Cut-out | 81 1/8" L × 25 1/2" W |
| Temperature Range | 33 °F – 41 °F |
| Compressor / Refrigerant | 1/3 HP, R-134a |
| Electrical | 115 V / 60 Hz / 1-Ph, 9.0 A, 8' cord, NEMA 5-15P |
| Drain | 1" IPS with adaptor bar |
| Construction | Top & liner: 18 GA 304 stainless steel Exterior: 20 GA galvanized steel |
| Shipping Weight | Approx. 294 lb |
| Certifications | NSF 7 |
What’s Included
- Factory-mounted self-contained condensing unit
- On/off toggle switch
- 1-year parts & labor warranty
- Installation & operation manual
Adapter bars, pans, and decorative louvered vent panel are available separately.
