La Rosa Refrigeration 3304-RF Undercounter & Worktop Refrigeration
Description

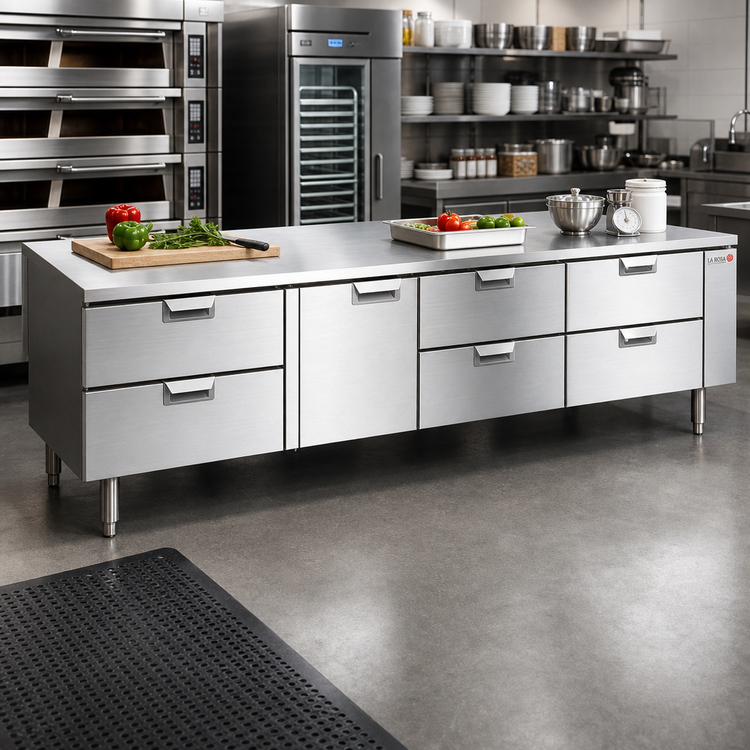

La Rosa 104" Self-Contained Freezer Equipment Stand
Four-section • 1 solid door & 6 drawer base • Made in Detroit, USAOutfit your cookline with heavy-duty frozen storage exactly where you need it. This 104-inch La Rosa freezer base delivers reliable -5 °F to 0 °F performance, a rugged 18-gauge stainless worktop, and the flexibility of both drawers and a reach-in compartment—all in one low-profile stand that supports ranges, griddles or countertop equipment.
Why You’ll Love It
- 18 GA 304 stainless steel top with 1-1/8" marine edge keeps spills contained
- Side-mounted, self-contained refrigeration system with expansion valve for fast recovery
- Automatic defrost, evaporator fan and jam heaters prevent frost build-up
- (1) solid hinged door with magnetic gasket for full-height ingredient storage
- (6) drawers—each holds (1) 12" × 20" × 4-1/2" poly pan (pans sold separately)
- Fully finished welds for a sanitary, easy-to-clean cabinet interior & exterior
- 6" stainless steel legs with 1-1/8" bullet-foot adjustment; removable for service
- Factory-foamed, CFC-free polyurethane insulation locks in cold & efficiency
- NSF construction & proudly built in Detroit for dependable, American-made quality
Technical Specifications
| Exterior Dimensions (W × D × H) | 104" × 31-1/2" × 36" |
|---|---|
| Sections / Configuration | 4-section base (1) door • (6) drawers |
| Storage Capacity | 7.92 cu ft |
| Operating Range | -5 °F to 0 °F (-20 °C to -18 °C) |
| Refrigeration | Side-mounted, self-contained, forced-air evaporator w/ expansion valve & coated coil |
| Compressor / HP | Hermetically sealed • 1/2 HP |
| Electrical | 115 V / 60 Hz / 1-ph • 1.28 A • 9 ft cord & NEMA 5-15P |
| Top Load Rating | Supports countertop ranges, griddles & charbroilers (consult factory for limits) |
| Caster / Leg Options | Standard 6" stainless legs (removable) • Optional locking casters |
| Ship Weight | ≈ 675 lb |
| Compliance | NSF • UL (electrical) • DOE 2017 |
Warranty
1-year parts & labor coverage plus 1-year compressor warranty. Extended compressor protection available—see La Rosa warranty sheet for details.
