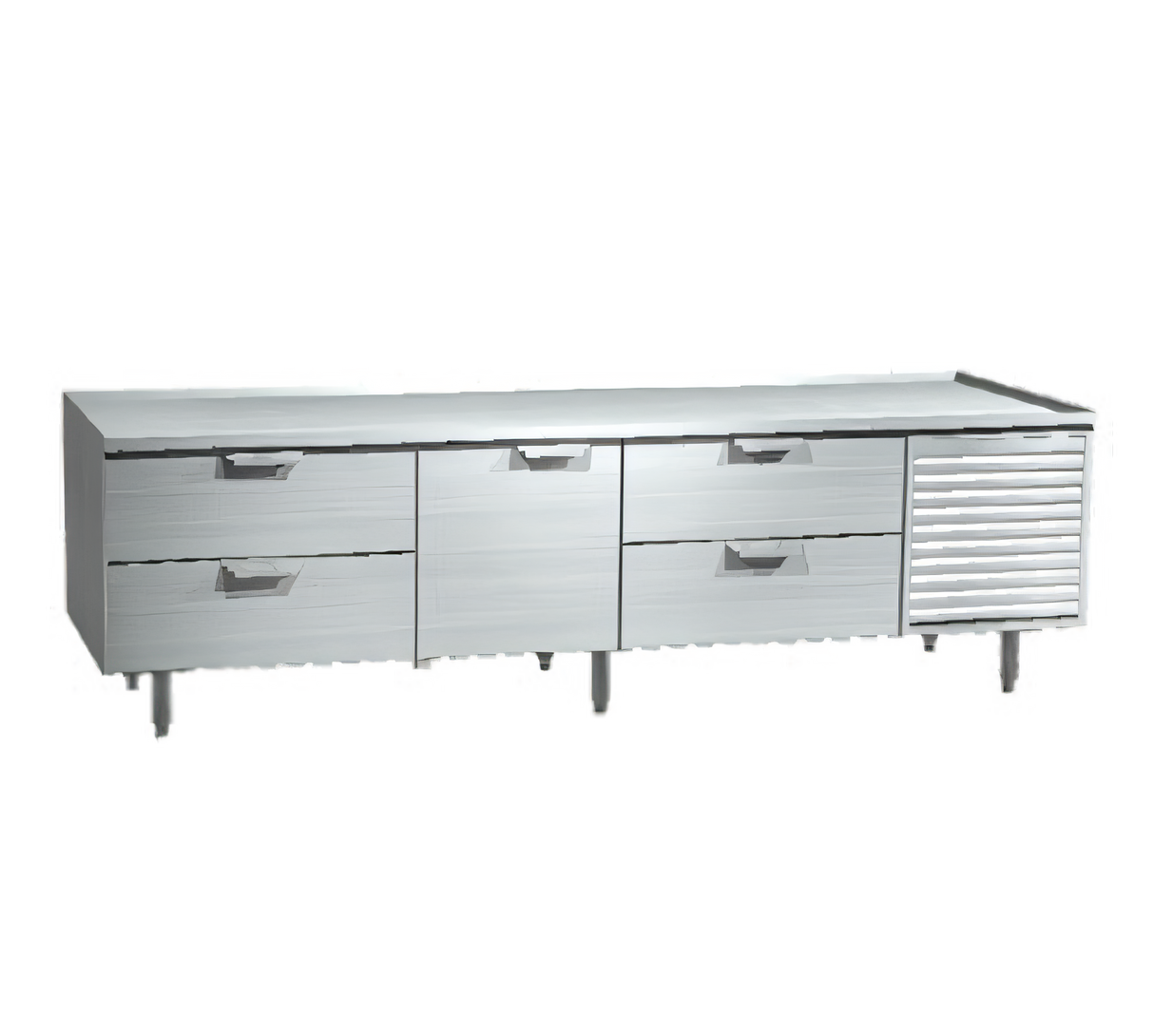

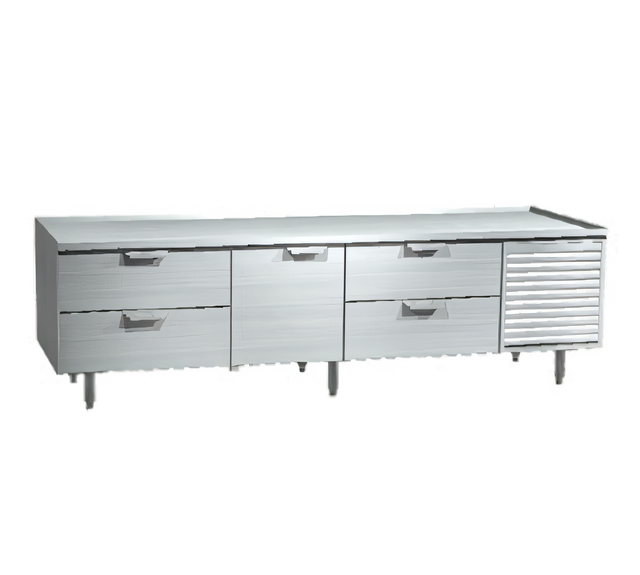

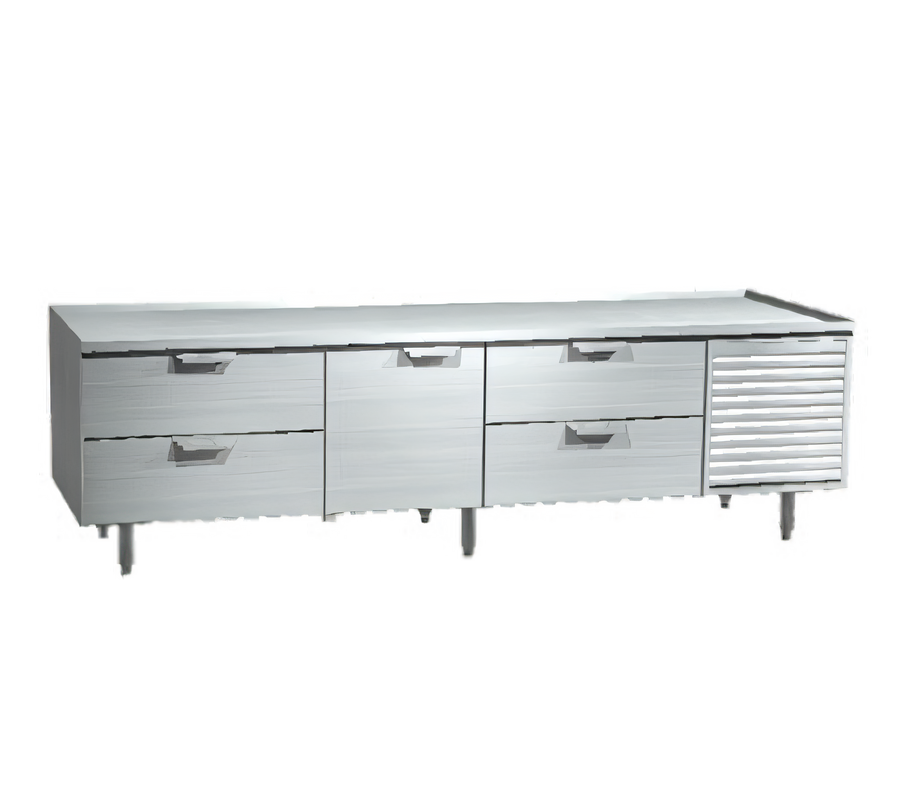

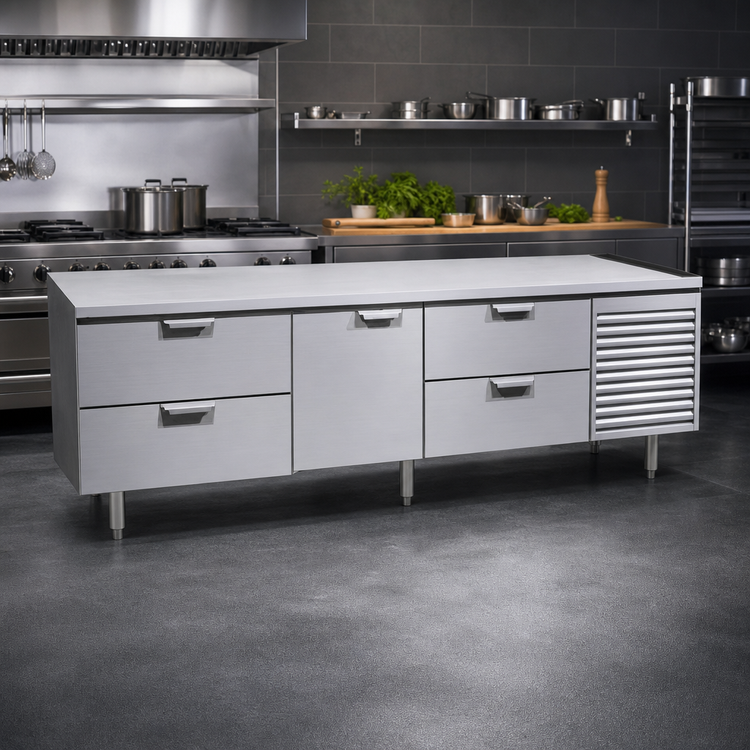

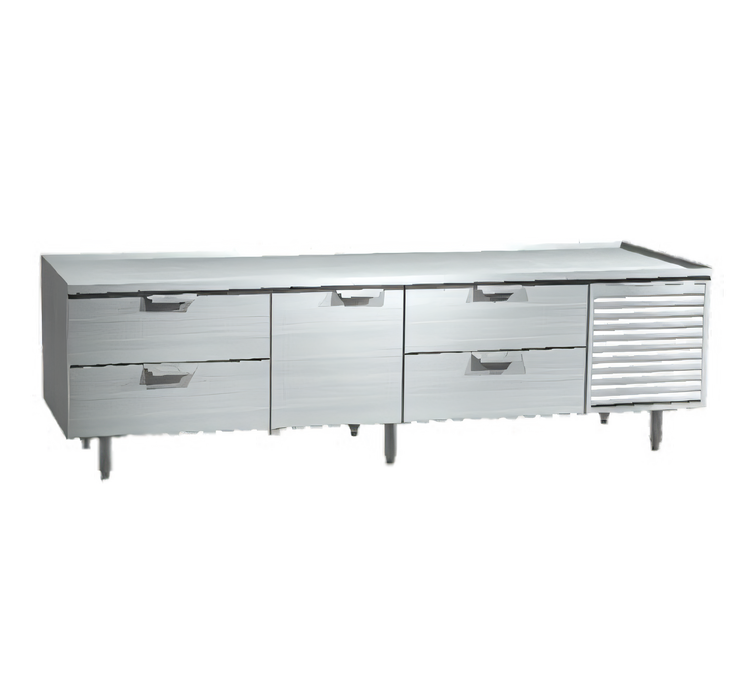

La Rosa Refrigeration 3288-SF Three-Section Freezer Base Equipment Stand with Door and Drawers
La Rosa Refrigeration 3288-SF Three-Section Freezer Base Equipment Stand with Door and Drawers
88-Inch Wide, Self-Contained, -5°F to 0°F Temperature Range
Maximize your kitchen's efficiency with this robust, self-contained freezer base, designed for reliable storage and convenient workspace.
- Durable all stainless steel construction on front, ends, and marine edge top for lasting performance.
- Three-section design featuring one solid hinged door and four full-extension drawers for versatile storage.
- Self-contained freezer system maintains temperatures between -5°F and 0°F, ideal for frozen ingredients.
- Each drawer includes two 12" x 20" x 4" deep polycarbonate pans, enhancing organization and accessibility.
- Equipped with an expansion valve system for rapid and accurate temperature recovery.
- Designed and manufactured in Detroit, USA, ensuring quality craftsmanship.
Overall Dimensions:
88.0"W x 31.57"D x 25.5"HProduct Weight:

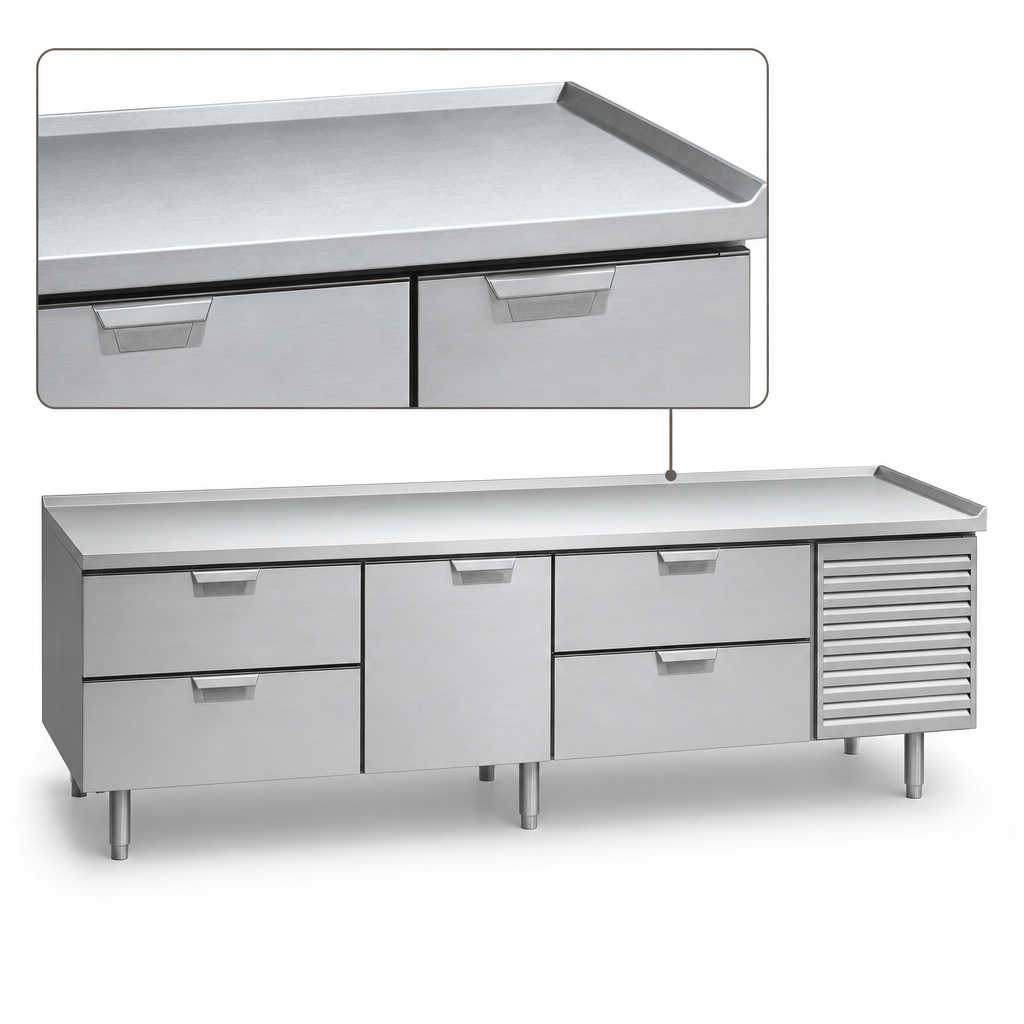

560.0 lbHeavy-Duty Stainless Steel Top
Die-formed, one-piece 18 GA stainless steel type 304-#4 finish top with a 1 1/8" high marine edge on nosing, ends, and back to contain spills.
Durable Exterior Construction
Front and ends are 20 GA stainless steel type 304-#4 finish. Back and bottom are 20 GA steel with a painted enamel finish. Body supported by 14 GA galvanized steel box channels for legs.
Efficient Freezer Interior
Interior bottom, back, and ends made of 22 GA stainless steel type 304-#2B finish, with the interior top made of aluminum. Fully finished welds for hygiene and strength.
Rigid Polyurethane Foam Insulation
Ensures optimal temperature retention and energy efficiency.
Self-Closing Drawers with Pan Storage
Four drawers, each with a one-piece die-stamped 22 GA stainless steel type 304-#4 finish exterior and high-impact plastic interior. Gasket-mounted for easy removability and positive seal. Each drawer includes two removable 12" x 20" x 4" deep polycarbonate pans with a stainless steel divider support bar.
Concealed Drawer Jam Magnets & Heaters
One-piece high-impact plastic drawer jams feature concealed magnets for positive sealing and jam heaters to prevent gasket freezing, ensuring smooth operation.
Robust Drawer Frames
Combination 20 GA and 16 GA stainless steel drawer frames with corrosion-resistant 1 5/16" rollers and ball bearing assembly for smooth, reliable drawer movement.
Self-Contained Refrigeration System
Low temperature balanced system with a hermetically-sealed condenser and forced air evaporator with protective coated coil and expansion valve for rapid, accurate temperature recovery. Includes defrost heater and timer, tested to operate between -5°F and 0°F.
Removable Condenser Housing Panel
Fitted with an easily removable clip-on snap-in louvered panel for convenient maintenance.
Sturdy Stainless Steel Legs
Removable 6" high x 1 5/8" tubing legs welded to a steel plate and fastened to the body support channel, with bullet feet offering 1 1/8" of adjustment.
Automatic Defrost System
Features an automatic defrost timer and evaporator heater for consistent performance and reduced maintenance.
Warranty & Protection
1-year parts and labor warranty from date of shipment from factory.
