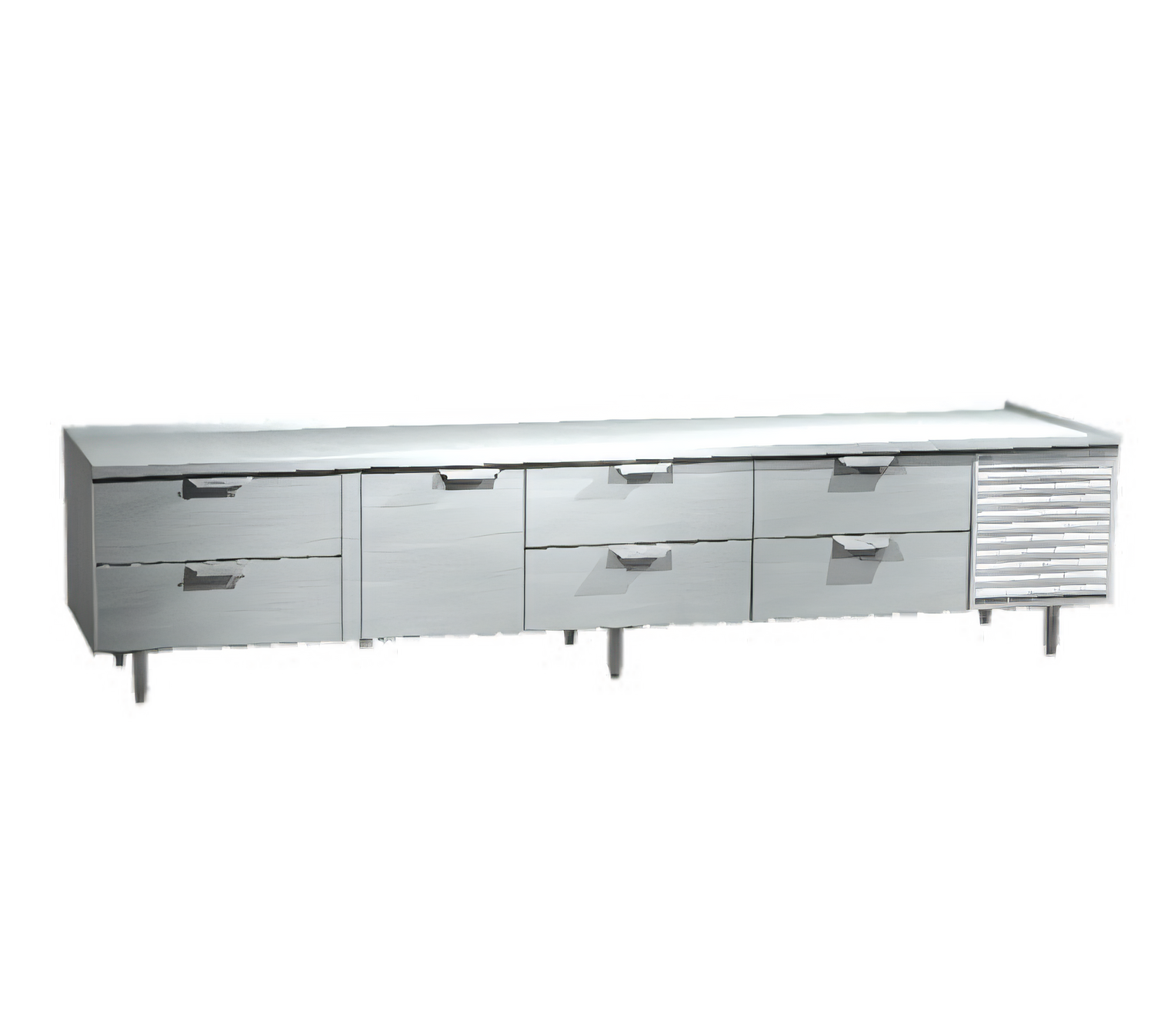

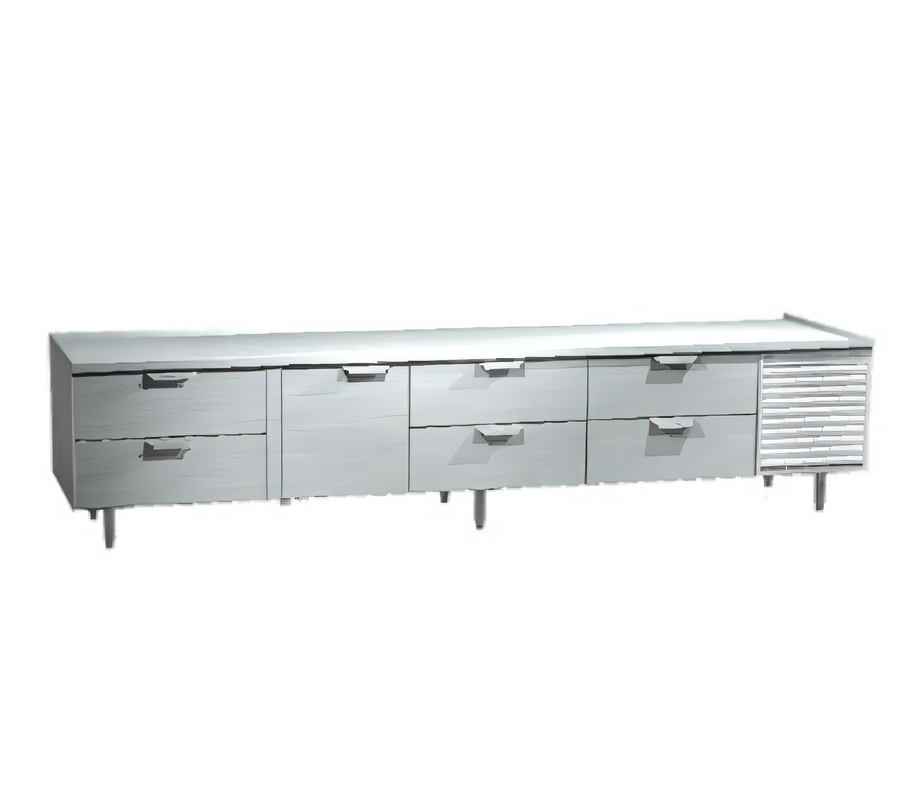

La Rosa 3216-SF 116" Four-Section Reach-In Freezer Base Equipment Stand with 1 Door and 6 Drawers

Self-Contained, 1/2 HP, -5° to 0°F, 115V, Stainless Steel

Maximize your kitchen space and efficiency with this robust, self-contained freezer base equipment stand, designed for demanding commercial environments.

  • Durable 116-inch stainless steel top with marine edge provides a versatile work surface.
  • Features one solid hinged door and six self-closing drawers, each accommodating two 12" x 20" x 4" deep polycarbonate pans.
  • Maintains freezer temperatures between -5°F and 0°F with a powerful 1/2 HP self-contained refrigeration system.
  • Constructed with high-quality stainless steel exterior on front, top, and ends for lasting durability and easy cleaning.
  • Equipped with 6" high stainless steel legs featuring adjustable bullet feet for stable floor placement.
  • Designed and manufactured in Detroit, USA, ensuring quality craftsmanship.

Overall Dimensions:

116.0"W x 31.57"D x 25.5"H

Product Weight:

675.0 lb

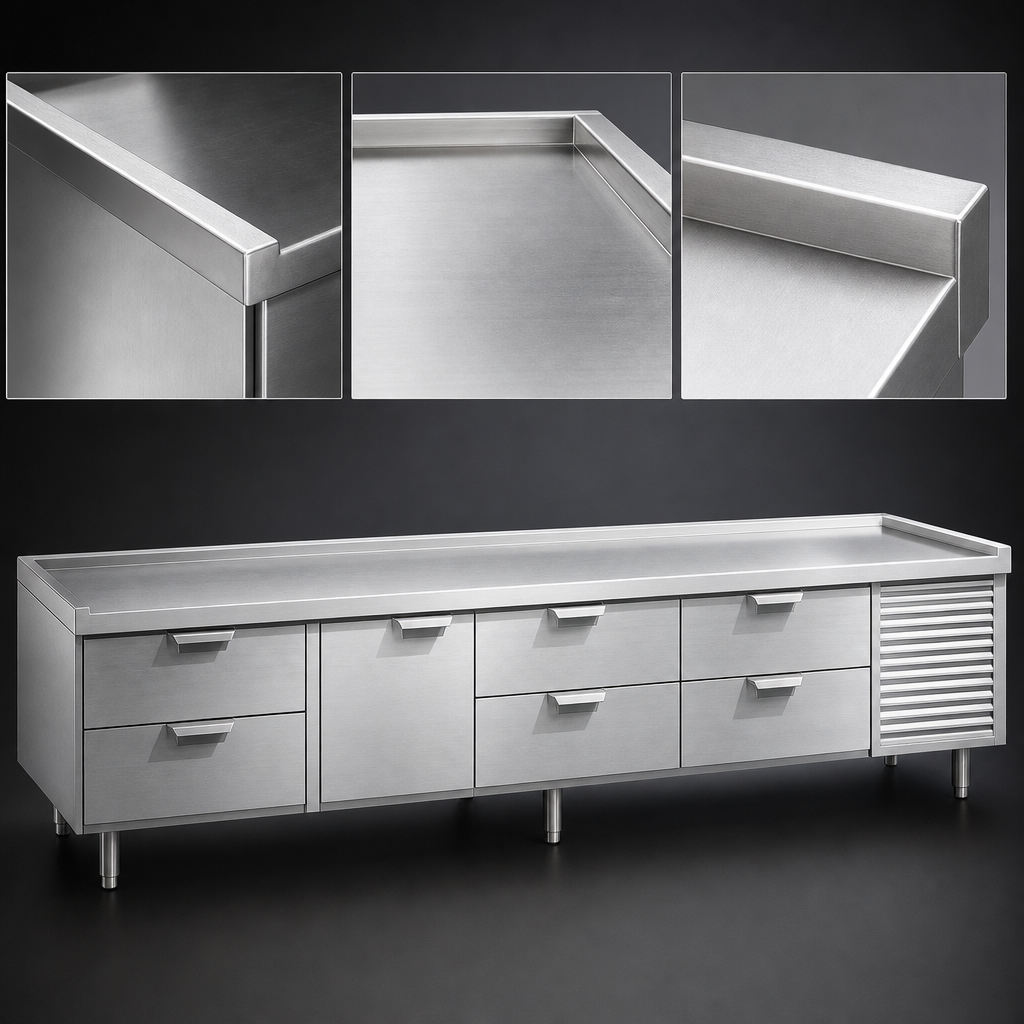

Heavy-Duty Stainless Steel Top

Die-formed, one-piece 18 gauge 304 stainless steel top with a 1 1/8" high marine edge on nosing, ends, and back, providing a durable and spill-resistant work surface.

Efficient Self-Contained Refrigeration

Utilizes a low-temperature balanced system with a hermetically-sealed condenser, forced air evaporator with a protective coated coil, and an expansion valve for rapid, accurate temperature recovery. Operates between -5°F and 0°F.

Six Self-Closing Drawers

Each drawer is constructed with a one-piece die-stamped 22 gauge 304 stainless steel exterior and a high-impact plastic interior. Features corrosion-resistant 1 5/16" rollers with ball bearing assembly and includes two removable 12" x 20" x 4" deep polycarbonate pans with a stainless steel divider bar.

Jam Heaters

Concealed jam heaters are integrated around the drawer perimeters to prevent gasket freezing and ensure a positive seal.

Automatic Defrost System

Equipped with an automatic defrost timer and evaporator heater for hassle-free maintenance and consistent cooling performance.

Robust Construction

Features 20 gauge 304 stainless steel ends and 14 gauge galvanized steel box channels for leg support, ensuring long-term stability and durability.

Removable Stainless Steel Legs

Includes 6" high stainless steel legs with 1 1/8" adjustable bullet feet, which are removable for easy installation or customization.

Side-Mounted Condenser Housing

The condenser housing is fitted with an easily removable clip-on snap-in louvered panel for convenient servicing and maintenance.

Pre-wired with Cord and Plug

Comes assembled with an 8-foot power cord and NEMA 5-15P plug, ready for immediate installation.

Type Freezer Base Equipment Stand
Style Reach-In
Installation Type Floor Model (With Legs)
Compartments 4
Drawer Quantity 6
Door Quantity 1
Capacity 7.92 Cubic Feet
Pan Capacity 12 (12" x 20" x 4") Polycarbonate Pans
Temperature Range -5 to 0 Degrees F
Refrigeration Type Self-Contained
Refrigerant Type R404
Compressor HP 1/2 HP
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 12.6 Amps
Plug Type NEMA 5-15P
Cord Length 8 Feet
Material Stainless Steel (Exterior Front, Top, Ends), Painted Steel (Exterior Back, Bottom)
Top Finish 18 GA 304 Stainless Steel with 1-1/8" Marine Edge
Interior Finish 304 Stainless Steel (Bottom, Back, Ends), Aluminum (Top)
Insulation Rigid Polyurethane Foam
Leg Height 6 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 116 Inches
Shipping Depth 32 Inches
Shipping Height 26 Inches
Shipping Weight 675 lb.
Country of Origin USA

Warranty & Protection

1-year parts and labor warranty.

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The freezer stand is designed to maintain temperatures between -5°F and 0°F, ideal for keeping frozen ingredients safely stored.
Each of the six drawers includes and accommodates two 12" x 20" x 4" deep polycarbonate pans, providing a total capacity for 12 pans.
The front, top, and ends of the unit are constructed from stainless steel. The back and bottom exterior are made of 20 gauge steel with a painted enamel finish.
Yes, casters are available as an option to replace the standard 6" high stainless steel legs, offering increased mobility.
The unit operates on 115 Volts, 60 Hz, 1-Phase power, drawing 12.6 Amps, and comes with an 8-foot cord and a NEMA 5-15P plug.
The La Rosa 3216-SF comes with a one-year warranty covering parts and workmanship from the date of shipment. An additional 9 months labor warranty and an extended four-year compressor warranty are available for purchase.
