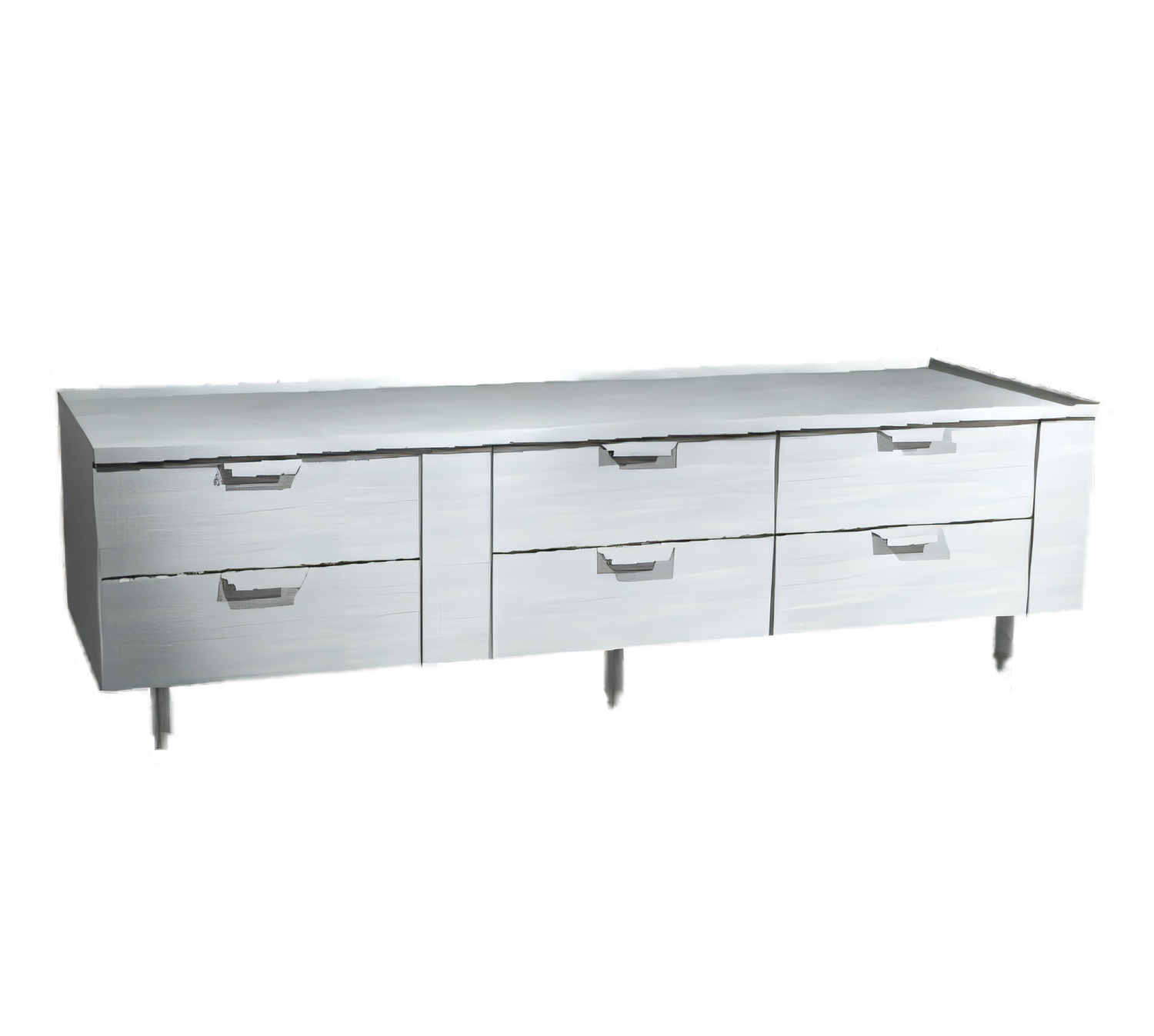

La Rosa 3190-RR 90-Inch Three-Section Refrigerated Equipment Stand with 6 Drawers (Remote)

90" Wide, 6 Drawers, Remote Refrigeration Ready, Stainless Steel Top

Designed for optimal workflow and ingredient storage, the La Rosa 3190-RR provides a robust, refrigerated work surface for demanding commercial kitchens.

  • 90-inch wide work surface with a durable 18 GA 304 stainless steel top and marine edge.
  • Features six self-closing drawers, each accommodating two 12"x20"x4" deep pans.
  • Engineered for remote refrigeration systems, allowing for flexible compressor placement.
  • Heavy-duty construction with stainless steel front and ends ensures longevity in a commercial setting.
  • Made in Detroit, guaranteeing quality craftsmanship and reliable performance.
  • Equipped with a protective coated coil and expansion valve system for efficient cooling.

Overall Dimensions:

90.0"W x 31.57"D x 25.5"H

Product Weight:

600.0 lb

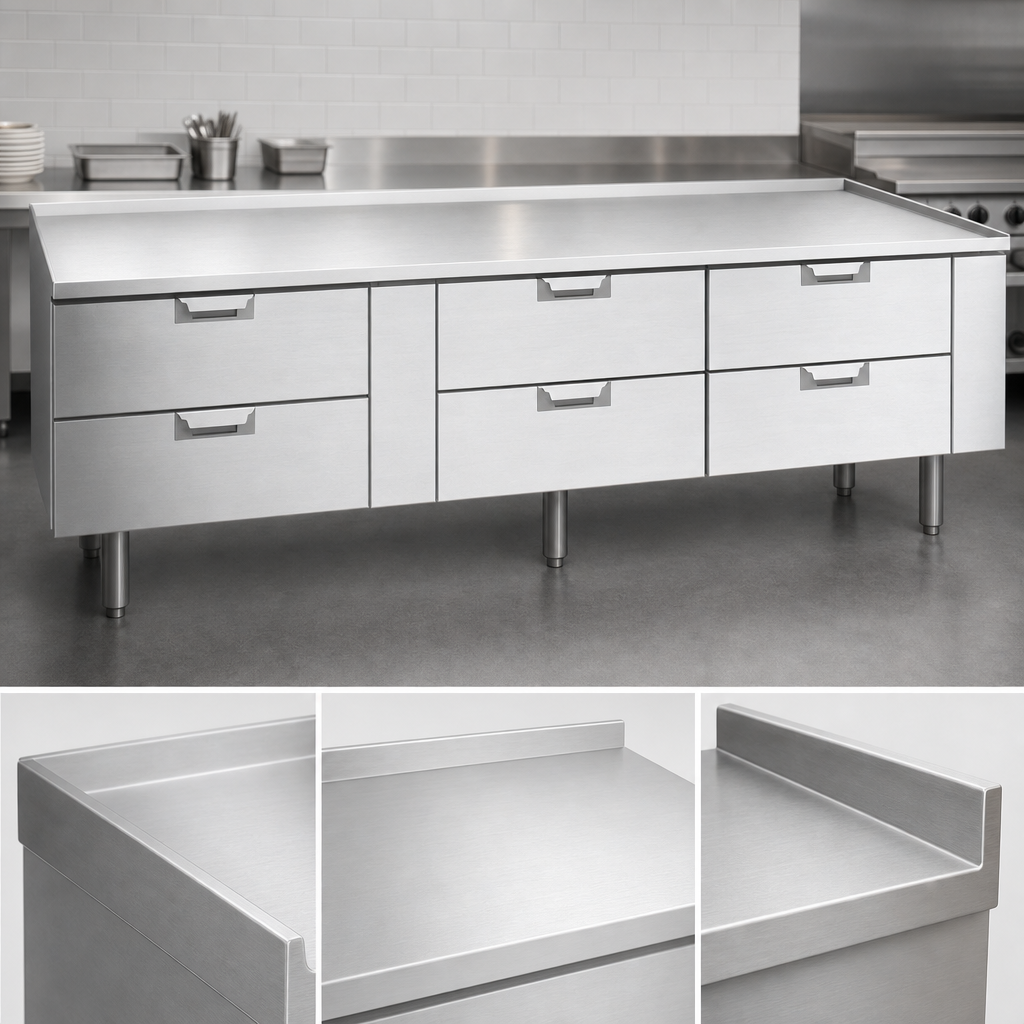

Heavy-Duty Stainless Steel Top

Die-formed one-piece 18 GA 304 stainless steel with a #4 finish and 1-1/8" high marine edge nosing, ends, and back turned up for spill containment and durability.

Remote Refrigeration System

Equipped with an air evaporator coil with protective coated coil and expansion valve, pre-assembled with a junction box for final connection to an external condensing unit. Designed to operate between 36 and 40 degrees F.

Six Self-Closing Drawers

Each section features two drawers with one-piece die-stamped 22 GA 304 stainless steel exteriors and high-impact plastic interiors. Gasket mounted with aluminum strips for easy removal and proper seal, utilizing corrosion-resistant rollers with ball bearing assemblies.

Full-Size Pan Capacity

Each drawer includes two removable 12"x20"x4" deep polycarbonate pans and one stainless steel divider support bar.

Robust Construction

Body supported by 14 GA galvanized steel box channels, with 20 GA 304 stainless steel ends and 20 GA painted enamel steel back and bottom, ensuring durability.

Rigid Polyurethane Foam Insulation

Provides efficient temperature retention for optimal product preservation and energy savings.

Adjustable Stainless Steel Legs

Removable 6-inch high stainless steel legs with bullet feet offering 1-1/8" of adjustment for leveling on uneven floors.

Condensate Drain

Includes a 5/8" OD copper drain for the condensate evaporator, hard-wired to the coil junction box.

Type Refrigerated Equipment Stand
Style Drawer Base
Installation Type Floor Model (With Legs)
Material Stainless Steel
Exterior Finish Stainless Steel (Front & Ends)
Interior Finish 304 Stainless Steel (Bottom, Back, Ends), Aluminum (Top)
Top Finish 304 Stainless Steel
Capacity 6.72 Cubic Feet
Pan Capacity 12 Full-Size Pans (12"x20"x4")
Compartments 3
Drawers 6
BTU 1200 BTU
Refrigeration Type Remote (Expansion Valve System)
Refrigerant Type R134A
Temperature Range 36-40 Degrees F
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 1.28 Amps
Recommended HP 1/3 HP
Drain Connection Size 5/8 Inches OD (Copper)
Refrigeration Line Inlet 1/4 Inches (Copper)
Refrigeration Line Suction 3/8 Inches (Copper)
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 90 Inches
Shipping Depth 32 Inches
Shipping Height 26 Inches
Shipping Weight 600.0 lb.

Warranty & Protection

1-year parts and labor warranty, 90-day labor warranty, optional extended 4-year compressor warranty.

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The La Rosa 3190-RR is designed for remote refrigeration and features an air evaporator coil with a protective coated coil and an expansion valve system. The condensing unit itself is not included, requiring connection to an external refrigeration system.
The unit requires a 115 Volt, 60 Hz, 1-Phase electrical connection, drawing 1.28 Amps. It comes with a junction box hard-wired to the coil for final connection.
Each of the six drawers is designed to hold two removable 12"x20"x4" deep polycarbonate pans, which are included, along with one stainless steel divider support bar.
The top is made of 18 GA 304 stainless steel with a #4 finish and marine edge. The ends are 20 GA 304 stainless steel, and the back and bottom are 20 GA steel with a painted enamel finish. The interior bottom, back, and ends are 22 GA 304 stainless steel, with an aluminum top.
Yes, it features heavy construction with 14 GA galvanized steel box channels for leg support, a durable stainless steel marine edge top, and overall robust construction suitable for demanding commercial kitchen environments.
La Rosa Refrigeration offers a one-year warranty on parts and workmanship from the date of shipment. There is a 90-day labor warranty, with an optional extended 9-month labor warranty available for an additional charge. An optional extended four-year compressor warranty can also be purchased.
