64-Inch Stainless Steel Remote Refrigerated Equipment Stand with 4 Drawers

SKU: 3164-RR
$7,721.42
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Work Tables Equipment Stands Kitchen Equipment Tables La Rosa Refrigeration New Arrivals Restaurant Equipment Undercounter & Worktop Refrigeration

64-Inch Stainless Steel Remote Refrigerated Equipment Stand with 4 Drawers

Two-Section, 31.5-Inch Deep, 115V, 1-Phase

Built for remote refrigeration hookups, this heavy-duty stand adds four organized cold-storage drawers beneath your prep line.

  • Remote refrigeration design includes an air evaporator coil, expansion valve, and junction box ready for final connection.
  • Four self-closing drawers provide organized refrigerated storage, with two removable 12 x 20 x 4 Dp polycarbonate pans per drawer.
  • One-piece 18-gauge 304 stainless steel top features a 1-1/8-inch marine edge for durability and spill control.
  • Removable 6-inch stainless steel legs with adjustable bullet feet simplify installation and cleaning.
  • Condensate evaporator included; recommended operating temperature is 36°F to 40°F.

Overall Dimensions:

64.0"W x 31.57"D x 25.5"H

Product Weight:

490.0 lb

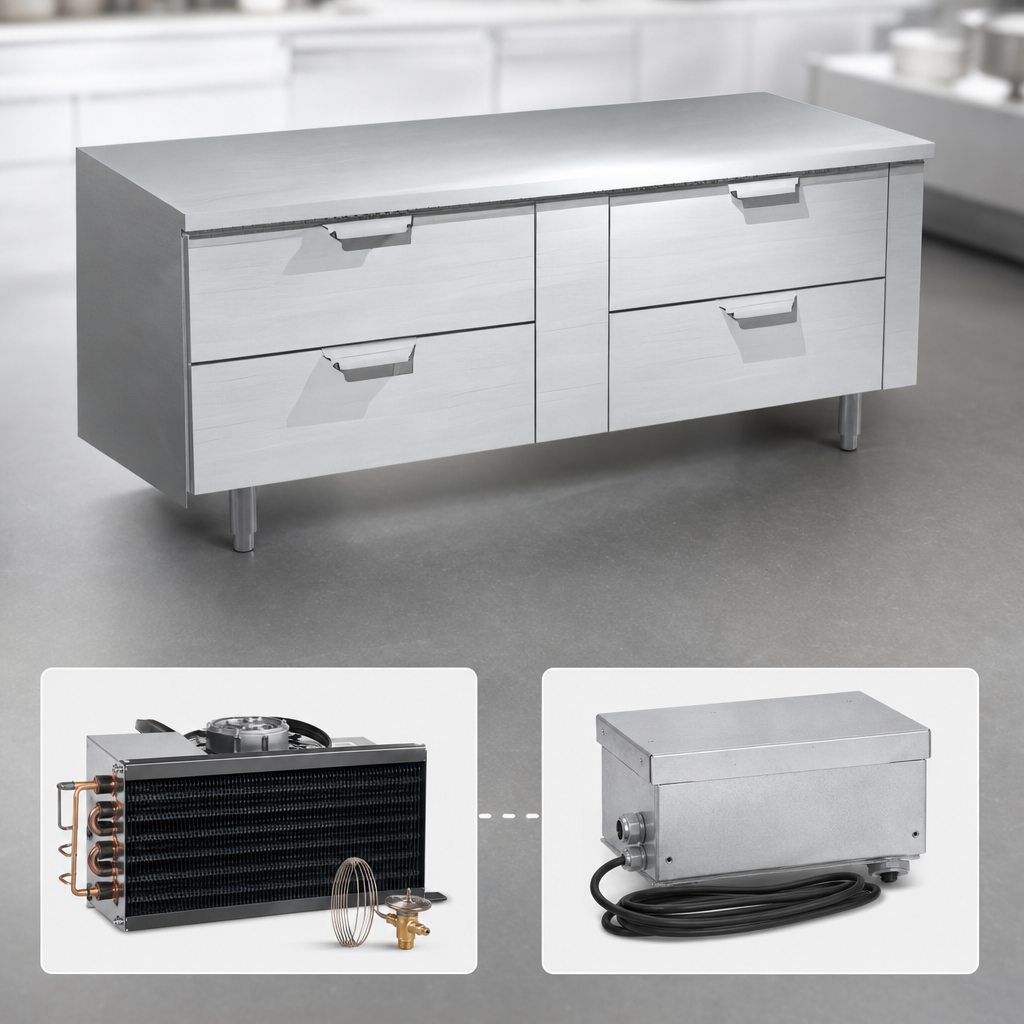

Remote Refrigeration Ready

Air evaporator coil with a protective coated coil and expansion valve; system ships assembled with a junction box for final connection.

Stainless Steel Top

One-piece die-formed 18-gauge type 304 stainless steel top with 1-1/8-inch high marine edge nosing.

Four Drawer Storage

Provides 4 drawers total, each with (2) removable 12 x 20 x 4 Dp polycarbonate pans and a stainless steel divider support bar.

Positive-Seal Drawer Jambs

One-piece high-impact plastic drawer jambs with concealed magnets help maintain a positive seal.

Removable Adjustable Legs

6-inch stainless steel legs are removable in the field and include 1-1/8-inch of adjustment.

Condensate Evaporator

Included to help manage moisture and condensate from the refrigerated system.

Operating Temperature Range

Recommended for operation between 36°F and 40°F.

Stainless Steel Ends

Type 304 stainless steel ends add durability and match the heavy-duty construction.

Type Refrigerated Equipment Stand
Style Remote Refrigeration
Installation Type Floor Model
Capacity 4.48 Cubic Feet
Drawers 4
Compressor HP 1/4 HP
Refrigeration Type Remote
Refrigerant Type R-134A
BTU 1200 BTU
Voltage 115 Volts
Amps 1.28 Amps
Hertz 60 Hz
Phase 1-Phase
Material Stainless Steel
Finish Stainless Steel
Shipping Width 64 Inches
Shipping Depth 32 Inches
Shipping Height 26 Inches
Shipping Weight 490 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Warranty & Protection

1-year parts and workmanship from shipment date.

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. It is designed for remote refrigeration and ships with the evaporator coil and junction box assembly ready for final connection.
It has four drawers total, with two removable 12 x 20 x 4 Dp polycarbonate pans in each drawer.
The recommended operating range is 36°F to 40°F.
Yes. Casters are available in lieu of the standard 6-inch legs.
Available options include a door in place of drawers, an adjustable wire shelf per door, a cutting board, and full-extension drawer slides.
