La Rosa Refrigeration 3142-RR Undercounter & Worktop Refrigeration
Description

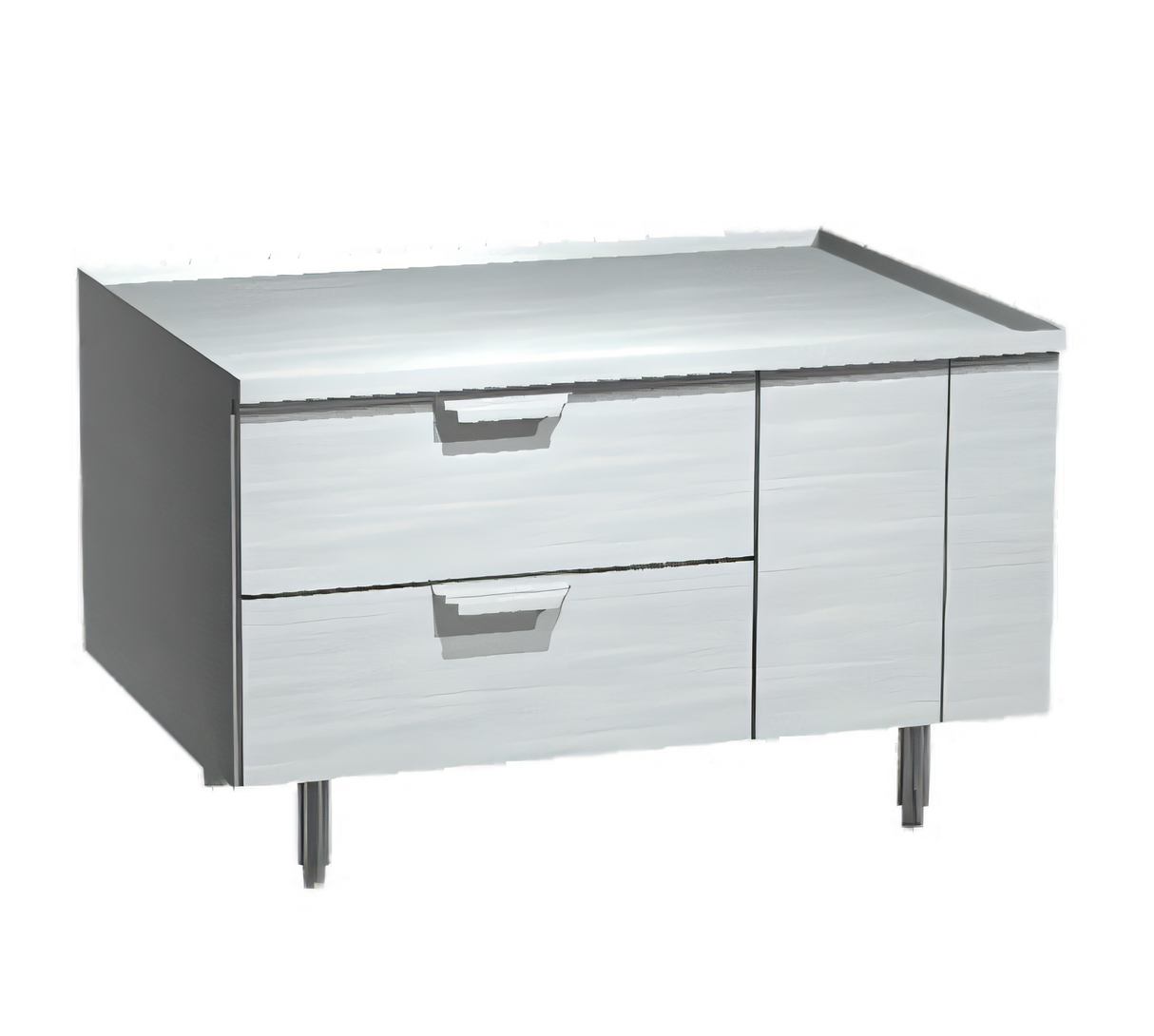

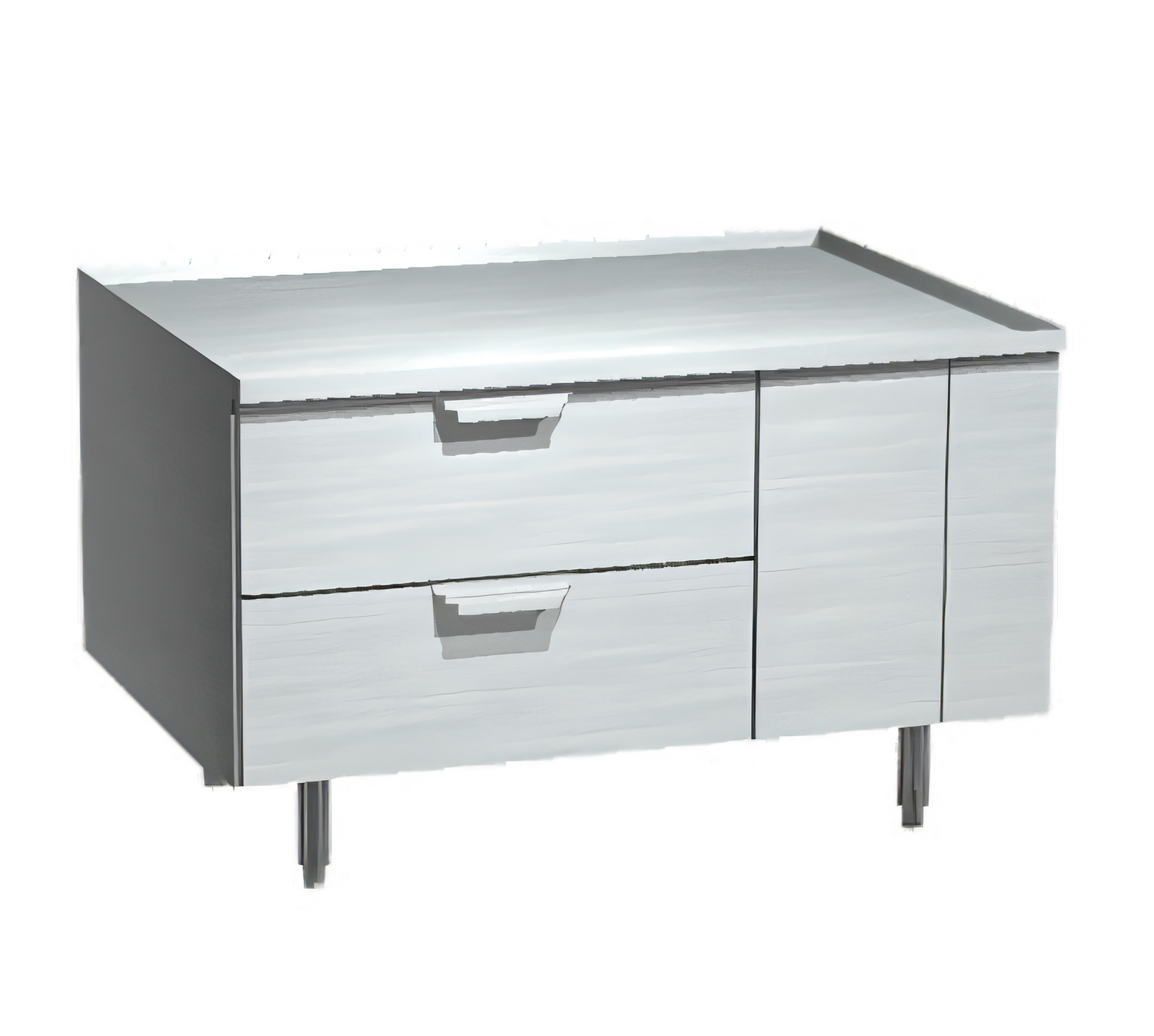

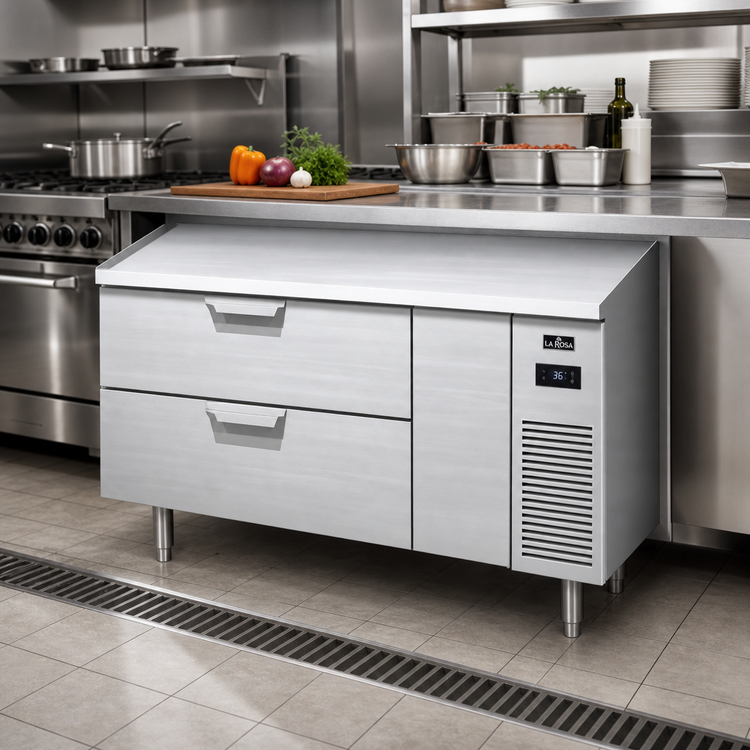

La Rosa 3142-RR Refrigerated Equipment Stand – 42"W, 2-Drawer, Remote
Made in Detroit • Stainless Steel Top • Expansion-Valve SystemPurpose-built for today’s fast-paced kitchens, the La Rosa 3142-RR keeps ingredients ice-cold directly beneath griddles, charbroilers or other hot cooking equipment. A rugged, fully welded stainless-steel body teams with a remote refrigeration system to deliver reliable, energy-efficient performance shift after shift.
Key Features
- One-piece 18 GA type 304 stainless-steel top with 1-1/8" marine edge and optional radiant-heat blanket.
- Remote air-cooled evaporator coil with factory-installed expansion valve; ready to connect to a field-supplied condensing unit.
- (2) self-closing drawers, each furnished with two 12 × 20 × 4" polycarbonate pans and a stainless divider bar.
- High-impact plastic drawer jams with concealed perimeter magnets for a tight, energy-saving seal.
- Rigid polyurethane foam insulation maintains 36 – 40 °F product temperatures.
- Stainless-steel front, ends and 6" adjustable legs; legs are removable in the field or swappable for optional casters.
- Fully finished welds and uniform component integration for long service life and easy cleaning.
- Low electrical demand—only 0.8 A at 115 V—for condensate evaporator and controls.
- Backed by a 1-year parts & labor warranty.
Technical Specifications
| Model | 3142-RR (Remote) |
|---|---|
| Overall width | 42" (1067 mm) |
| Depth | 31.5" (800 mm) |
| Height (with 6" legs) | 36" (914 mm) |
| Drawers / pans | 2 drawers | (4) 12 × 20 × 4" pans total |
| Interior capacity | 2.24 ft³ |
| BTU load | 800 BTU/h @ 10 °F TD (R-134a) |
| Operating temperature | 36 – 40 °F (2 – 4 °C) |
| Electrical | 115 V / 60 Hz / 1-phase, 0.8 A |
| Recommended compressor | ¼ HP (field-supplied) |
| Ship weight | ≈ 360 lb |
| Warranty | 1-year parts & labor |
Popular Options (sold separately)
- Set of 4 heavy-duty swivel casters (2 locking)
- Full-extension drawer slides for 100 % access
- Adjustable wire shelf kit
- 9 ½" × ½" Richlite cutting board with stainless brackets
- Single solid door in lieu of drawers
Specifications are based on the latest manufacturer data and may change without notice. Please verify critical dimensions and requirements before ordering.
