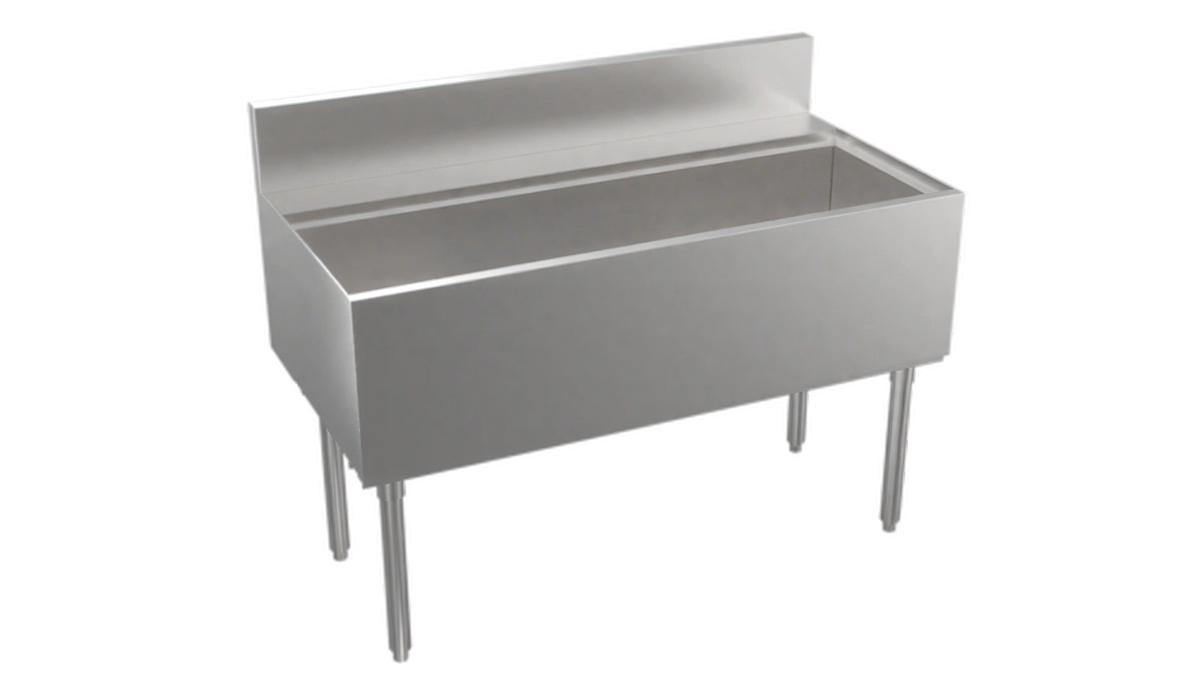

Krowne Stadium Series KRS-48-10 48-Inch Stainless Steel Underbar Ice Bin/Cocktail Unit with 147-Lb Capacity and 10-Circuit Cold Plate
- Construction
- Stainless steel and galvanized steel
- Dimensions
- 48.0"W × 29.0"D × 37.0"H
- Product Type
- Stadium Series underbar ice bin/cocktail unit
- Cold Plate
- Built-in 10-circuit post-mix
- Ice Capacity
- 147 lb
- Bin Liner Depth
- 12 in
Specifications
Description
The Krowne Stadium Series KRS-48-10 is an underbar ice bin/cocktail unit with a built-in 10-circuit cold plate and 147 lb ice capacity.
- Features a 12 in deep stainless steel bin liner.
- A 5 in backsplash return allows utilities to run directly behind the equipment and increases overall depth by 5 in.
- Includes a 3/4 in x 3-1/2 in soda line cutout in the backsplash and a 1/2 in drain.
- Constructed with stainless steel and galvanized steel components, stainless steel legs, and adjustable bullet feet.
Overall Dimensions:
48.0"W x 29.0"D x 37.0"HProduct Weight:
176.0 lbBuilt-in cold plate
The -10 model designation includes a built-in 10-circuit post-mix cold plate sealed into the bottom of the ice bin.
Ice capacity
The ice bin has a 147 lb ice capacity.
Stainless steel bin liner
The bin liner is 12 in deep and made of stainless steel.
Utility access
A 5 in backsplash return allows utilities to run directly behind the equipment and increases overall depth by 5 in.
Soda line access
The backsplash includes a 3/4 in x 3-1/2 in soda line cutout.
Drain
The unit has a 1/2 in drain.
Adjustable support
Stainless steel legs are fitted with adjustable bullet feet.
