Krowne

Krowne Stadium Series Built-In Underbar Ice Bin/Cocktail Unit with 10-Circuit Cold Plate, 30 Inch Wide

SKU: KRS-30DP-10
$3,414.40
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Bar Ice Bins Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Ice Machines & Ice Equipment Krowne New Arrivals Refrigeration, Freezing & Ice Restaurant Equipment Underbar Equipment

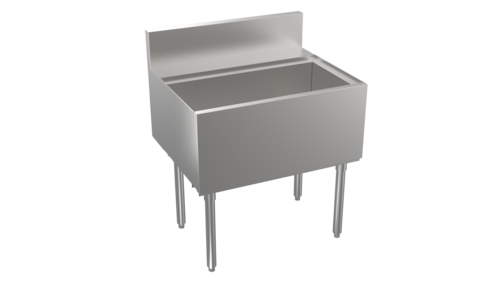

Krowne Stadium Series Built-In Underbar Ice Bin/Cocktail Unit with 10-Circuit Cold Plate, 30 Inch Wide

122-lb. ice capacity, 15-inch deep bin liner, stainless steel construction

A compact, utility-friendly bar ice station that combines a built-in 10-circuit cold plate with durable stainless steel construction for efficient drink service.

  • Built-in 10-circuit cold plate helps keep beverages chilled during high-volume bar service.
  • 122-lb. ice capacity supports busy cocktail and beverage prep needs.
  • 15-inch deep stainless steel bin liner provides a durable, easy-to-clean ice compartment.
  • 5-inch deep backsplash return allows utilities to run directly behind the unit.
  • Includes a 3/4" x 3-1/2" soda line cutout in the backsplash for bar plumbing convenience.
  • Stainless steel legs with adjustable bullet feet help simplify installation and leveling.
  • 1/2" drain supports practical ice bin drainage.

Overall Dimensions:

30.0"W x 29.0"D x 37.0"H

Built-In 10-Circuit Cold Plate

Integrated cold plate design helps keep beverages cold at the bar.

122-Lb. Ice Capacity

Provides substantial ice storage for cocktail and beverage service.

15-Inch Deep Bin Liner

Deep stainless steel bin liner offers durable ice storage and easier cleaning.

Utility-Friendly Backsplash Return

5-inch backsplash return creates clearance to run utilities directly behind the equipment.

Soda Line Cutout

3/4" x 3-1/2" cutout in the backsplash is designed for soda line routing.

Adjustable Bullet Feet

Stainless steel legs with adjustable bullet feet help with leveling during installation.

1/2-Inch Drain

Drain connection supports straightforward water removal from the ice bin.

Stainless Steel Construction

Corrosion-resistant construction built for demanding bar environments.

Type Underbar Ice Bin/Cocktail Unit
Installation Type Built-In
Capacity 122 Pounds
Material Stainless Steel
Selling Unit Each
Units Per Case 1
Shipping Width 30 Inches
Shipping Depth 29 Inches
Shipping Height 37 Inches
Shipping Weight 112 Pounds

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

This underbar ice bin/cocktail unit has a 122-lb. ice capacity.
Yes, it includes a built-in 10-circuit cold plate.
The stainless steel bin liner is 15 inches deep.
Yes, the unit has a 5-inch deep backsplash return that allows utilities to be run directly behind the equipment.
It includes a 1/2-inch drain.
The unit measures 30 inches wide, 29 inches deep, and 37 inches high.
