Krowne  |  Royal Series  |  SKU: KRPT-60RP-10

Krowne KRPT-60RP-10 Royal Series Bar Equipment

$12,496.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

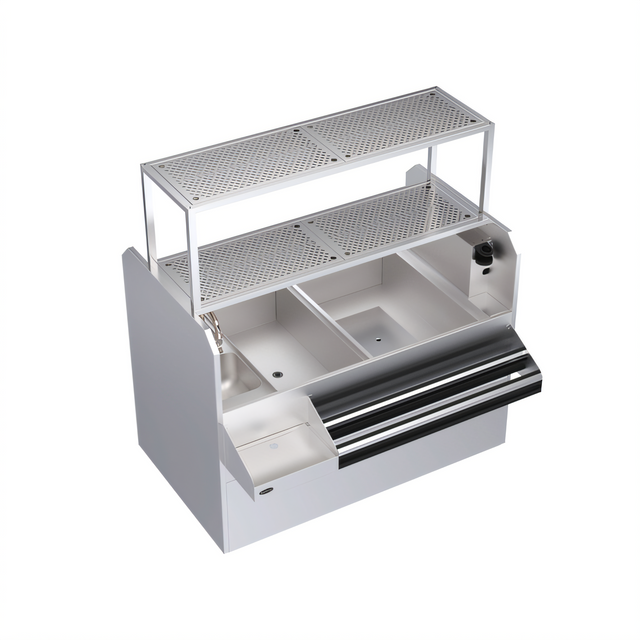

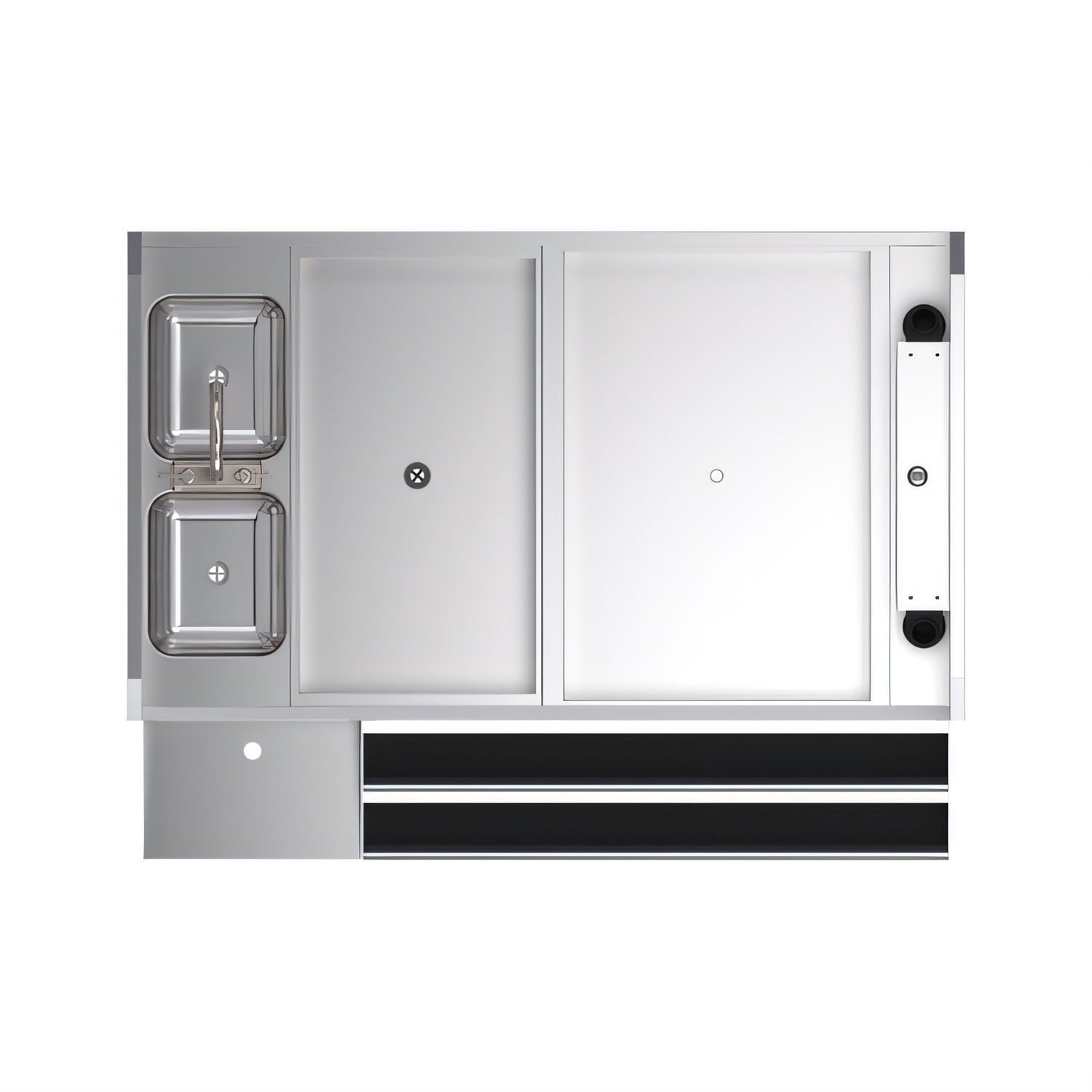

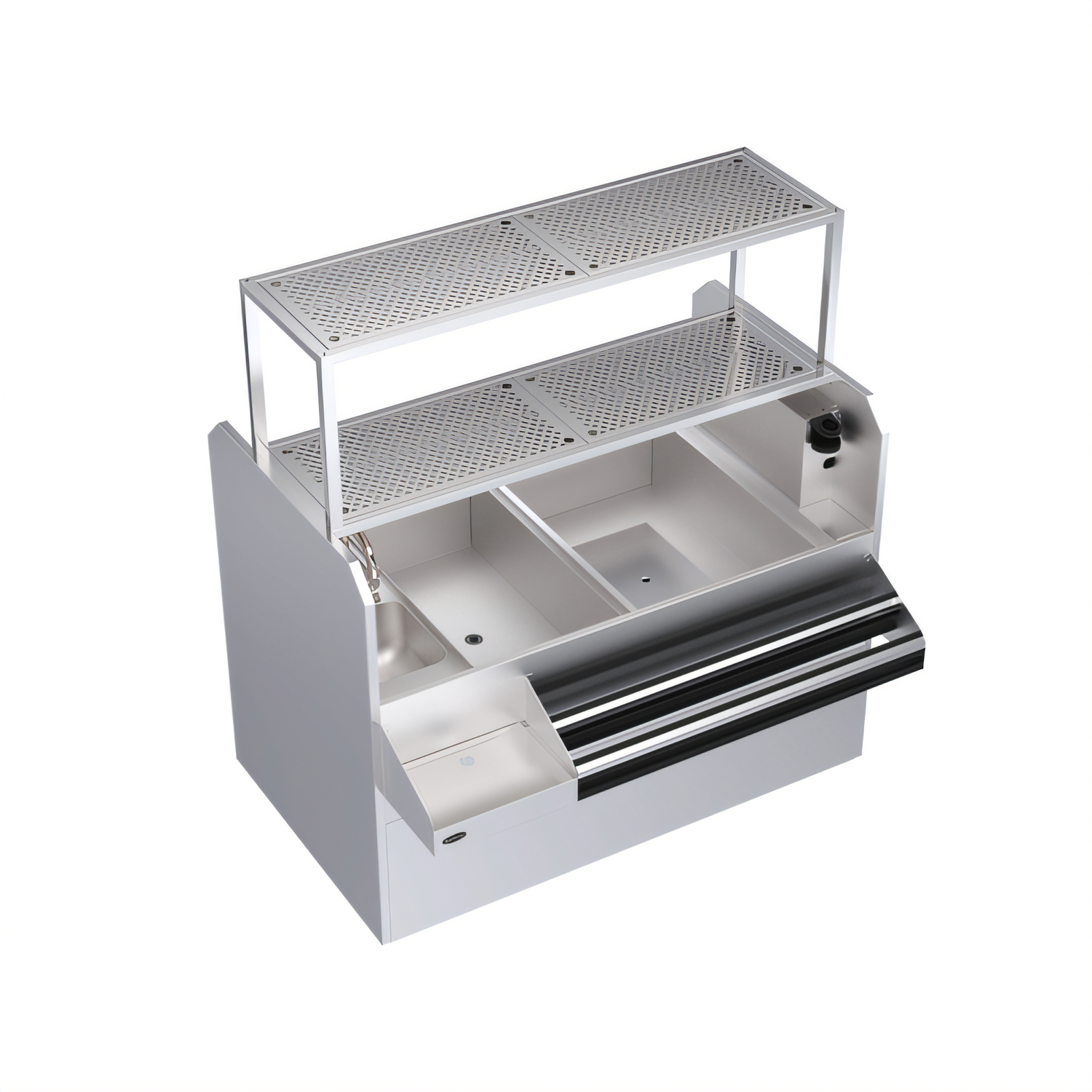

Krowne Royal Series 60" Pass-Thru Cocktail Station w/ Cold Plate

Model KRPT-60RP-10 • Right-Side Ice Bin

Power through rush hour with one all-inclusive bartending hub. Built from heavy-gauge stainless steel, the Royal Series KRPT-60RP-10 combines an ice-cold 10-circuit cold plate, extra-long speed rail and dual dump sinks to keep every ingredient, glass and tool exactly where your bartenders need it—no wasted motion, no lost sales.

Key Features

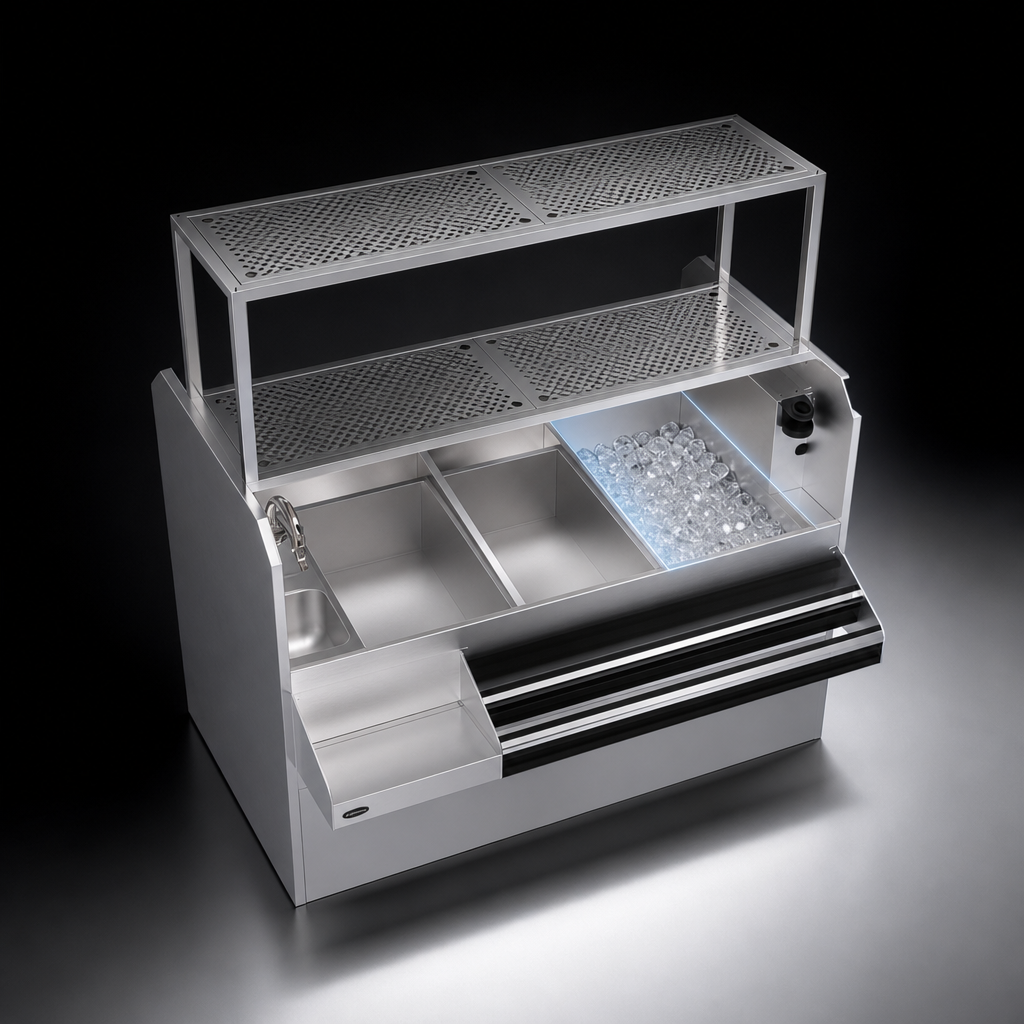

  • 24" pass-thru ice bin on the right with sealed 10-circuit cold plate for worry-free post-mix consistency.
  • Oversized 42" double speed rail holds up to 18 bottles within arm’s reach.
  • Center-mounted 18" insulated bottle well keeps juices & mixers chilled and organized.
  • (2) dump sinks on the left with Royal Series gooseneck faucet (low-lead compliant) for rapid rinsing.
  • 16" blender shelf with pre-wired duplex outlet—just plug in and blend.
  • 18" deep perforated glass shelf with integral drain allows glassware to air-dry directly over the ice bin.
  • 4" tubing chase with integrated soda-gun holder hides beverage lines for a clean, professional bar face.
  • Fully welded, foamed-in-place 20 / 22-gauge stainless steel construction for maximum durability and ice retention.
  • NSF/ANSI 2 & ASME A112.19.3/CSA B45.4 certified.

At-a-Glance Specs

Overall Width 60" / 1524 mm
Overall Depth 45" / 1143 mm
Overall Height 45" / 1143 mm
Working Height 30" / 762 mm
Ice Bin Interior 24" W × 30-1/2" D; foamed-in-place insulation
Cold Plate Cast aluminum, 10 circuits, 5/16" OD stainless tubing
Blender Shelf 16" W with 120 V duplex receptacle
Speed Rail 42" double, sound-deadened
Dump Sinks (2) 10" × 14" × 7" bowls, 1-1/2" IPS drains
Material Stainless steel body, side panels & legs; grey ABS bullet feet
Unit Weight 580 lb / 263 kg
Water Supply 1/2" IPS hot & cold connections
Drain Connections 1/2" IPS (cold plate), 1" IPS (shelf), 1-1/2" IPS (sink bowls)
Certifications NSF, cULus Sanitation, Low-Lead

Included Components

  • Royal Series 4" center deck-mount faucet with ceramic cartridges
  • Stainless steel side panels (factory installed)
  • Stainless steel legs with adjustable grey bullet feet
  • Soda gun holster inside tubing chase
Installation Note: All plumbing and electrical connections must be completed by qualified personnel in accordance with local codes.

Need extra storage or protection? Matching single/double overshelves, sliding covers and splash guards are available—ask us for a custom configuration.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

45.0in

Width

60.0in

Depth

45.0in

Shipping Weight

580.0lbs

Width (side - side) OA

55" - 60"

Cold Plate

(10) circuit

Components (left to right)

blender unit with (2) sinks, bottle well, ice bin, soda chase

Specifications

Royal Series Underbar Ice Bin/Cocktail Station, pass-thru combo, 60"W x 45"D x 45"H, 24"W pass-thru ice bin on right with 10-circuit cold plate, 42"W double speedrail, 18"W insulated bottle storage in center, (2) dump sinks on left with (1) deck mount Royal Series gooseneck faucet (low lead compliant), 16"W blender shelf with duplex outlet, 18"D glass shelf with perforated insert & drain, includes 4" tubing chase with soda gun holder, stainless steel side panels, stainless steel legs with grey plastic bullet feet, NSF
