Krowne

Krowne Royal Series 60-Inch Pass-Thru Underbar Ice Bin/Cocktail Station with Left Ice Bin and 10-Circuit Cold Plate

SKU: KRPT-60LP-10
$13,120.80
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Krowne New Arrivals Restaurant Equipment Underbar Equipment

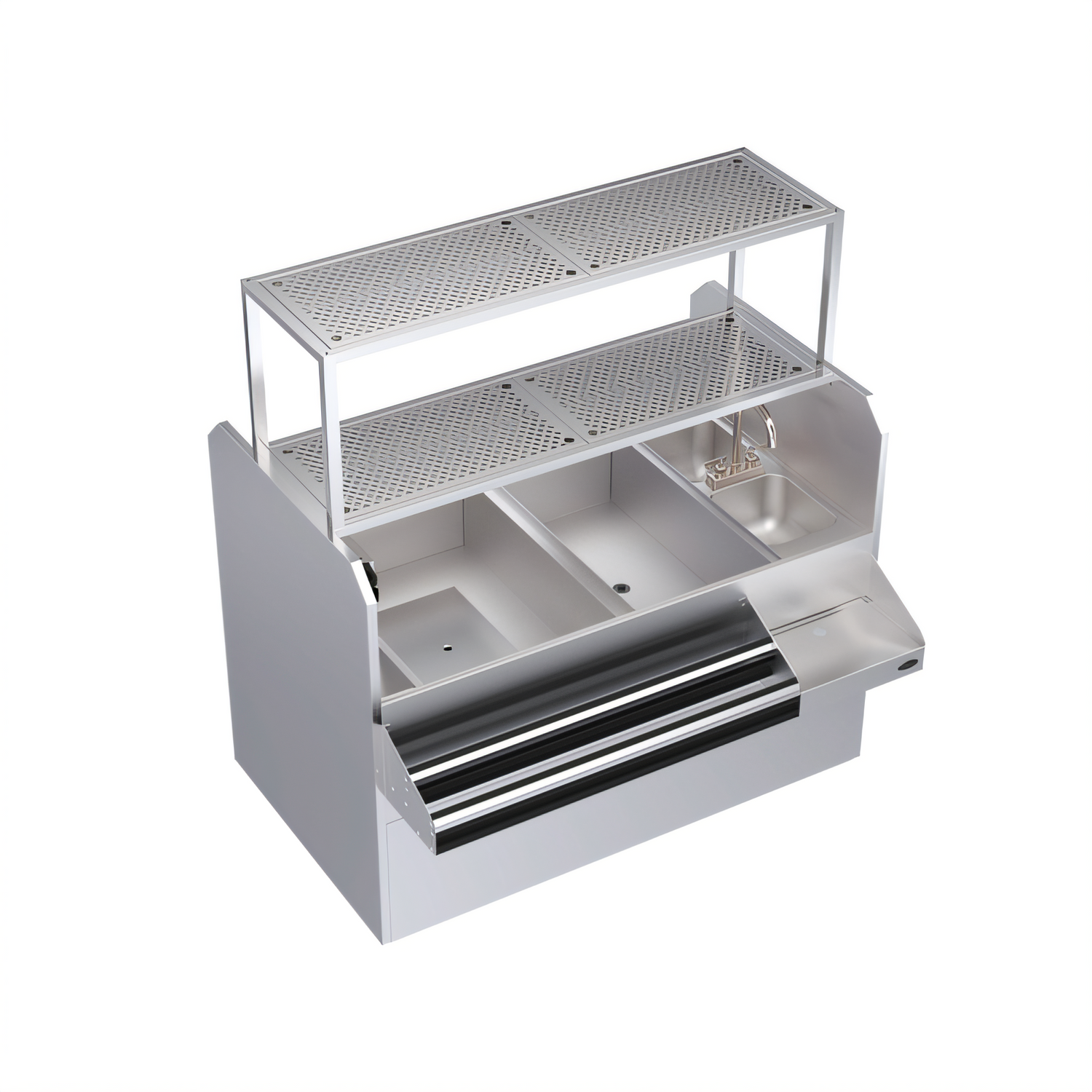

Krowne Royal Series 60-Inch Pass-Thru Underbar Ice Bin/Cocktail Station with Left Ice Bin and 10-Circuit Cold Plate

42-Inch Double Speed Rail, Dual Dump Sinks, and 16-Inch Blender Shelf

This pass-thru workstation combines chilled ice storage, fast bottle access, and integrated wet and blender stations to keep bar service moving efficiently.

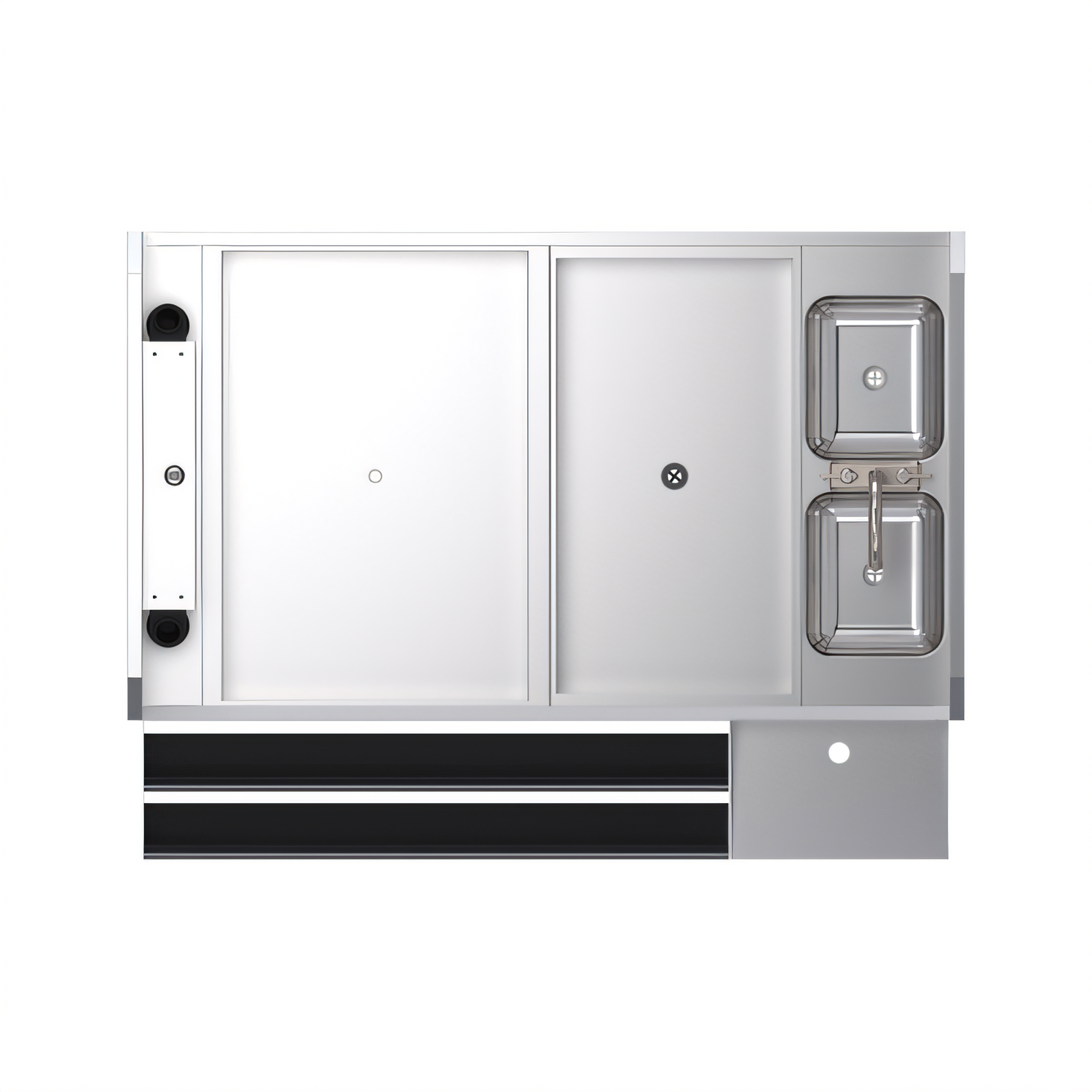

  • Pass-thru layout with the ice bin on the left, bottle storage in the center, and dual dump sinks on the right.
  • Built-in 10-circuit cold plate helps keep beverages chilled at the service point.
  • 42-inch double speed rail keeps bottles within easy reach for bartenders.
  • 16-inch blender shelf includes a duplex outlet and receptacle box underneath.
  • Perforated glass shelf with drain helps manage meltwater and spills.
  • Stainless steel construction with stainless steel side panels and legs for durability.

Overall Dimensions:

60.0"W x 45.0"D x 45.0"H

Product Weight:

580.0 lb

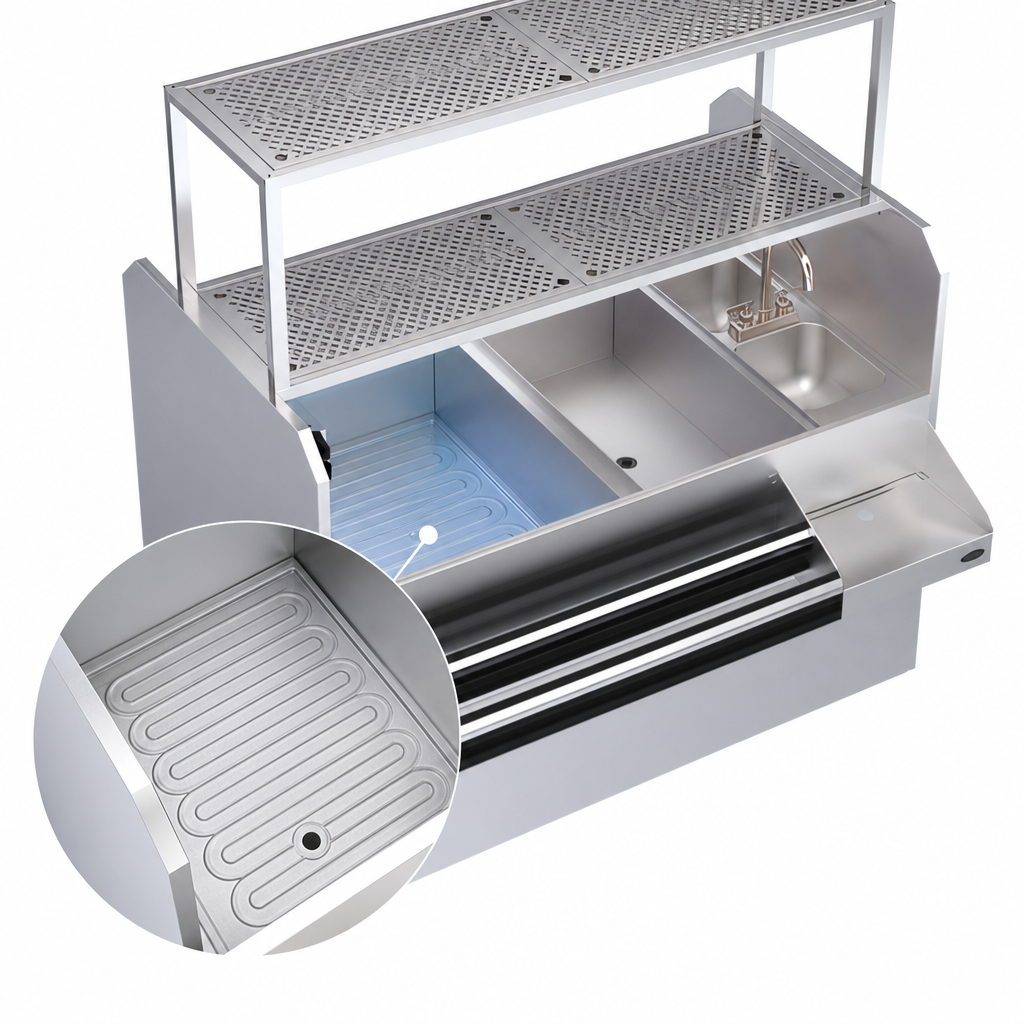

Built-In 10-Circuit Cold Plate

Cast aluminum post-mix plate is sealed into the bottom of the ice bin for chilled drink service.

Left-Side Ice Bin Layout

The pass-thru configuration places the ice bin on the left with center bottle storage and right-side dump sinks.

Double Speed Rail

Built-in sound-deadened speed rail provides organized bottle storage at the service area.

Dual Dump Sinks

Two integrated dump sinks support fast drink prep and glass handling.

Blender Shelf With Outlet

The 16-inch blender shelf includes a duplex outlet, with the receptacle box located underneath.

Perforated Glass Shelf With Drain

Stainless steel glass shelf includes a perforated insert and drain to help manage moisture.

Stainless Steel Construction

Stainless steel side panels, front aprons, bottom, and legs provide a durable commercial build.

Deck-Mount Faucet Included

Includes a 4-inch center deck-mount Royal Series gooseneck faucet with high-performance ceramic cartridge valves.

Type Underbar Ice Bin/Cocktail Station
Style Pass-Thru
Installation Type Floor Model
Material Stainless Steel
Water Connection Required
Drain Connection Required
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The ice bin is on the left side for this model.
Yes. It includes a built-in 10-circuit cold plate sealed into the bottom of the ice bin.
The unit requires 1/2" IPS hot and cold water. Drain connections are 1/2" IPS with the cold plate, 1" IPS without the cold plate, and 1-1/2" IPS at the sink bowls.
Yes. The blender shelf includes a duplex outlet, and the receptacle box is located underneath the shelf.
Yes. Optional overshelves, sink accessories, sliding covers, a bartender floor panel, and bottle wells are listed for this product family.
