Krowne KRPT-54BRP-10 Royal Series Bar Equipment
$12,000.45
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Krowne KRPT-54BRP-10 Royal Series Bar Equipment is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Krowne KRPT-54BRP-10 Royal Series Bar Equipment
$12,000.45
Unit price
/
Unavailable
Description

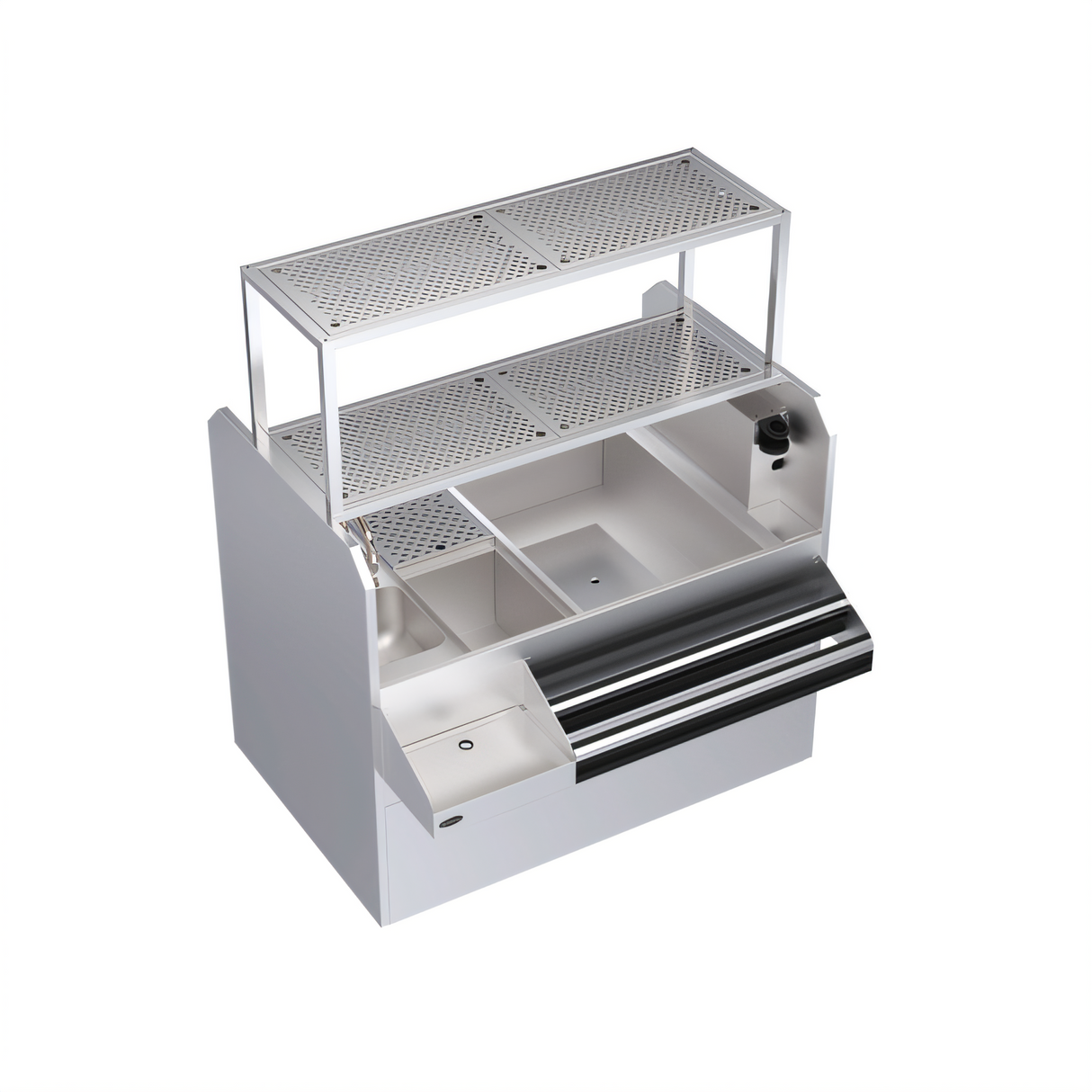

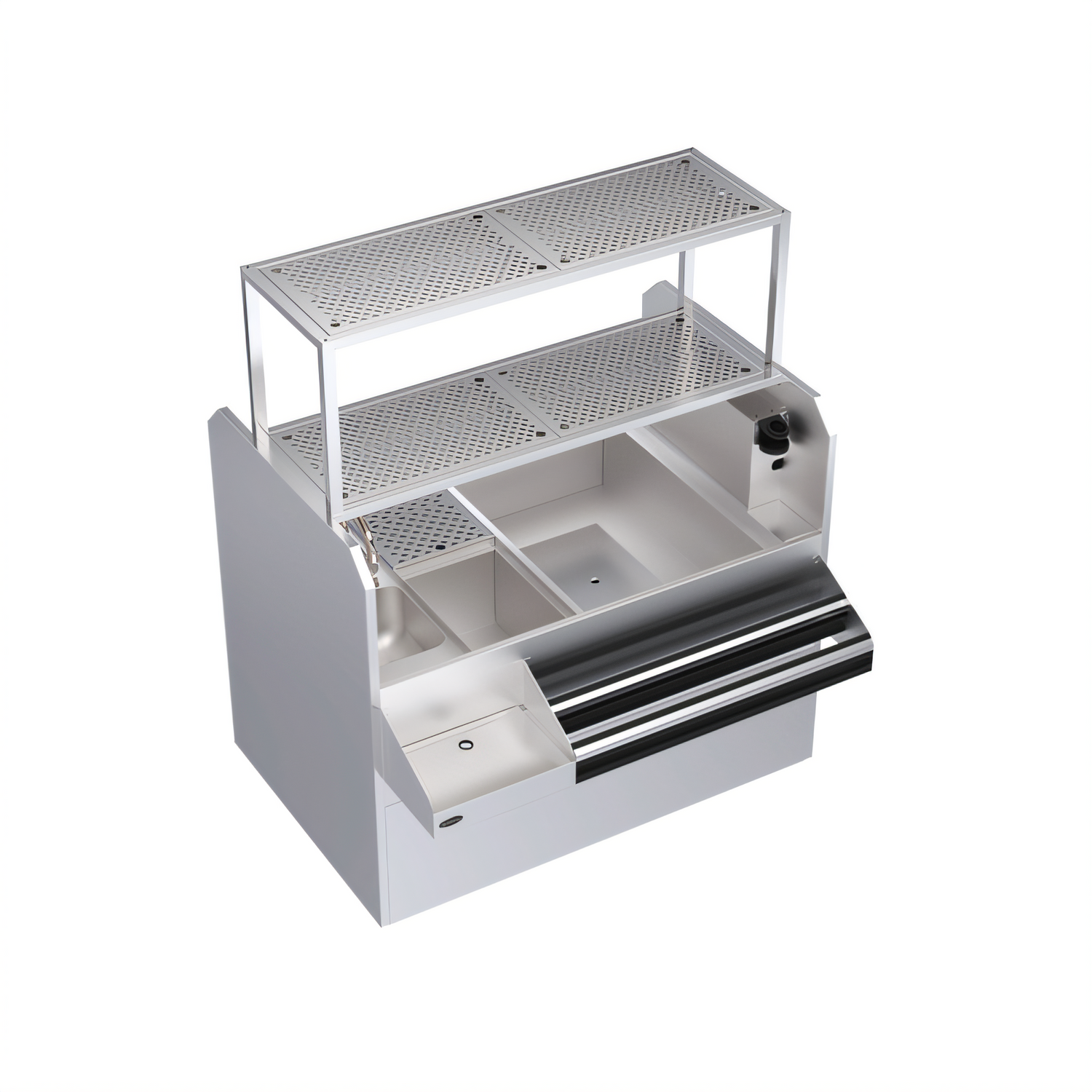

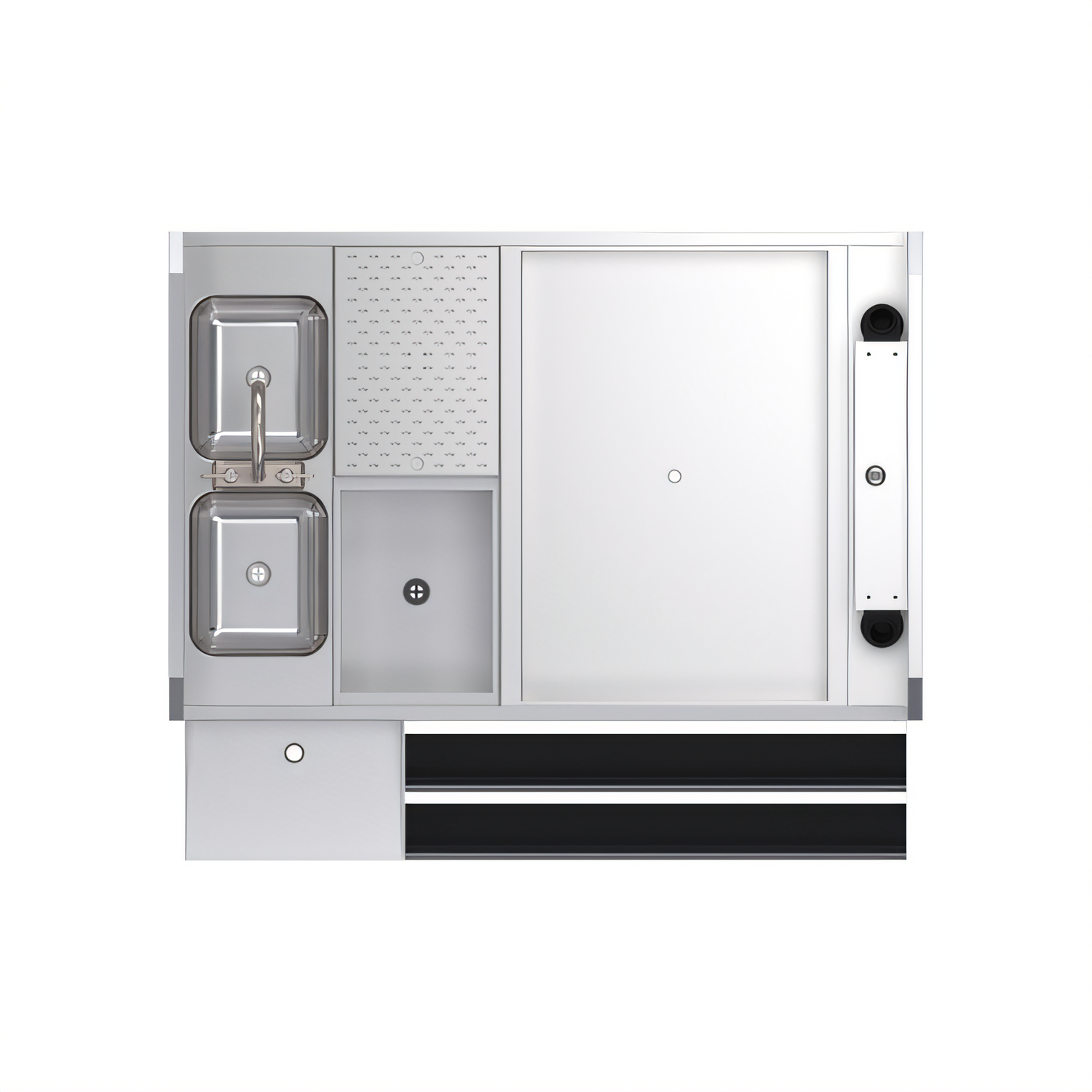

Krowne Royal Series 54" Pass-Thru Cocktail Station – Right Ice Bin, 10-Circuit Cold Plate
Model KRPT-54ARP-10 • NSF/ANSI 2 & CSA B45.4 CertifiedGive your bartenders everything they need—exactly where they need it. Built on Krowne’s premium Royal Series platform, this 54 inch pass-thru workstation combines a high-capacity ice bin, dual dump sinks, insulated bottle storage, a sound-deadened double speed rail and more into one space-saving, 45 inch-deep footprint.
Key Features

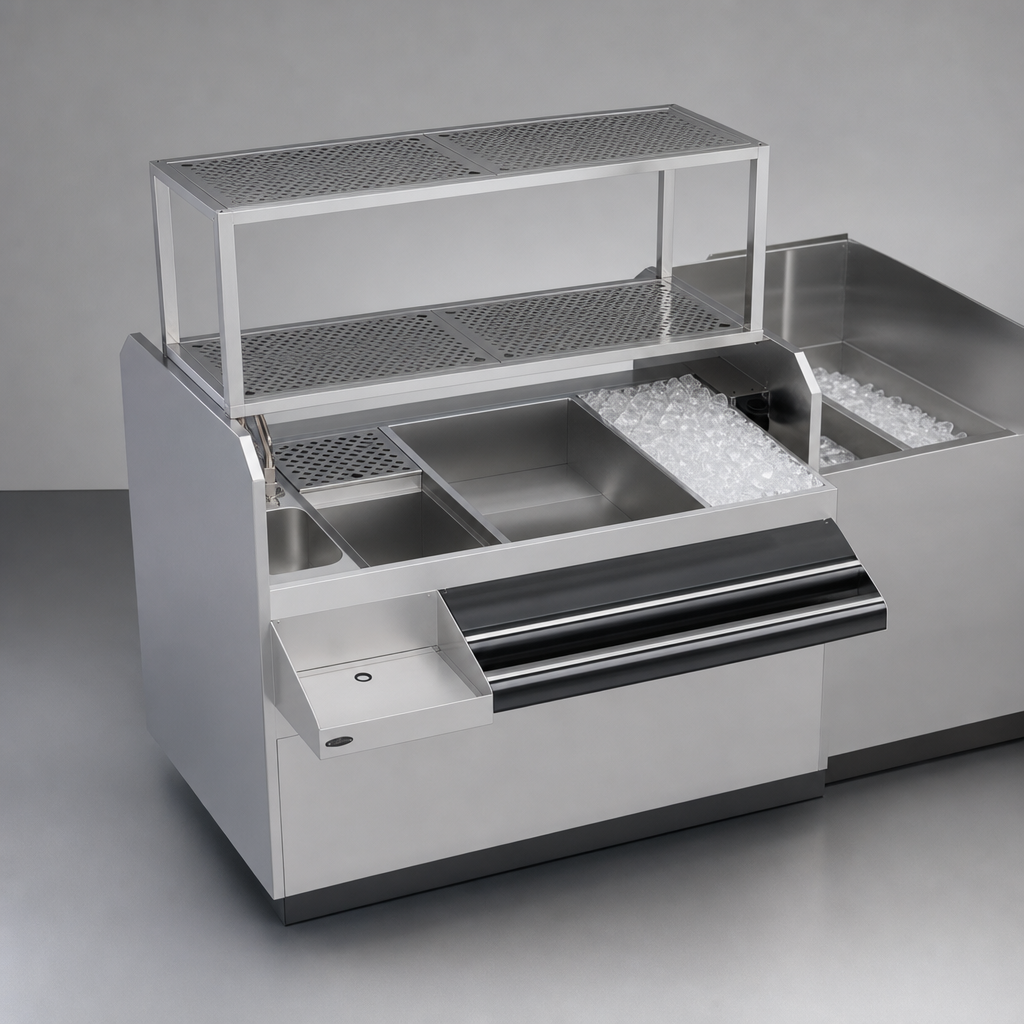

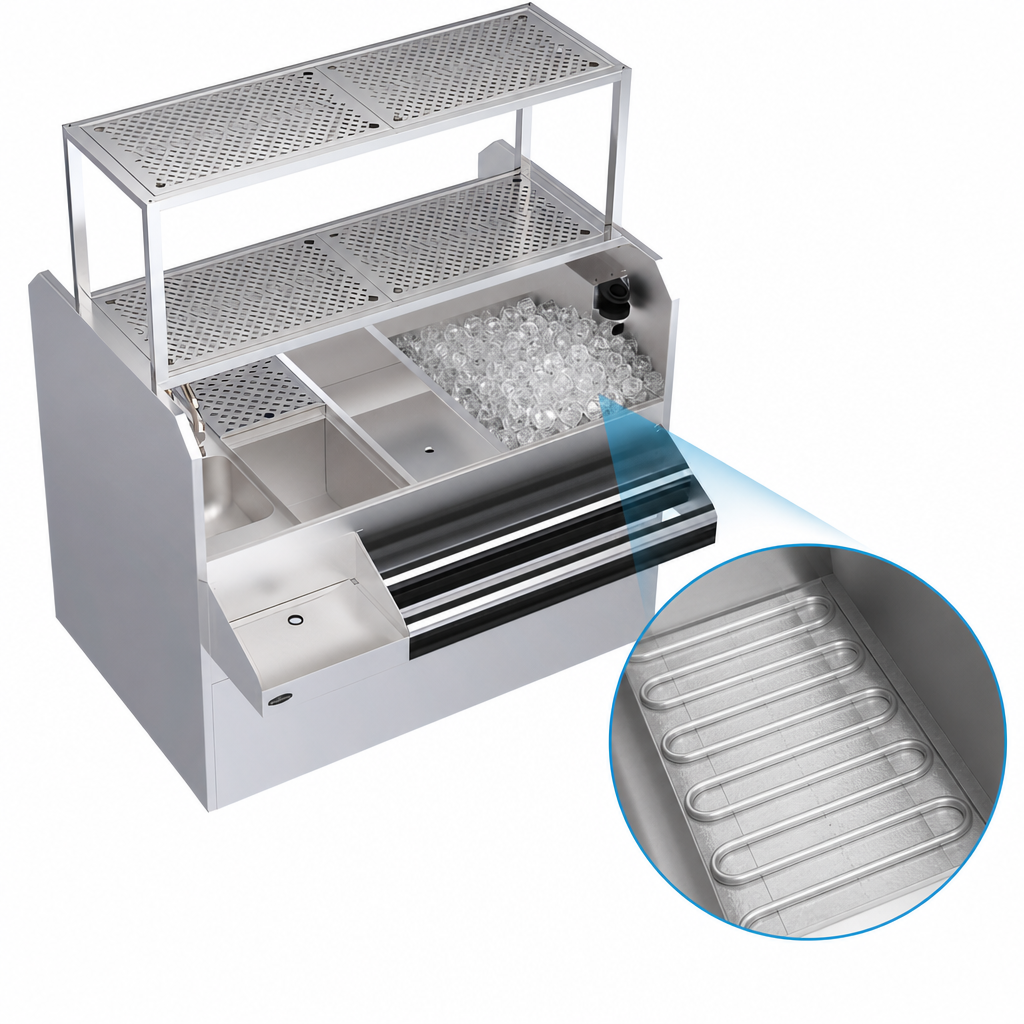

- 24" W pass-thru ice bin on the right with built-in 10-circuit cold plate for rapid beverage chilling.
- 36" W double speed rail (sound-deadened) keeps top movers at arm’s length.
- 12" W drainboard (server side) paired with a 12" W insulated bottle well (bar side) in the center section.
- (2) 10" × 14" × 7" dump sinks on the left, each with drain; supplied with a low-lead compliant Royal Series deck-mount gooseneck faucet (4" centers).
- 16" W blender shelf with pre-wired duplex outlet for small appliances.
- 18" D perforated glass shelf with integral drain—ideal for drying & staging cleanware.
- 4" × 4" rear tubing chase and soda gun holder tidy up beverage lines for a clutter-free bar.
- All-stainless construction: 20-, 22- & 16-gauge steel where it counts, with foamed-in-place ice-bin insulation.
- Stainless steel side panels plus 1-5/8" Ø stainless legs with adjustable grey bullet feet.
At-A-Glance Specifications
| Overall Width | 54" (1372 mm) |
|---|---|
| Overall Depth | 45" (1143 mm) |
| Working Height | 30" (762 mm) |
| Overall Height * | 45" (1143 mm) |
| Ice Bin | 24" W × 30-1/2" D, pass-thru, 10-circuit cold plate |
| Dump Sinks | (2) 10" × 14" × 7" bowls, 1-1/2" IPS drains |
| Drainboard | 12" W (server side, center) |
| Insulated Bottle Wells | 12" W (bar side, center) |
| Speed Rail | 36" W double, sound-deadened |
| Blender Shelf | 16" W with duplex receptacle box |
| Finish | Stainless steel throughout; foamed-in-place polyurethane ice-bin insulation |
| Shipping Weight | 503 lb (228 kg) |
*Height shown to top of glass shelf.
Utility Requirements
- 1/2" IPS hot & cold water (faucet).
- 1-1/2" IPS drain connections on sink bowls.
- 1/2" IPS drain connection on ice-bin cold plate.
- 1" IPS drain connection on glass & bottle shelves.
- 120 V / 15 A electrical feed for blender-shelf duplex outlet (field wired).
Certifications & Compliance
- NSF/ANSI 2 listed
- ASME A112.19.3 / CSA B45.4 compliant
- Low-lead compliant faucet
Installation Note: All plumbing and electrical connections must be completed by
qualified professionals in accordance with local codes.
Features & Specs
Features & Specs
Manufacturer
Krowne
Brand_name
Royal Series
Certifications
NSF
Height
45.0in
Width
54.0in
Depth
45.0in
Shipping Weight
524.0lbs
Width (side - side) OA
49" - 54"
Cold Plate
(10) circuit
Components (left to right)
blender unit with (2) sinks, bottle well, ice bin, soda chase
Specifications
Royal Series Underbar Ice Bin/Cocktail Station, pass-thru combo, 54"W x 45"D x 45"H, 24"W pass-thru ice bin on right with 10-circuit cold plate, 36"W double speedrail, 12"W drainboard in center on server side, 12"W insulated bottle storage in center on bar side, (2) dump sinks on left with (1) deck mount Royal Series gooseneck faucet (low lead compliant), 16"W blender shelf with duplex outlet, 18"D glass shelf with perforated insert & drain, includes 4" tubing chase with soda gun holder, stainless steel side panels, stainless steel legs with grey plastic bullet feet, NSF
