Krowne | Royal Series | SKU: KRPT-54ALP-10

Krowne KRPT-54ALP-10 Royal Series Bar Equipment

Name: Krowne KRPT-54ALP-10 Royal Series Bar Equipment
Brand: Krowne
SKU: KRPT-54ALP-10
Price: 11305.25 USD
Availability: InStock

$11,305.25

Expected delivery date of , to your door

if ordered within hours and minutes

Not Shipping to ?

More Delivery Options

Documents

Cutsheet

Description

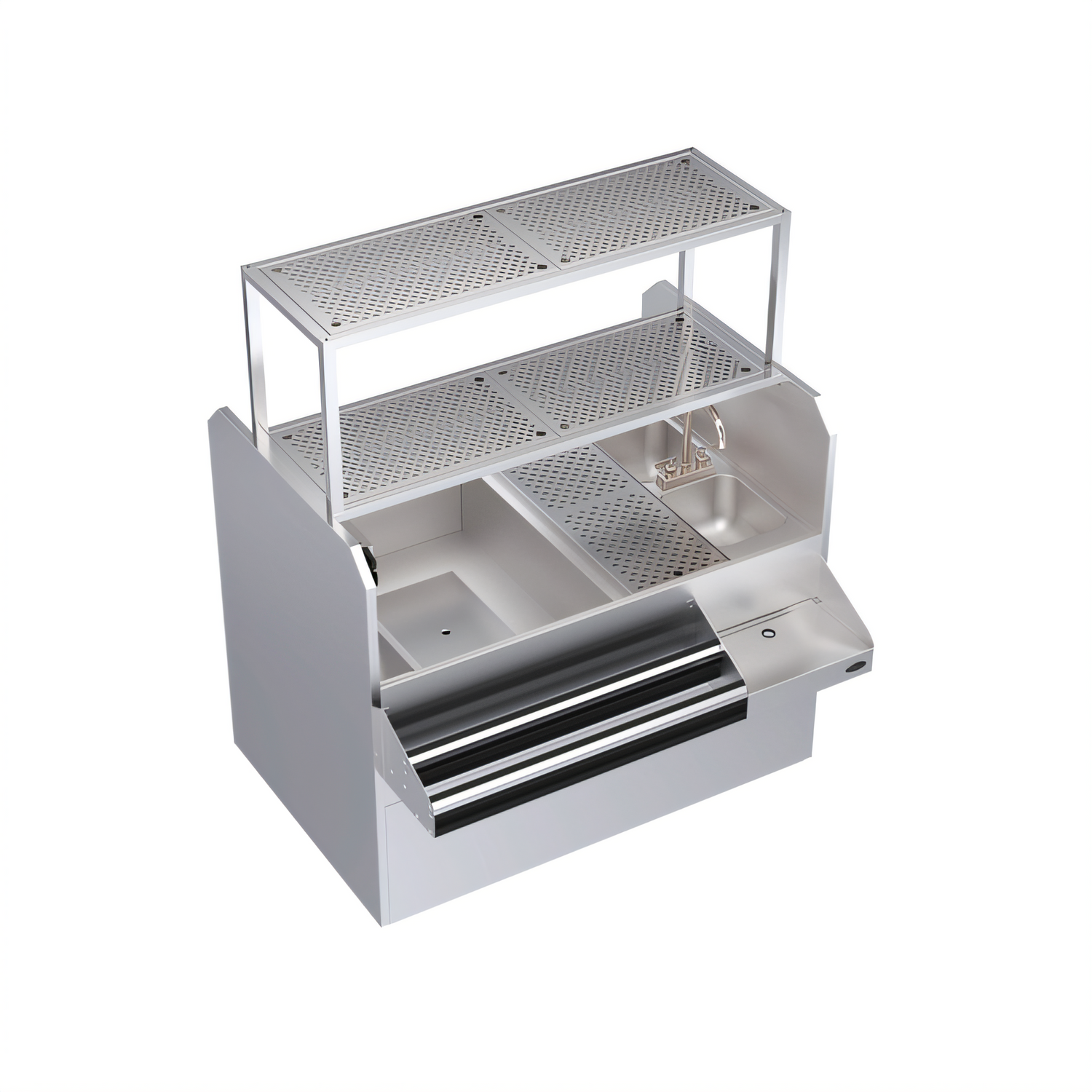

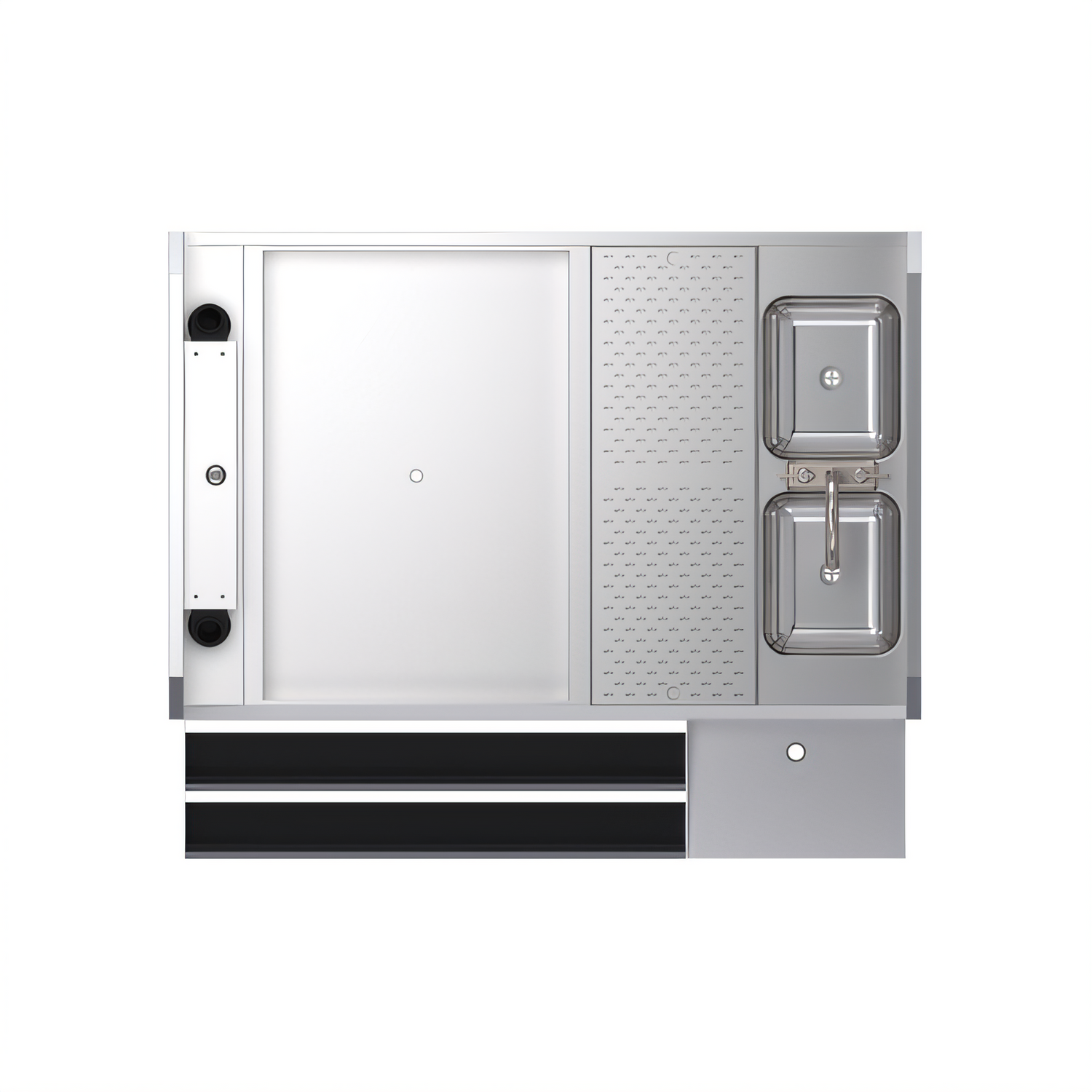

Krowne Royal Series 54" Pass-Thru Underbar Ice Bin & Cocktail Station

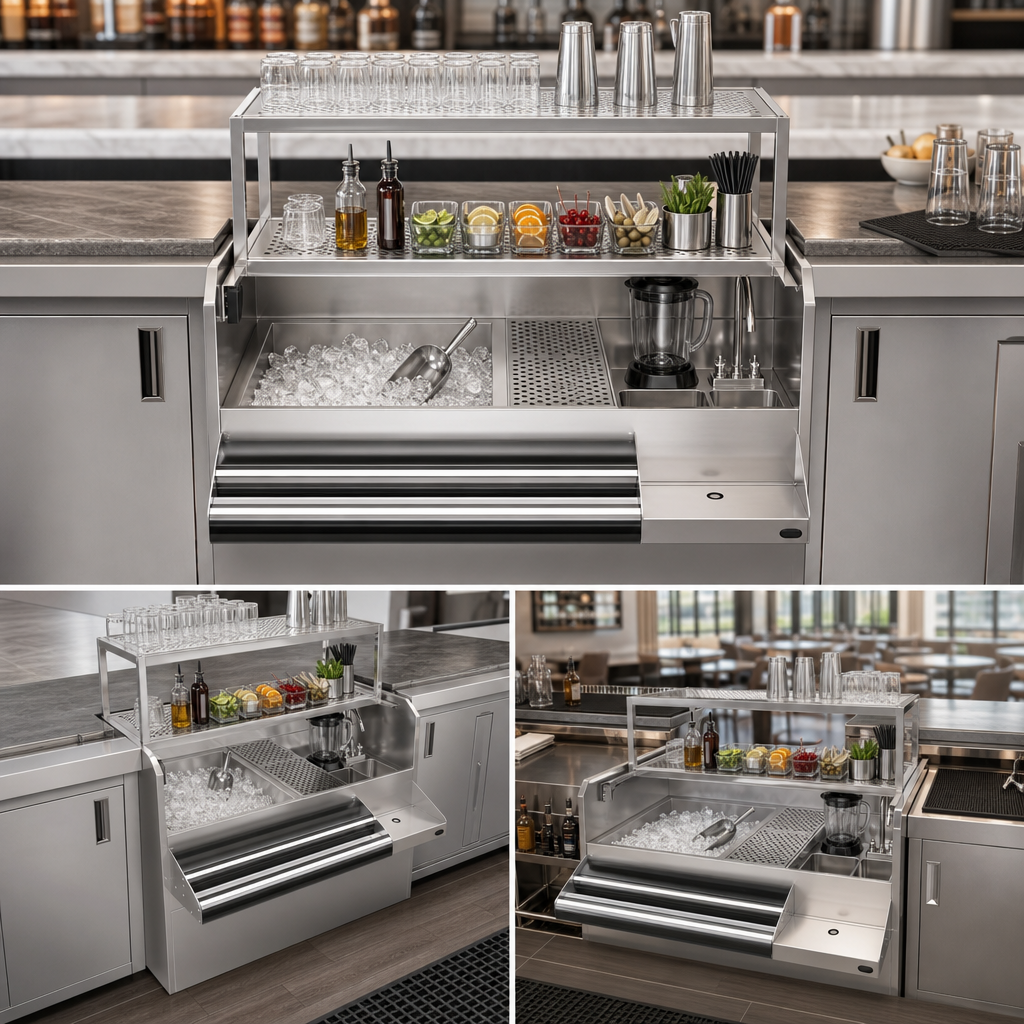

Model KRPT-54ALP-10 – Left-Side Ice Bin with 10-Circuit Cold Plate

Engineered for speed, organization and durability, the Royal Series KRPT-54ALP-10 gives busy bars everything they need in one compact 54" footprint. From rapid chilling to seamless drink assembly, this all-stainless workstation is ready to handle your highest-volume service.

Why You’ll Love It

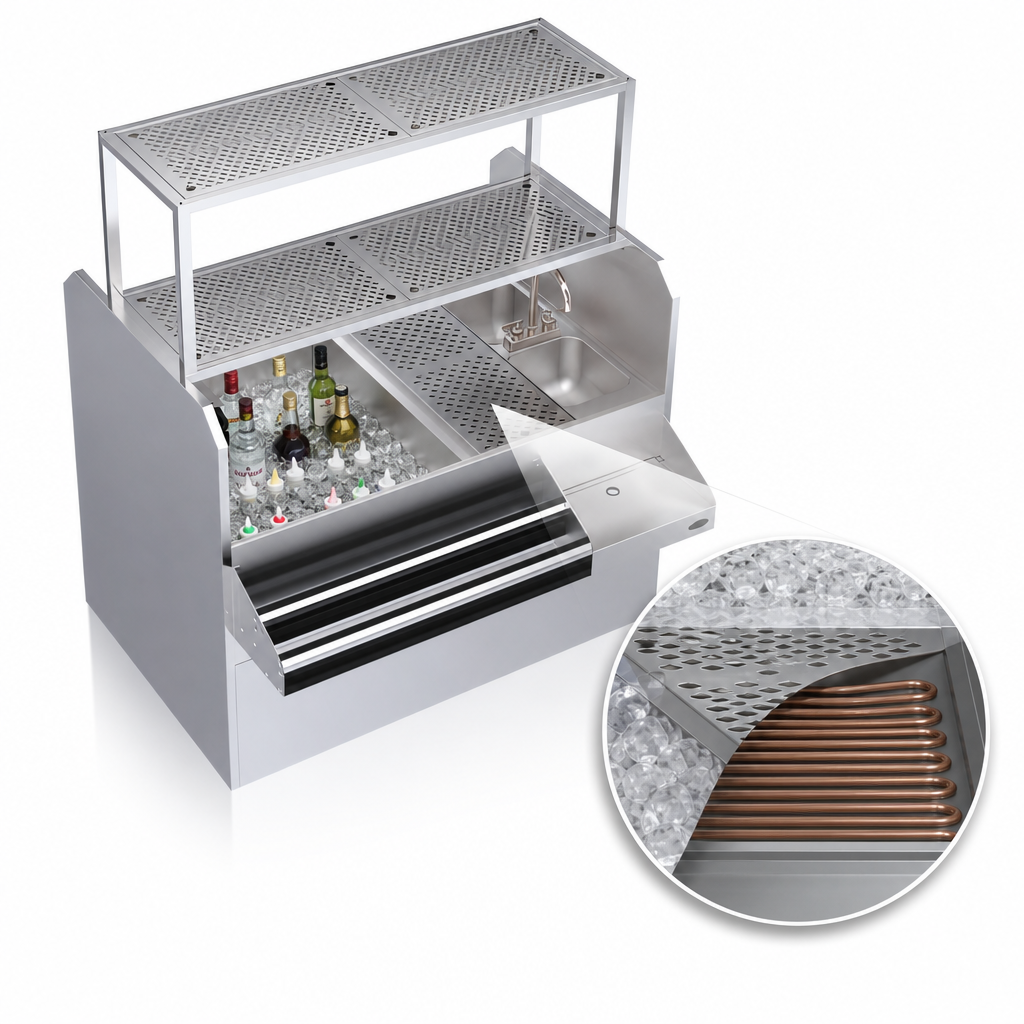

24" Pass-Thru Ice Bin (Left) with foamed-in insulation and built-in 10-circuit cold plate for maximum fountain drink efficiency.
36" Sound-Deadened Double Speed Rail keeps top-sellers front and center without the clang.
Center 12" Drainboard drains directly to floor waste, keeping glassware and tools dry.
(2) Dump Sinks (Right) – 10" × 14" × 7" bowls with 1-½" drains for quick disposal of melted ice and muddled fruit.
Royal Series 4"-center Gooseneck Faucet (low-lead compliant) included.
16" Blender Shelf (22 ga) with pre-wired duplex GFCI outlet for mixers and small appliances.
18" Perforated Glass Shelf with built-in drain – air-dries glassware between rounds.
4" Tubing Chase & Soda Gun Holder routes beverage, CO₂ and drain lines neatly out of sight.
All Stainless Steel Construction – 20/22 ga bodies, 16 ga legs, stainless end panels and adjustable grey bullet feet.
NSF, ASME A112.19.3/CSA B45.4 certified for food-service peace of mind.

At-a-Glance Specs

Overall dimensions	54" W × 45" D × 45" H (30" working height)
Ice bin size	24" W × 30-1/2" D with 1/2" IPS drain
Cold plate	10 circuits (5/16" OD stainless tubing, 2 full / 8 half)
Speed rail	Double, 36" wide, sound-deadened
Drainboard	12" wide, center mounted, 1" IPS drain
Dump sinks	(2) 10" × 14" × 7" bowls, 1-½" IPS drains
Faucet	Deck-mount gooseneck, 4" centers, low-lead compliant
Blender shelf	16" wide with duplex 120 V GFCI outlet
Glass shelf	18" deep, perforated, with drain
Tubing access	4" × 4" chase with soda gun holder
Weight	≈ 503 lb

Utility Requirements

Plumbing: ½" IPS hot & cold, 1-½" IPS sink drains, ½" IPS cold-plate drain, 1" IPS shelf drain.
Electrical: (1) 120 V / 15 A duplex outlet (factory-wired beneath blender shelf).

Popular Add-Ons (Sold Separately)

Stainless single or double overshelves (KR-154, KR-254, etc.).
Bottle wells for ice bin (KR-BR1).
Sliding ice-bin covers (KR-322 / KR-323).
Bartender floor panel (KR-415) for drip protection.

NSF 2 listed and ASME A112.19.3/CSA B45.4 compliant. Faucet meets low-lead requirements.

Installation Notice: All plumbing and electrical connections must be completed by qualified professionals in accordance with local codes.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

45.0in

Width

54.0in

Depth

45.0in

Shipping Weight

503.0lbs

Width (side - side) OA

49" - 54"

Cold Plate

(10) circuit

Components (left to right)

soda chase, ice bin, drainboard, blender unit with (2) sinks

Specifications

Royal Series Underbar Ice Bin/Cocktail Station, pass-thru combo, 54"W x 45"D x 45"H, 24"W pass-thru ice bin on left with 10-circuit cold plate, 36"W double speedrail, 12"W drainboard in center, (2) dump sinks on right with (1) deck mount Royal Series gooseneck faucet (low lead compliant), 16"W blender shelf with duplex outlet, 18"D glass shelf with perforated insert & drain, includes 4" tubing chase with soda gun holder, stainless steel side panels, stainless steel construction, stainless steel legs with grey plastic bullet feet, NSF
