Description

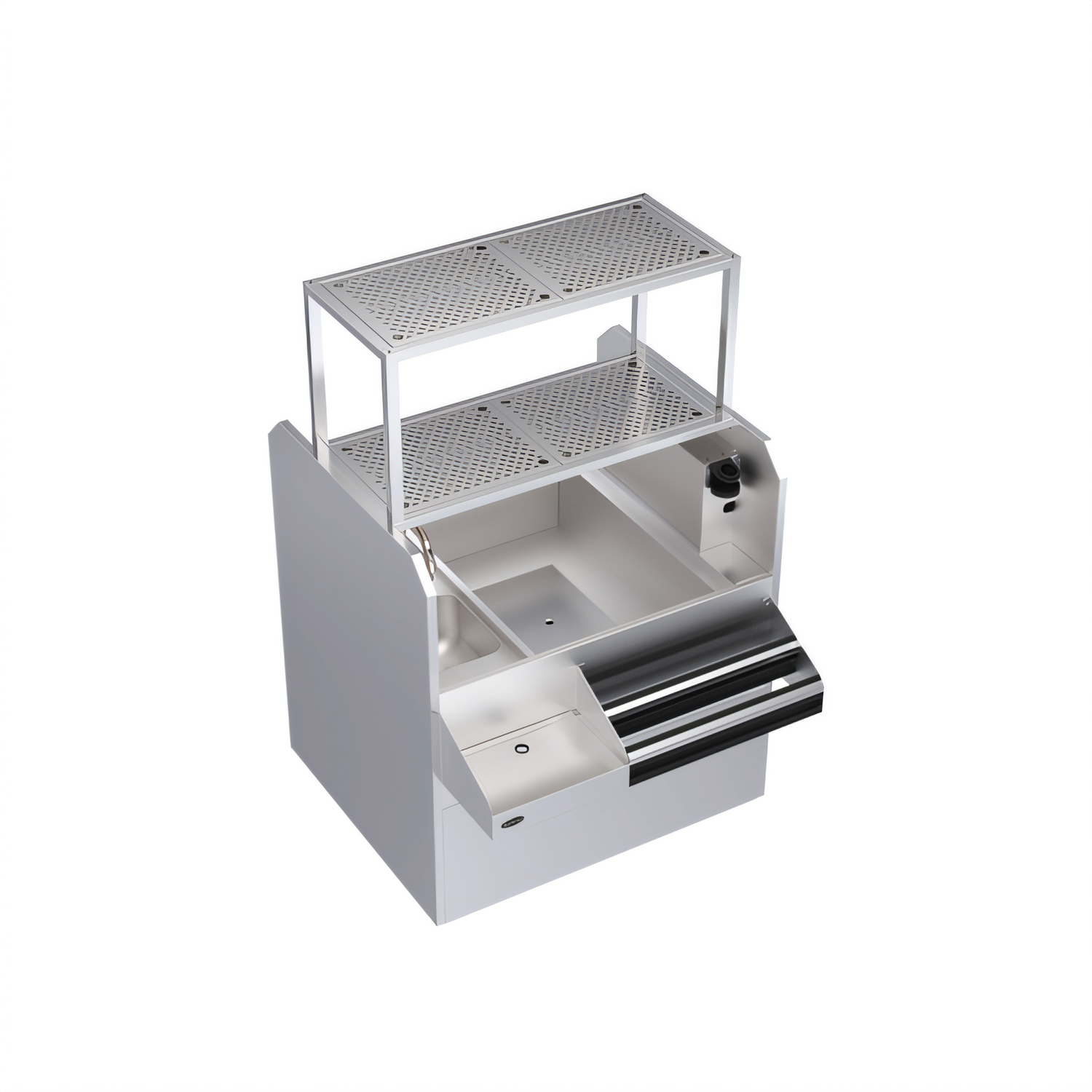

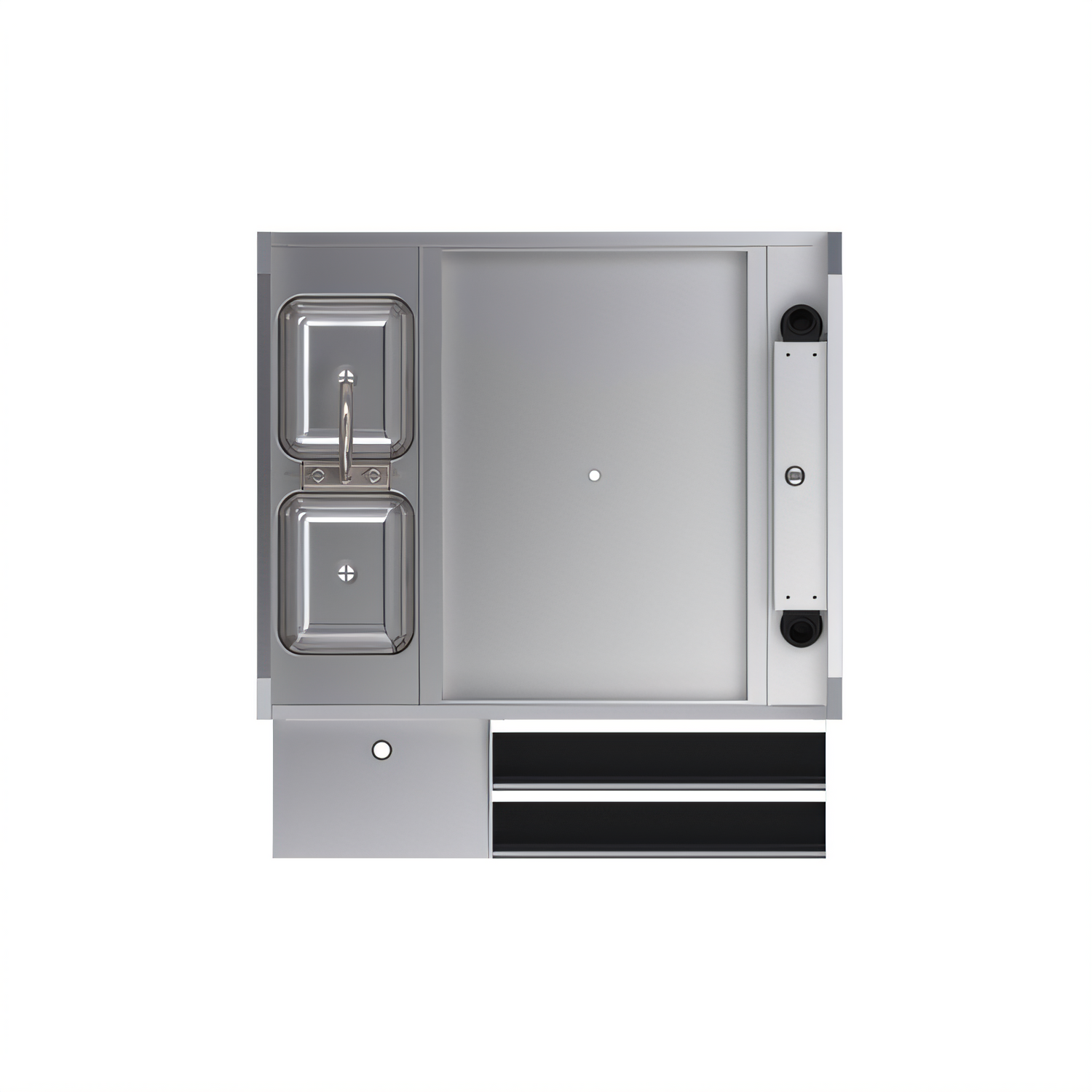

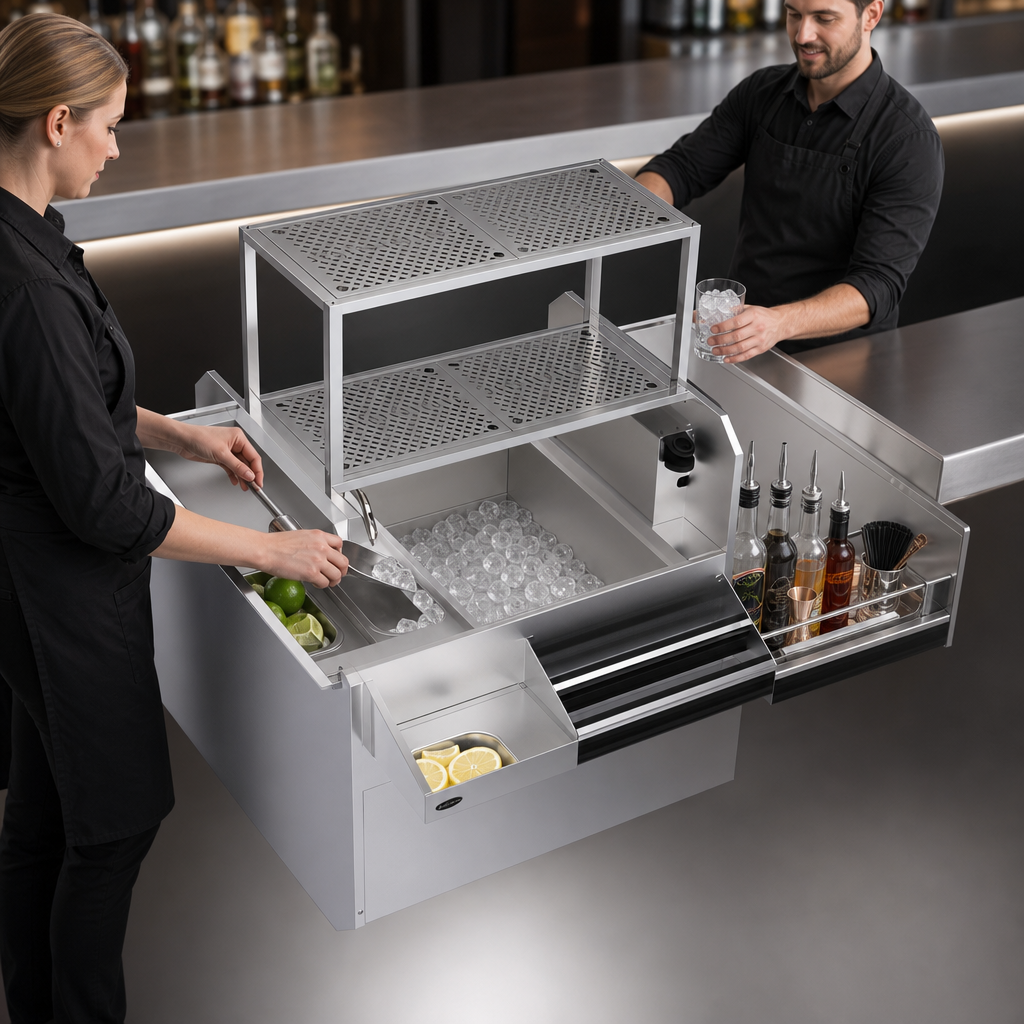

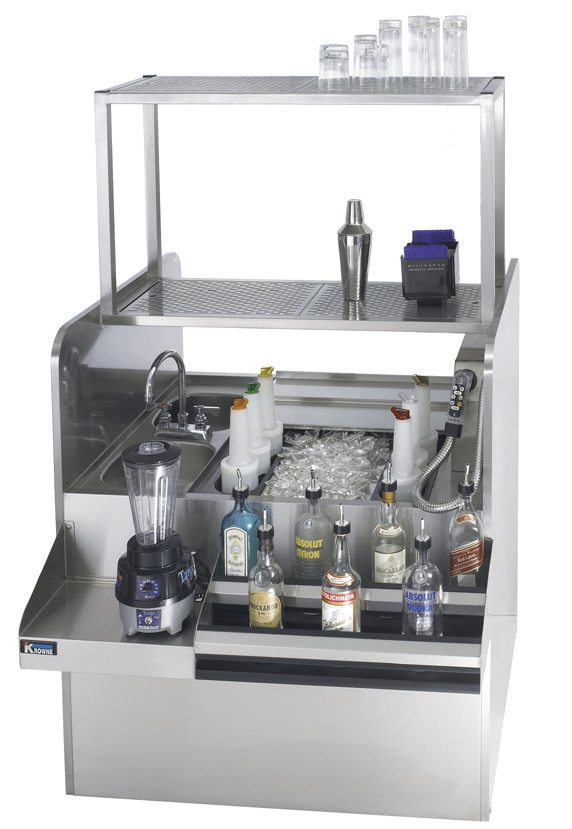

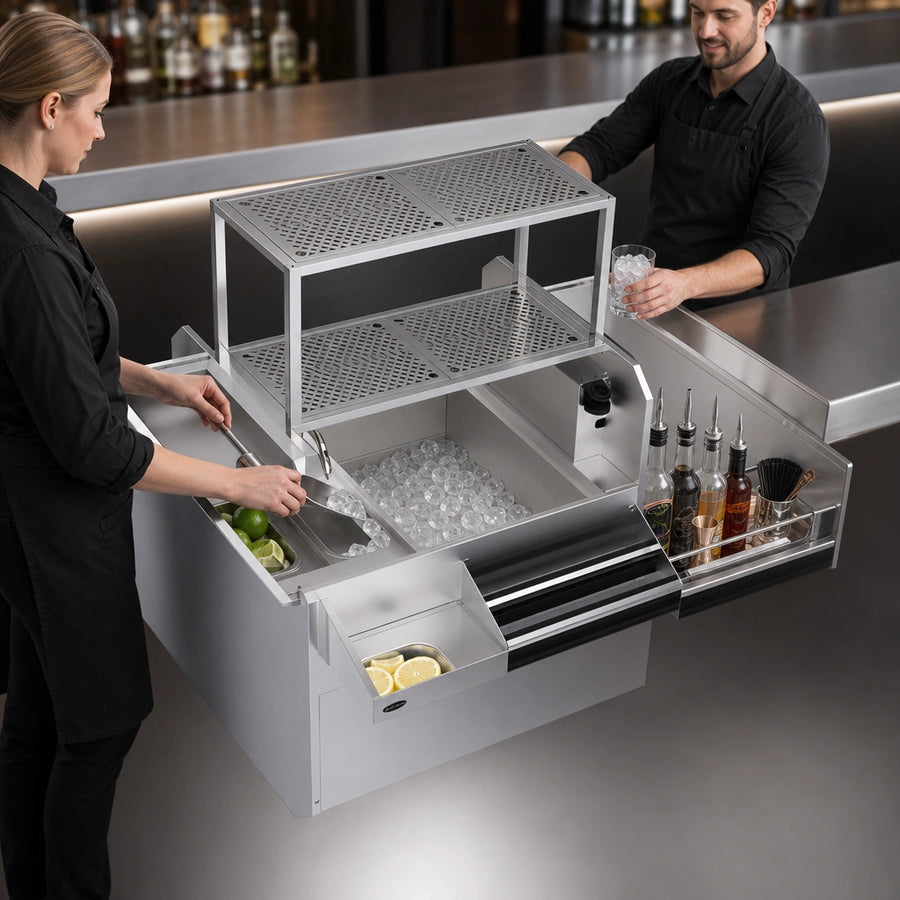

Krowne Royal Series Pass-Thru Cocktail Station – 42" W

Model KRPT-42RP-10 | Underbar Ice Bin & Workstation with 10-Circuit Cold Plate

Designed for high-volume bars that refuse to compromise on speed or sanitation, this 42" Krowne Royal Series pass-thru station combines an ice bin, cold plate, dual dump sinks and a blender shelf into one NSF-listed powerhouse. Stainless construction, a built-in soda gun chase, and sound-deadening speed rail keep bartenders moving smoothly through every rush.

Highlights

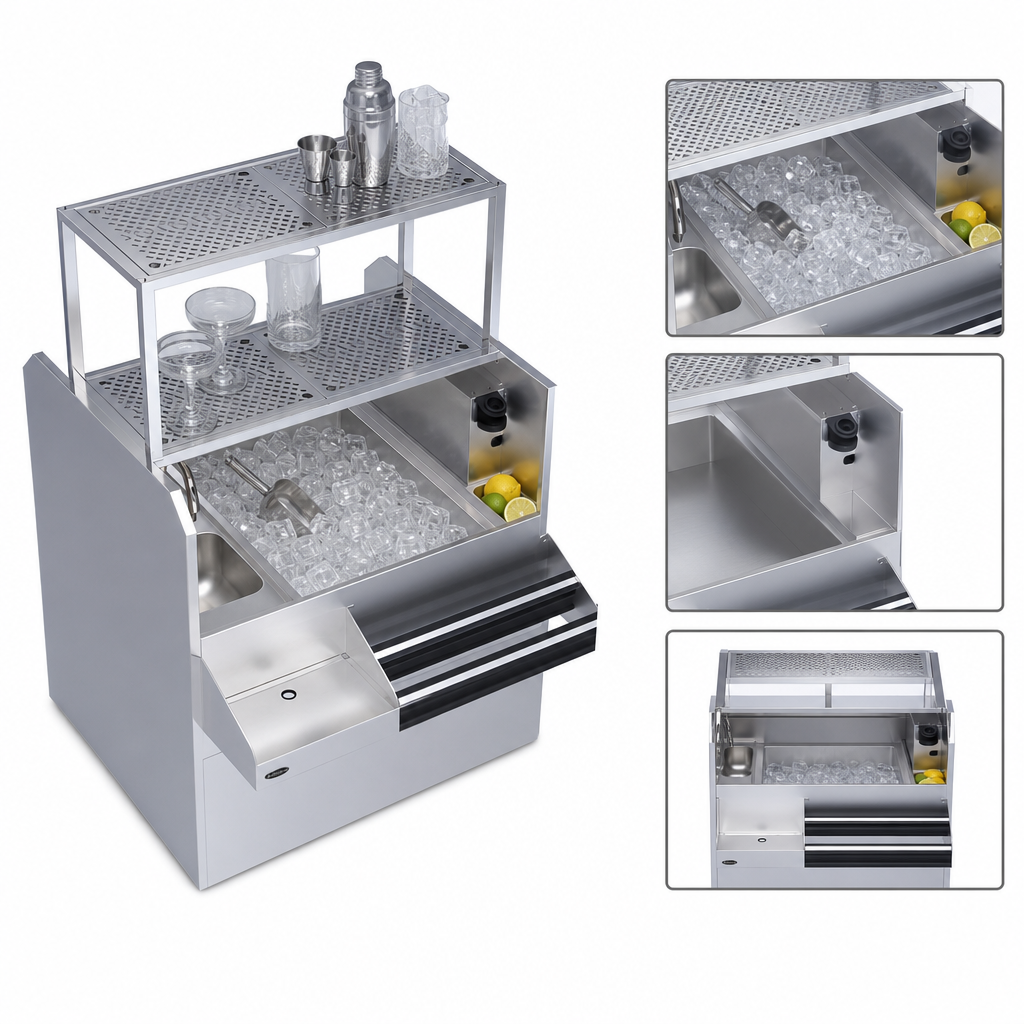

  • 24" W pass-thru ice bin on the right with sealed 10-circuit cold plate (stainless tubing)
  • Integrated 24" double speed rail – sound-deadened for quieter service
  • (2) 10" × 14" × 7" dump sinks on the left, each with drains
  • Royal Series 4" center gooseneck faucet (ceramic cartridges, low-lead compliant)
  • 16" W blender shelf with pre-wired duplex outlet mounted below
  • 18" D perforated glass tray shelf with drain keeps glassware ready to serve
  • 4" tubing chase with stainless soda gun holder for clean, protected line routing
  • Foamed-in-place ice bin insulation maximizes ice retention
  • Stainless side panels, tubular legs & grey plastic bullet feet included
  • 45" front-to-back depth matches other Royal Series underbar equipment

Technical Specifications

Overall Dimensions (W × D × H) 42" × 45" × 45"
Working Height 30"
Ice Bin Interior 24" × 30-1/2" (20 ga. stainless)
Cold Plate Cast-aluminum post-mix; 10 circuits of 5/16" O.D. stainless tubing
Dump Sinks (2) 10" × 14" × 7" bowls, 1-1/2" drains
Speed Rail 24" W, double tier, sound deadened
Blender Shelf 16" W, 22 ga. stainless with duplex outlet
Glass Shelf 18" D perforated stainless tray, 1" IPS drain
Construction Stainless front apron, bottom & side panels; 1-5/8" Ø 16 ga. legs
Weight Approx. 444 lbs.
Certifications NSF/ANSI 2; ASME A112.19.3 / CSA B45.4

Utility Connections

  • 1/2" IPS hot & cold water (faucet)
  • 1-1/2" IPS drain lines on sink bowls
  • 1/2" IPS drain on cold plate
  • 1" IPS drain on glass shelf
  • (1) 120 V duplex outlet pre-wired under blender shelf
Installation Note: All plumbing and electrical connections must be performed by qualified personnel in accordance with local codes.

Need extra storage or garnish prep? Compatible Royal Series single or double overshelves, bottle wells and sliding covers are available (sold separately).

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

45.0in

Width

42.0in

Depth

45.0in

Shipping Weight

444.0lbs

Components (left to right)

blender unit with (2) sinks, ice bin, soda chase

Width (side - side) OA

37" - 42"

Cold Plate

(10) circuit

Specifications

Royal Series Underbar Ice Bin/Cocktail Station, pass-thru combo, 42"W x 45"D x 45"H, 24"W pass-thru ice bin on right with 10-circuit cold plate, 24"W double speedrail, (2) dump sinks on left with (1) deck mount Royal Series gooseneck faucet (low lead compliant), 16"W blender shelf with duplex outlet, 18"D glass shelf with perforated insert & drain, includes 4" tubing chase with soda gun holder, stainless steel side panels, stainless steel legs with grey plastic bullet feet, NSF
