Krowne  |  Royal Series  |  SKU: KRPT-42LP-10

Krowne KRPT-42LP-10 Royal Series Bar Equipment

$9,838.40
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

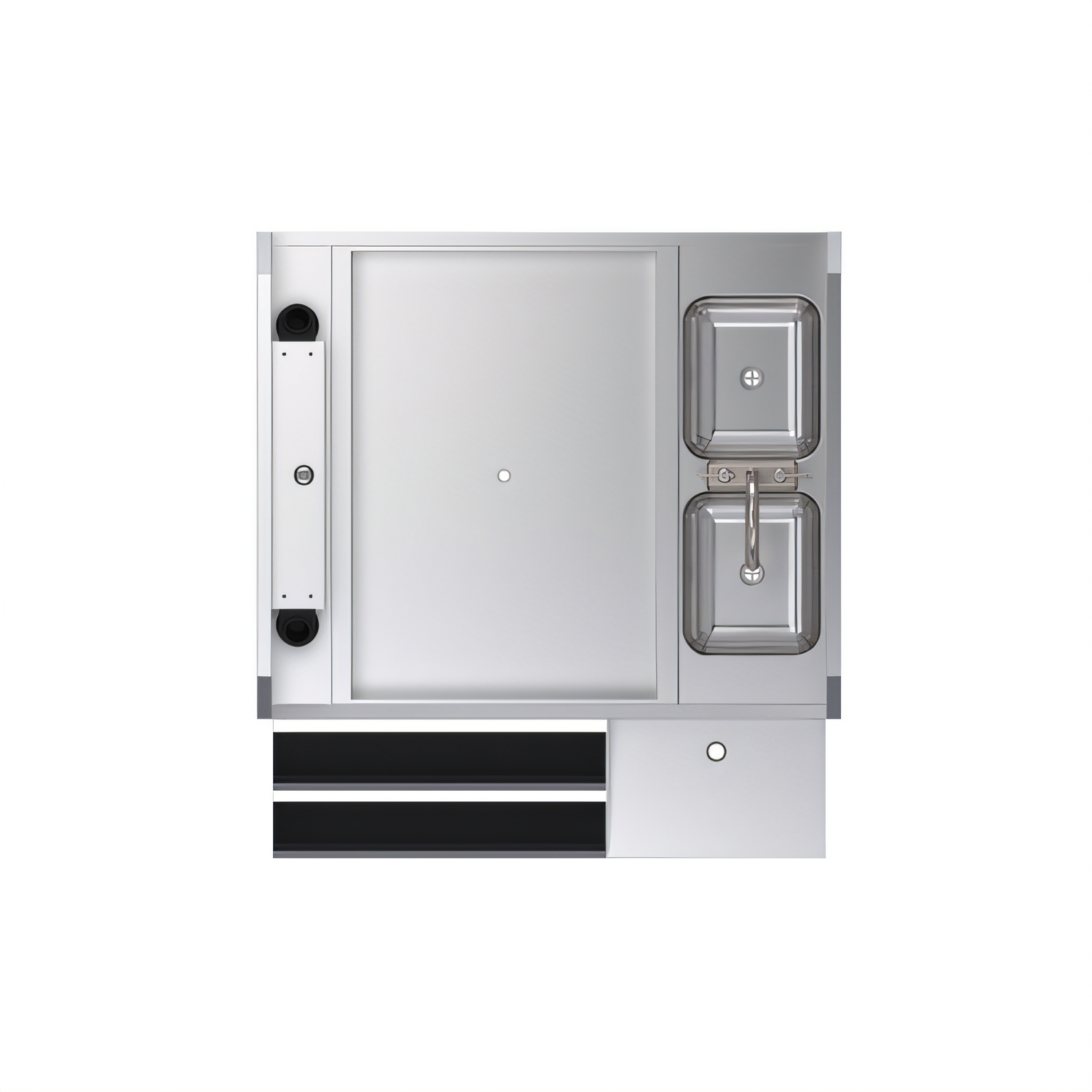

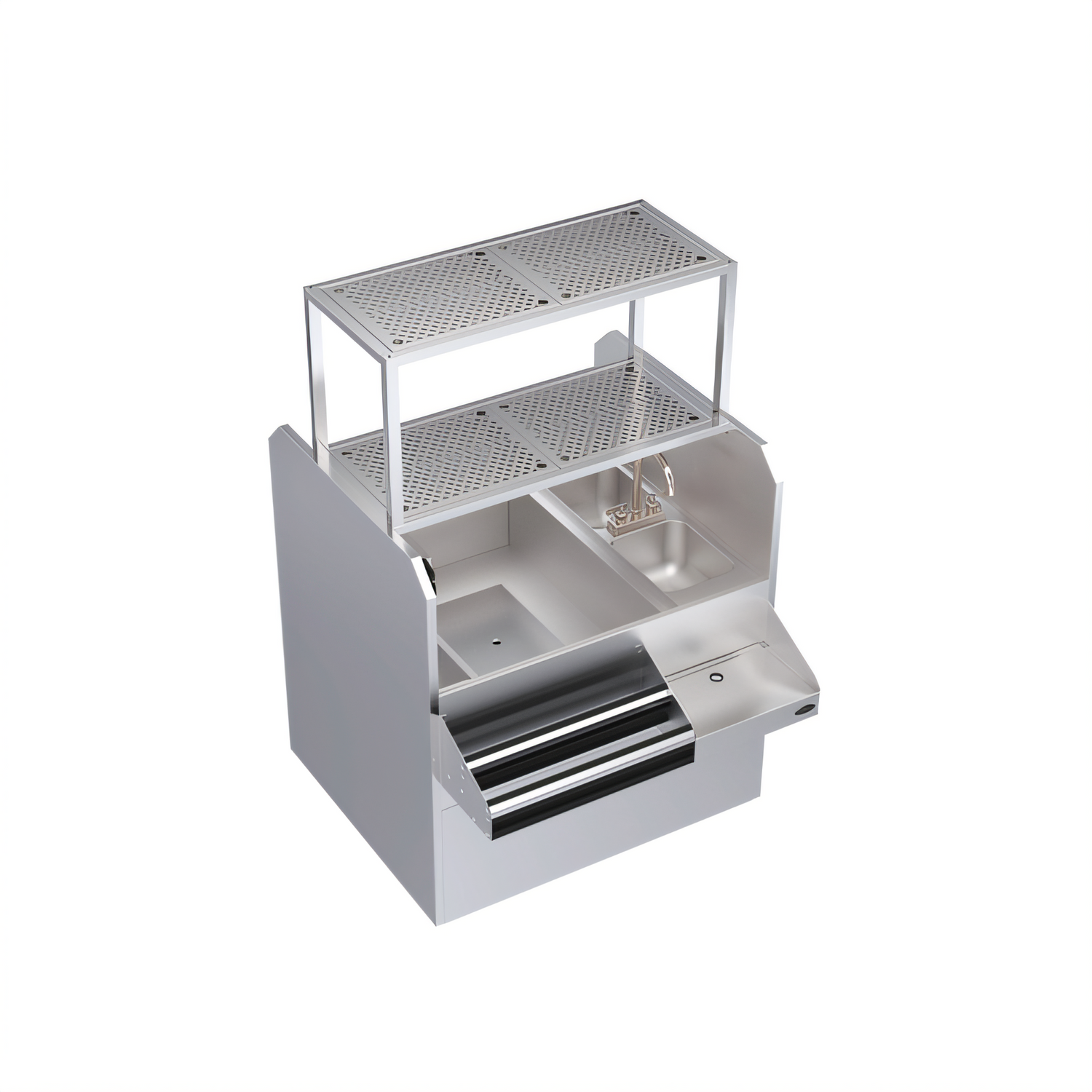

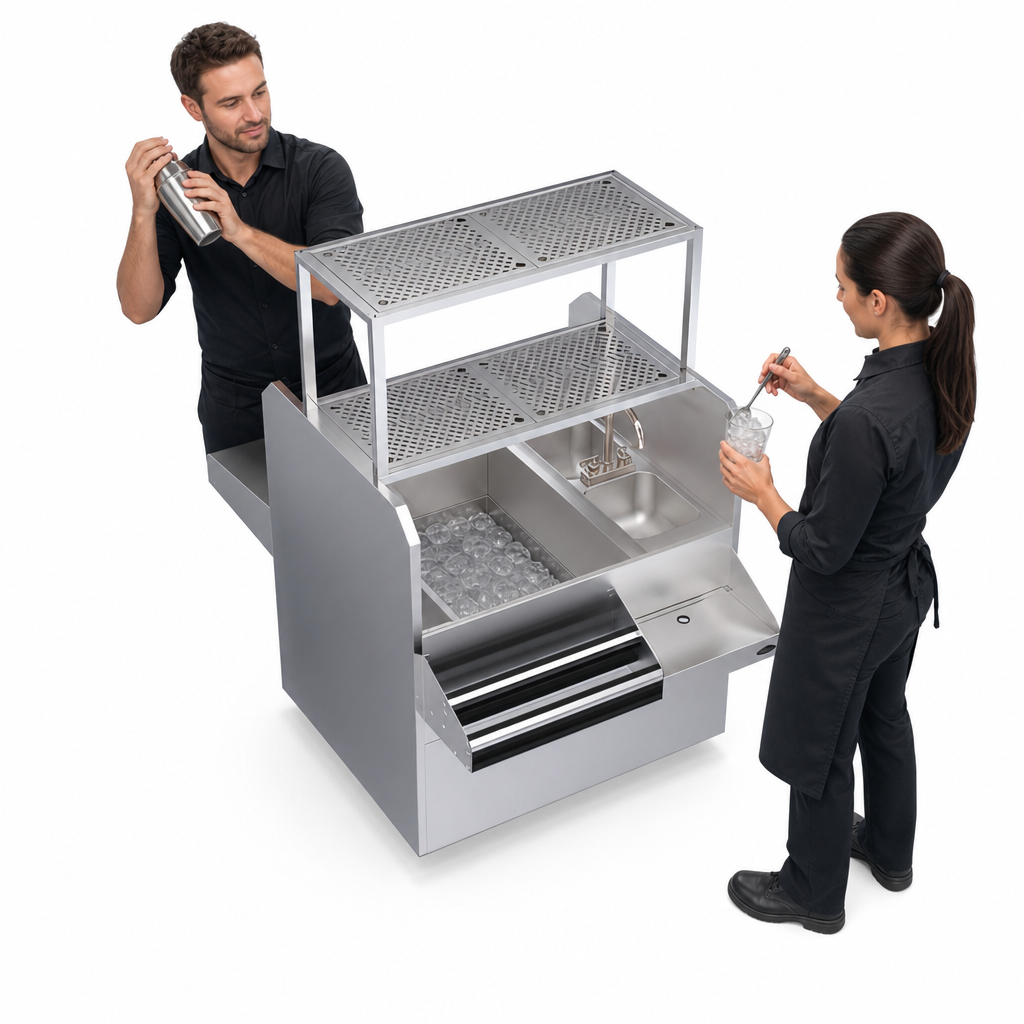

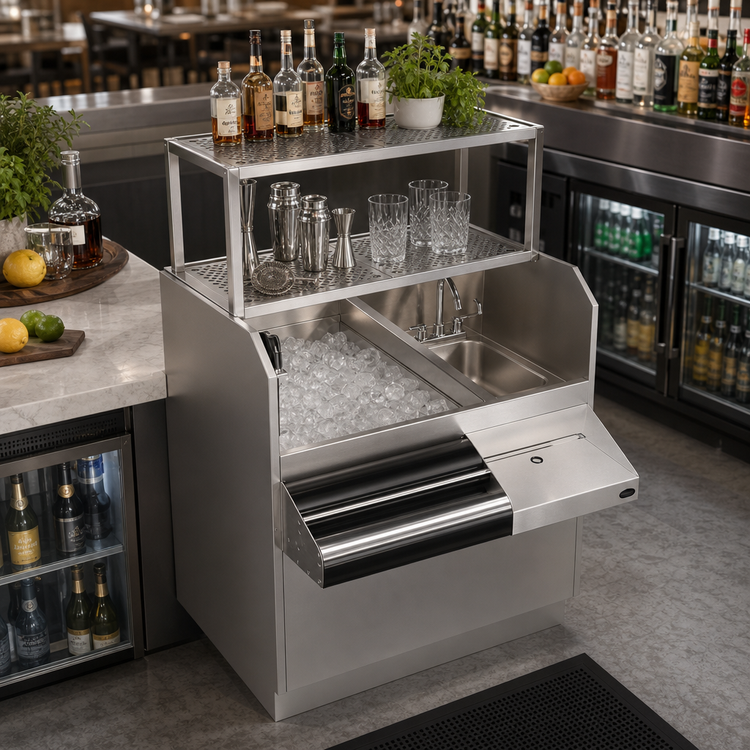

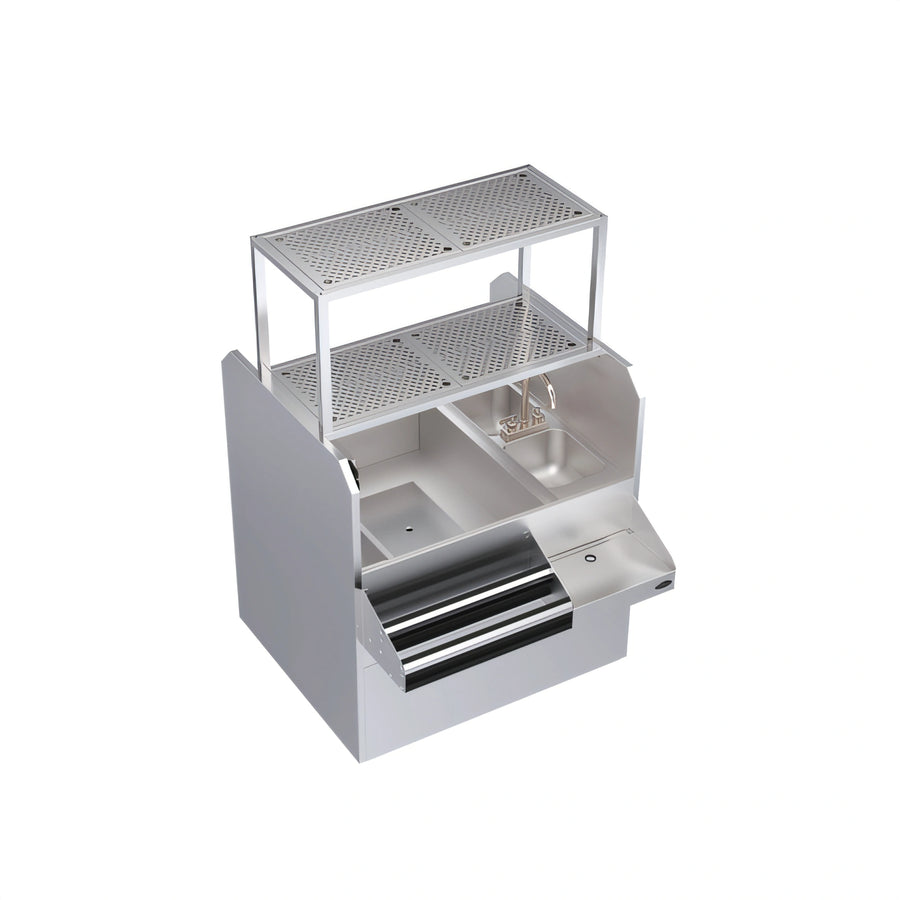

Krowne Royal Series 42" Pass-Thru Underbar Cocktail Station

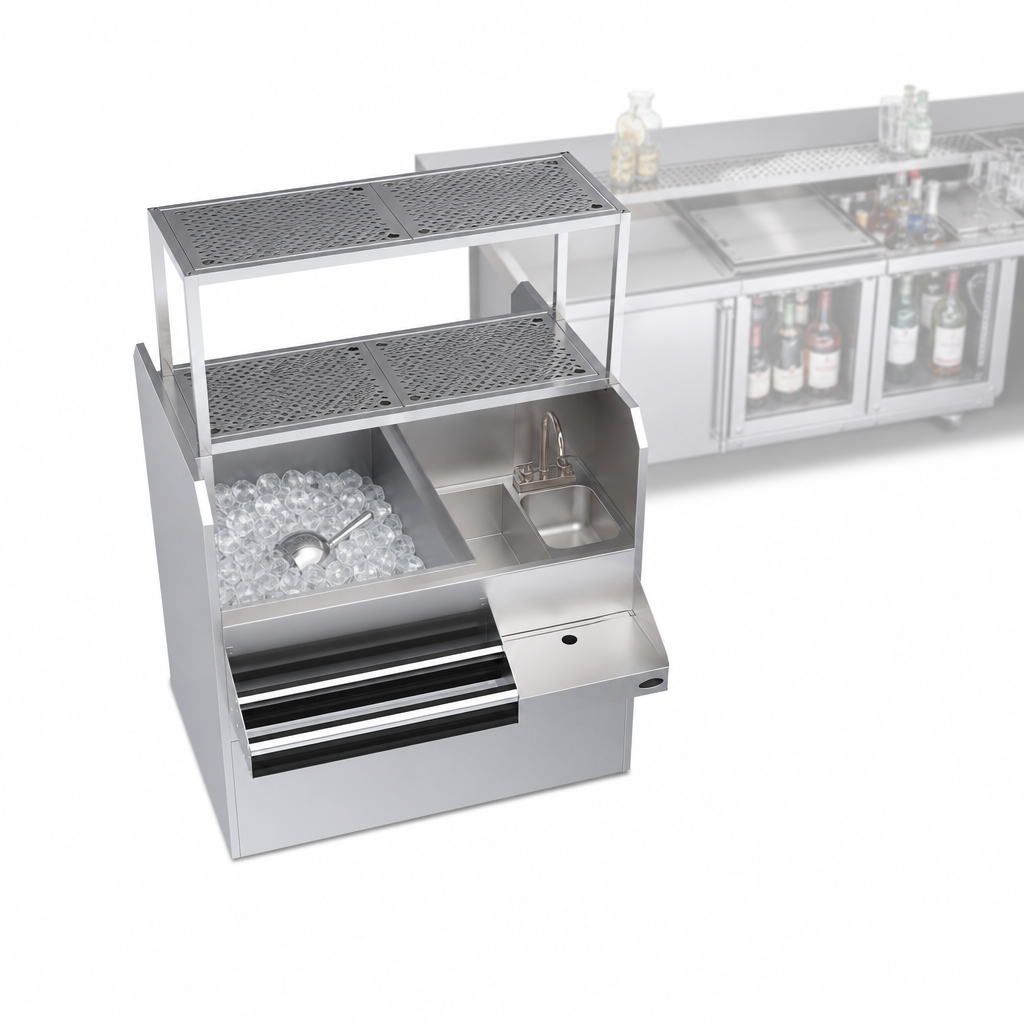

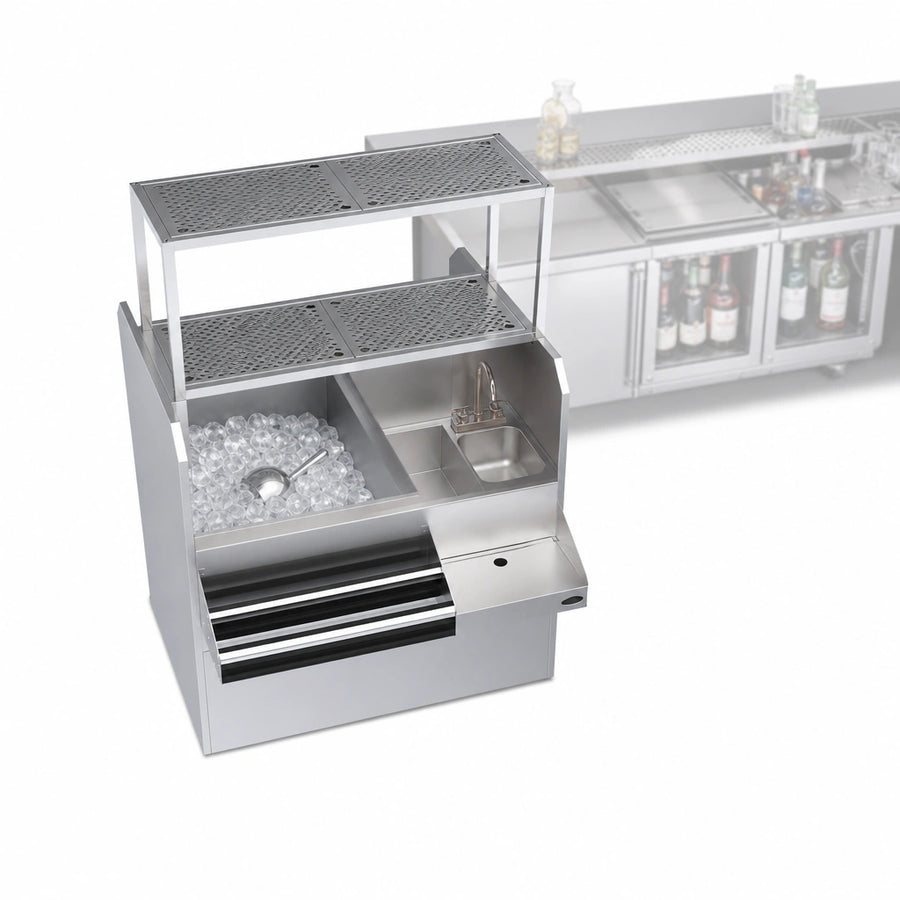

Model KRPT-42LP-10  |  Ice Bin on Left  |  10-Circuit Cold Plate

Engineered for high-volume bars that refuse to compromise on speed or sanitation, this all-in-one workstation unites an ice bin, cold-plate soda dispensing, blender shelf, dual dump sinks and more—delivering everything your bartenders need within a single 42" footprint.

Key Benefits & Features

  • 24" pass-thru ice bin with built-in 10-circuit cast-aluminum cold plate for direct beverage line cooling.
  • Sound-deadened 24" double speedrail keeps top-selling bottles organized and within reach.
  • Dual 10" × 14" × 7" dump sinks on the right, each with 1-1/2" drains, perfect for fast glass rinsing.
  • Royal Series gooseneck faucet (low-lead compliant) with ceramic cartridge valves for years of drip-free service.
  • 16" blender shelf includes a factory-wired GFCI duplex outlet tucked safely below the counter.
  • 18" perforated glass shelf with drain keeps cleanware high, dry and ready to use.
  • 4" tubing chase with integrated soda gun holder simplifies line routing and keeps the deck clutter-free.
  • All-stainless construction—20/22 ga. bodies, 16 ga. legs—with stainless side panels & grey bullet feet.
  • Generous 45" front-to-back depth supports ergonomic bartender workflow.
  • NSF/ANSI 2 listed for open foodservice installation.

Technical Specifications

Overall dimensions (W × D × H) 42" × 45" × 45" (1,067 × 1,143 × 1,143 mm)
Working height 30" (762 mm) deck height
Ice bin size 24" × 30-1/2" with foamed-in-place insulation & 10-circuit cold plate
Speedrail 24" double tier, sound-deadened stainless steel
Dump sinks Two bowls, 10" × 14" × 7", 1-1/2" IPS drains
Faucet 4" center deck-mount gooseneck, low-lead, ceramic cartridges
Blender shelf 16" wide with recessed GFCI duplex outlet (120 V, 15 A)
Glass shelf 18" deep perforated stainless shelf with 1" IPS drain
Tubing chase 4" × 4" cut-out with soda gun holder
Net weight Approx. 444 lb (201 kg)
Certifications NSF/ANSI 2, ASME A112.19.3 / CSA B45.4

Utility Connections

  • 1/2" IPS hot & cold water (faucet)
  • 1-1/2" IPS drains on sink bowls
  • 1" IPS drain on glass/blender shelves
  • 1/2" IPS drain on cold-plate ice bin
Installation Note: Plumbing and electrical hookups must be performed by qualified personnel in compliance with all local, state and federal codes.

Looking to customize? Compatible overshelves, bottle wells, sliding covers and floor panels are available from Krowne and sold separately.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

45.0in

Width

42.0in

Depth

45.0in

Shipping Weight

444.0lbs

Components (left to right)

soda chase, ice bin, blender unit with (2) sinks

Width (side - side) OA

37" - 42"

Cold Plate

(10) circuit

Specifications

Royal Series Underbar Ice Bin/Cocktail Station, pass-thru combo, 42"W x 45"D x 45"H, 24"W pass-thru ice bin on left with 10-circuit cold plate, 24"W double speedrail, (2) dump sinks on right with (1) deck mount Royal Series gooseneck faucet (low lead compliant), 16"W blender shelf with duplex outlet, 18"D glass shelf with perforated insert & drain, includes 4" tubing chase with soda gun holder, stainless steel side panels, stainless steel construction, stainless steel legs with grey plastic bullet feet, NSF
