Krowne  |  Royal Series  |  SKU: KRPT-36RP-10

Krowne KRPT-36RP-10 Royal Series Bar Equipment

$9,362.65
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

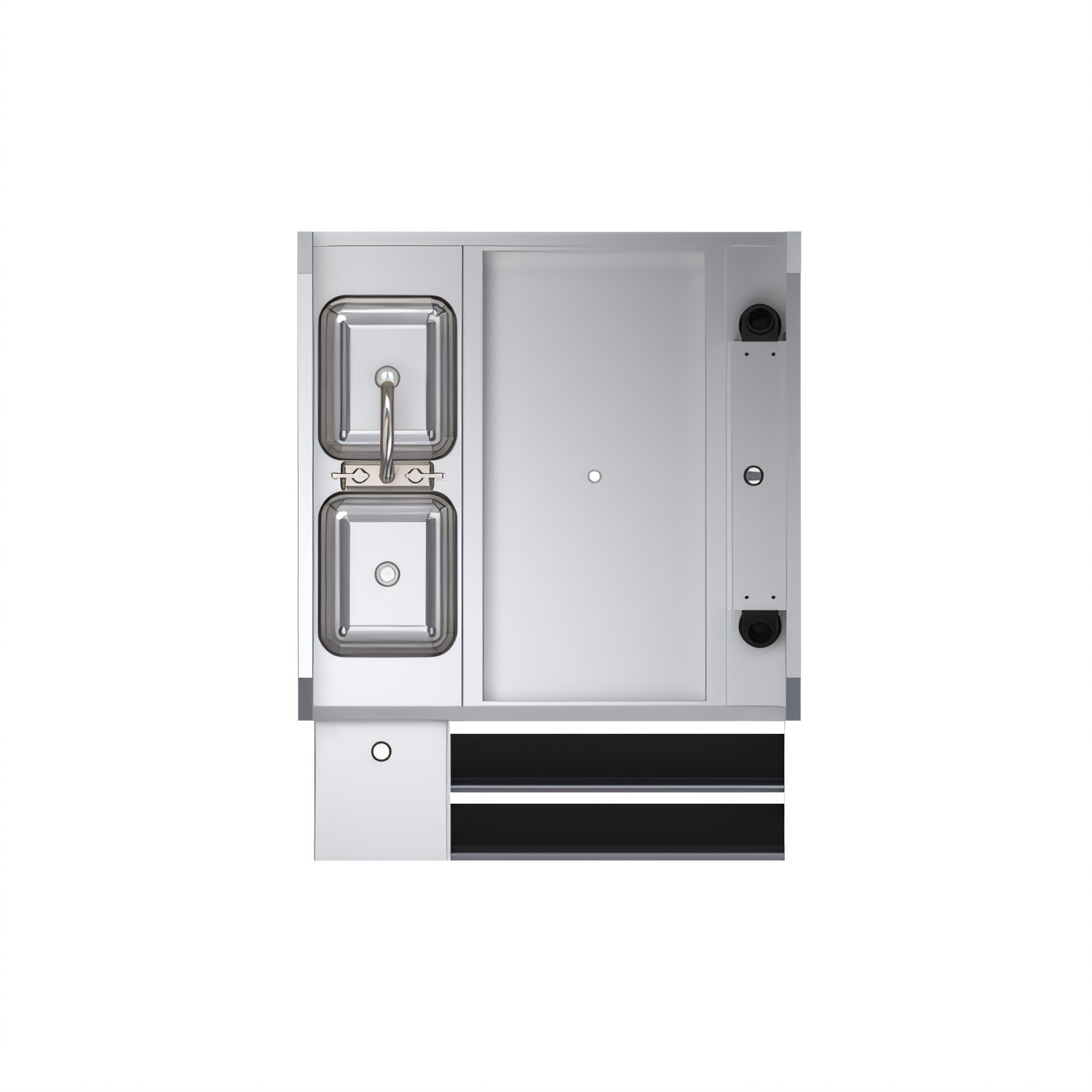

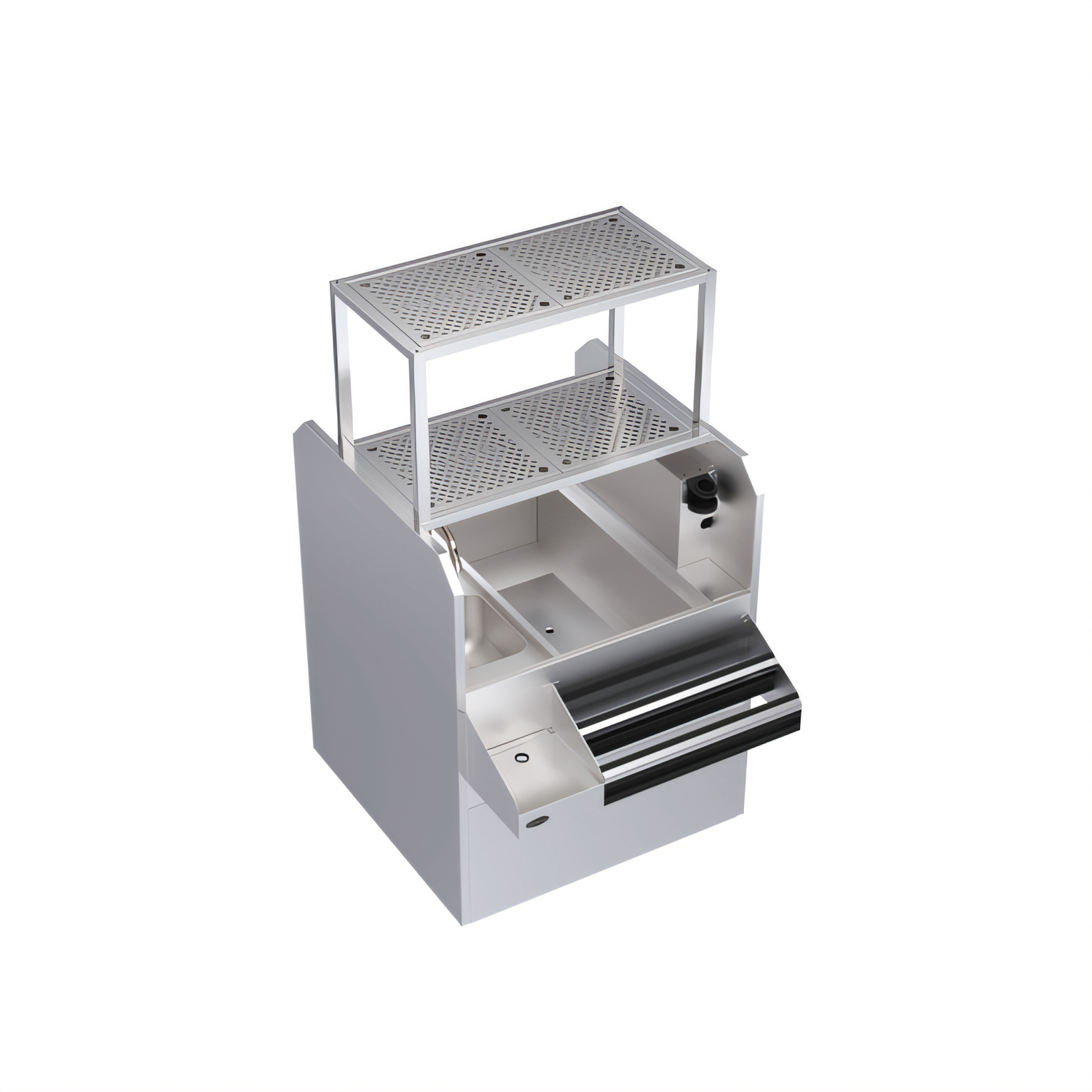

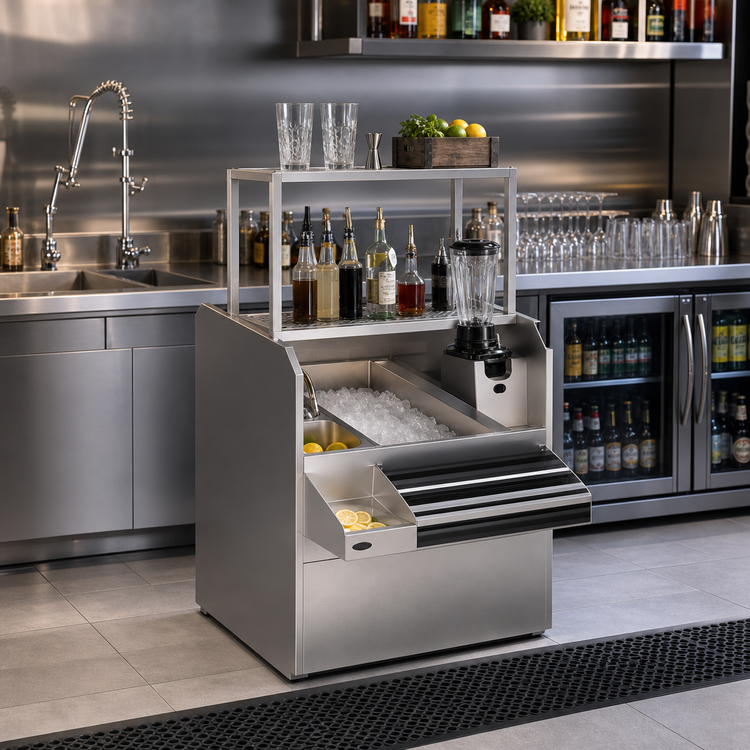

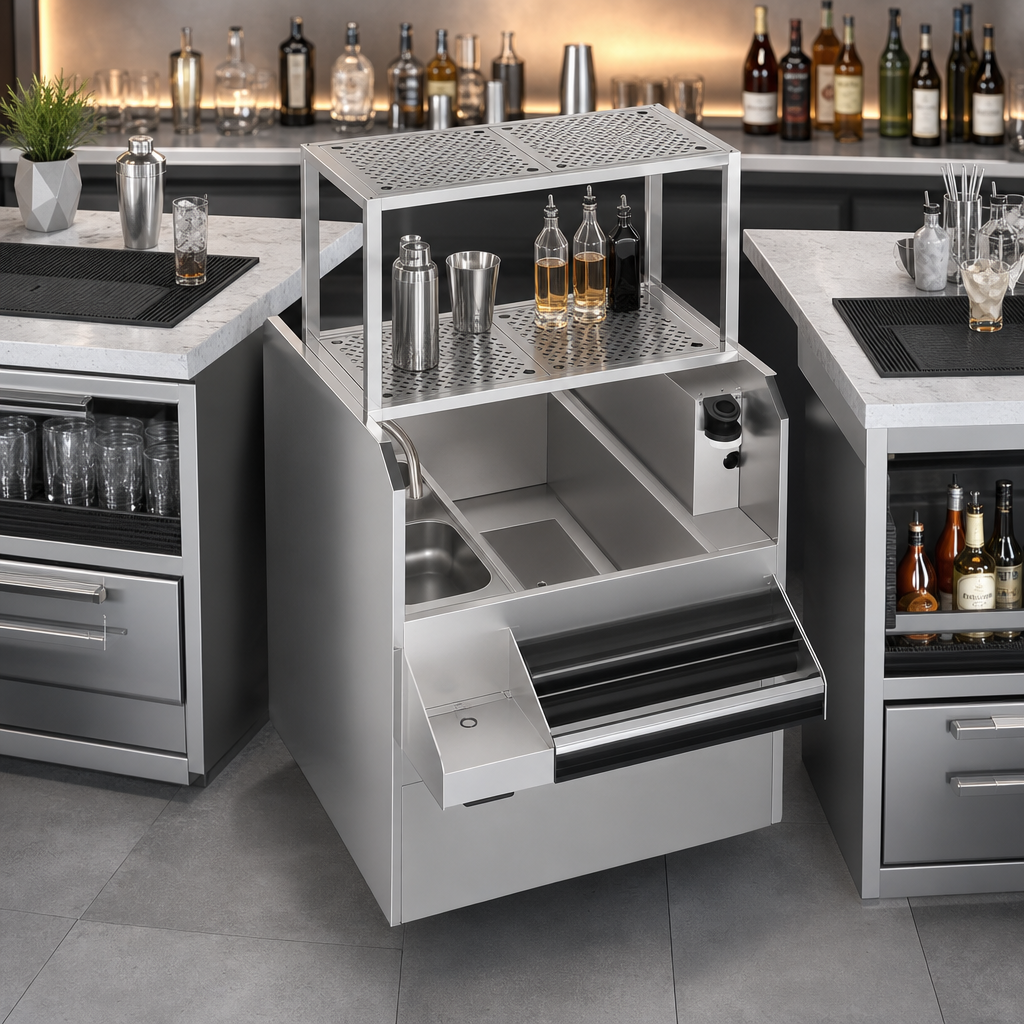

Krowne Royal Series 36" Pass-Thru Underbar Cocktail Station

Model KRPT-36RP-10  •  Right-Hand Ice Bin  •  10-Circuit Cold Plate

Give bartenders everything they need in one compact footprint. This Royal Series workstation combines an insulated ice bin, double speed rail, dual dump sinks, blender shelf, and glass drying rack—all engineered from food-grade stainless steel and certified NSF for worry-free compliance.

Built-In Advantages

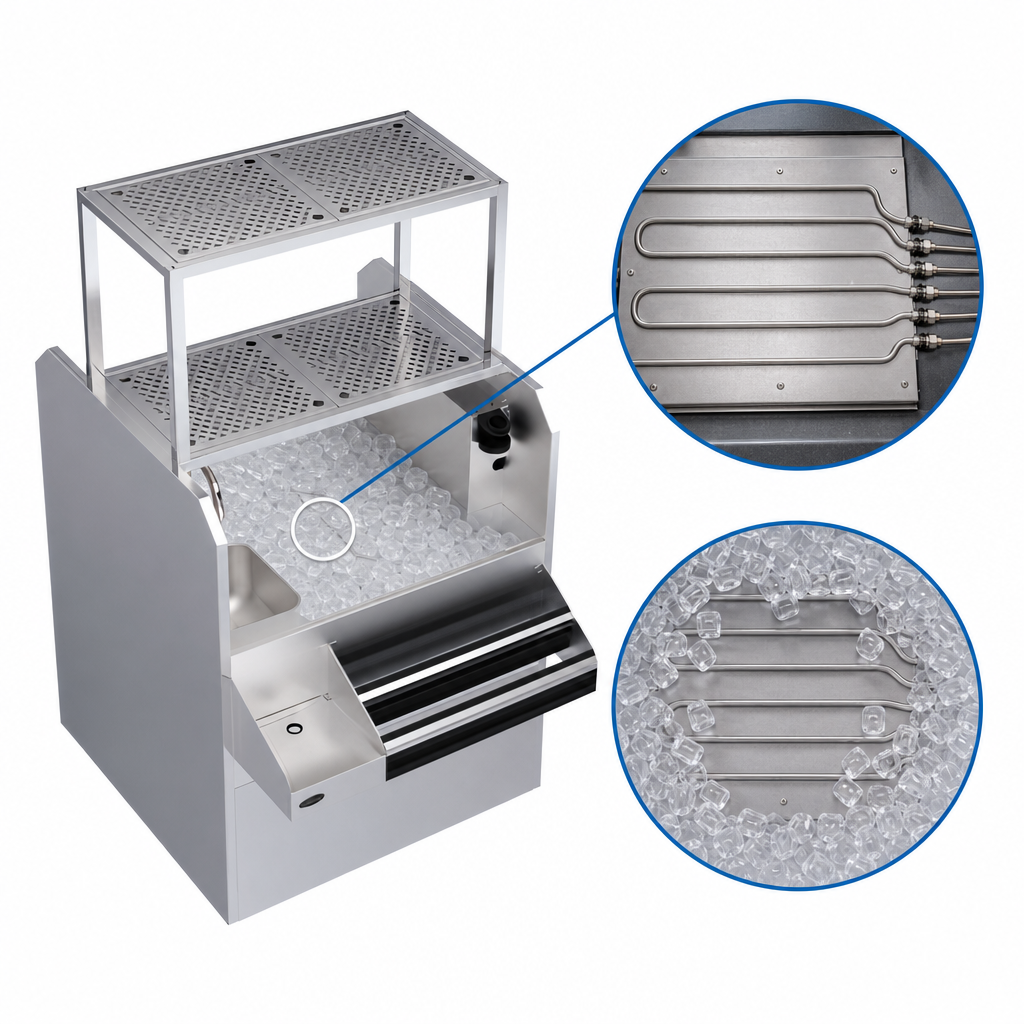

  • 18" W pass-thru ice bin (right side) with factory-sealed 10-circuit cast-aluminum cold plate
  • Foamed-in-place insulation maintains ice integrity during peak service
  • Sound-deadened 24" double speed rail keeps top movers within reach
  • (2) 10" × 14" × 7" dump sinks on the left, each with 1-1/2" IPS drains
  • Royal Series 4" center gooseneck faucet with low-lead ceramic cartridges
  • 10" blender shelf with underside 120 V duplex outlet (GFCI-ready)
  • 18" D perforated stainless steel glass shelf with integral drain—perfect for air-drying stemware
  • 4" × 4" tubing chase and soda gun holder streamline post-mix connections
  • Stainless steel end panels, 16 ga tubular legs, and adjustable grey bullet feet for rock-solid stability

Dimensions & Capacity

Overall width 36" (914 mm)
Overall depth 45" (1,143 mm)
Working deck height 30" (762 mm)
Height to top of glass shelf ≈ 45" (1,143 mm)
Ice bin interior 18" × 30-1/2"
Blender shelf width 10"
Speed rail length 24" (double)
Approx. weight 400 lb (181 kg)

Utility Requirements

  • Water: 1/2" IPS hot & cold
  • Cold-plate drain: 1/2" IPS
  • Glass shelf drain: 1" IPS
  • Dump sink drains: 1-1/2" IPS
  • Electrical: 120 V duplex outlet mounted under blender shelf

Certifications

  • NSF/ANSI 2 listed
  • ASME A112.19.3 / CSA B45.4
  • Low-lead compliant faucet

Popular Add-Ons (sold separately)

  • Stainless single or double overshelves – 34", 40", 52" & 58" lengths
  • Bottle wells for 24" pass-thru stations (KR-BR1)
  • Partial or full sliding ice-bin covers
  • Bartender floor panel (KR-415)
  • Dump sink splash guards & dividers
Installation Note: Plumbing and electrical hookups must be completed by licensed professionals in accordance with local codes. Improper installation may void NSF compliance and manufacturer warranty.

Need a different size or a left-hand ice-bin configuration? Reach out for custom quotes on any Krowne Royal Series pass-thru workstation.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

45.0in

Width

36.0in

Depth

45.0in

Shipping Weight

400.0lbs

Cold Plate

(10) circuit

Width (side - side) OA

31" - 36"

Components (left to right)

blender unit with (2) sinks, ice bin, soda chase

Specifications

Royal Series Underbar Ice Bin/Cocktail Station, pass-thru combo, 36"W x 45"D x 45"H, 18"W pass-thru ice bin on right with 10-circuit cold plate, 24"W double speedrail, (2) dump sinks on left with (1) deck mount Royal Series gooseneck faucet (low lead compliant), 10"W blender shelf with duplex outlet, 18"D glass shelf with perforated insert & drain, includes 4" tubing chase with soda gun holder, stainless steel side panels, stainless steel legs with grey plastic bullet feet, NSF
