Krowne KRPT-36LP-10 Royal Series Bar Equipment
Description
Krowne Royal Series 36" Pass-Thru Ice Bin / Cocktail Station – Left Ice Bin, 10-Circuit Cold Plate
Model KRPT-36LP-10 | NSF ListedCreate a high-volume bartending command center in just 36 inches of bar length. This Royal Series pass-thru workstation combines ice, sinks, speed rail, blender and glass staging in one rugged stainless-steel unit—perfect for craft cocktail programs, stadium suites, hotel lounges and any bar that demands speed with zero compromise on sanitation.
Key Features
- 18" pass-thru ice bin with built-in 10-circuit cold plate keeps soda & cocktail lines ice-bath chilled.
- 24" double speed rail (sound-deadened) holds top-shelf and well bottles within instant reach on both tiers.
- (2) 10" × 14" × 7" dump sinks on the right side with 1-½" drains for rapid glass rinsing.
- Royal Series 4" center gooseneck faucet (low-lead compliant ceramic valves) pre-installed.
- 10" blender shelf with factory-wired duplex GFCI outlet—plug-and-play for blenders or immersion blenders.
- 18" deep perforated glass shelf with built-in drain; holds chilled glassware while excess water flows away.
- 4" tubing chase & soda gun holder keeps beverage lines organized and protected.
- All-welded 20/22 ga. stainless-steel construction; side panels included for a finished look.
- 1-5/8" tubular 16 ga. stainless legs with grey plastic bullet feet—height adjustable, non-marring.
- Certified to NSF-2 and ASME A112.19.3/CSA B45.4 standards.
Dimensions & Utility Connections
| Overall Width | 36 in / 914 mm |
|---|---|
| Front-to-Back Depth | 45 in / 1 143 mm |
| Working Height | 30 in / 762 mm |
| Ice Bin Interior | 18" W × 30-½" D (pass-thru) |
| Cold Plate | Cast-aluminum, 10 circuits, 5/16" OD stainless tubing |
| Water Inlets | ½" IPS hot & cold |
| Drain Connections |
½" IPS (ice bin with cold plate) 1-½" IPS (dump sinks) 1" IPS (glass & blender shelf drains) |
| Electrical | Blender shelf duplex outlet, 120 V, 15 A |
| Shipping Weight | ≈ 400 lb / 181 kg |
Built for Real-World Bar Service

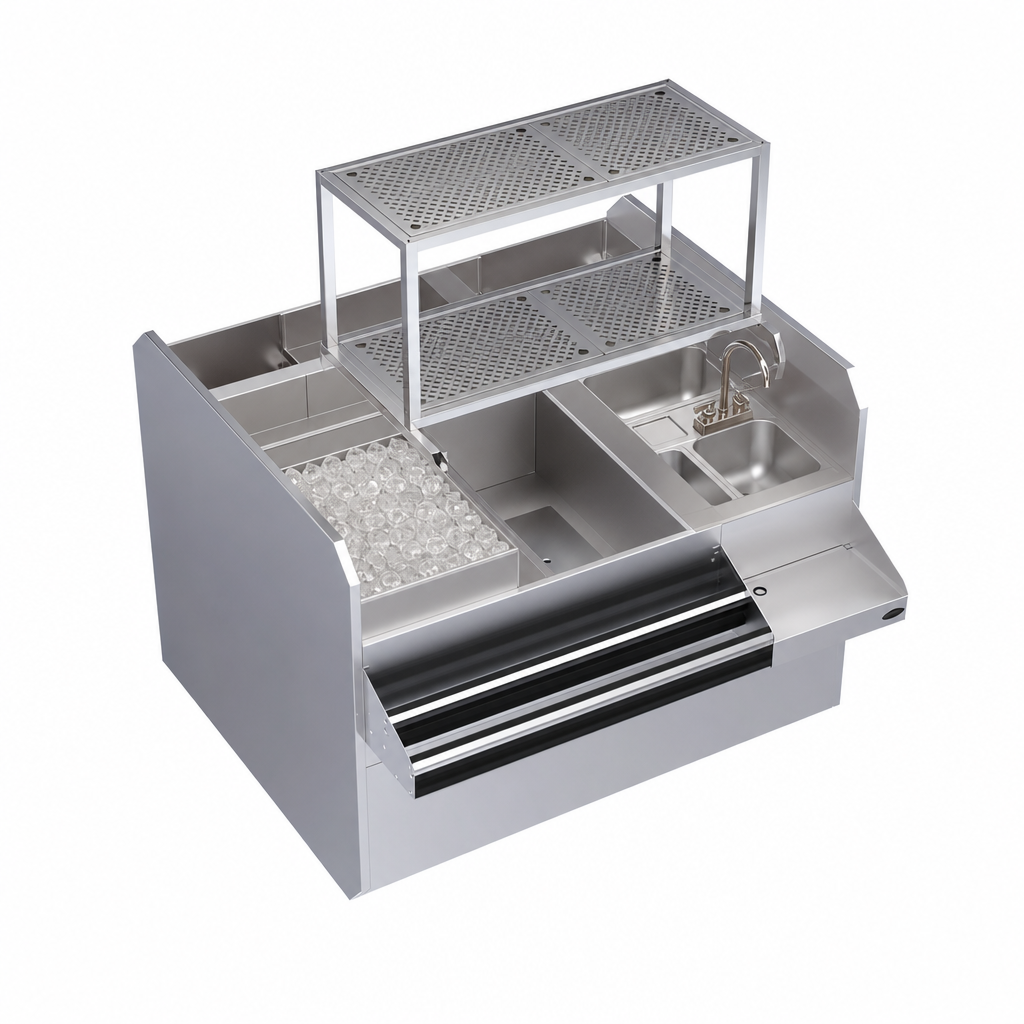

- Pass-Thru Design lets bartenders load ice from the back and serve from the front—ideal for islands or back-to-back layouts.
- Foamed-in-place polyurethane insulation around the ice bin maximizes ice retention on the busiest nights.
- Perforated glass shelf drains melted ice and rinse water away, keeping stemware spotless and slip-free.
- Pre-plumbed faucet and drains speed up installation and cut down on costly field labor.
Need additional overshelves, bottle wells or sliding covers? Royal Series accessories are factory-matched and install in minutes—ask your sales rep for details.
