Krowne KRPT-2436-10 Royal Series Bar Equipment
Description

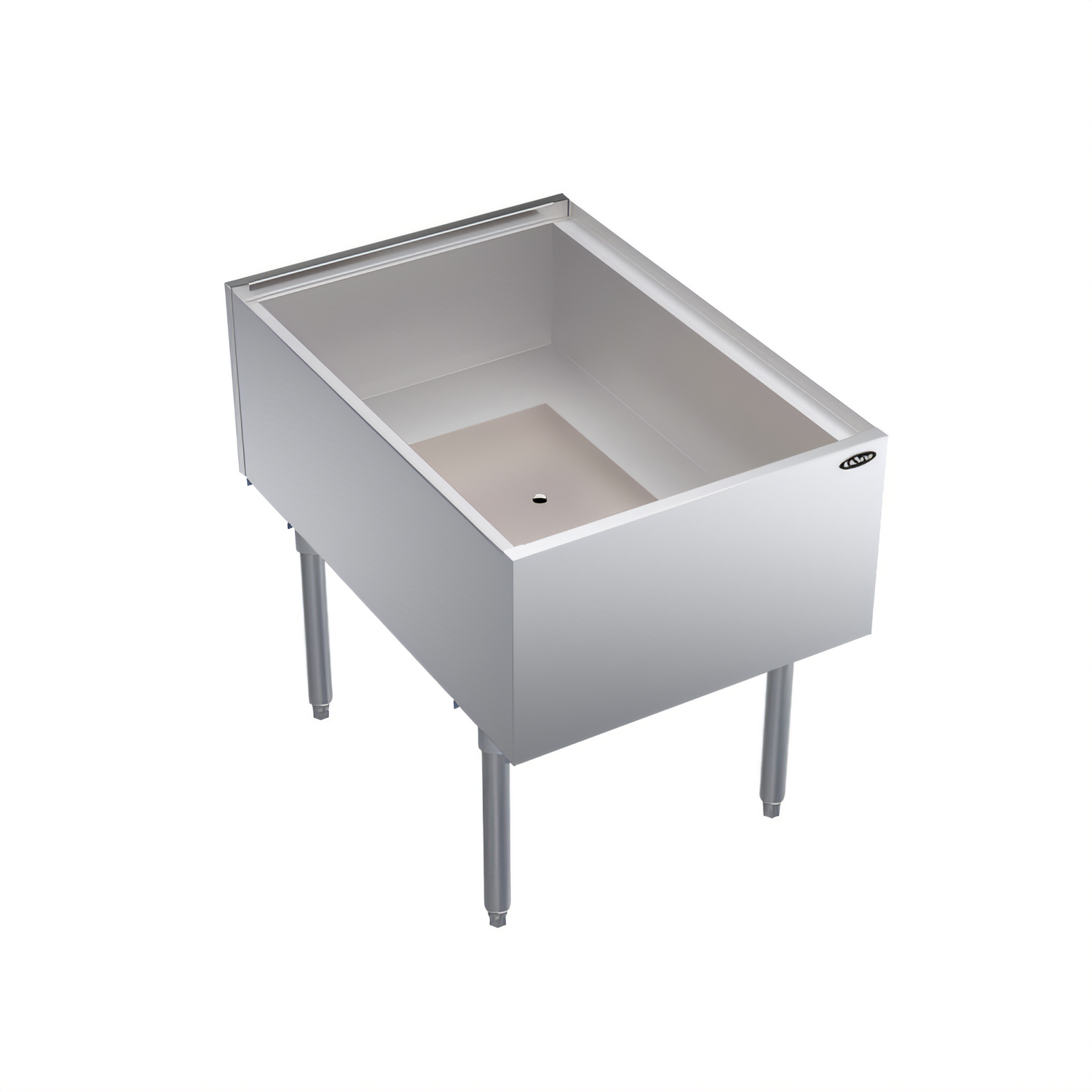

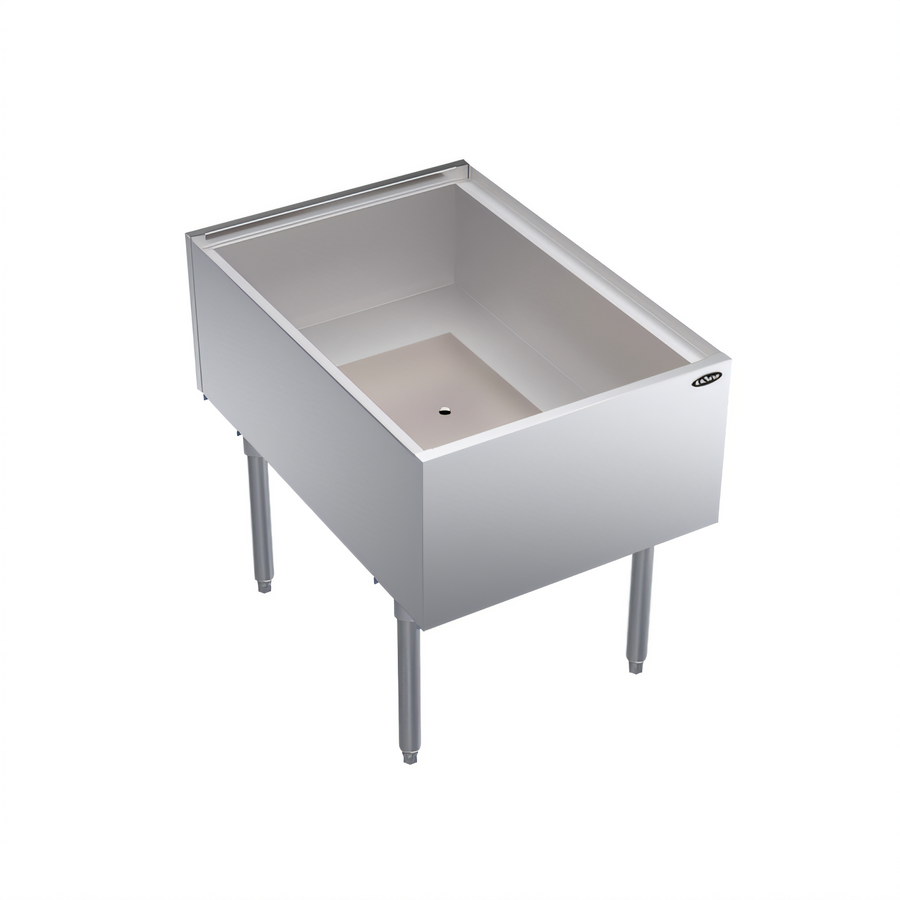

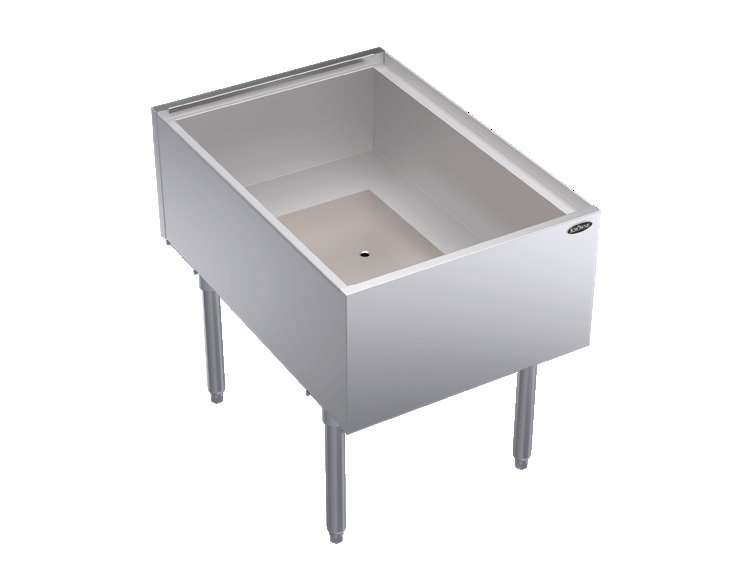

Royal Series Pass-Thru Ice Bin / Cocktail Station
Model KRPT-2436-10 • 10-Circuit Cold Plate • 24" W x 35" DBuilt for high-volume bars that demand speed and precision, the Krowne Royal Series KRPT-2436-10 combines a generous 175 lb ice capacity with an integrated 10-circuit cold plate, keeping cocktails perfectly chilled from the first pour to last call. 100 % stainless-steel construction, full foam insulation and NSF certification make this an underbar workhorse you can rely on shift after shift.
Top Reasons You’ll Love It

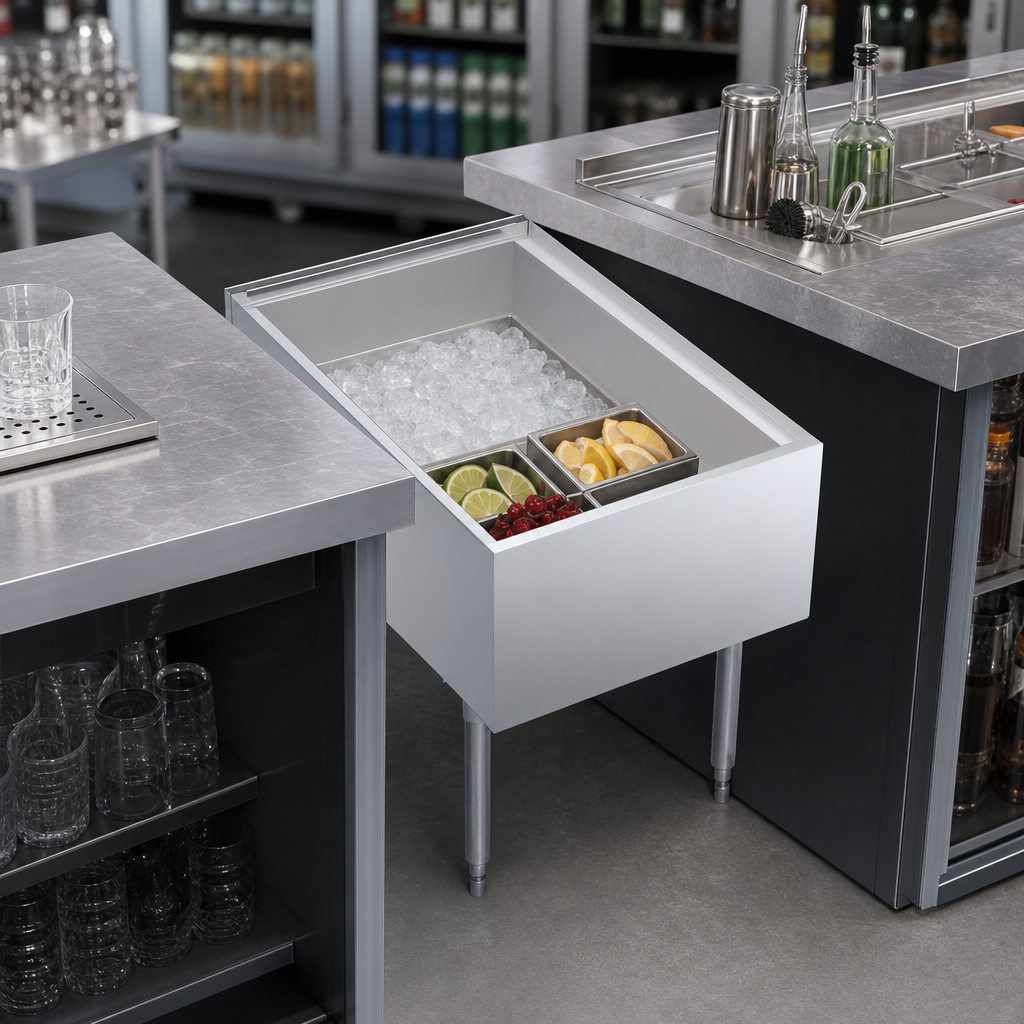

- Pass-thru design lets bartenders access ice from either side—ideal for islands and double-sided bars.

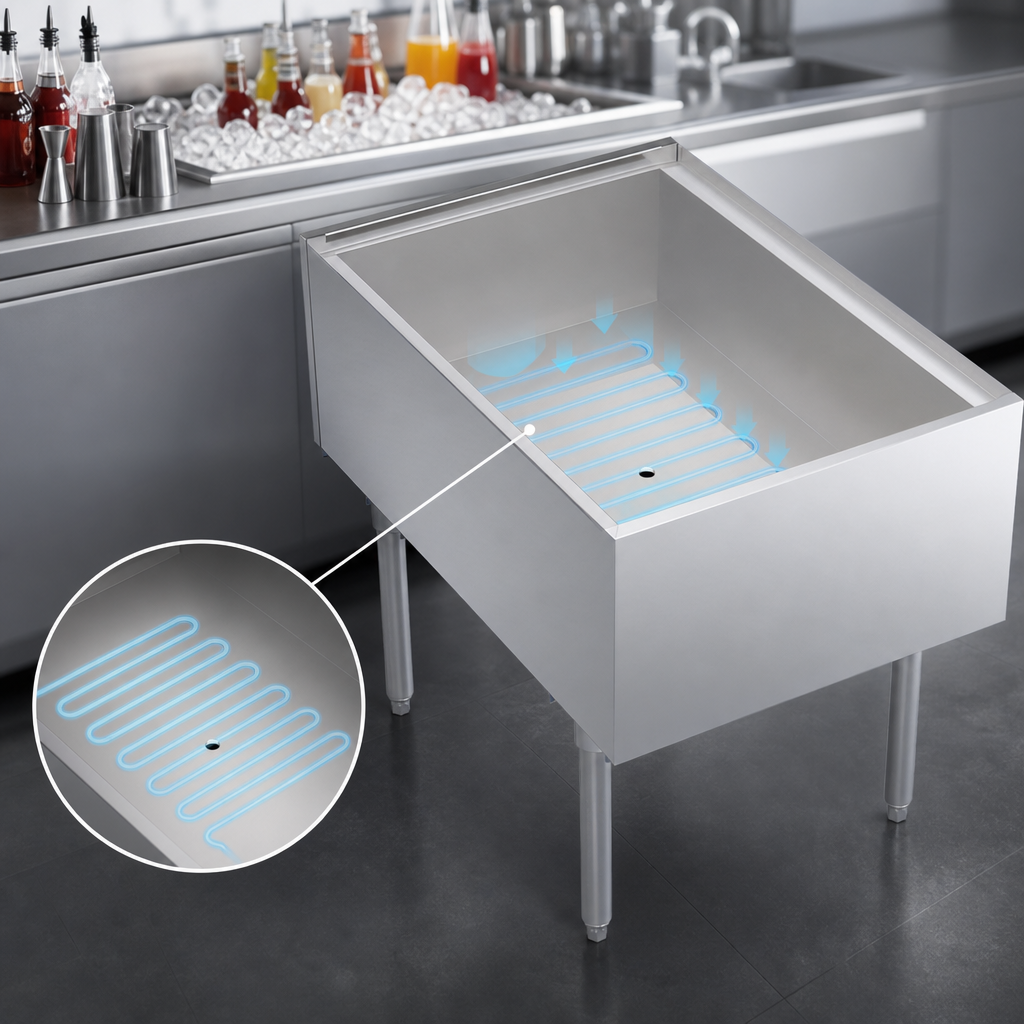

- 10-circuit solid aluminum cold plate chills up to ten beverage lines before they reach the glass.
- Holds up to 175 lbs of ice in a deep, 10 inch liner.
- All 20-gauge stainless interior, sides, backsplash, back and bottom for superior corrosion resistance.
- 1-5/8" tubular 16-gauge stainless-steel legs with adjustable grey bullet feet level easily on uneven floors.
- Foamed-in-place polyurethane insulation locks in the cold and reduces ice melt.
- Cold-plate version includes a ½" IPS drain connection for quick, code-compliant installation.
- NSF Standard 2 listed for food-zone safety.
Technical Specifications
| Model | KRPT-2436-10 |
|---|---|
| Overall width | 24 in (610 mm) |
| Overall depth | 35 in (889 mm) |
| Working height | 30 in (762 mm) to countertop |
| Liner depth | 10 in (254 mm) |
| Ice capacity | 175 lbs (79 kg) |
| Cold plate circuits | 10 |
| Drain connection | ½" IPS (cold-plate models) |
| Unit weight | 179 lbs (81 kg) shipping |
| Construction | Stainless steel (20-ga interior, sides, backsplash, bottom; 16-ga legs) |
| Insulation | Foamed-in-place polyurethane |
| Certifications | NSF Std 2 |
Customize Your Station
- KR-111 Condiment tray
- KR-112 Large stainless divider
- KR-322 Partial sliding cover (for use with bottle wells)
- KR-323 Full sliding cover
- KR-BR1 Bottle wells
- KR-401 Cap catcher & bottle opener
- KR-501 Towel ring
- KR-503 Cross-braced caster kit (maintains 30" working height)
Drain must be plumbed to a floor sink per local code. Cold plate lines are unmanifolded for installation flexibility.
