Krowne KRPT-1836-10 Royal Series Bar Equipment
Description

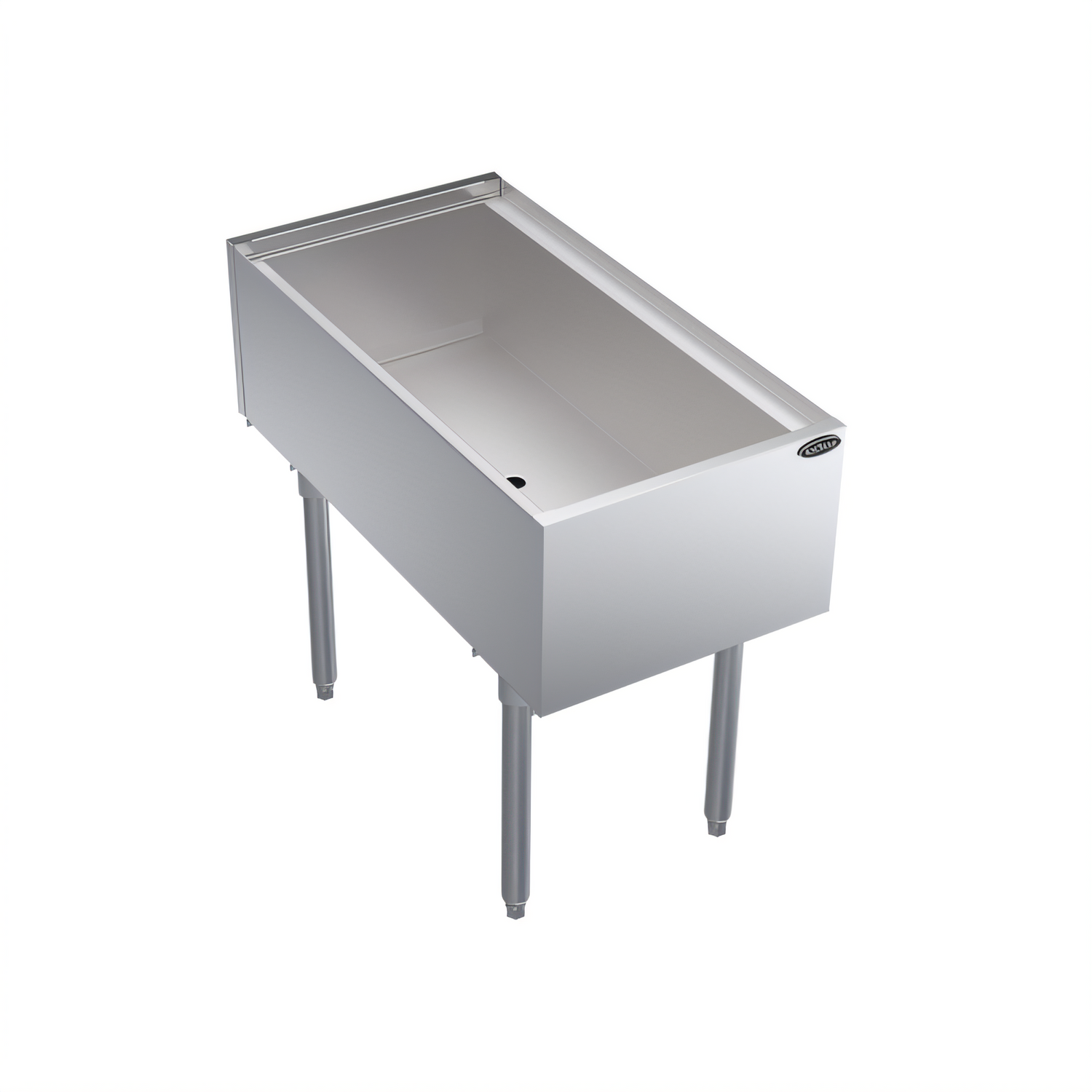

Krowne Royal Series Pass-Thru Ice Bin / Cocktail Station – 18" W, 10-Circuit Cold Plate
Model KRPT-1836-10 | 130 lb Ice Capacity | NSFDesigned for high-volume beverage programs, this compact 18" Krowne Royal Series pass-thru ice bin keeps ice, bottles and beverage lines perfectly chilled while allowing bartenders to load from one side and serve from the other. Rugged all-stainless construction and a powerful 10-circuit cold plate make it the professional’s choice for consistent pours and streamlined workflow.
Key Features

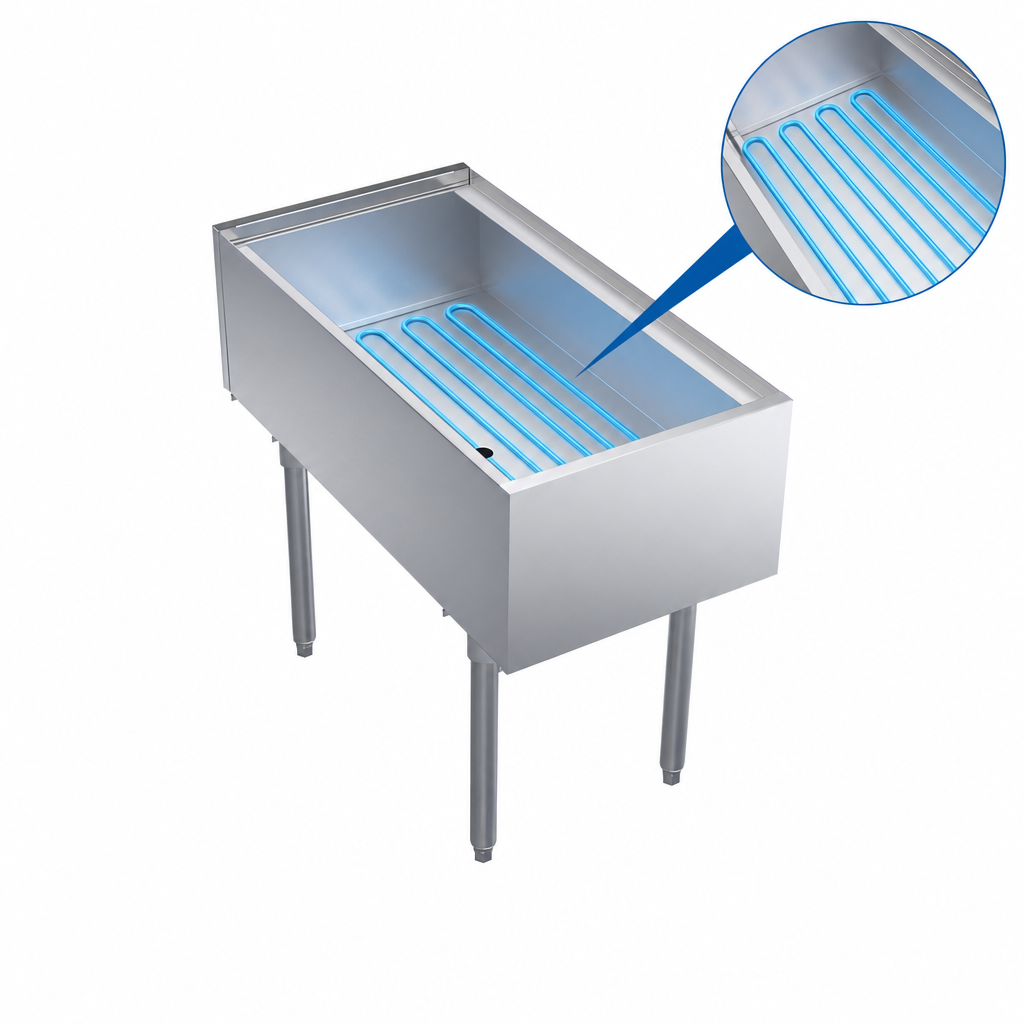

- 10-circuit cast-aluminum cold plate chills soda/beer lines right inside the bin for ice-cold drinks with every pour.

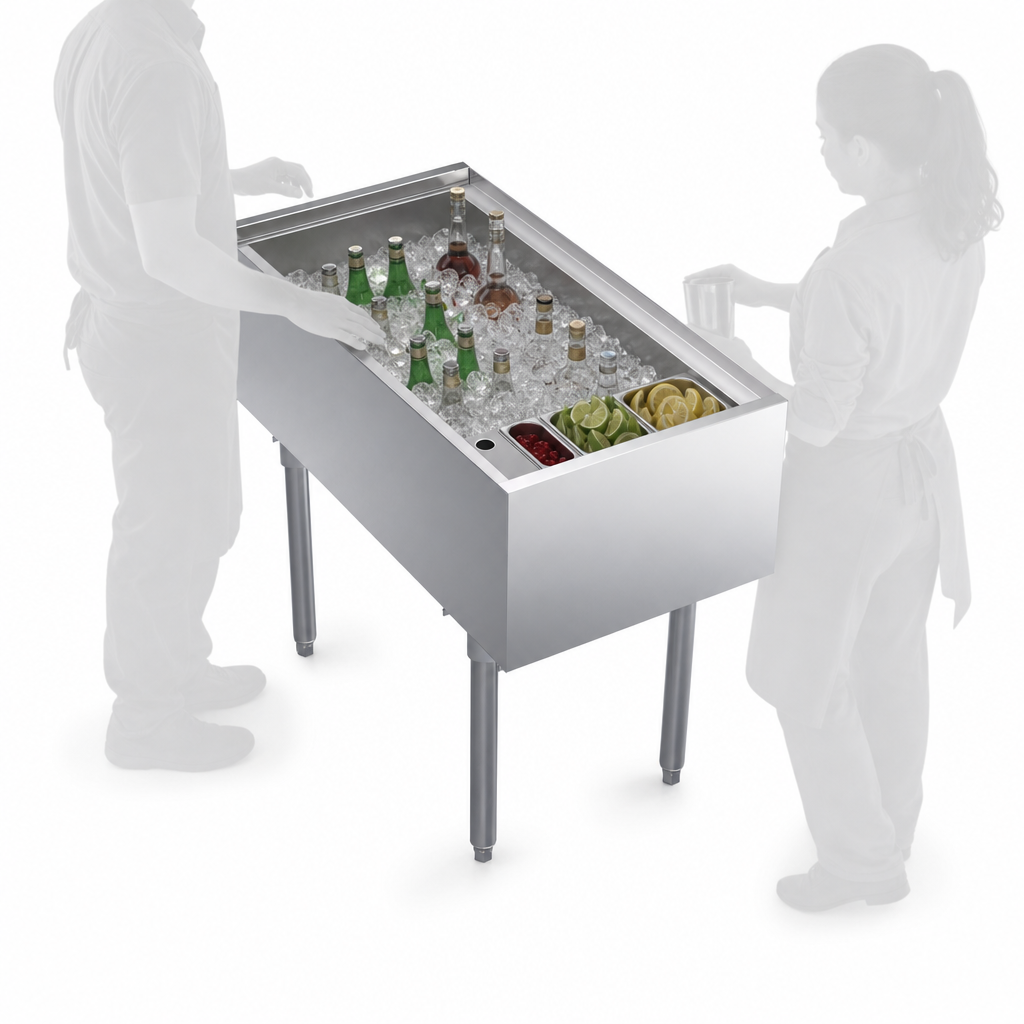

- Pass-thru design provides double-sided access—ideal for island bars and service stations.
- Large 130 lb ice capacity with a 10" deep, foamed-in-place liner for maximum ice retention.
- 20 ga stainless interior, sides and backsplash resist corrosion and wipe clean fast.
- 1-5/8" OD, 16 ga stainless legs with adjustable gray plastic bullet feet level easily on uneven floors.
- ½" IPS drain connection for quick, positive drainage on cold-plate models.
- NSF/ANSI Standard 2 listed for sanitation and public-health safety.
Specifications
| Model | KRPT-1836-10 (Royal Series) |
|---|---|
| Ice Capacity | 130 lb |
| Cold Plate | 10 circuits, cast aluminum |
| Overall Width | 18" (457 mm) |
| Overall Depth | 35" (889 mm) |
| Working Height | 30" (762 mm) incl. legs |
| Liner Depth | 10" (254 mm) |
| Drain | ½" IPS connection (cold-plate models) |
| Construction | 20 ga stainless interior/sides/back; foamed-in-place polyurethane insulation |
| Legs / Feet | 1-5/8" tubular 16 ga stainless legs with adjustable plastic bullet feet |
| Approx. Shipping Weight | 105 lb (48 kg) |
| Certifications | NSF/ANSI Standard 2 |
Popular Accessories (sold separately)
- KR-111 drop-in condiment tray
- KR-112 large stainless divider
- KR-322 partial sliding cover (use with bottle wells)
- KR-323 full stainless sliding cover
- KR-BR1 bottle wells
- KR-401 cap catcher & bottle opener
- KR-503 caster kit (maintains 30" working height)
Need a different size or configuration? Explore the full Krowne Royal Series or chat with us for a tailored underbar layout.
