Krowne  |  Royal Series  |  SKU: KR29-12RD

Krowne KR29-12RD Royal Series Bar Equipment

$1,128.60
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment Liquor Displays Restaurant Equipment Underbar Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

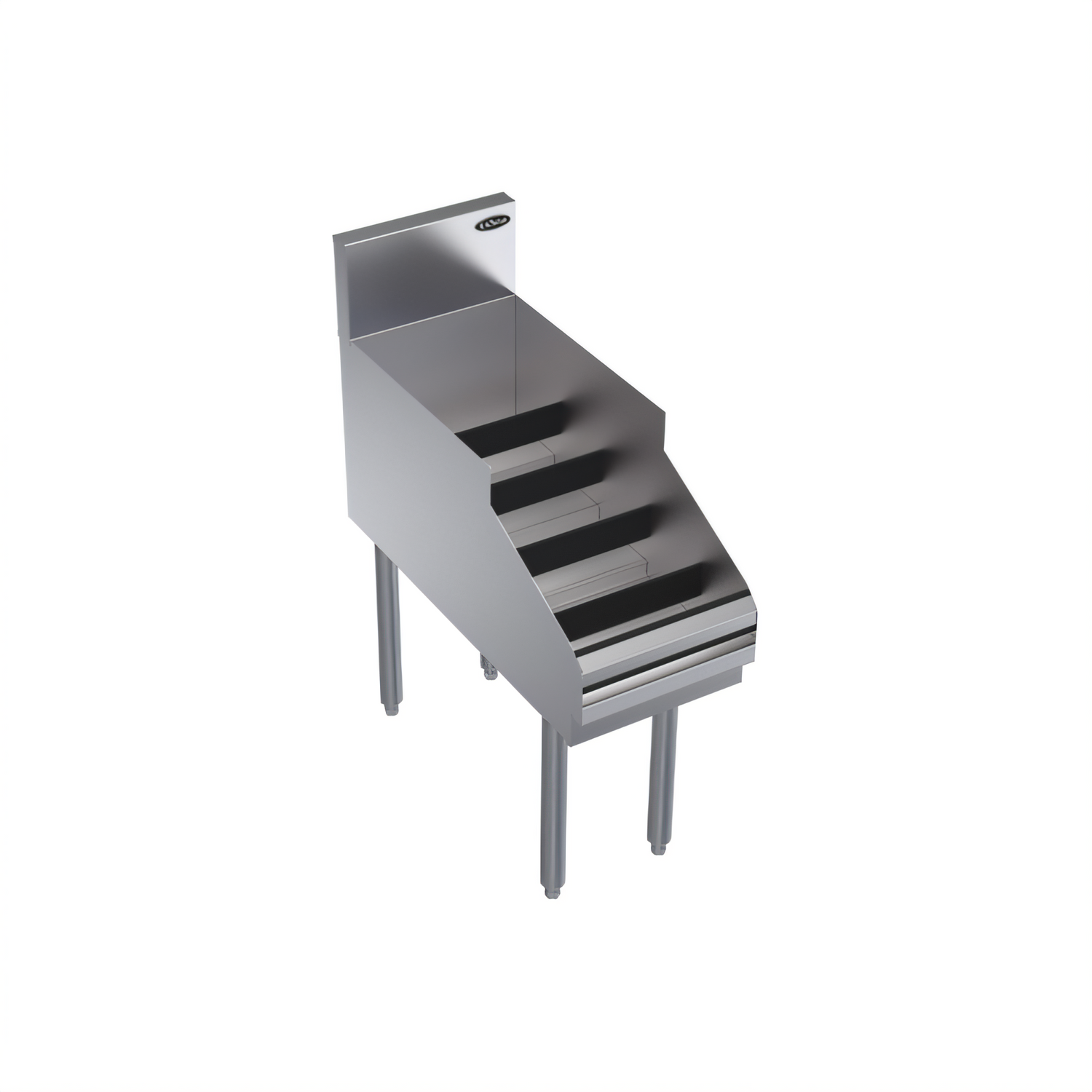

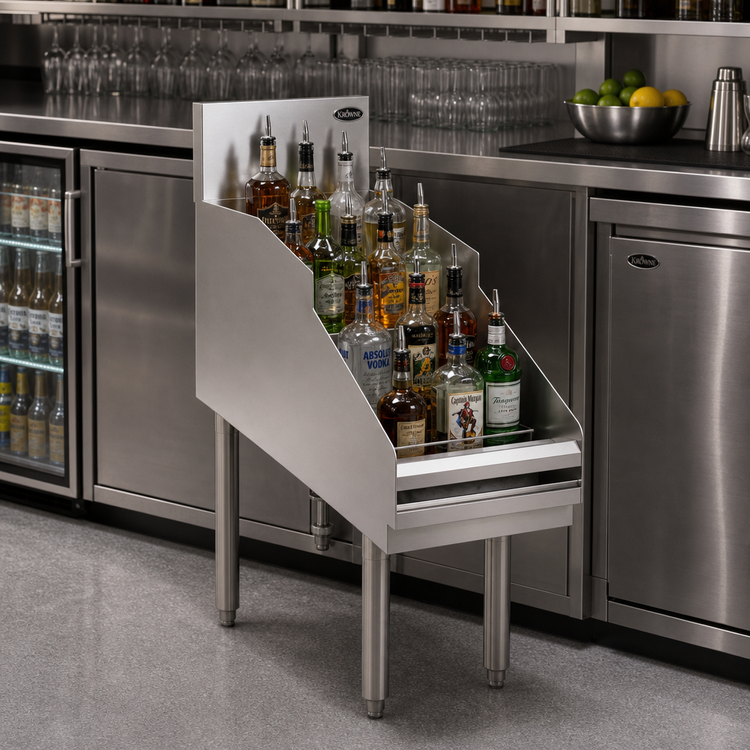

Krowne Royal Series 5-Step Liquor Bottle Display – 12"W x 29"D

Model KR29-12RD • 15-Bottle Capacity • NSF Listed

Give your bartenders quick, organized access to top-selling spirits with this freestanding, underbar liquor display from Krowne’s renowned Royal Series. The compact 12" width saves valuable linear bar space while the extra-deep 29" profile aligns perfectly with double speed rails, keeping the work zone streamlined and efficient.

Key Benefits

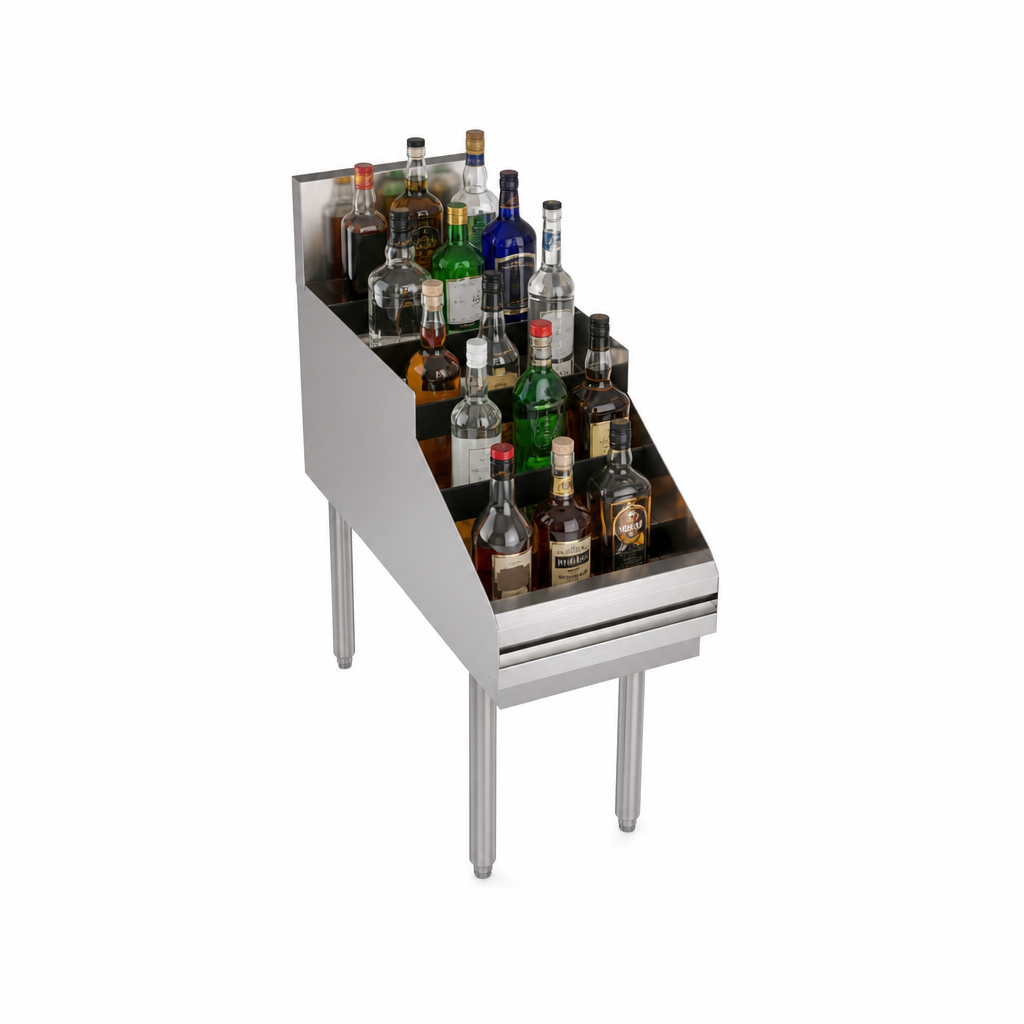

  • Five tiered steps showcase up to 15 liquor bottles for instant product identification and faster pours.
  • Side splashes & guardrails help contain drips and prevent bottles from sliding off the display.
  • Sound-deadening design reduces noise during busy service, improving the guest experience.
  • All-stainless contact surfaces (top, steps, front & sides) offer superior corrosion resistance and a polished look.
  • Heavy-duty legs (1-5/8" Ø tubular 16 ga. stainless) with adjustable thermoplastic bullet feet for rapid leveling on uneven floors.
  • NSF certified construction meets the most demanding health code requirements.

At-a-Glance Specs

Manufacturer / Series Krowne Metal • Royal Series
Model KR29-12RD
Configuration Freestanding underbar liquor bottle display
Number of Steps 5

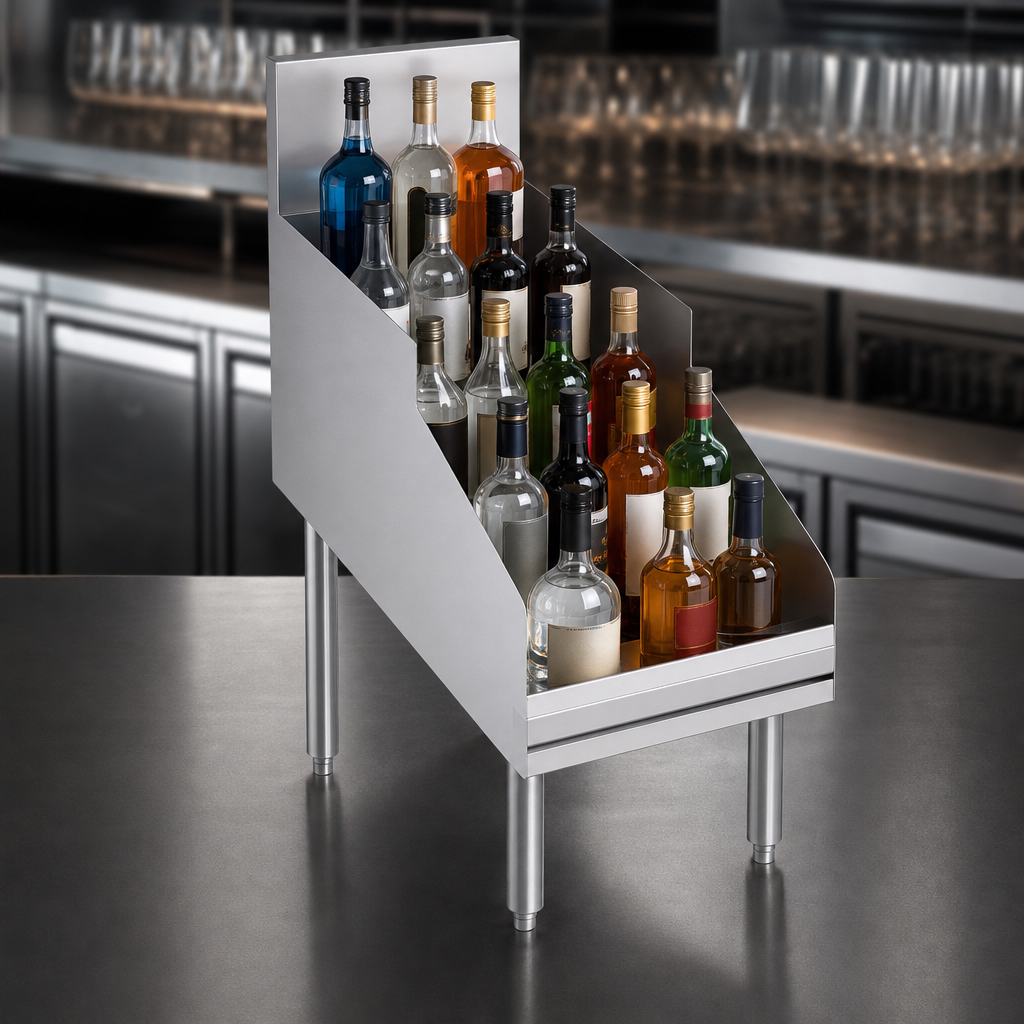

Bottle Capacity 15 (750 mL standard bottles)
Overall Dimensions 12"W × 29"D × 36-1/2"H (to top of backsplash)
Material – Steps / Guardrails / Backsplash 20 ga. stainless steel
Material – Front & Sides 18 ga. stainless steel
Material – Back & Bottom 20 ga. galvanized steel
Legs & Feet 1-5/8" Ø 16 ga. stainless legs with adjustable grey thermoplastic bullet feet
Estimated Shipping Weight 55 lb.
Certifications NSF

Looking for a different size or step count? Royal Series liquor displays are also available in 3- and 4-step configurations up to 36" wide.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

12.0in

Depth

29.0in

Shipping Weight

55.0lbs

Depth (front - back) OA

28" - 29"

Steps

(5)

Width (side - side) OA

7" - 12"

Type

free standing

Construction

stainless steel & galvanized

Specifications

Royal Series Underbar Liquor Bottle Display Unit, freestanding, 12"W x 29"D (to match double speedrail depth), holds (15) liquor bottles, (5) bottle steps with side splashes, stainless steel top, front, & sides, galvanized steel back & bottom, stainless steel legs with adjustable thermoplastic bullet feet, NSF
