Description

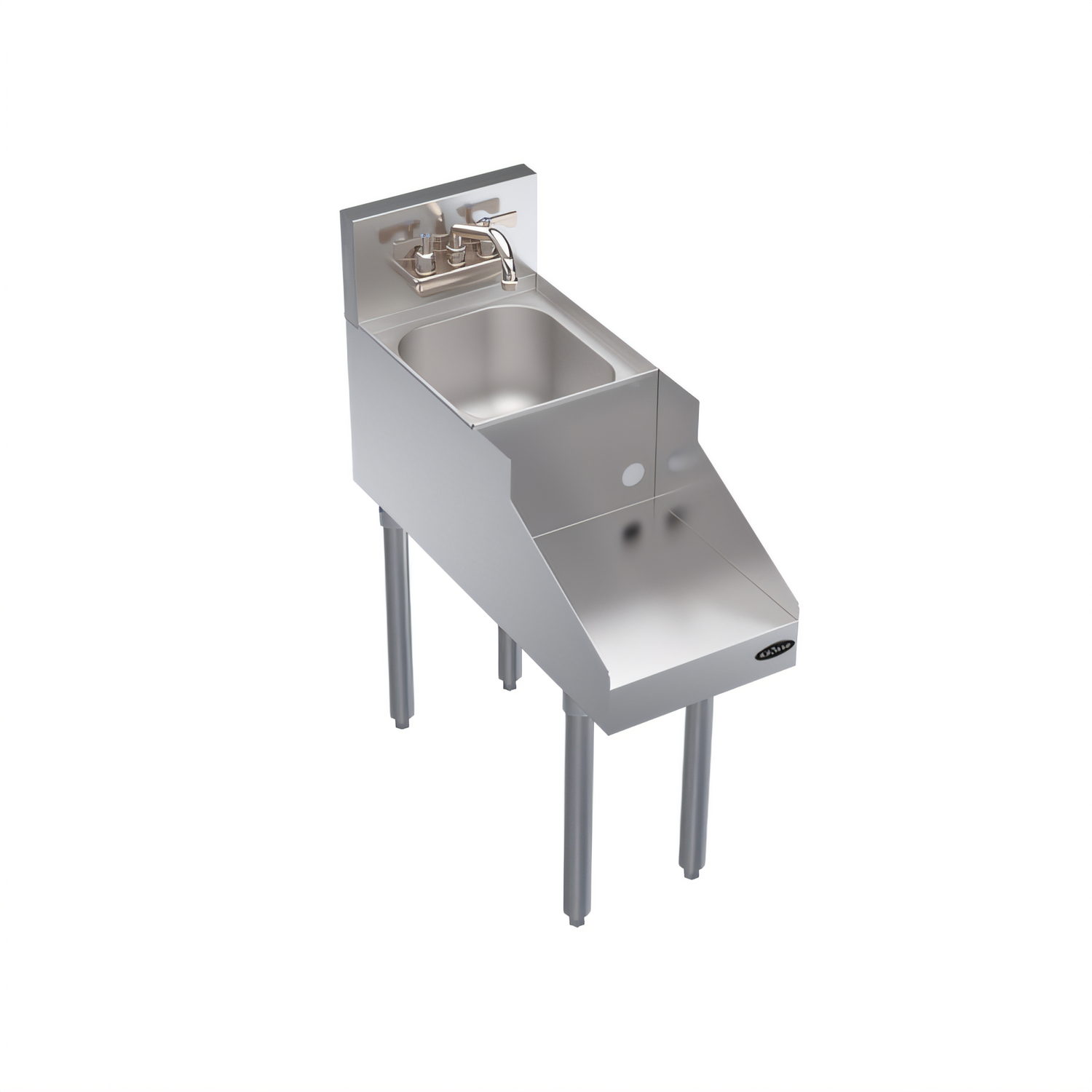

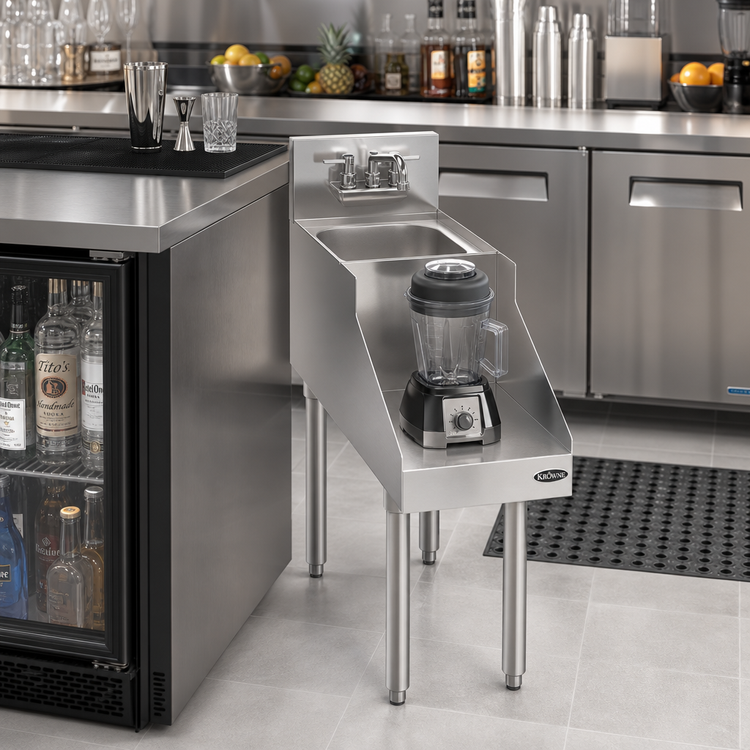

Royal Series 12" Underbar Blender Station with Dump Sink

Model KR29-12BD • by Krowne • NSF Listed

Designed to keep bartenders moving fast, the Krowne Royal Series KR29-12BD combines a recessed blender shelf, fully plumbed dump sink, and rugged stainless construction in a slim 12 inch footprint. Drop it in line with your 29"-deep double speed rail setup and give your staff a dedicated, code-compliant station for blending, rinsing, and disposing—all in one compact module.

Key Features

  • 29" front-to-back depth aligns with double speed-rail underbar lines.

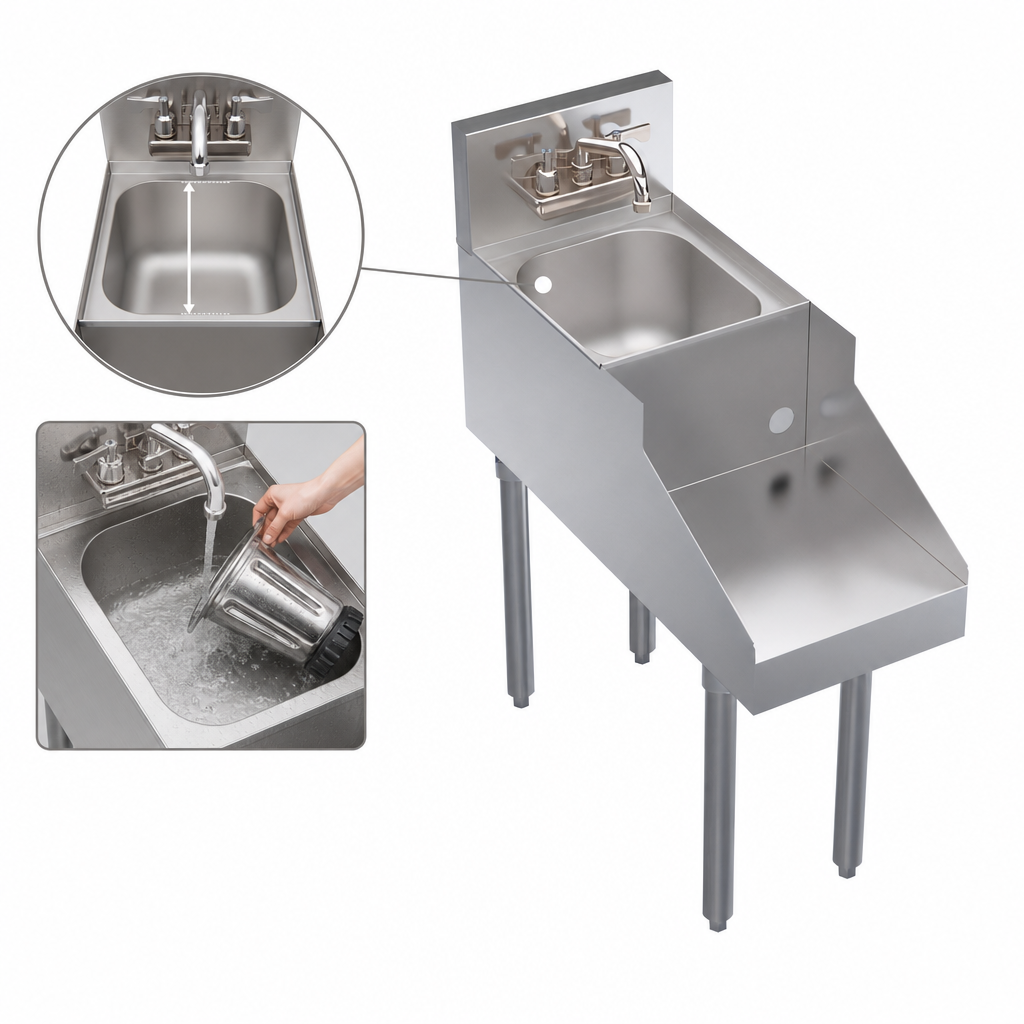

  • Integrated 10" × 12" × 7" stainless dump sink with 1 ½" center drain & strainer.
  • Factory-installed 4" center splash-mount Royal Series faucet (½" hot & cold inlets).

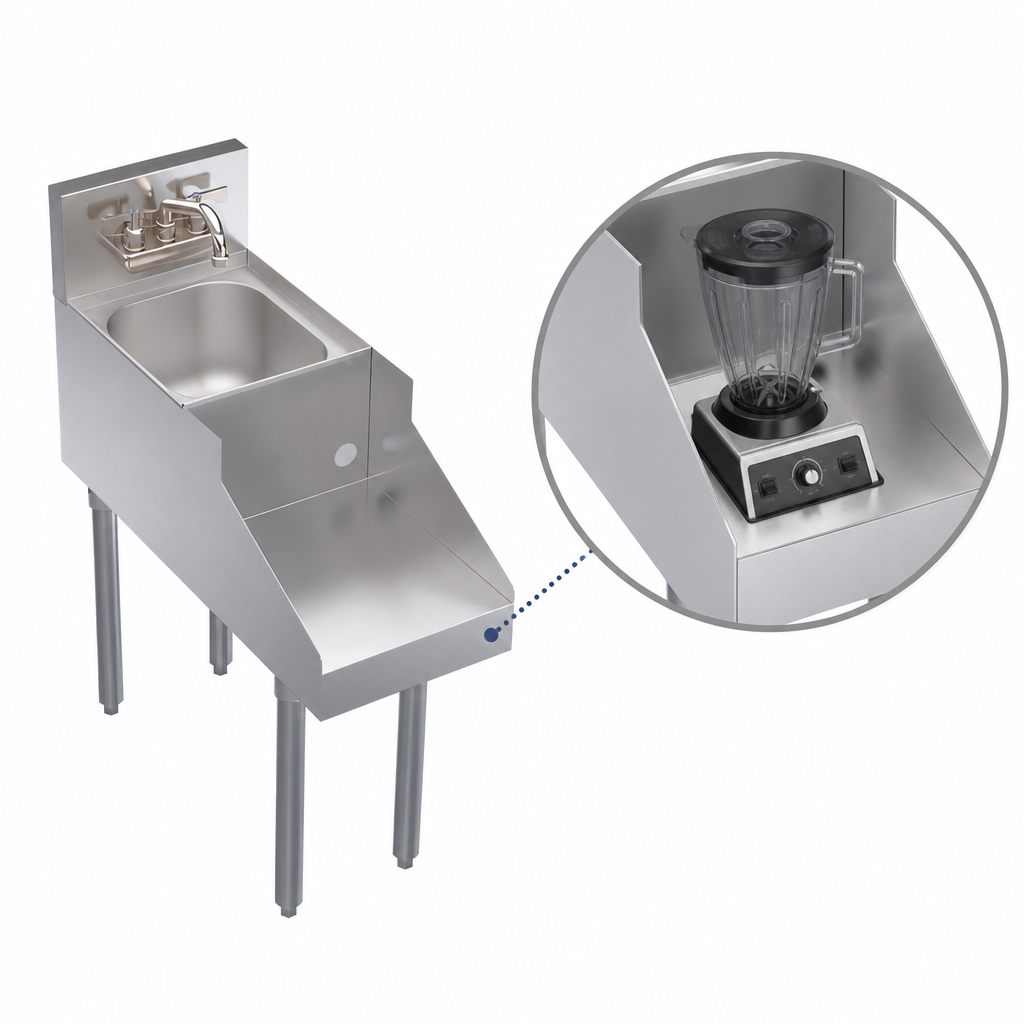

  • 14" deep recessed blender shelf keeps equipment below bar top for a cleaner look.
  • Utility box mounted under shelf for duplex receptacle; GFCI receptacle required (not included).
  • 20 ga stainless steel top, apron, backsplash & sides; 20 ga galvanized back & bottom.
  • 1 5⁄8" Ø, 16 ga stainless legs with adjustable thermoplastic bullet feet for quick leveling.
  • Power-cord access hole on front apron for hassle-free plug-in.
  • NSF listed for food-service sanitation compliance.

Specifications

Overall Width 12"
Overall Depth 29"
Overall Height 36 ½"
Recessed Blender Shelf Depth 14"
Dump Sink Bowl Size (W × D × H) 10" × 12" × 7"
Drain Connection 1 ½" center drain, 1" IPS outlet
Water Inlets ½" NPT hot & cold
Construction 20 ga stainless (top, apron, sides, backsplash) / 20 ga galvanized (back, bottom)
Legs / Feet 1 5⁄8" Ø, 16 ga stainless legs with adjustable thermoplastic bullet feet
Shipping Weight 53 lb

Optional Accessories (sold separately)

  • KR-316 Left-End Side Splash for 29" depth units
  • KR-317 Right-End Side Splash for 29" depth units
  • KR-318 Left & Right End Side Splashes set
  • KR-501 Stainless Towel Ring
  • 30-152 Stainless Steel Sink Strainer (fits 10" × 14" bowls)
  • 30-160 Universal Plastic Sink Strainer (fits all bowls)
Electrical Note: Utility box accepts a standard duplex receptacle; installer must supply and wire a GFCI outlet per local code.

Krowne Metal Corporation continually improves products; specifications are subject to change without notice.

Features & Specs

Manufacturer

Krowne

Brand_name

Royal Series

Certifications

NSF

Height

36.5in

Width

12.0in

Depth

29.0in

Shipping Weight

53.0lbs

Depth (front - back) OA

24" - 27"

Construction

stainless steel & galvanized

Width (side - side) OA

7" - 12"

Style

dump sink with blender recessed step

Type

free standing

Specifications

Royal Series Underbar Blender Station, with dump sink, 12"W x 29"D X 36-1/2"H O.A. (to match double speedrail depth), 7" deep sink bowl, splash mount Royal Series faucet, 14"D recessed blender shelf with utility box mounted underneath (GFCI receptacle required), stainless steel top, front, & sides, galvanized back & bottom, stainless steel legs with adjustable thermoplastic bullet feet, NSF
