Krowne KR24-W72E-10 Royal Series Bar Equipment
Description

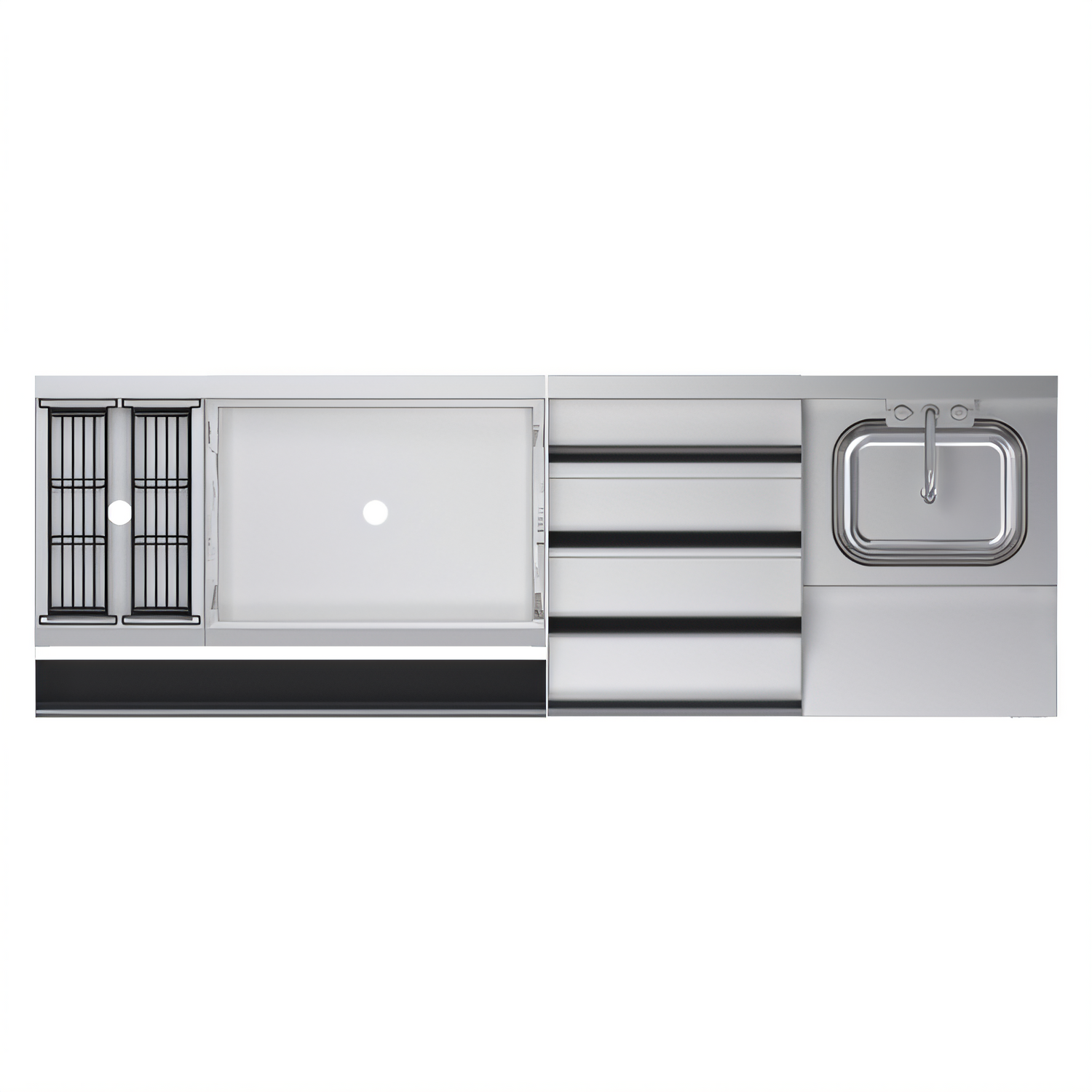

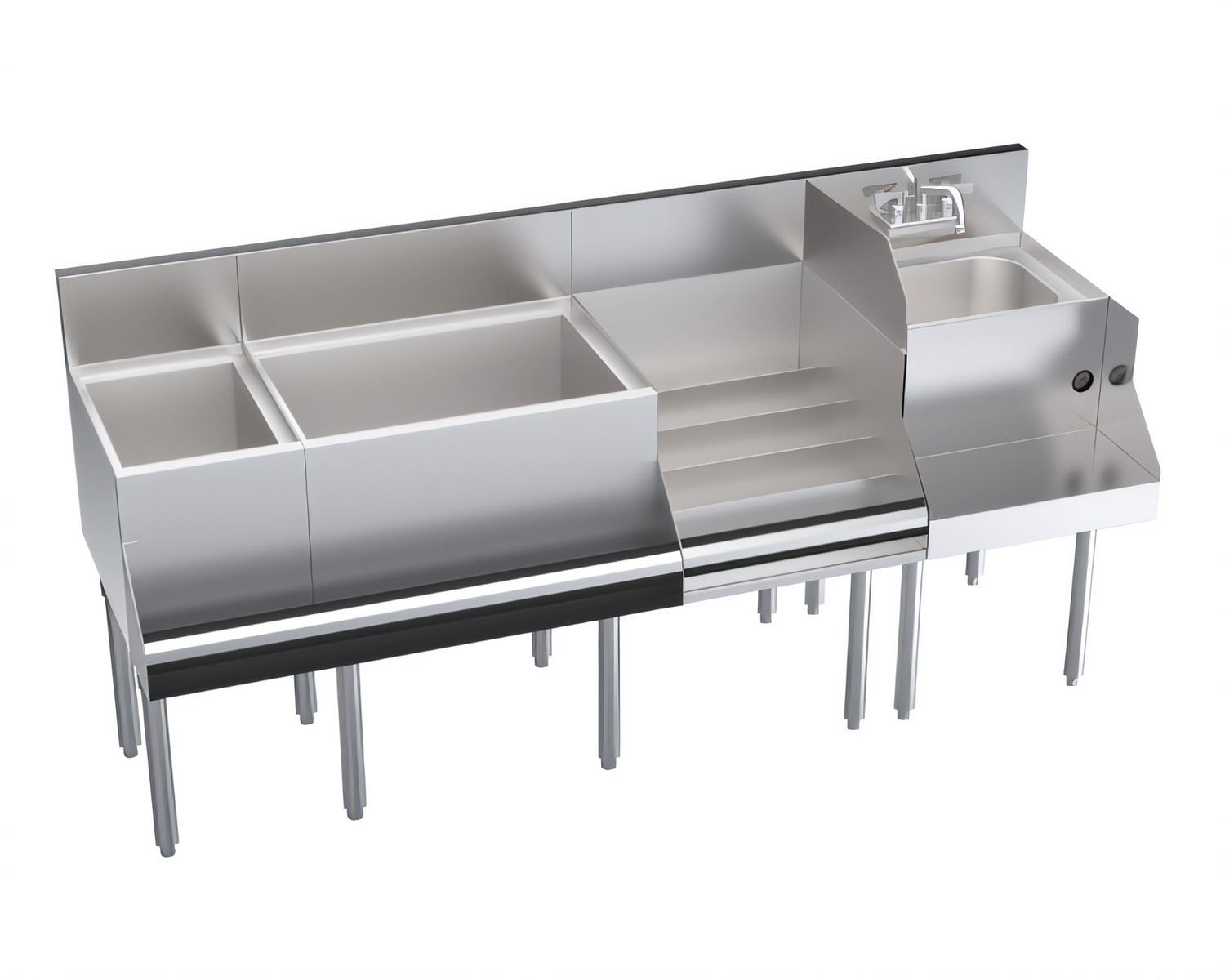

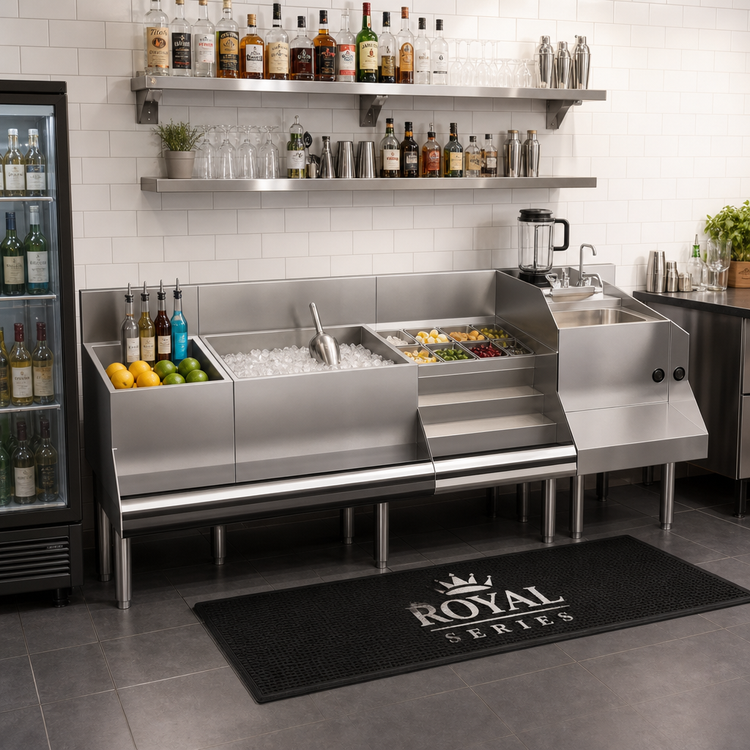

Royal Series 72" Underbar Ice Bin / Cocktail Station
with 10-Circuit Cold Plate, Blender & Liquor Display – by KrowneConsolidate every bar-side task into one streamlined workstation. The Krowne Royal Series 72" Cocktail Station combines a high-capacity cold-plate ice bin, insulated bottle storage, raised liquor display, dedicated blender bay and speedrail in a single, NSF-listed unit built entirely from heavy-gauge stainless steel. Fewer steps for your bartenders, faster service for your guests.
Why You’ll Love It

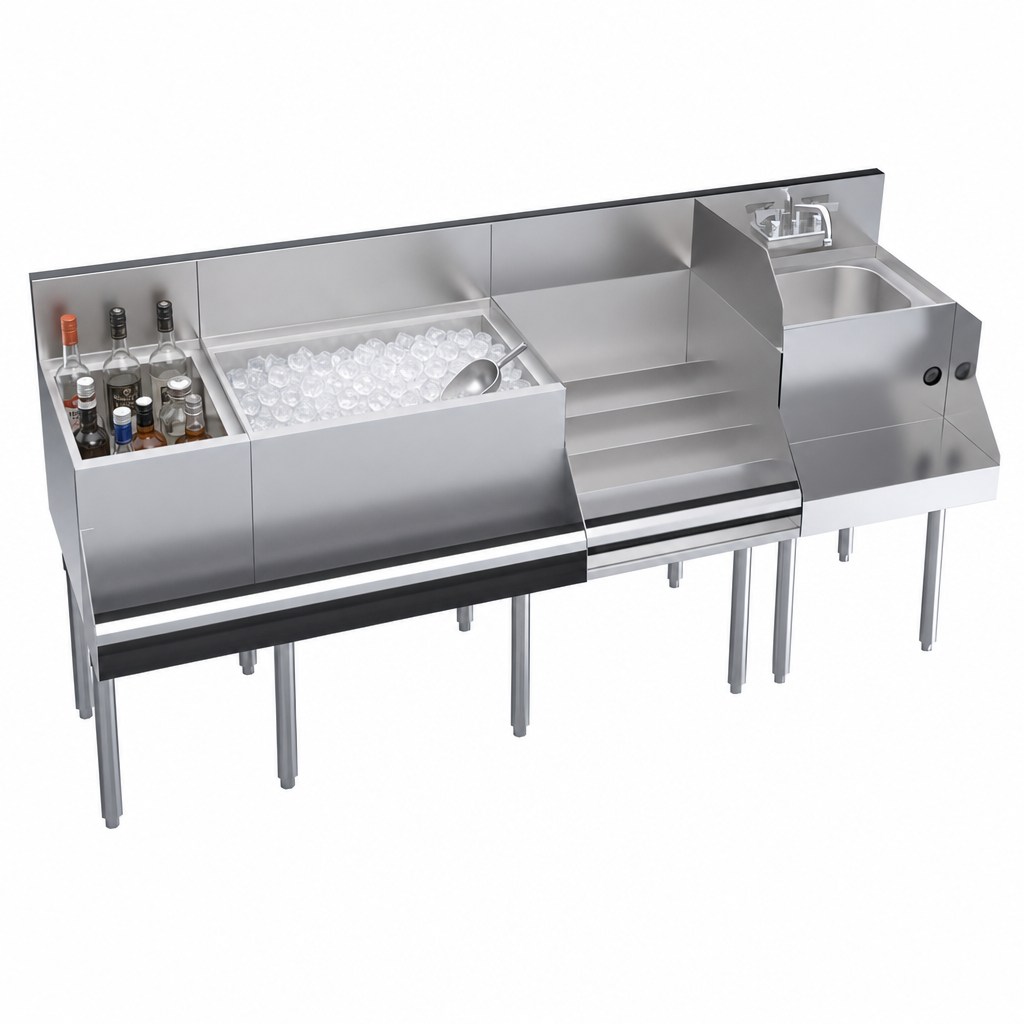

- Built-in refrigeration power – 24" ice bin holds 74 lbs and features a 10-circuit cast-aluminum cold plate for consistently chilled drinks.
- Ready for mixology – 12" insulated bottle bin keeps juices, purées and cream liqueurs ice-cold right where you need them.
- 18" raised liquor display – Showcase top-shelf offerings at eye level while freeing up valuable counter space.
- Dedicated blender station – 18" wide shelf with stainless dump sink, splash-mount Royal Series faucet and a duplex GFCI outlet tucked below.
- Sound-deadened single speedrail – Quietly stages most-used bottles for lightning-fast pours.
- Lasts shift after shift – 20 ga stainless interior, galvanized-reinforced exterior and 1-5/8" 16 ga stainless legs with adjustable thermoplastic bullet feet.
- NSF listed – Engineered to meet the highest food-safety standards right out of the box.
Technical Specifications
| Model | KR24-W72 Custom (Royal Series) |
|---|---|
| Overall Dimensions (W × D) | 72" × 24" |
| Working / Overall Height | 36 ½" working height | 43" to top of 6 ½" backsplash |
| Ice Bin | 24" long × 12" deep, 74 lb capacity, foamed-in-place insulation |

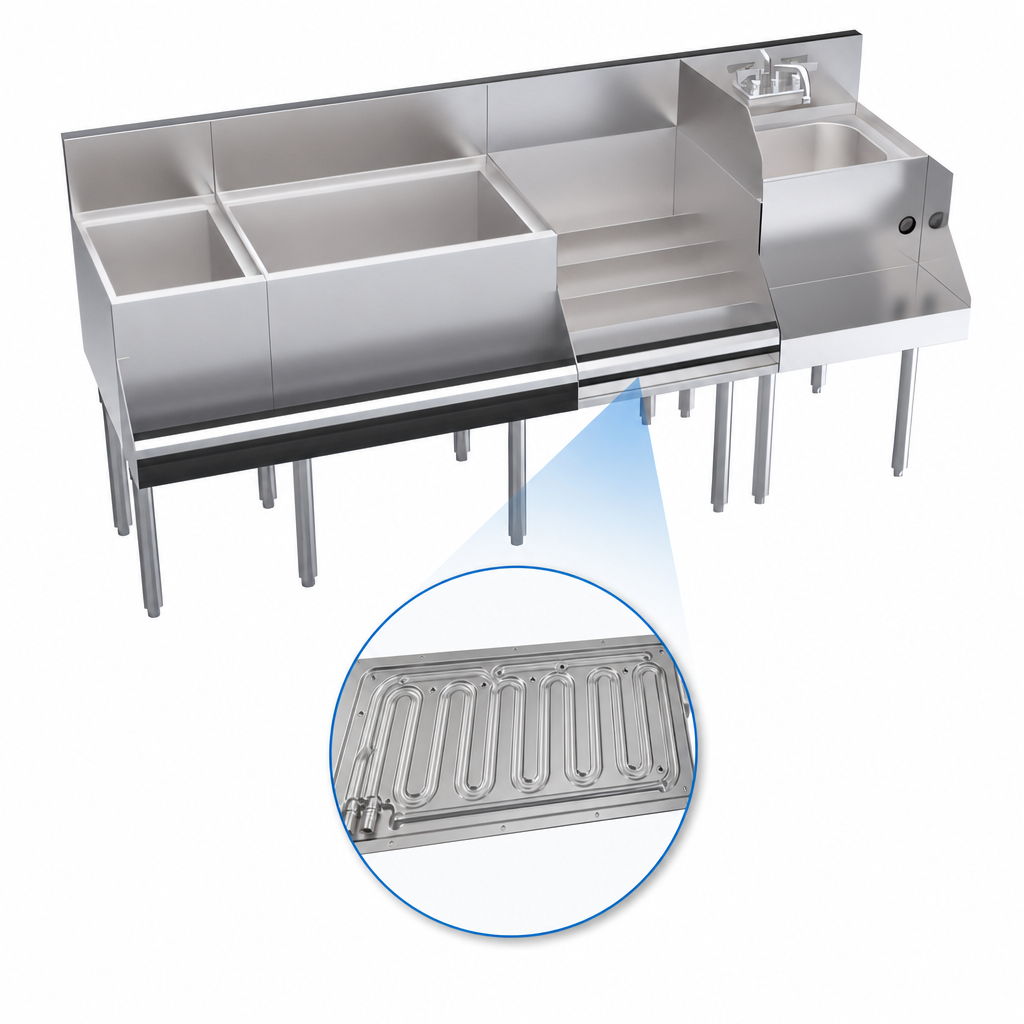

| Cold Plate | Cast aluminum, 10 circuits, 5/16" OD stainless tubing |
| Insulated Bottle Storage | 12" wide, removable bottle wells included |
| Liquor Display | 18" raised, stainless steel |
| Blender Station | 18" wide shelf with 14" × 10" × 7" dump sink & GFCI duplex outlet |
| Faucet | Royal Series 4" center splash-mount w/ ¼-turn ceramic cartridges |
| Plumbing Connections |
• Hot/Cold Water: ½" IPS • Ice Bin Drain (cold plate): ½" IPS with 4" PVC tailpiece • Dump Sink Drain: 1 ½" IPS |
| Electrical | 1× 15 A duplex outlet under blender shelf (115 V) |
| Construction | 20 ga SS interior, 20 ga SS clad front apron & backsplash over 20 ga galvanized exterior |
| Legs / Feet | 1-5/8" 16 ga stainless legs with adjustable thermoplastic bullet feet |
| Certifications | NSF Listed |
| Approx. Shipping Weight | ≈ 369 lb |
Optional Accessories (Sold Separately)
- Partial or full sliding ice-bin covers (specify bin size)
- KR-101 condiment tray
- KR-103 stainless steel ice-bin divider
- KR-313 side splashes / KR-314 end splashes
- KR-501 towel ring
- 30-160 perforated dump basket
- KR-806 6" longer stainless legs for added height
Cold-plate models ship with a PVC tailpiece to prevent condensation. Always maintain PVC-to-metal isolation when connecting to floor drains.
