Krowne KR24-W72D-10 Royal Series Bar Equipment
Description

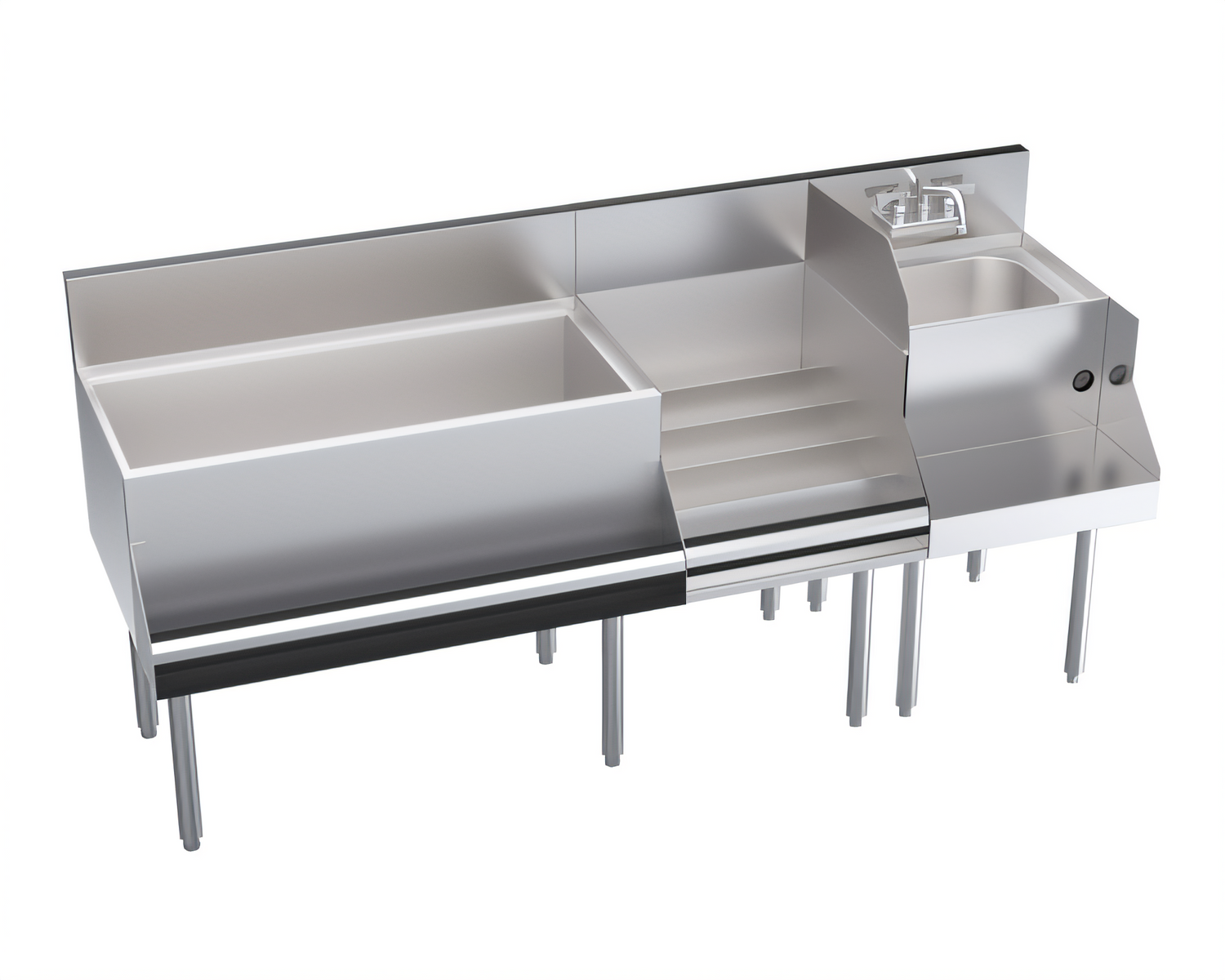

Krowne Royal Series 72" Underbar Ice Bin & Cocktail Workstation
Model KR24-W72D-10 • 10-Circuit Cold Plate • NSF ListedPower through peak service with an all-in-one cocktail station engineered for speed, consistency, and maximum beverage profits. This 72" Royal Series workstation combines a high-capacity cold-plate ice bin, dedicated blender and liquor modules, and Krowne’s legendary stainless-steel durability—giving bartenders everything they need within arm’s reach.
Highlights

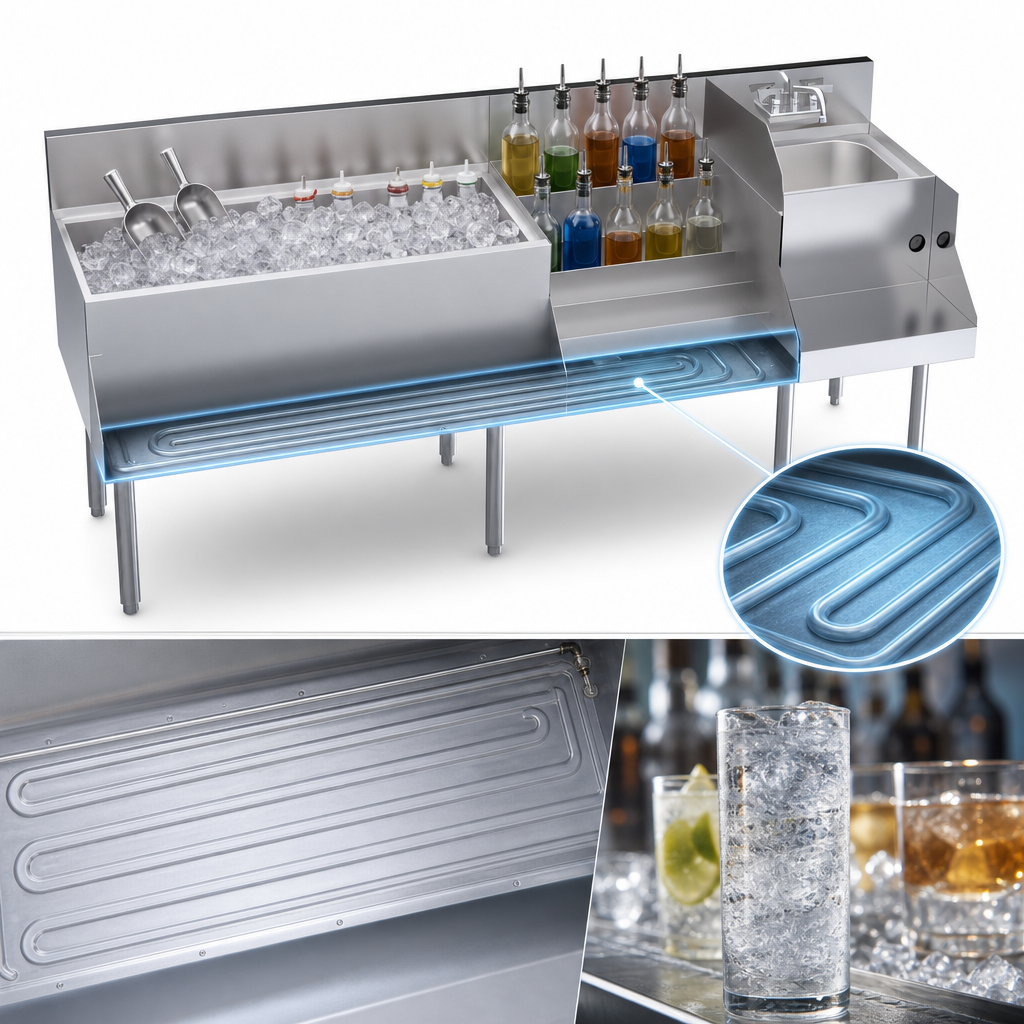

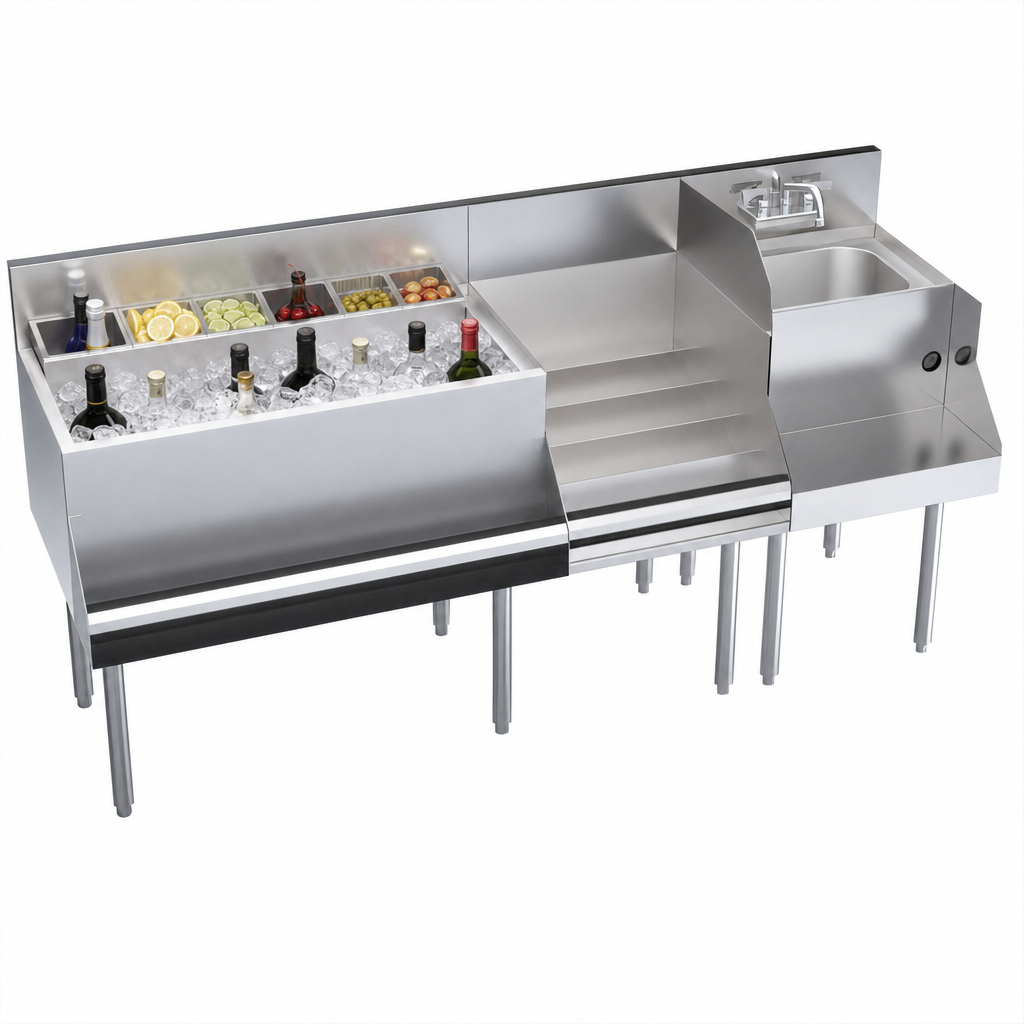

- 36" ice bin (110 lb capacity) with built-in 10-circuit cast-aluminum cold plate for syrup and soda lines
- Removable bottle wells keep spirits chilled and organized
- 18" raised two-tier liquor display for fast top-shelf access
- 18" blender station with dump sink and integral duplex outlet—perfect for frozen cocktails & smoothies
- Sound-deadened single speed rail minimizes noise during busy shifts
- Splash-mount Royal Series faucet with 1/4-turn ceramic valves
- Foamed-in-place polyurethane insulation locks in cold temperatures and prevents condensation
- Heavy-duty 1-5/8" stainless legs with adjustable thermoplastic bullet feet for rock-solid stability
- NSF certified for safe, worry-free operation in any commercial bar
Built for the Rush
From happy hour to last call, speed matters. The extra-deep 12" ice chest eliminates mid-shift refills, while the raised liquor display and insulated bottle wells place best-sellers and modifiers exactly where bartenders expect them. Result: faster drinks, shorter lines, and a noticeable bump in nightly ring totals.
Technical Specifications
| Overall dimensions (W × D) | 72" × 24" |
|---|---|
| Working height | 36 1/2" (with 6 1/2" backsplash) |
| Ice bin length / depth | 36" / 12" D |
| Ice capacity | 110 lbs |
| Cold plate | Cast-aluminum, 10 stainless-steel circuits (5/16" OD) |
| Blender dump sink bowl | 14" × 10" × 7" |
| Liquor display length | 18" |
| Speed rail | Single, sound-deadened |
| Plumbing connections |
1/2" IPS hot & cold water 1/2" IPS drain (ice bin w/ cold plate) 1 1/2" IPS drain (dump sink) |
| Electrical (blender) | Duplex outlet (120 V, 15 A) mounted under blender shelf |
| Construction | 20-ga. stainless interior, stainless front & backsplash clad over galvanized body |
| Legs / feet | 1 5/8" 16-ga. stainless legs with adjustable grey thermoplastic bullet feet |
| Shipping weight | ≈330 lbs |
| Certifications | NSF, Made in USA |
Optional Accessories
- Sliding ice-bin covers (partial or full)
- Condiment tray and stainless dividers
- Side/end splashes to contain mess
- Perforated dump basket, towel ring, 6" leg extensions, and more
Need a custom layout or factory-installed accessories? Chat with our team—Krowne workstations are built-to-order for the perfect fit behind your bar.
